A proxy class to export GmCellGroupSet methods to the Lua environment. More...

Inheritance diagram for GmLuaCellGroupSet:

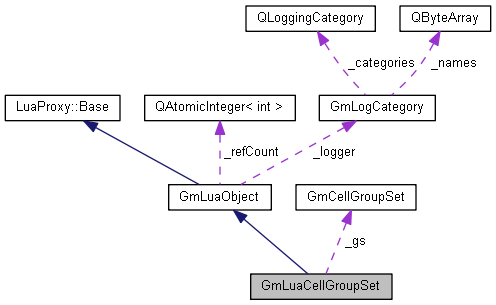

Collaboration diagram for GmLuaCellGroupSet:

[legend]

Public Member Functions
	GmLuaCellGroupSet (GmCellMesh *mesh, const QList< int > &groupIds, bool disjoint, const GmLogCategory &logger)
	Constructor. Receives the parameters needed for creating a new cell group set, owned by the proxy object.

virtual	~GmLuaCellGroupSet ()
	Destructor.

virtual const char *	typeName () const
	Returns the object type as will be stored in the object metatable.

virtual QString	toString () const
	Default method used by the __tostring metamethod to capture the result of tostring() over an object.

virtual void	fillMetatable (lua_State *L, int index)
	Prepares the object metatable for calling methods.

virtual void *	getClassMetatableID ()
	Returns an unique identifier to identify an user object as a GmLuaMesh object.

GmCellGroupSet *	cellGroupSet () const
	Returns the wrapped cell.

Public Member Functions inherited from GmLuaObject
virtual	~GmLuaObject ()
	Destrutor.

virtual void	populateMetatable (lua_State *L, int index)
	Fills the object metatable to allow for the proxy to export its methods.

QVariant	ptrToVariant ()
	Constructs a QVariant storing a POINTER to the current object.

void	ref ()
	Increments the object reference count. Use with care.

Protected Attributes
GmCellGroupSet *	_gs
	The cell group set 'wrapped' by this proxy object.

Protected Attributes inherited from GmLuaObject
const GmLogCategory &	_logger
	A logger used by the proxy when needed.

QAtomicInteger< int >	_refCount
	Lua objects are reference counted to enable sharing them among different states. This is needed to allow for passing objects as parameters in a parallel call. The garbage collection method releases memory only for the last reference.

Private Member Functions
int	numCells (lua_State *L)
	Returns the number of cells in the group.

int	cell (lua_State *L)
	Returns the i'th cell belonging to the group set given an 'i' index parameter (from 1 to numCells())

int	numNodes (lua_State *L)
	Returns the number of nodes in the cell group set.

int	node (lua_State *L)
	Returns the i'th node belonging to the group set given an 'i' index parameter (from 1 to numNodes())

int	cellGroups (lua_State *L)
	Returns a table with cell group names from mesh cell groups belonging to this set. Can be an empty table.

int	mesh (lua_State *L)
	Returns the associated cell mesh.

Additional Inherited Members
Protected Member Functions inherited from GmLuaObject
	GmLuaObject (const GmLogCategory &logger)
	Construtor protegido. Somente classes derivadas devem ser instanciadas.

Detailed Description

A proxy class to export GmCellGroupSet methods to the Lua environment.

The documentation for this class was generated from the following files:
