GmLuaDiscontinuity Class Reference

A proxy class to export GmDiscontinuity methods to the Lua environment. More...

#include <gmLuaDiscontinuitySet.h>

Inheritance diagram for GmLuaDiscontinuity:

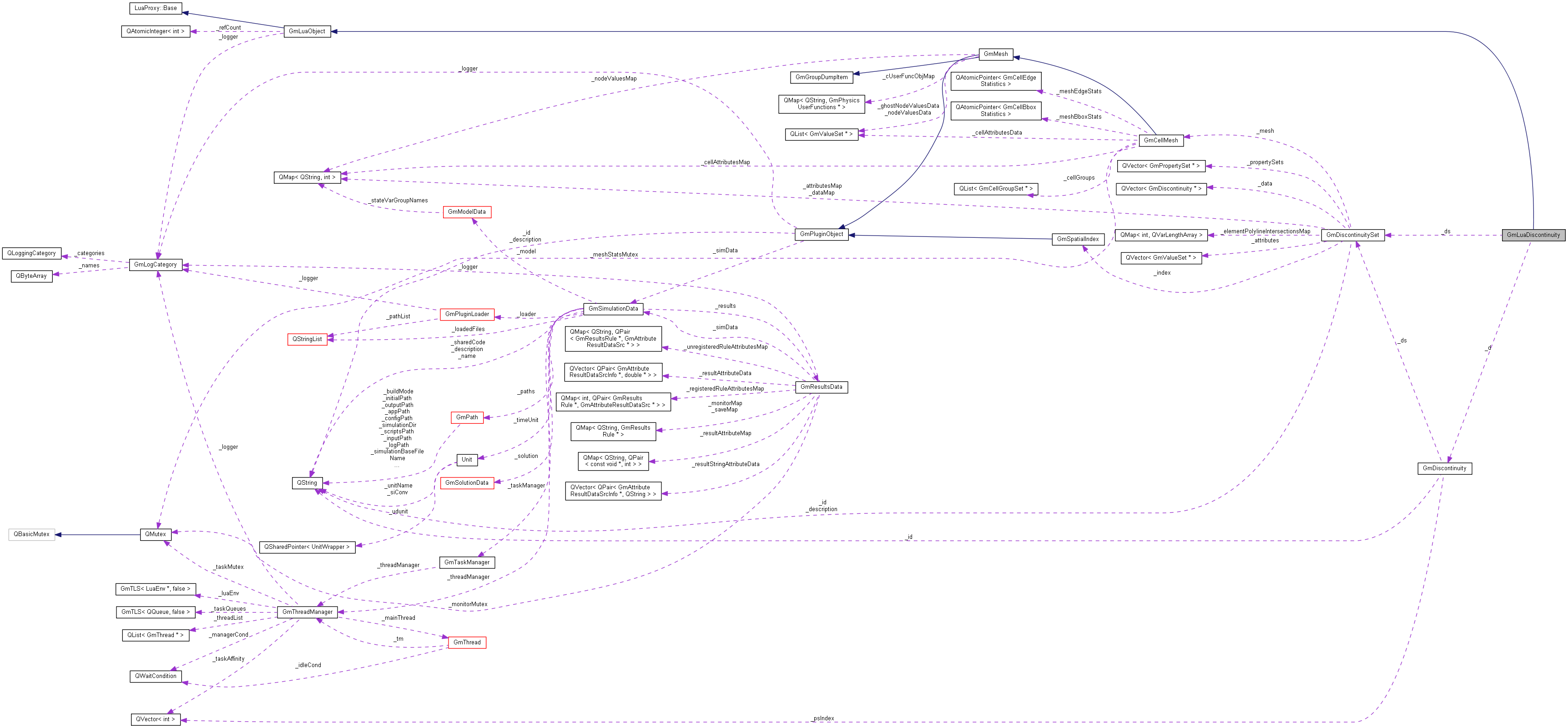

Collaboration diagram for GmLuaDiscontinuity:

Public Member Functions
	GmLuaDiscontinuity (GmDiscontinuity *d, GmDiscontinuitySet *ds, const GmLogCategory &logger)
	Constructor. Receives the discontinuity to be wrapped.
virtual	~GmLuaDiscontinuity ()
	Destructor.
virtual const char *	typeName () const
	Returns the object type as will be stored in the object metatable.
virtual QString	toString () const
	Default method used by the __tostring metamethod to capture the result of tostring() over an object.
virtual void	fillMetatable (lua_State *L, int index)
	Prepares the object metatable for calling methods.
virtual void *	getClassMetatableID ()
	Returns an unique identifier to identify an user object as a GmLuaMesh object.
GmDiscontinuity *	disc () const
	Returns the associated discontinuity object.
Public Member Functions inherited from GmLuaObject
virtual	~GmLuaObject ()
	Destrutor.
virtual void	populateMetatable (lua_State *L, int index)
	Fills the object metatable to allow for the proxy to export its methods.
QVariant	ptrToVariant ()
	Constructs a QVariant storing a POINTER to the current object.
void	ref ()
	Increments the object reference count. Use with care.
Public Member Functions inherited from LuaProxy::Base

Private Member Functions
int	index (lua_State *L)
	Returns the discontinuity index.
int	id (lua_State *L)
	Returns the discontinuity name.
int	cellGroupIndex (lua_State *L)
	Returns the index of the cell group associated with this discontinuity. Retuns nil if there is none.
int	propertyIndex (lua_State *L)
	Given a property set number, returns the line of the property set that contains property values for this discontinuity.
int	numSegments (lua_State *L)
	Returns the number of geometry "segments" for this discontinuity.

Private Attributes
GmDiscontinuity *	_d
	The discontinuity 'wrapped' by this proxy object.
GmDiscontinuitySet *	_ds
	The discontinuity set that _d belongs to.

Additional Inherited Members
Protected Member Functions inherited from GmLuaObject
	GmLuaObject (const GmLogCategory &logger)
	Construtor protegido. Somente classes derivadas devem ser instanciadas.
Protected Attributes inherited from GmLuaObject
const GmLogCategory &	_logger
	A logger used by the proxy when needed.
QAtomicInteger< int >	_refCount
	Lua objects are reference counted to enable sharing them among different states. This is needed to allow for passing objects as parameters in a parallel call. The garbage collection method releases memory only for the last reference.

Detailed Description

A proxy class to export GmDiscontinuity methods to the Lua environment.

Member Function Documentation

fillMetatable()

void GmLuaDiscontinuity::fillMetatable ( lua_State * L, int index )

virtual

Prepares the object metatable for calling methods.

Implements GmLuaObject.

getClassMetatableID()

virtual void * GmLuaDiscontinuity::getClassMetatableID ( )

inlinevirtual

Returns an unique identifier to identify an user object as a GmLuaMesh object.

Implements LuaProxy::Base.

toString()

QString GmLuaDiscontinuity::toString ( ) const

virtual

Default method used by the __tostring metamethod to capture the result of tostring() over an object.

Reimplemented from GmLuaObject.

typeName()

virtual const char * GmLuaDiscontinuity::typeName ( ) const

inlinevirtual

Returns the object type as will be stored in the object metatable.

Implements GmLuaObject.

---

The documentation for this class was generated from the following files:

• inc/gmLuaDiscontinuitySet.h
• src/gmLuaDiscontinuitySet.cpp
