GmpCoupledHMFemPhysics Class Reference

Basic class for the coupled hydro-mechanical physics plugin object. More...

#include <gmpCoupledHMFemPhysics.h>

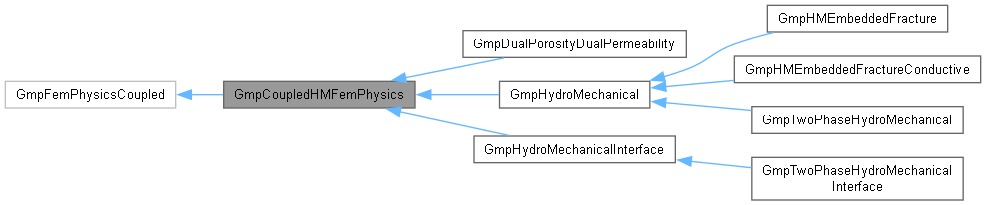

Inheritance diagram for GmpCoupledHMFemPhysics:

Collaboration diagram for GmpCoupledHMFemPhysics:

Public Member Functions
	GmpCoupledHMFemPhysics (const char *pluginType, GmSimulationData *simulation, QString id, QString description, const GmpFemPhysicsCommonMaterialFactory *matFactory, const GmLogCategory &logger)
	Constructor. Will be called by the plugin loading code.
virtual	~GmpCoupledHMFemPhysics ()
	Destructor.
virtual const char *	pluginName () const
virtual const char *	pluginType () const
virtual const QVariantMap *	physicsMetaDataMap ()
	Returns a reference for the single hydro-mechanical physics attribute map, built when the function is called for the first time.
virtual bool	supportsStateDumping ()
virtual bool	fixedNodalForcesBc (QVector< int > &nodes, QVector< int > &dof, QVector< double > &values) const
virtual bool	fixedNodalDofsBc (QVector< int > &nodes, QVector< int > &dof, QVector< double > &values, bool *constantValues) const
virtual FemResultType	fillElementDataForBc (const GmElement *e, const GmBoundaryCondition *bc, int bcIndex, int bcListIndex, int border, GmpFemMatrixSet &elemMatrices, GmpFemVectorSet &elemVectors)

Protected Types
enum	PhysicsAttributeIds { ISOPARAMETRIC_ID , NUM_ATTRI_IDS }
	IDs for physics attributes. More...
enum	StateVarIds { U_ID , P_ID , NUM_STATEVAR_IDS }
	IDs for Mechanical and Hydro physics state vars. More...

Protected Member Functions
virtual bool	checkAndLoadPrivateData (LuaTable &table)
	Overloads default checkAndLoadPrivateData() to be able to setup materials.

Protected Attributes
const char *	_pluginType
	The plugin type name.
bool	_setInitialCond
	Sets the initial conditions required by the physics.
GmpMechanicalPhysics *	_mechPhys
	The mechanical physics providing parameters and matrices to the coupling equation.
GmpHydraulic *	_hydroPhys
	The hydraulic physics providing parameters and matrices to the coupling equation.

Detailed Description

Basic class for the coupled hydro-mechanical physics plugin object.

Member Enumeration Documentation

PhysicsAttributeIds

enum GmpCoupledHMFemPhysics::PhysicsAttributeIds

protected

IDs for physics attributes.

Enumerator
ISOPARAMETRIC_ID	Id for retrieving the isoParametric physics attribute.
NUM_ATTRI_IDS	The number of physics attribute ids above.

StateVarIds

enum GmpCoupledHMFemPhysics::StateVarIds

protected

IDs for Mechanical and Hydro physics state vars.

Enumerator
U_ID	Id for retrieving the accessor to the displacement state var.
P_ID	Id for retrieving the accessor to the pore pressure state var.
NUM_STATEVAR_IDS	The number of state var ids above.

Member Function Documentation

checkAndLoadPrivateData()

bool GmpCoupledHMFemPhysics::checkAndLoadPrivateData ( LuaTable & table )

protectedvirtual

Overloads default checkAndLoadPrivateData() to be able to setup materials.

Reimplemented in GmpHMEmbeddedFracture, and GmpHMEmbeddedFractureConductive.

physicsMetaDataMap()

const QVariantMap * GmpCoupledHMFemPhysics::physicsMetaDataMap ( )

virtual

Returns a reference for the single hydro-mechanical physics attribute map, built when the function is called for the first time.

Reimplemented in GmpDualPorosityDualPermeability, GmpHMEmbeddedFracture, GmpHMEmbeddedFractureConductive, GmpHydroMechanical, GmpHydroMechanicalInterface, GmpTwoPhaseHydroMechanical, and GmpTwoPhaseHydroMechanicalInterface.

---

The documentation for this class was generated from the following files:

• inc/gmpCoupledHMFemPhysics.h
• src/gmpCoupledHMFemPhysics.cpp
