GmpHydraulicEmbeddedFracture Class Reference

Basic class for the hydraulic physics plugin object. More...

#include <gmpHydraulicEmbeddedFracture.h>

Inheritance diagram for GmpHydraulicEmbeddedFracture:

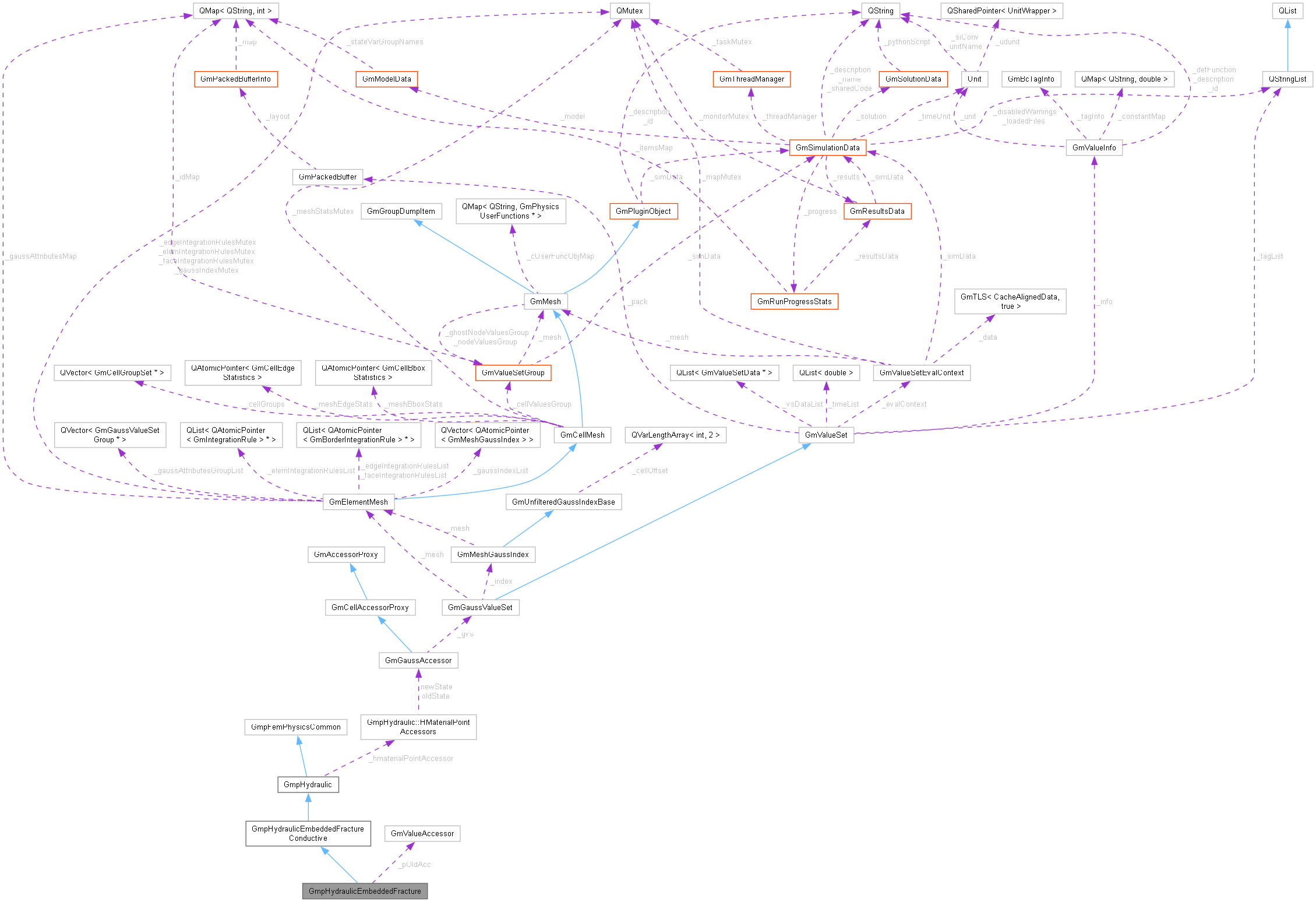

Collaboration diagram for GmpHydraulicEmbeddedFracture:

Public Types
enum	embeddedPhysicsAttributeIds { DP_ID , DPOLD_ID , NUM_ATTRI_IDS }
	IDs for physics attributes. More...
Public Types inherited from GmpHydraulic
enum	HMaterialPointStates { saturated , unsaturated }
enum	PhysicsAttributeIds {   ISOPARAMETRIC_ID , POROSITY_UPDATE_ID , PERMEABILITY_UPDATE_ID , USE_CONSISTENT_MATRIX_ID ,   VELOCITY_MODE_ID , FLOW_MODE_ID , DIRECT_ID , CGRAV_ID ,   VF_MODE_ID , NUM_ATTRI_IDS }
	IDs for physics attributes. More...
enum	StateVarIds { P_ID , NUM_STATEVAR_IDS }
	IDs fo physics state vars. More...
enum	NodeAttributeIds { V_NA_ID , Q_NA_ID , VF_NA_ID , NUM_NA_IDS }
	IDs for physics node attributes. More...
enum	cellAttributeIds { NUM_CA_IDS }
	IDs for physics Cell attributes. More...
enum	GaussAttributeIds {   V_GA_ID , Q_GA_ID , FT_GA_ID , FTOLD_GA_ID ,   NUM_GA_IDS }
	IDs for physics Gauss attributes. More...
enum	ElementPropertyIds { THICKNESS_ID , GRAV_ID , SOURTERM_ID , NUM_PROPER_IDS }
	IDs for physics element properties. More...
enum	BoundaryConditionIds { FIXED_P_BC_ID , FIXED_Q_BC_ID , FIXED_SPF_BC_ID , NUM_BC_IDS }
	IDs for accepted boundary condition types. More...
enum	BoundaryConditionValueIds { BC_P_ID , BC_QW_ID , BC_IF_ID , NUM_BCV_IDS }
	IDs for property values from accepted boundary condition types. More...

Public Member Functions
	GmpHydraulicEmbeddedFracture (const char *pluginType, GmSimulationData *simulation, QString id, QString description, const GmpFemPhysicsCommonMaterialFactory *matFactory, const GmLogCategory &logger)
	Constructor. Will be called by the plugin loading code.
virtual	~GmpHydraulicEmbeddedFracture ()
	Destructor.
virtual const char *	pluginType () const
virtual const QVariantMap *	physicsMetaDataMap ()
	Returns a reference for the single Hydraulics attribute map, built when the function is called for the first time.
bool	checkAndLoadAttributeAccessors (LuaTable &nodeTable, LuaTable &cellTable, LuaTable &gaussTable)
	Reimplementation of the common function to init the _hmaterialPointAccessor structure.
virtual FemResultType	fillElementData (const GmElement *e, GmpFemMatrixSet &elemMatrices, GmpFemVectorSet &elemVectors)
	Fills the element matrices and vectors for a generic element.
virtual FemResultType	fillEnrichedElementData (const GmElement *e, GmpFemMatrixSet &elemMatrices, GmpFemVectorSet &elemVectors, int nDiscontinuities)
	Fills the element matrices and vectors for a enriched element.
virtual FemResultType	fullyImplicitTimeDiscretization (const GmElement *e, GmpFemMatrixSet &elemMatrices, GmpFemVectorSet &elemVectors)
	Discretizes the system of equations in time using a fully implicit scheme.
virtual bool	fillDiscontinuityInternalPressureNodalValues (GmElement *e, GmValueAccessor *nAc)
	Fills nodal pressure of the discontinuity elements inside element e TODO: Consider the discontinuity pressure jump.
void	fillElementOldPorePressure (const GmElement *e, GmVector &pe)
	Given an element, fills the vector pe with nodal old pore pressure. The vector should have size equal to the number of calculated nodes.
void	fillElementPorePressureJump (const GmElement *e, GmVector &Dp)
	Given an element, fills the vector Dp with the current pore pressure jump. The vector should have size equal to the number of discontinuities that crosses the element.
void	fillElementOldPorePressureJump (const GmElement *e, GmVector &dpe)
	Given an element, fills the vector DpOld with the old pore pressure jump. The vector should have size equal to the number of discontinuities that crosses the element.
void	setElementPorePressureJump (const GmElement *e, GmVector &dpe)
	Given an element, sets the value of the pressure jump associated with the discontinuity elements.
void	fillDiscontinuitySetInternalPressure (const GmElement *e, GmVector &pd, QMap< int, int > dNodesGlobalToLocal)
	Given an element, fills the vector pd with the internal pressure of the discontinuity set elements.
void	fillDiscontinuitySetOldInternalPressure (const GmElement *e, GmVector &pdOld, QMap< int, int > dNodesGlobalToLocal)
	Given an element, fills the vector pdOld with the old internal pressure of the discontinuity set elements.
void	setDiscontinuitySetInternalPressure (const GmElement *e, GmVector &pd, QMap< int, int > dNodesGlobalToLocal)
	Given an element, set the vector pd with the internal pressure of the discontinuity set elements.
FemResultType	fillDiscontinuousPressureElementSubData (const GmElement *e, bool needsK, bool needsC, bool needsFi, GmMatrix &Hcc, GmMatrix &Hcj, GmMatrix &Hjc, GmMatrix &Hjj, GmMatrix &Scc, GmMatrix &Scj, GmMatrix &Sjj, QMap< int, int > dNodesGlobalToLocal, int nDeltaPDofs)
	Fills the element matrices and vectors of the enriched element that considers a discontinuous pressure field.
void	fillCompressibilityMatrices (const GmElement *e, GmMatrix &Xe, const GmVector *coord, int ip, GmMatrix &Scc, GmMatrix &Scj, GmMatrix &Sjj, const GmVector &N, double c, int nDeltaPDofs)
	Fills the element compressibility matrices for a enriched element with discontinuous pressure field. TODO: Implement the enriched shape function vector and add the discontinuous part.
void	fillFluidFlowMatrices (const GmElement *e, GmMatrix &Xe, const GmVector *coord, int ip, GmMatrix &Hcc, GmMatrix &Hcj, GmMatrix &Hjc, GmMatrix &Hjj, const GmMatrix &Bp, double c, int nDeltaPDofs)
	Fills the element fluid-flow matrices for a enriched element with discontinuous pressure field.
void	fillEnrichedShapeValues (const GmElement *e, GmMatrix &Xe, GmVector &N, GmVector &X, int idDiscontinuityElem, GmVector &Nenr)
void	fillNenrMatrix (const GmElement *e, GmMatrix &Xe, GmVector &N, GmVector &X, GmVector &Nenr)
void	fillGMatrix (const GmElement *e, GmMatrix &Xe, const GmMatrix &B, GmMatrix &G)
int	getNumberEnrichedDofs (const GmElement *e)
	Gets the number of enrichment degrees of freedom in the given element Considers that each discontinuity has one pressure jump dof.
FemResultType	fillDiscontinuitySetElementData (const GmElement *e, GmMatrix &Hd, GmMatrix &Sd, GmMatrix &Lcc, GmMatrix &Lcj, GmMatrix &Lcd, GmMatrix &Ljj, GmMatrix &Ljd, GmMatrix &Ldd, GmMatrix &Tcd, GmMatrix &Tjd, QMap< int, int > globalToLocal)
	Fills the element matrices and vectors of the discontinuity elements.
Public Member Functions inherited from GmpHydraulicEmbeddedFractureConductive
	GmpHydraulicEmbeddedFractureConductive (const char *pluginType, GmSimulationData *simulation, QString id, QString description, const GmpFemPhysicsCommonMaterialFactory *matFactory, const GmLogCategory &logger)
	Constructor. Will be called by the plugin loading code.
virtual	~GmpHydraulicEmbeddedFractureConductive ()
	Destructor.
bool	checkAndLoadAttributeAccessors (LuaTable &nodeTable, LuaTable &cellTable, LuaTable &gaussTable)
	Reimplementation of the common function to init the _hmaterialPointAccessor structure.
virtual bool	checkAndLoadDiscontinuitySetAccessors (LuaTable &table)
	Reimplementation of the common function to set initial gauss attributes.
virtual bool	setInitialConditions ()
	Sets the initial conditions required by interface elements. An = normal aperture.
virtual bool	calcDerivedResults (bool nonLinear)
	Save the internal pressure dofs associated with the discontinuities.
void	assembleDiscontinuityElementMatrix (GmMatrix &Kg, const GmMatrix &Kl, const QVector< int > &dof) const
	Assemble the contribution of the discontinuity element.
FemResultType	fillDiscontinuitySetElementData (const GmElement *e, GmMatrix &Hd, GmMatrix &Sd, GmMatrix &Tcd, const QMap< int, int > &dNodesGlobalToLocal)
	Fills the element matrices and vectors of the discontinuity elements.
FemResultType	fillContinuumElementData (const GmElement *e, GmMatrix &Hcc, GmMatrix &Scc)
	Reimplementation of the continuum regular element fillElementData. This function is used by the coupled hydro-mechanical embedded physics. TODO: Try to improve and avoid its use, by getting directly the matrices from the base class.
Public Member Functions inherited from GmpHydraulic
	GmpHydraulic (const char *pluginType, GmSimulationData *simulation, QString id, QString description, const GmpFemPhysicsCommonMaterialFactory *matFactory, const GmLogCategory &logger)
	Constructor. Will be called by the plugin loading code.
virtual	~GmpHydraulic ()
	Destructor.
virtual const char *	pluginName () const
virtual bool	supportsStateDumping ()
virtual bool	fixedNodalForcesBc (QVector< int > &nodes, QVector< int > &dof, QVector< double > &values) const
	See comments on base class. Fills vectors with prescribed nodal forces - flow.
virtual bool	fixedNodalDofsBc (QVector< int > &nodes, QVector< int > &dof, QVector< double > &values, bool *constantValues) const
	See comments on base class. Fills vectors with prescribed node pore pressures.
virtual FemResultType	fillElementDataForBc (const GmElement *e, const GmBoundaryCondition *bc, int bcIndex, int bcListIndex, int border, GmpFemMatrixSet &elemMatrices, GmpFemVectorSet &elemVectors)
virtual FemResultType	fillElementDataBc (const GmElement *e, const GmBoundaryCondition *bc, int bcIndex, int bcListIndex, int border, GmMatrix &elemMat, GmVector &elemVec)
virtual void	fillStorageCompMatrix (const GmElement *e, const GmVector *coord, int ip, GmMatrix &Sc, const GmVector &N, double c)
	Calculates the stiffness matrix of "storage / compressibility" for element 'e' at the given integration point (coord, ip) storing the result at the Sc matrix. N is the shape function vector and c a constant equal to w * h * detJ.
virtual void	fillFlowMatrix (const GmElement *e, const GmVector *coord, int ip, GmMatrix &Kc, const GmMatrix &Bp, double c) const
	Calculates the flow stiffness matrix due to permeability contribution or permeability matrix for element 'e' at the given integration point (coord, ip) storing the result at the Kc matrix. Bp is the strain pore pressure matrix and c a constant equal to w * h * detJ.
virtual void	fillFluidVelocity (const GmElement *e, const GmVector *coord, int ip, GmVector &Vip, const GmVector &Pe, const GmMatrix &Bp) const
	Evaluates velocity at integration points (it should be improved to consider gravity effect)
virtual void	fillElementPorePressure (const GmElement *e, GmVector &pe)
	Given an element, fills the vector pe with nodal pore pressure. The vector should have size equal to the number of calculated nodes.
virtual void	gravitySupplyFluid (const GmElement *e, const GmVector *coord, int ip, GmVector &qext_gsf, GmMatrix &Bp, double c)
virtual void	fillSourceTermVector (const GmElement *e, const GmVector *coord, int ip, GmVector &St, const GmVector &N, double c)
	Calculates the source term due the porosity rate of porous eskeleton for element 'e' at the given integration point (coord, ip) storing the result at external vector. N is the shape function vector and c a constant equal to w * h * detJ.
virtual double	fillBpMatrix (const GmShape *shape, const GmVector &ncoord, const GmMatrix &X, const GmVector &N, const GmMatrix &J, GmMatrix &Bp)=0
	Given a point 'ncoord', the element coordinate matrix 'X', the point shape functions 'N' and the transformation Jacobian 'J', fills the matrix with cartesian partial derivatives Bp using the provided shape function and returns the scaled jacobian determinant.
virtual void	gravityVector (const GmElement *e, const GmVector *coord, int ip, GmVector &grav) const
	Returns the gravity accelaration vector.
virtual bool	isAxisymmetric ()
	Returns TRUE only for axisymmetric models.
virtual double	axisymmetricFactor (const GmElement *e, const GmMatrix &X, const GmVector &N) const
	Returns the factor that should be applied when using axis symetric elements. 1.0 for other etypes.
HMaterialPointAccessors &	hydraulicMaterialPoint ()
	Returns the hydraulic material point accessor.

Private Attributes
const char *	_pluginType
	The plugin type name.
GmValueAccessor *	_pOldAcc
	Accessor to the old pore pressure.

Additional Inherited Members
Protected Member Functions inherited from GmpHydraulic
virtual void	calcElementDerivedResultAtPoints (const GmElement *e, int resultId, const GmMatrix &evalPoints, bool evalAtIp, GmMatrix &result)
	The virtual function used by calcDerivedResults() to effectivelly calculate the velocity (resultId = 0) or the flow (resultId = 1) at the given evaluation points.
void	calcElementVelocityAtPoints (const GmElement *e, const GmMatrix &evalPoints, GmMatrix &v)
	The function responsible for effectivelly calculating the velocity at the given evaluation points, filling v.
void	calcElementFlowAtPoints (const GmElement *e, const GmMatrix &evalPoints, bool evalAtIp, GmMatrix &q)
	The function responsible for effectivelly calculating the flow at the given evaluation points, filling q.
Protected Attributes inherited from GmpHydraulic
HMaterialPointAccessors	_hmaterialPointAccessor
	Access to hydraulic material point.
bool	_setInitialCond
	Sets the initial conditions required by the physics.

Detailed Description

Basic class for the hydraulic physics plugin object.

Member Enumeration Documentation

embeddedPhysicsAttributeIds

enum GmpHydraulicEmbeddedFracture::embeddedPhysicsAttributeIds

IDs for physics attributes.

Enumerator
DP_ID	Id for the cell attributes.
NUM_ATTRI_IDS	The number of physics attribute ids above.

Member Function Documentation

checkAndLoadAttributeAccessors()

bool GmpHydraulicEmbeddedFracture::checkAndLoadAttributeAccessors ( LuaTable & nodeTable, LuaTable & cellTable, LuaTable & gaussTable )

virtual

Reimplementation of the common function to init the _hmaterialPointAccessor structure.

Reimplemented from GmpHydraulic.

fillDiscontinuityInternalPressureNodalValues()

bool GmpHydraulicEmbeddedFracture::fillDiscontinuityInternalPressureNodalValues ( GmElement * e, GmValueAccessor * nAc )

virtual

Fills nodal pressure of the discontinuity elements inside element e TODO: Consider the discontinuity pressure jump.

Reimplemented from GmpHydraulicEmbeddedFractureConductive.

fillElementData()

GmpFemPhysics::FemResultType GmpHydraulicEmbeddedFracture::fillElementData ( const GmElement * e, GmpFemMatrixSet & elemMatrices, GmpFemVectorSet & elemVectors )

virtual

Fills the element matrices and vectors for a generic element.

Reimplemented from GmpHydraulicEmbeddedFractureConductive.

fillEnrichedElementData()

GmpFemPhysics::FemResultType GmpHydraulicEmbeddedFracture::fillEnrichedElementData ( const GmElement * e, GmpFemMatrixSet & elemMatrices, GmpFemVectorSet & elemVectors, int nDiscontinuities )

virtual

Fills the element matrices and vectors for a enriched element.

Reimplemented from GmpHydraulicEmbeddedFractureConductive.

physicsMetaDataMap()

const QVariantMap * GmpHydraulicEmbeddedFracture::physicsMetaDataMap ( )

virtual

Returns a reference for the single Hydraulics attribute map, built when the function is called for the first time.

Reimplemented from GmpHydraulicEmbeddedFractureConductive.

pluginType()

virtual const char * GmpHydraulicEmbeddedFracture::pluginType ( ) const

inlinevirtual

Reimplemented from GmpHydraulicEmbeddedFractureConductive.

---

The documentation for this class was generated from the following files:

• inc/gmpHydraulicEmbeddedFracture.h
• src/gmpHydraulicEmbeddedFracture.cpp
