HydroFemPhysics
The GeMA Hydraulic FEM Physics Plugin
|
Dual flow hydraulic 2D & 3D for Quad, Tri, Hex and Tet. More...
#include <gmpHydraulicEnhancedDualFlow.h>
Public Member Functions | |
| GmpHydraulicEnhancedDualFlow (const char *pluginType, GmSimulationData *simulation, QString id, QString description, const GmpFemPhysicsCommonMaterialFactory *matFactory, const GmLogCategory &logger) | |
| virtual | ~GmpHydraulicEnhancedDualFlow () |
| Destructor. | |
| virtual const QVariantMap * | physicsMetaDataMap () |
| Returns a reference for the Hydraulics dual flow attribute map, built when the function is called for the first time. | |
| virtual FemResultType | fillElementData (const GmElement *e, GmpFemMatrixSet &elemMatrices, GmpFemVectorSet &elemVectors) |
| Fills the element matrices and vectors for a generic dual flow element. | |
| virtual FemResultType | fillContinuousEnrichedElementData (const GmElement *e, GmpFemMatrixSet &elemMatrices, GmpFemVectorSet &elemVectors) |
| Fills the element matrices and vectors for a enriched element. | |
| virtual bool | assemblyFractureFlowMatrix (GmMatrix &Kf, GmMatrix &Ke, GmVector &iPe) |
| void | getPermeabilityAndShapeFactor (const GmElement *e, GmMatrix &Km, double &Gw, double &factor) |
| Fill the permeability and shape factor. | |
| double | getEquivalentDistance (const GmElement *e, const GmElement *ef) |
| get the equivalent distance | |
| virtual bool | setInitialConditions () |
| Sets the initial conditions required by interface elements. An = normal aperture. | |
| int | getNumberOfDiscontinuities (const GmElement *e) |
| Returns the number of discontinuities that intersect a given element. | |
| int | getNumberOfDiscontinuityElements (const GmElement *e) |
| Returns the number of discontinuity subelements (bar (2D)/triangle (3D)) that intersect a given element. | |
| void | getDiscontinuityGeometry (const GmElement *e, int idiscontinuity, GmVector &Xref, GmMatrix &mn) |
| Get the discontinuity geometric properties. | |
| void | get2DDiscontinuityGeometry (const GmElement *e, int idiscontinuity, GmVector &Xref, GmMatrix &mn) |
| Get the 2D discontinuity geometric properties. | |
| void | get3DDiscontinuityGeometry (const GmElement *e, int idiscontinuity, GmVector &Xref, GmMatrix &mn) |
| Get the 3D discontinuity geometric properties. | |
| void | getIdDiscontinuitySubElementInMesh (const GmElement *e, int k, int &idDiscontinuityMesh) |
| Get the id of the discontinuity sub-element (bar (2D)/triangle (3D)) k in the mesh. | |
| bool | fillDiscontinuityNodesGlobalToLocalMap (const GmElement *e, QMap< int, int > &globalToLocal) |
| Fill the map with the global to local ids of the discontinuity elements nodes. | |
| FemResultType | fillDiscontinuitySetElementData (const GmElement *e, GmMatrix &Hd, GmMatrix &Wf, GmMatrix &Sd, GmMatrix &Tcd, const QMap< int, int > &globalToLocal) |
| Fills the element matrices and vectors of the discontinuity elements. | |
| void | getDiscontinuitySubElementLocalData (const GmElement *e, int k, int &idDiscontinuityElem, QVector< int > &dof, const GmElement *ef, const QMap< int, int > &dNodesGlobalToLocal) |
| Get the ids of the discontinuity sub-element (bar (2D)/triangle (3D)) k locally in the element and fill its local dof vector. | |
| void | assembleDiscontinuityElementMatrix (GmMatrix &Kg, const GmMatrix &Kl, const QVector< int > &dof) const |
| Assemble the contribution of the discontinuity element. | |
 Public Member Functions inherited from GmpHydraulicDualFlow | |
| GmpHydraulicDualFlow (const char *pluginType, GmSimulationData *simulation, QString id, QString description, const GmpFemPhysicsCommonMaterialFactory *matFactory, const GmLogCategory &logger) | |
| virtual | ~GmpHydraulicDualFlow () |
| Destructor. | |
| virtual bool | fixedNodalForcesBc (QVector< int > &nodes, QVector< int > &dof, QVector< double > &values) const |
| See comments on base class. Fills vectors with prescribed nodal forces - flow. | |
| virtual bool | fixedNodalDofsBc (QVector< int > &nodes, QVector< int > &dof, QVector< double > &values, bool *constantValues) const |
| See comments on base class. Fills vectors with prescribed node pore pressures. | |
| virtual void | fillFractureStorageCompMatrix (const GmElement *e, const GmVector *coord, int ip, GmMatrix &Sfc, const GmVector &N, double c) const |
| Calculates the stiffness matrix of "storage / compressibility of fluid" for element 'e' at the given integration point (coord, ip) storing the result at the Sfc matrix. N is the shape function vector and c a constant equal to w * h * detJ. | |
| virtual void | fillTransferMatrix (const GmElement *e, const GmVector *coord, int ip, GmMatrix &Wfm, const GmVector &N, double c) const |
| Fills the Transfer matrix with the computed scalar "shape factor" Returns Wfm = ws * c * N * N.t, where: ws is the shape factor. | |
| virtual void | fillFluidFlowMatrix (const GmElement *e, const GmVector *coord, int ip, GmMatrix &Kfc, const GmMatrix &Bp, double c) const |
| Calculates the flow stiffness matrix of fluid 2 due to permeability contribution or permeability matrix for element 'e' at the given integration point (coord, ip) storing the result at the Kfc matrix. Bp is the strain pore pressure matrix and c a constant equal to w * h * detJ. | |
| virtual void | fillElementFluidPorePressure (const GmElement *e, GmVector &Pfe) |
| Given an element, fills the vector pfe with nodal pore pressureof the seconf fluid. The vector should have size equal to the number of calculated nodes. | |
| virtual void | fillDampingMatrix (const GmElement *e, GmMatrix &C, const GmMatrix &Sc, const GmMatrix &Sfc, const QVector< int > &iPe, const QVector< int > &iPfe) const |
| Fills the Damping matrix with the computed "storage/compressibility" Matrizes Returns C = Sc + Sfc, where: Sc is the "storage/compressibility" Matrix of the medium Sfc is the "storage/compressibility" Matrix of the fluid. | |
| virtual void | fillStiffnessMatrix (const GmElement *e, GmMatrix &K, const GmMatrix &Kc, const GmMatrix &Kfc, const GmMatrix &Wfm, const QVector< int > &iPe, const QVector< int > &iPfe) const |
| Fills the Stiffness matrix with the computed "permeability" Matrizes Returns K = Kc + Kfc, where: Kc is the permeability Matrix of the medium Kfc is the permeability Matrix of the fluid. | |
| virtual void | fillInternalForceVector (const GmElement *e, GmVector &Fi, const GmMatrix &Kc, const GmMatrix &Kfc, const GmMatrix &Wfm, const GmVector &pe, const GmVector &pfe, const QVector< int > &iPe, const QVector< int > &iPfe) const |
| Fills the Internal force vector for both fluids Returns fi = Kc*pe + Kfc*pfe, where: Kc is the permeability Matrix of the medium Kfc is the permeability Matrix of the fluid. | |
| virtual void | FillDofIndexPosition (const GmElement *e, QVector< int > &iPe, QVector< int > &iPfe) const |
| Fills the position index of the two hydraulic degrees of freedom. the implementation supports order of the defined state variables i.e {P, Pf} or {Pf, P}. | |
| virtual bool | calcDerivedResults (bool nonLinearSolver) |
| Calc velocity and flow on nodes and/or Gauss points. | |
| virtual GmPropertySet * | fracturePropertySet (int id) const |
| Public Member Functions inherited from GmpHydraulic | |
| GmpHydraulic (const char *pluginType, GmSimulationData *simulation, QString id, QString description, const GmpFemPhysicsCommonMaterialFactory *matFactory, const GmLogCategory &logger) | |
| Constructor. Will be called by the plugin loading code. | |
| virtual | ~GmpHydraulic () |
| Destructor. | |
| virtual const char * | pluginName () const |
| virtual const char * | pluginType () const |
| virtual bool | supportsStateDumping () |
| virtual FemResultType | fillElementDataForBc (const GmElement *e, const GmBoundaryCondition *bc, int bcIndex, int bcListIndex, int border, GmpFemMatrixSet &elemMatrices, GmpFemVectorSet &elemVectors) |
| virtual FemResultType | fillElementDataBc (const GmElement *e, const GmBoundaryCondition *bc, int bcIndex, int bcListIndex, int border, GmMatrix &elemMat, GmVector &elemVec) |
| virtual void | fillStorageCompMatrix (const GmElement *e, const GmVector *coord, int ip, GmMatrix &Sc, const GmVector &N, double c) |
| Calculates the stiffness matrix of "storage / compressibility" for element 'e' at the given integration point (coord, ip) storing the result at the Sc matrix. N is the shape function vector and c a constant equal to w * h * detJ. | |
| virtual void | fillFlowMatrix (const GmElement *e, const GmVector *coord, int ip, GmMatrix &Kc, const GmMatrix &Bp, double c) const |
| Calculates the flow stiffness matrix due to permeability contribution or permeability matrix for element 'e' at the given integration point (coord, ip) storing the result at the Kc matrix. Bp is the strain pore pressure matrix and c a constant equal to w * h * detJ. | |
| virtual void | fillFluidVelocity (const GmElement *e, const GmVector *coord, int ip, GmVector &Vip, const GmVector &Pe, const GmMatrix &Bp) const |
| Evaluates velocity at integration points (it should be improved to consider gravity effect) | |
| virtual void | fillElementPorePressure (const GmElement *e, GmVector &pe) |
| Given an element, fills the vector pe with nodal pore pressure. The vector should have size equal to the number of calculated nodes. | |
| virtual void | gravitySupplyFluid (const GmElement *e, const GmVector *coord, int ip, GmVector &qext_gsf, GmMatrix &Bp, double c) |
| virtual void | fillSourceTermVector (const GmElement *e, const GmVector *coord, int ip, GmVector &St, const GmVector &N, double c) |
| Calculates the source term due the porosity rate of porous eskeleton for element 'e' at the given integration point (coord, ip) storing the result at external vector. N is the shape function vector and c a constant equal to w * h * detJ. | |
| virtual double | fillBpMatrix (const GmShape *shape, const GmVector &ncoord, const GmMatrix &X, const GmVector &N, const GmMatrix &J, GmMatrix &Bp)=0 |
| Given a point 'ncoord', the element coordinate matrix 'X', the point shape functions 'N' and the transformation Jacobian 'J', fills the matrix with cartesian partial derivatives Bp using the provided shape function and returns the scaled jacobian determinant. | |
| virtual void | gravityVector (const GmElement *e, const GmVector *coord, int ip, GmVector &grav) const |
| Returns the gravity accelaration vector. | |
| virtual bool | isAxisymmetric () |
| Returns TRUE only for axisymmetric models. | |
| virtual double | axisymmetricFactor (const GmElement *e, const GmMatrix &X, const GmVector &N) const |
| Returns the factor that should be applied when using axis symetric elements. 1.0 for other etypes. | |
| HMaterialPointAccessors & | hydraulicMaterialPoint () |
| Returns the hydraulic material point accessor. | |
Protected Member Functions | |
| virtual bool | checkAndLoadDiscontinuitySetAccessors (LuaTable &table) |
| Reimplementation of the common function to set initial gauss attributes. | |
| Protected Member Functions inherited from GmpHydraulicDualFlow | |
| virtual const GmElementDof * | dofMapping (GmCellType type) const |
| virtual bool | checkAndLoadPrivateData (LuaTable &table) |
| virtual void | calcElementDerivedResultAtPoints (const GmElement *e, int resultId, const GmMatrix &evalPoints, bool evalAtIp, GmMatrix &result) |
| The virtual function used by calcDerivedResults() to effectivelly calculate the velocity (resultId = 0) or the flow (resultId = 1) at the given evaluation points. | |
| void | calcElementVelocityAtPoints (const GmElement *e, const GmMatrix &evalPoints, GmMatrix &v) |
| The function responsible for effectivelly calculating the velocity at the given evaluation points, filling v. | |
| void | calcElementFlowAtPoints (const GmElement *e, const GmMatrix &evalPoints, bool evalAtIp, GmMatrix &q) |
| The function responsible for effectivelly calculating the flow at the given evaluation points, filling q. | |
| Protected Member Functions inherited from GmpHydraulic | |
| virtual bool | checkAndLoadAttributeAccessors (LuaTable &nodeTable, LuaTable &cellTable, LuaTable &gaussTable) |
| Checks the loaded data. | |
| void | calcElementVelocityAtPoints (const GmElement *e, const GmMatrix &evalPoints, GmMatrix &v) |
| The function responsible for effectivelly calculating the velocity at the given evaluation points, filling v. | |
| void | calcElementFlowAtPoints (const GmElement *e, const GmMatrix &evalPoints, bool evalAtIp, GmMatrix &q) |
| The function responsible for effectivelly calculating the flow at the given evaluation points, filling q. | |
Private Attributes | |
| const char * | _pluginType |
| The plugin type name. | |
Additional Inherited Members | |
| Protected Types inherited from GmpHydraulicDualFlow | |
| enum | DualFlowStateVarIds { PF_ID = GmpHydraulic::NUM_STATEVAR_IDS , NUM_STATEVAR_IDS } |
| IDs fo physics state vars. More... | |
| enum | DualFlowNodeAttributeIds { VFF_NA_ID = GmpHydraulic::NUM_NA_IDS , VEF_NA_ID , NUM_NA_IDS } |
| IDs for physics node attributes. More... | |
| enum | DualFlowGaussAttributeIds { VEF_GA_ID = GmpHydraulic::NUM_GA_IDS , NUM_GA_IDS } |
| IDs for physics Gauss attributes. More... | |
| enum | DualFlowBoundaryConditionIds { FIXED_PF_BC_ID = GmpHydraulic::NUM_BC_IDS , FIXED_QF_BC_ID , NUM_BC_IDS } |
| IDs for accepted boundary condition types. More... | |
| enum | DualFlowBoundaryConditionValueIds { BC_PF_ID = GmpHydraulic::NUM_BCV_IDS , BC_QWF_ID , NUM_BCV_IDS } |
| IDs for property values from accepted boundary condition types. More... | |
| enum | DualFlowPhysicsAttributeIds { FRACPROPSET_ID = GmpHydraulic::NUM_ATTRI_IDS , NUM_ATTRI_IDS } |
| IDs for physics attributes. More... | |
| Protected Attributes inherited from GmpHydraulicDualFlow | |
| GmpFemPhysicsData | _fractureData |
| fracture data | |
| GmValueAccessor * | _anAcc |
| fracture aperture accessor | |
| Protected Attributes inherited from GmpHydraulic | |
| HMaterialPointAccessors | _hmaterialPointAccessor |
| Access to hydraulic material point. | |
| bool | _setInitialCond |
| Sets the initial conditions required by the physics. | |

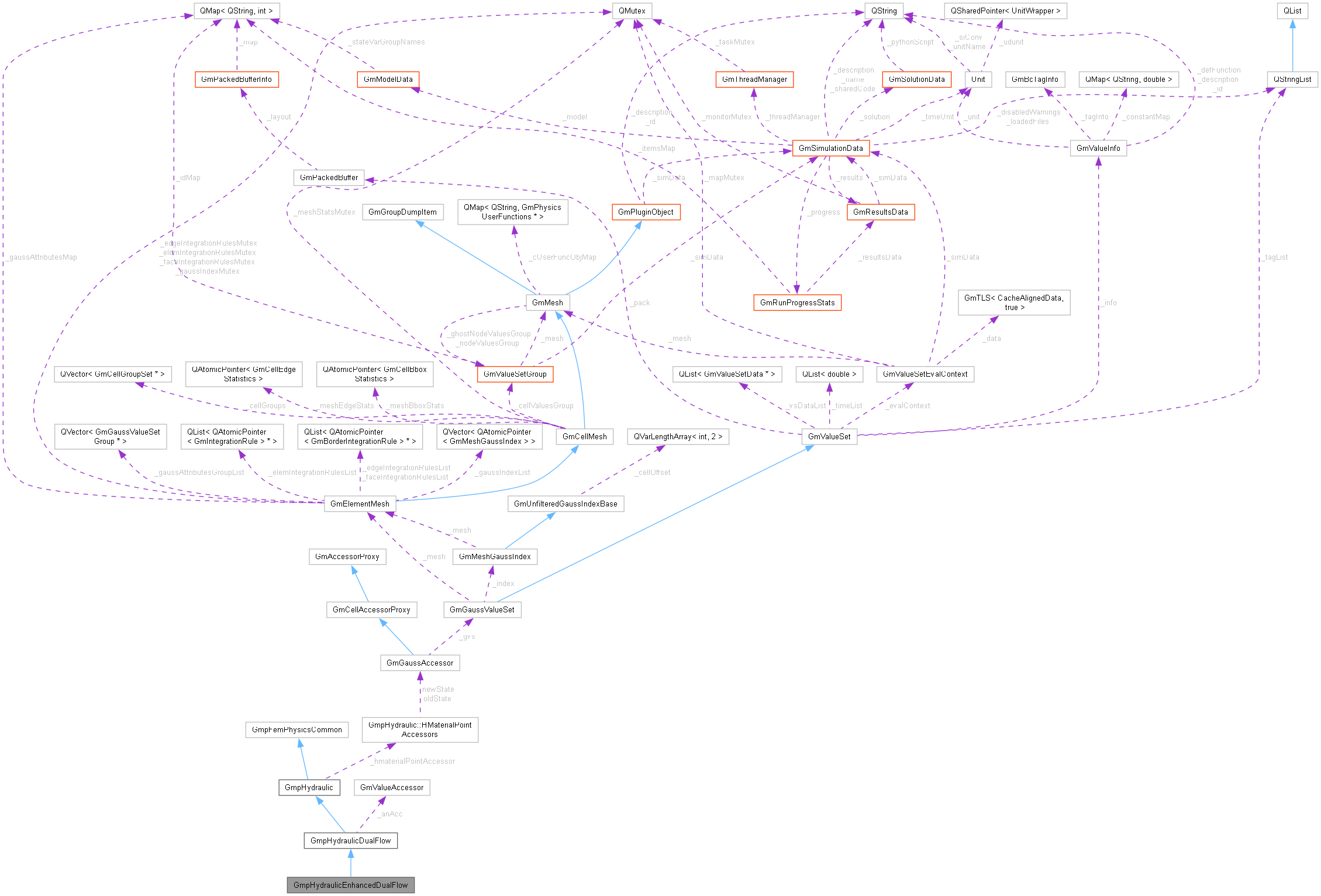

Dual flow hydraulic 2D & 3D for Quad, Tri, Hex and Tet.
This physics plugin calculates pore pressure in the porous matrix and fracture system
|
virtual |
Fills the element matrices and vectors for a generic dual flow element.
Reimplemented from GmpHydraulicDualFlow.
|
virtual |
Returns a reference for the Hydraulics dual flow attribute map, built when the function is called for the first time.
Reimplemented from GmpHydraulicDualFlow.
