Basic class for the hydraulic interface element plugin object. More...

#include <gmpHydraulicPipe.h>

Inheritance diagram for GmpHydraulicPipe:

[legend]

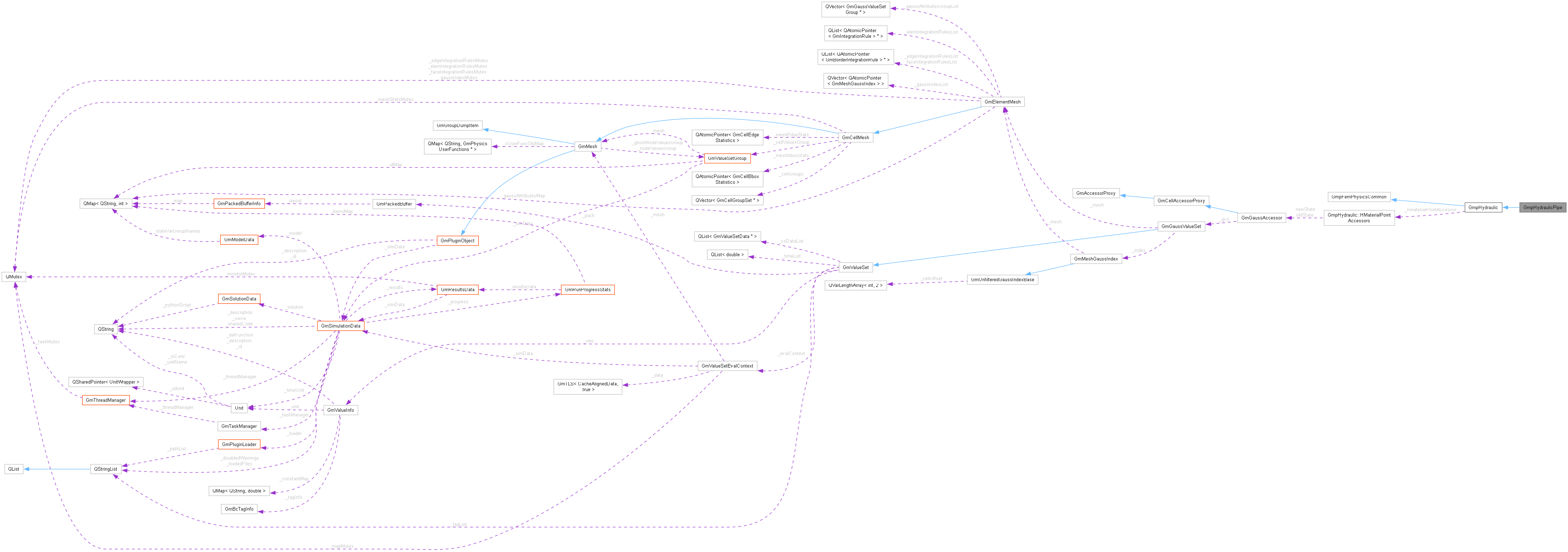

Collaboration diagram for GmpHydraulicPipe:

[legend]

Public Types
enum	PipeGaussAttributeIds { Dp_GA_ID = GmpHydraulic::NUM_GA_IDS , DpOLD_GA_ID , NUM_GA_IDS }

Public Types inherited from GmpHydraulic
enum	HMaterialPointStates { saturated , unsaturated }

enum	PhysicsAttributeIds { ISOPARAMETRIC_ID , POROSITY_UPDATE_ID , PERMEABILITY_UPDATE_ID , USE_CONSISTENT_MATRIX_ID , VELOCITY_MODE_ID , FLOW_MODE_ID , DIRECT_ID , CGRAV_ID , VF_MODE_ID , NUM_ATTRI_IDS }
	IDs for physics attributes. More...

enum	StateVarIds { P_ID , NUM_STATEVAR_IDS }
	IDs fo physics state vars. More...

enum	NodeAttributeIds { V_NA_ID , Q_NA_ID , VF_NA_ID , NUM_NA_IDS }
	IDs for physics node attributes. More...

enum	cellAttributeIds { NUM_CA_IDS }
	IDs for physics Cell attributes. More...

enum	GaussAttributeIds { V_GA_ID , Q_GA_ID , FT_GA_ID , FTOLD_GA_ID , NUM_GA_IDS }
	IDs for physics Gauss attributes. More...

enum	ElementPropertyIds { THICKNESS_ID , GRAV_ID , SOURTERM_ID , NUM_PROPER_IDS }
	IDs for physics element properties. More...

enum	BoundaryConditionIds { FIXED_P_BC_ID , FIXED_Q_BC_ID , FIXED_SPF_BC_ID , NUM_BC_IDS }
	IDs for accepted boundary condition types. More...

enum	BoundaryConditionValueIds { BC_P_ID , BC_QW_ID , BC_IF_ID , NUM_BCV_IDS }
	IDs for property values from accepted boundary condition types. More...

Public Member Functions
	GmpHydraulicPipe (const char pluginType, GmSimulationData simulation, QString id, QString description, const GmpFemPhysicsCommonMaterialFactory *matFactory, const GmLogCategory &logger)

virtual	~GmpHydraulicPipe ()
	Destructor.

virtual const QVariantMap *	physicsMetaDataMap ()
	Returns a reference for the Hydraulic Pipe attribute map, built when the function is called for the first time.

virtual bool	checkAndLoadAttributeAccessors (LuaTable &nodeTable, LuaTable &cellTable, LuaTable &gaussTable)
	Reimplementation of the common function to set initial gauss attributes.

virtual bool	beforeElementStiffnessLoop (const GmpFemMatrixSet &elemMatrices, const GmpFemVectorSet &elemVectors)

virtual GmpFemPhysics::FemResultType	fillElementData (const GmElement *e, GmpFemMatrixSet &elemMatrices, GmpFemVectorSet &elemVectors)
	Fills the element matrices and vectors for a generic Pipe element.

virtual bool	calcDerivedResults (bool nonLinearSolver)
	Calc velocity and flow on nodes and/or Gauss points.

virtual double	fillBpMatrix (const GmShape *shape, const GmVector &ncoord, const GmMatrix &X, const GmVector &N, const GmMatrix &J, GmMatrix &Bp)
	Given a point 'ncoord', the element coordinate matrix 'X', the point shape functions 'N' and the transformation Jacobian 'J', fills the matrix with cartesian partial derivatives Bp using the provided shape function and returns the scaled jacobian determinant.

virtual void	fillStorageCompMatrix (const GmElement *e, GmMatrix &Sc, double &Mfw, const GmVector &Np, double c) const
	Calculates the compressibility matrix inside the fracture.

virtual void	fillFlowMatrix (const GmElement *e, GmMatrix &Kc, const GmMatrix &Bp, double kl, const GmVector &N, double c) const
	Calculates the flow stiffness matrix according to the cubic law.

virtual bool	setInitialGaussAttributes () const
	sets the initial value of hydraulic gauss attributes.

virtual void	fillElementPorePressure (const GmElement *e, GmVector &pe)
	Given an element, fills the vector pe with nodal pore pressure.

Public Member Functions inherited from GmpHydraulic
	GmpHydraulic (const char pluginType, GmSimulationData simulation, QString id, QString description, const GmpFemPhysicsCommonMaterialFactory *matFactory, const GmLogCategory &logger)
	Constructor. Will be called by the plugin loading code.

virtual	~GmpHydraulic ()
	Destructor.

virtual const char *	pluginName () const

virtual const char *	pluginType () const

virtual bool	supportsStateDumping ()

virtual bool	fixedNodalForcesBc (QVector< int > &nodes, QVector< int > &dof, QVector< double > &values) const
	See comments on base class. Fills vectors with prescribed nodal forces - flow.

virtual bool	fixedNodalDofsBc (QVector< int > &nodes, QVector< int > &dof, QVector< double > &values, bool *constantValues) const
	See comments on base class. Fills vectors with prescribed node pore pressures.

virtual FemResultType	fillElementDataForBc (const GmElement e, const GmBoundaryCondition bc, int bcIndex, int bcListIndex, int border, GmpFemMatrixSet &elemMatrices, GmpFemVectorSet &elemVectors)

virtual FemResultType	fillElementDataBc (const GmElement e, const GmBoundaryCondition bc, int bcIndex, int bcListIndex, int border, GmMatrix &elemMat, GmVector &elemVec)

virtual void	fillStorageCompMatrix (const GmElement e, const GmVector coord, int ip, GmMatrix &Sc, const GmVector &N, double c)
	Calculates the stiffness matrix of "storage / compressibility" for element 'e' at the given integration point (coord, ip) storing the result at the Sc matrix. N is the shape function vector and c a constant equal to w * h * detJ.

virtual void	fillFlowMatrix (const GmElement e, const GmVector coord, int ip, GmMatrix &Kc, const GmMatrix &Bp, double c) const
	Calculates the flow stiffness matrix due to permeability contribution or permeability matrix for element 'e' at the given integration point (coord, ip) storing the result at the Kc matrix. Bp is the strain pore pressure matrix and c a constant equal to w * h * detJ.

virtual void	fillFluidVelocity (const GmElement e, const GmVector coord, int ip, GmVector &Vip, const GmVector &Pe, const GmMatrix &Bp) const
	Evaluates velocity at integration points (it should be improved to consider gravity effect)

virtual void	gravitySupplyFluid (const GmElement e, const GmVector coord, int ip, GmVector &qext_gsf, GmMatrix &Bp, double c)

virtual void	fillSourceTermVector (const GmElement e, const GmVector coord, int ip, GmVector &St, const GmVector &N, double c)
	Calculates the source term due the porosity rate of porous eskeleton for element 'e' at the given integration point (coord, ip) storing the result at external vector. N is the shape function vector and c a constant equal to w * h * detJ.

virtual void	gravityVector (const GmElement e, const GmVector coord, int ip, GmVector &grav) const
	Returns the gravity accelaration vector.

virtual bool	isAxisymmetric ()
	Returns TRUE only for axisymmetric models.

virtual double	axisymmetricFactor (const GmElement *e, const GmMatrix &X, const GmVector &N) const
	Returns the factor that should be applied when using axis symetric elements. 1.0 for other etypes.

HMaterialPointAccessors &	hydraulicMaterialPoint ()
	Returns the hydraulic material point accessor.

Protected Member Functions
virtual const GmElementDof *	dofMapping (GmCellType type) const

Protected Member Functions inherited from GmpHydraulic
virtual void	calcElementDerivedResultAtPoints (const GmElement *e, int resultId, const GmMatrix &evalPoints, bool evalAtIp, GmMatrix &result)
	The virtual function used by calcDerivedResults() to effectivelly calculate the velocity (resultId = 0) or the flow (resultId = 1) at the given evaluation points.

void	calcElementVelocityAtPoints (const GmElement *e, const GmMatrix &evalPoints, GmMatrix &v)
	The function responsible for effectivelly calculating the velocity at the given evaluation points, filling v.

void	calcElementFlowAtPoints (const GmElement *e, const GmMatrix &evalPoints, bool evalAtIp, GmMatrix &q)
	The function responsible for effectivelly calculating the flow at the given evaluation points, filling q.

Additional Inherited Members
Protected Attributes inherited from GmpHydraulic
HMaterialPointAccessors	_hmaterialPointAccessor
	Access to hydraulic material point.

bool	_setInitialCond
	Sets the initial conditions required by the physics.

Detailed Description

Basic class for the hydraulic interface element plugin object.

This physics plugin calculates pore pressure in the pipe

Member Enumeration Documentation

◆ PipeGaussAttributeIds

enum GmpHydraulicPipe::PipeGaussAttributeIds

Enumerator
Dp_GA_ID	Base Id for Gauss attribute(s) used to store the pipe diameter.
NUM_GA_IDS	The number of property ids above.

Member Function Documentation

◆ calcDerivedResults()

bool GmpHydraulicPipe::calcDerivedResults ( bool nonLinearSolver )

virtual

Calc velocity and flow on nodes and/or Gauss points.

Reimplemented from GmpHydraulic.

◆ checkAndLoadAttributeAccessors()

bool GmpHydraulicPipe::checkAndLoadAttributeAccessors	(	LuaTable &	nodeTable,
		LuaTable &	cellTable,
		LuaTable &	gaussTable )

virtual

Reimplementation of the common function to set initial gauss attributes.

Reimplemented from GmpHydraulic.

◆ fillBpMatrix()

double GmpHydraulicPipe::fillBpMatrix	(	const GmShape *	shape,
		const GmVector &	ncoord,
		const GmMatrix &	X,
		const GmVector &	N,
		const GmMatrix &	J,
		GmMatrix &	Bp )

virtual

Given a point 'ncoord', the element coordinate matrix 'X', the point shape functions 'N' and the transformation Jacobian 'J', fills the matrix with cartesian partial derivatives Bp using the provided shape function and returns the scaled jacobian determinant.

The shape function given as parameter is the shape function that should be used to calculate the partial derivatives. It will be a linear function in case of iso-parametric elements and the element shape function otherwise.

Matrices J, X and N should have been calculated using the element shape function even in an iso-parametric setting.

Implements GmpHydraulic.

◆ fillElementData()

GmpFemPhysics::FemResultType GmpHydraulicPipe::fillElementData	(	const GmElement *	e,
		GmpFemMatrixSet &	elemMatrices,
		GmpFemVectorSet &	elemVectors )

virtual

Fills the element matrices and vectors for a generic Pipe element.

Reimplemented from GmpHydraulic.

◆ fillElementPorePressure()

void GmpHydraulicPipe::fillElementPorePressure	(	const GmElement *	e,
		GmVector &	pe )

virtual

Given an element, fills the vector pe with nodal pore pressure.

Given an element, fills the vector Pe with nodal pore pressure. The vector should have size equal to the number of calculated nodes.

Reimplemented from GmpHydraulic.

◆ fillFlowMatrix()

void GmpHydraulicPipe::fillFlowMatrix	(	const GmElement *	e,
		GmMatrix &	Kc,
		const GmMatrix &	dNp,
		double	kl,
		const GmVector &	Np,
		double	c ) const

virtual

Calculates the flow stiffness matrix according to the cubic law.

Calculates the flow stiffness matrix due to permeability contribution or permeability matrix for element 'e' at the given integration point (coord, ip) storing the result at the Kc matrix. Bp is the strain pore pressure matrix and c a constant equal to w * h * detJ.

This function can operate either in an iso parametric setting (Kc = n x n) or in a super parametric setting (Kc = nf x nf) where n is the number of element nodes and nf the number of element corner nodes.

Returns Kc = Bp.t() * Kaux * Bp * c, where c should be equal to w * h * detJ

◆ fillStorageCompMatrix()

void GmpHydraulicPipe::fillStorageCompMatrix	(	const GmElement *	e,
		GmMatrix &	Sc,
		double &	Mfw,
		const GmVector &	Np,
		double	c ) const

virtual

Calculates the compressibility matrix inside the fracture.

Calculates the Coupling matrix of "storage / compressibility" for element 'e' at the given integration point (coord, ip) storing the result at the Sc matrix. N is the shape function vector and c a constant equal to w * h * detJ.

This function can operate either in an iso parametric setting (Sc = n x n) or in a super parametric setting (Sc = nf x nf) where n is the number of element corner nodes at middle point.

Returns Sc = N * (1/Mfw) * N.t() * c, where c = w * h * detJ

◆ physicsMetaDataMap()

const QVariantMap * GmpHydraulicPipe::physicsMetaDataMap ( )

virtual

Returns a reference for the Hydraulic Pipe attribute map, built when the function is called for the first time.

Reimplemented from GmpHydraulic.

◆ setInitialGaussAttributes()

bool GmpHydraulicPipe::setInitialGaussAttributes ( ) const

virtual

sets the initial value of hydraulic gauss attributes.

Sets the initial value of gauss attributes. Dp = pipe diameter Returns true.

The documentation for this class was generated from the following files:

inc/gmpHydraulicPipe.h
src/gmpHydraulicPipe.cpp
