Declaration of the GmpHydraulicTwoPhaseUtils class. More...

#include <gmElement.h>
#include <gmpHydraulicMaterialTwoPhase.h>
#include <gmVector.h>
#include <gmMatrix.h>

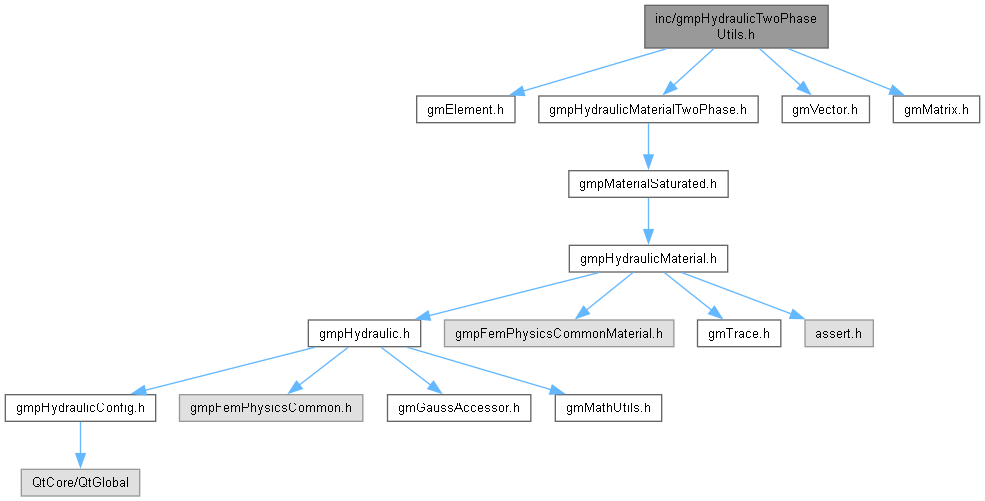

Include dependency graph for gmpHydraulicTwoPhaseUtils.h:

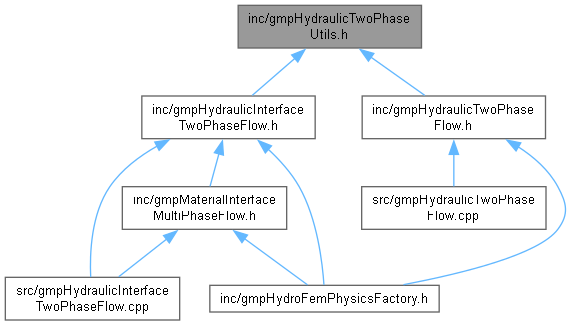

This graph shows which files directly or indirectly include this file:

Classes
struct	GmpHydraulicTwoPhaseUtils::saturationTerms

struct	GmpHydraulicTwoPhaseUtils::densityTerms

struct	GmpHydraulicTwoPhaseUtils::viscosityTerms

struct	GmpHydraulicTwoPhaseUtils::massTerms

struct	GmpHydraulicTwoPhaseUtils::pressureTerms

struct	GmpHydraulicTwoPhaseUtils::permeabilityTerms

struct	GmpHydraulicTwoPhaseUtils::massMobilityTerms

struct	GmpHydraulicTwoPhaseUtils::jacobianTerms

Functions
bool	GmpHydraulicTwoPhaseUtils::evaluateRelativePermeability (const GmElement e, const GmpHydraulicMaterialTwoPhase hmat, saturationTerms &sat, permeabilityTerms &kr, int np)
	Evaluates relative permeabilities.

void	GmpHydraulicTwoPhaseUtils::evaluateHydraulicGravityVector (const GmElement *e, GmMatrix &Kh, GmVector &fgravp, GmMatrix &Bp, const GmVector &grav, double c)
	Evaluates the hydraulic gravity vector for each ip.

bool	GmpHydraulicTwoPhaseUtils::evaluateAdvectiveForceAndJacobian (const GmElement *e, GmVector &Fil, GmVector &Fig, jacobianTerms &K, GmMatrix &H, massMobilityTerms &mMb, densityTerms &den, viscosityTerms &mu, permeabilityTerms &kr, pressureTerms &pres)
	Evaluates the advective residual force and the Jacobian for mass mobilities.

bool	GmpHydraulicTwoPhaseUtils::evaluateMassStorageForceAndJacobian (const GmElement *e, GmVector &Fil, GmVector &Fig, jacobianTerms &K, saturationTerms &sat, massTerms &mass, pressureTerms &pres, GmVector &iN, double Cp, double phi, double dt, int np)
	Evaluates the residual force and the Jacobian for mass storage terms.

bool	GmpHydraulicTwoPhaseUtils::evaluateGravityForceAndJacobian (const GmElement *e, GmVector &Fil, GmVector &Fig, jacobianTerms &K, GmVector &fgravp, massMobilityTerms &mMb, saturationTerms &sat, densityTerms &den, double phi)
	Evaluates the residual force and the jacobian for gravity terms.

Detailed Description

Declaration of the GmpHydraulicTwoPhaseUtils class.
