Basic class for the Lua Proxy physics plugin object. More...

#include <gmpLuaProxyFemPhysics.h>

Inheritance diagram for GmpLuaProxyFemPhysics:

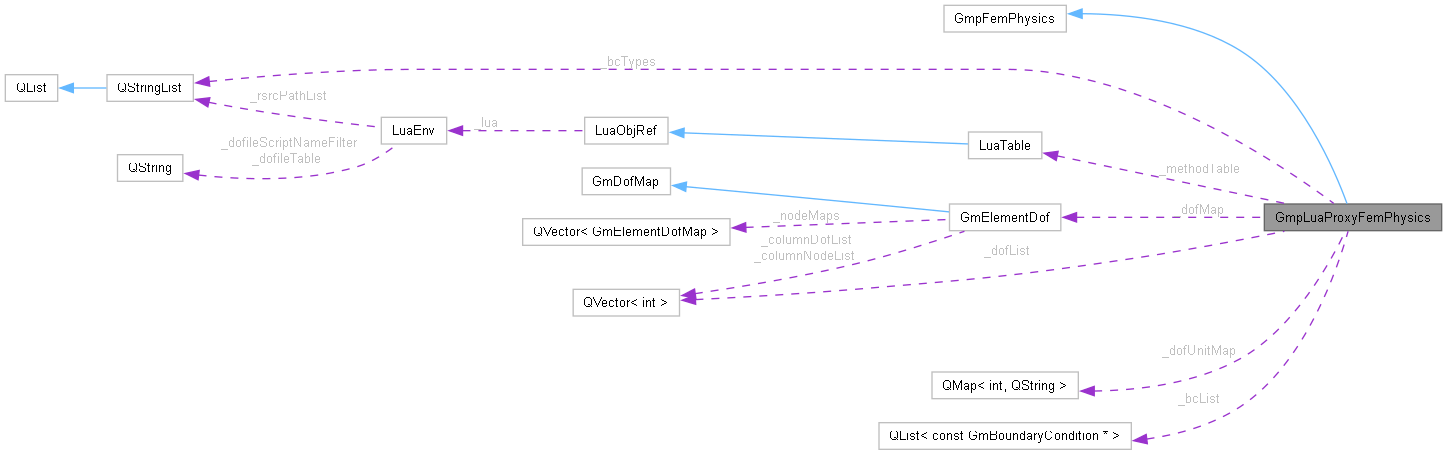

Collaboration diagram for GmpLuaProxyFemPhysics:

[legend]

Public Member Functions
	GmpLuaProxyFemPhysics (GmSimulationData *simulation, QString id, QString description, const GmLogCategory &logger)
	Constructor. Will be called by the plugin loading code.

virtual	~GmpLuaProxyFemPhysics ()
	Destructor.

virtual const char *	pluginName () const

virtual const char *	pluginType () const

virtual const GmElementDof *	dofMapping (GmCellType type) const
	See comments on the base class.

virtual Unit	dofUnit (int dof) const
	See comments on the base class.

virtual Unit	timeUnit () const

virtual bool	supportsCellType (GmCellType type) const
	See comments on the base class.

virtual bool	beforeElementStiffnessLoop (const GmpFemMatrixSet &elemMatrices, const GmpFemVectorSet &elemVectors)
	See comments on base class.

virtual void	afterElementStiffnessLoop ()
	See comments on base class.

virtual FemResultType	fillElementData (const GmElement *e, GmpFemMatrixSet &elemMatrices, GmpFemVectorSet &elemVectors)
	See comments on base class.

virtual const QStringList &	supportedBcTypes () const
	See comments on the base class.

virtual bool	bcAffectsCalc (const GmBoundaryCondition *bc) const
	See comments on the base class.

virtual FemResultType	fillElementDataForBc (const GmElement e, const GmBoundaryCondition bc, int bcIndex, int bcListIndex, int border, GmpFemMatrixSet &elemMatrices, GmpFemVectorSet &elemVectors)
	See comments on base class.

virtual bool	fixedNodalForcesBc (QVector< int > &nodes, QVector< int > &dof, QVector< double > &values) const
	See comments on base class.

virtual bool	fixedNodalDofsBc (QVector< int > &nodes, QVector< int > &dof, QVector< double > &values, bool *constantValues) const
	See comments on base class.

virtual bool	calcDerivedResults (bool nonLinearSolver)
	See comments on base class.

Protected Member Functions
virtual bool	checkMeshDimension (int ndim)
	See comments on the base class.

virtual bool	checkAndLoadPrivateData (LuaTable &table)
	This is the first function called by the Fem physics infrastructure, so it is its responsability to get a reference for the appropriate user table containing the needed Lua functions.

virtual bool	checkAndLoadDofMapping (LuaTable &table)
	See comments on the base class.

virtual bool	checkAndLoadPropertyAccessors (LuaTable &table)
	See comments on the base class.

virtual bool	checkAndLoadAttributeAccessors (LuaTable &nodeTable, LuaTable &cellTable, LuaTable &gaussTable)

virtual bool	checkAndLoadExternalLoadAccessors (LuaTable &loadsTable)

virtual bool	checkAndLoadBcAccessors ()
	See comments on the base class.

virtual bool	checkAndLoadContactBcAccessors ()

virtual bool	checkAndLoadDiscontinuitySetAccessors (LuaTable &table)

Private Member Functions
bool	prepareCallMethod (const char *name, bool optional) const
	Prepares the call for a table method, puting the function and self on the stack top.

bool	callStdMethod (int npar, int nresults=1) const
	Call a standard method (which either doesn't return anything or returns a boolean + extra results)

bool	parseAccessors (LuaTable &table, LuaTable &transTable, GmValueSetKind acType, const GmBoundaryCondition *bc=NULL)
	Parses entries from the given table creating accessors for them, subject to the given restrictions.

bool	fillBcLists (const char fname, QVector< int > &nodes, QVector< int > &dof, QVector< double > &values, bool constantValues) const
	Calls the function fname and fills the given lists with the returned tables (constantValues should be NULL if the called function does not returns this parameter)

Private Attributes
LuaTable *	_methodTable
	The Lua method table.

GmElementDof *	_dofMap [GM_NUM_CELL_TYPES]
	The list with maps of dof per element type.

QVector< int >	_dofList
	Dof list for the physics.

QMap< int, QString >	_dofUnitMap
	List with dof units.

QList< const GmBoundaryCondition * >	_bcList
	A list of the supported Bcs.

QStringList	_bcTypes
	A list with the supported bc types.

Detailed Description

Basic class for the Lua Proxy physics plugin object.

Member Function Documentation

◆ afterElementStiffnessLoop()

void GmpLuaProxyFemPhysics::afterElementStiffnessLoop ( )

virtual

See comments on base class.

Proxy function: afterElementStiffnessLoop(), optional

◆ bcAffectsCalc()

bool GmpLuaProxyFemPhysics::bcAffectsCalc ( const GmBoundaryCondition * bc ) const

virtual

See comments on the base class.

Returns info based on the _bcList created on checkAndLoadBcAccessors

◆ beforeElementStiffnessLoop()

bool GmpLuaProxyFemPhysics::beforeElementStiffnessLoop	(	const GmpFemMatrixSet &	elemMatrices,
		const GmpFemVectorSet &	elemVectors )

virtual

See comments on base class.

Proxy function: beforeElementStiffnessLoop(), optional

TODO: Add support for multiple matrices and vectors

◆ calcDerivedResults()

bool GmpLuaProxyFemPhysics::calcDerivedResults ( bool nonLinearSolver )

virtual

See comments on base class.

Proxy function: calcDerivedResults(), optional

◆ callStdMethod()

bool GmpLuaProxyFemPhysics::callStdMethod	(	int	npar,
		int	nresults = 1 ) const

private

Call a standard method (which either doesn't return anything or returns a boolean + extra results)

Receives as parameter the number of parameters pushed on the stack. This number should NOT include the self parameter pushed by prepareCallMethod().

IMPORTANT: Results are left on the stack

On call error, logs the message and returns false.

◆ checkAndLoadBcAccessors()

bool GmpLuaProxyFemPhysics::checkAndLoadBcAccessors ( )

protectedvirtual

See comments on the base class.

Proxy attribute: bc. Check boundary condition availability and type and get accessors for all the properties in the list. After that, calls the optional function checkBc()

◆ checkAndLoadDofMapping()

bool GmpLuaProxyFemPhysics::checkAndLoadDofMapping ( LuaTable & table )

protectedvirtual

See comments on the base class.

Proxy attribute: stateVars. Check dof availability and get an accessor for all the stateVars in the list. After that, calls the optional function checkStateVars()

◆ checkAndLoadPrivateData()

bool GmpLuaProxyFemPhysics::checkAndLoadPrivateData ( LuaTable & table )

protectedvirtual

This is the first function called by the Fem physics infrastructure, so it is its responsability to get a reference for the appropriate user table containing the needed Lua functions.

Proxy function: checkPrivateData(physicsTable), optional

◆ checkAndLoadPropertyAccessors()

bool GmpLuaProxyFemPhysics::checkAndLoadPropertyAccessors ( LuaTable & table )

protectedvirtual

See comments on the base class.

Proxy attribute: properties. Check property availability and get an accessor for all the properties in the list. After that, calls the optional function checkProperties()

◆ checkMeshDimension()

bool GmpLuaProxyFemPhysics::checkMeshDimension ( int ndim )

protectedvirtual

See comments on the base class.

Proxy attribute: dimension. Should be a value or a table with a dimension range. If missing, accepts any dimension.

◆ dofMapping()

const GmElementDof * GmpLuaProxyFemPhysics::dofMapping ( GmCellType type ) const

virtual

See comments on the base class.

Returns mapping based on the dofList cretaed on checkAndLoadDofMapping

◆ dofUnit()

Unit GmpLuaProxyFemPhysics::dofUnit ( int dof ) const

virtual

See comments on the base class.

Returns mapping based on the unit map cretaed on checkAndLoadDofMapping

◆ fillElementData()

GmpFemPhysics::FemResultType GmpLuaProxyFemPhysics::fillElementData	(	const GmElement *	e,
		GmpFemMatrixSet &	elemMatrices,
		GmpFemVectorSet &	elemVectors )

virtual

See comments on base class.

Proxy function: fillElementData(e, matrix, vector), required. Returns a boolean for success followed by a second boolean defining if the matrix is symmetric.

TODO: Add support for multiple matrices and vectors

◆ fillElementDataForBc()

GmpFemPhysics::FemResultType GmpLuaProxyFemPhysics::fillElementDataForBc	(	const GmElement *	e,
		const GmBoundaryCondition *	bc,
		int	bcIndex,
		int	bcListIndex,
		int	border,
		GmpFemMatrixSet &	elemMatrices,
		GmpFemVectorSet &	elemVectors )

virtual

See comments on base class.

Proxy function: fillElementDataForBc(e, bc, bcIndex, bcListIndex, border, matrix, vector), optional. Returns a boolean for success followed by a second boolean defining if the matrix is symmetric.

TODO: Add support for multiple matrices and vectors

◆ fixedNodalDofsBc()

bool GmpLuaProxyFemPhysics::fixedNodalDofsBc	(	QVector< int > &	nodes,
		QVector< int > &	dof,
		QVector< double > &	values,
		bool *	constantValues ) const

virtual

See comments on base class.

Proxy function: fixedNodalDofsBc(), optional. Should return tables with nodes, dof and values

◆ fixedNodalForcesBc()

bool GmpLuaProxyFemPhysics::fixedNodalForcesBc	(	QVector< int > &	nodes,
		QVector< int > &	dof,
		QVector< double > &	values ) const

virtual

See comments on base class.

Proxy function: fixedNodalForcesBc(), optional. Should return tables with nodes, dof and values

◆ parseAccessors()

bool GmpLuaProxyFemPhysics::parseAccessors	(	LuaTable &	table,
		LuaTable &	transTable,
		GmValueSetKind	acType,
		const GmBoundaryCondition *	bc = NULL )

private

Parses entries from the given table creating accessors for them, subject to the given restrictions.

Accessors are added to the accessors table.

Parameters

table	The table with accessor definitions
transTable	A table used to translate accessor names
acType	The type of accessor
bc	The boundary condition, used only if acType == GM_BC_BOUNDARY_PROPERTY

◆ prepareCallMethod()

bool GmpLuaProxyFemPhysics::prepareCallMethod	(	const char *	name,
		bool	optional ) const

private

Prepares the call for a table method, puting the function and self on the stack top.

If the function doesn't exists, returns false. In that case, if optional == false, emmits an error message.

◆ supportedBcTypes()

const QStringList & GmpLuaProxyFemPhysics::supportedBcTypes ( ) const

virtual

See comments on the base class.

Returns ithe type list created on checkAndLoadBcAccessors

◆ supportsCellType()

bool GmpLuaProxyFemPhysics::supportsCellType ( GmCellType type ) const

virtual

See comments on the base class.

Proxy attribute: elementType. Should be a table with supported element name. If missing, accepts any type.

The documentation for this class was generated from the following files:

inc/gmpLuaProxyFemPhysics.h
src/gmpLuaProxyFemPhysics.cpp
