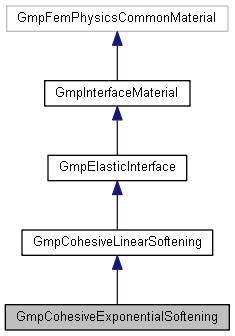

Inheritance diagram for GmpCohesiveExponentialSoftening:

[legend]

Collaboration diagram for GmpCohesiveExponentialSoftening:

[legend]

Public Member Functions
	GmpCohesiveExponentialSoftening (int typeIndex, QString typeName, const GmLogCategory &logger)
	Constructor. Gets as parameters the material index and its name.

virtual	~GmpCohesiveExponentialSoftening ()
	Virtual destructor.

virtual const QVariantMap *	materialMetaDataMap ()
	Returns a pointer to the material attribute map, built when the function is called for the first time.

virtual double	exponentialSofteningParameter (const GmElement e, const GmVector coord, int ip) const
	Returns the exponential material parameter.

Public Member Functions inherited from GmpCohesiveLinearSoftening
	GmpCohesiveLinearSoftening (int typeIndex, QString typeName, const GmLogCategory &logger)
	Constructor. Gets as parameters the material index and its name.

virtual	~GmpCohesiveLinearSoftening ()
	Virtual destructor.

virtual bool	mechanicalConstitutiveModel (const GmElement e, GmMatrix &Dep, const GmpMechanicPoint mp, const GmVector *coord, unsigned nc) const
	Returns the cohesive stress tensor according to the material behavior adopted.

virtual bool	setInitialConditions (const GmElement e, GmpMechanicPoint mp, const GmVector *coord, unsigned nc) const
	Sets the initial conditions.

virtual double	normalStrength (const GmElement e, const GmVector coord, int ip) const
	Returns the normal strength of the interface element.

virtual double	shearStrength (const GmElement e, const GmVector coord, int ip) const
	Returns the shear strength at direction 1 of the interface element.

virtual double	shearStrengthTwo (const GmElement e, const GmVector coord, int ip) const
	Returns the shear strength at direction 2 of the interface element.

virtual double	equivalentSeparation (const GmElement e, const GmVector coord, int ip) const
	Returns the normal elastic stiffness of the interface element.

virtual damageCriteria	damageCriterion (const GmElement e, const GmVector coord, int ip) const
	Returns the criterion of damage initiation.

Public Member Functions inherited from GmpElasticInterface
	GmpElasticInterface (int typeIndex, QString typeName, const GmLogCategory &logger)
	Constructor. Gets as parameters the material index and its name.

virtual	~GmpElasticInterface ()
	Virtual destructor.

virtual bool	fillElasticStiffnessMatrix (const GmElement e, GmMatrix &Dep, const GmVector coord, int ip, double penalty=1.0) const
	Returns the elastic constitutive matrix for an interface element De = \|Ks 0 0 \| \| 0 Kt 0 \| \| 0 0 Kn\|.

virtual bool	fillBartonBandisStiffnessMatrix (const GmElement e, GmMatrix &Dep, const GmpMechanicPoint mp, const GmVector *coord) const
	Returns the constitutive matrix for Barton-Bandis model.

virtual bool	fillBartonBandisStresses (const GmElement e, GmVector &Snew, const GmpMechanicPoint mp, const GmVector *coord, GmVector &eNew, GmVector &eOld, GmVector &sOld) const
	Returns the constitutive matrix for Barton-Bandis model.

virtual double	normalElasticStiffness (const GmElement e, const GmVector coord, int ip) const
	Returns the normal elastic stiffness of the interface element.

virtual double	shearElasticStiffness (const GmElement e, const GmVector coord, int ip) const
	Returns the shear elastic stiffness of the interface element.

virtual double	shearElasticStiffnessTwo (const GmElement e, const GmVector coord, int ip) const
	Returns the shear elastic stiffness 2 of the interface element (required in 3D)

virtual double	fractureOpening (const GmElement e, const GmVector coord, int ip) const
	Returns the initial fracture opening.

virtual closureModel	fractureClosureModel (const GmElement e, const GmVector coord, int ip) const
	Returns the type of fracture closure model.

Public Member Functions inherited from GmpInterfaceMaterial
	GmpInterfaceMaterial (int typeIndex, QString typeName, const GmLogCategory &logger)
	Constructor. Gets as parameters the material index and its name.

virtual	~GmpInterfaceMaterial ()
	Virtual destructor.

virtual double	getEffectiveDisplacement (const GmElement *e, const GmVector &S) const
	Returns the effective displacement Eef = sqrt(e(0)^2 + e(1)^2+ e(2)^2 )

virtual bool	splitJoinTensorToInterface (const GmElement *, GmVector &Tensor, GmVector &cohesive, bool type) const
	Split tensor to interface or Join interface to tensor type = true ==> split tensor to interface components type = false ==> join interface components to tensor.

Static Public Member Functions
static GmpFemPhysicsCommonMaterial *	instance (GmSimulationData *simulation, int typeIndex, QString typeName, const GmLogCategory &logger)
	A "factory" function used to register the material with the physics material factory.

Static Public Member Functions inherited from GmpCohesiveLinearSoftening
static GmpFemPhysicsCommonMaterial *	instance (GmSimulationData *simulation, int typeIndex, QString typeName, const GmLogCategory &logger)
	A "factory" function used to register the material with the physics material factory.

Static Public Member Functions inherited from GmpElasticInterface
static GmpFemPhysicsCommonMaterial *	instance (GmSimulationData *simulation, int typeIndex, QString typeName, const GmLogCategory &logger)
	A "factory" function used to register the material with the physics material factory.

Protected Types
enum	CohesiveExpElemPropertyIds { ALPHA_ID = GmpCohesiveLinearSoftening::NUM_PROPERTY_IDS , NUM_PROPERTY_IDS }
	IDs for elastic interface material properties. More...

Protected Types inherited from GmpCohesiveLinearSoftening
enum	CohesiveLinearPropertyIds { Ed_ID = GmpElasticInterface::NUM_PROPERTY_IDS , Sni_ID , Tsi_ID , Tti_ID , DamIni_ID , NUM_PROPERTY_IDS }
	IDs for elastic interface material properties. More...

enum	damageCriteria { quadS , maxS , NUM_DAMAGEINI_IDS }
	Damage initiation criteria. More...

Protected Types inherited from GmpElasticInterface
enum	InterfaceElementPropertyIds { Kni_ID , Ksi_ID , Kti_ID , GAP_ID , Closure_ID , NUM_PROPERTY_IDS }
	IDs for elastic interface material properties. More...

enum	closureModel { normal , hardStiffness , bartonBandis , NUM_CLOSURE_IDS }
	Fracture closure models. More...

Protected Member Functions
virtual double	scalarDamageVariable (const GmElement e, const GmVector coord, int ip, double de, double di, double df) const

virtual double	deriveDamage (const GmElement e, const GmVector coord, int ip, double de, double di, double df) const

Protected Member Functions inherited from GmpCohesiveLinearSoftening
virtual double	damageInitiationCriteria (const GmElement e, GmVector stress, const GmVector coord, int ip, int nc) const

Additional Inherited Members
Public Types inherited from GmpCohesiveLinearSoftening
enum	cohesiveGaussAttributeIds { SDV_GA_ID = GmpElasticInterface::NUM_GA_IDS , SDVOLD_GA_ID , IV_GA_ID , IVOLD_GA_ID , AFI_GA_ID , NUM_GA_IDS }
	IDs for Gauss attributes of cohesive linear softening material. More...

Public Types inherited from GmpElasticInterface
enum	elasticInterfaceGaussAttrIds { VM_GA_ID , NUM_GA_IDS }
	IDs for Gauss attributes of elastic interface material. More...

Member Enumeration Documentation

◆ CohesiveExpElemPropertyIds

enum GmpCohesiveExponentialSoftening::CohesiveExpElemPropertyIds

protected

IDs for elastic interface material properties.

Enumerator
ALPHA_ID	Id for retrieving the exponential softening parameter.
NUM_PROPERTY_IDS	The number of property ids above.

Member Function Documentation

◆ deriveDamage()

virtual double GmpCohesiveExponentialSoftening::deriveDamage	(	const GmElement *	e,
		const GmVector *	coord,
		int	ip,
		double	de,
		double	di,
		double	df ) const

inlineprotectedvirtual

Reimplemented from GmpCohesiveLinearSoftening.

◆ materialMetaDataMap()

virtual const QVariantMap * GmpCohesiveExponentialSoftening::materialMetaDataMap ( )

inlinevirtual

Returns a pointer to the material attribute map, built when the function is called for the first time.

This table adds the equivalent separation 'ed'.

Reimplemented from GmpCohesiveLinearSoftening.

◆ scalarDamageVariable()

virtual double GmpCohesiveExponentialSoftening::scalarDamageVariable	(	const GmElement *	e,
		const GmVector *	coord,
		int	ip,
		double	de,
		double	di,
		double	df ) const

inlineprotectedvirtual

Reimplemented from GmpCohesiveLinearSoftening.

The documentation for this class was generated from the following file:

inc/gmpMaterialCohesiveExponentialSoftening.h
