GmpMechanicalMaterialLua Class Reference

A Mechanical material whose behaviour is implemented through Lua functions. More...

#include <gmpMaterialLua.h>

Inheritance diagram for GmpMechanicalMaterialLua:

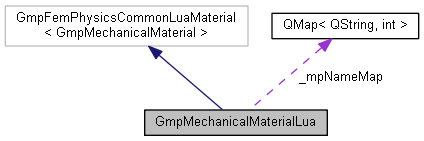

Collaboration diagram for GmpMechanicalMaterialLua:

Public Member Functions
	GmpMechanicalMaterialLua (const GmPluginData *pdata, int typeIndex, QString typeName, const GmLogCategory &logger)
virtual bool	mechanicalConstitutiveModel (const GmElement *e, GmMatrix &Dep, const GmpMechanicPoint *mp, const GmVector *coord, const GmVector &Time, unsigned nc, bool ips=false) const
	The mechanicalConstitutiveModel() interface method implementation based on the constitutiveModel() user Lua function.
virtual bool	isIsotropic () const
	The isIsotropic() interface method implementation based on the isIsotropic field on the plugin data.
virtual bool	setInitialConditions (const GmElement *e, GmpMechanicPoint *mp, const GmVector *coord, unsigned sc) const
	The setInitialConditions() interface method implementation based on the setInitialConditions() user Lua function.
virtual bool	updateDeformationGradient (GmMatrix &F, const GmElement *e, const GmVector *coord, int ip, bool ips=false) const
	The updateDeformationGradient() interface method implementation based on the updateDeformationGradient() user Lua function.
virtual bool	calcDerivedResults (const GmElement *e, GmpMechanicPoint *mp, const GmVector *coord, unsigned sc) const
	The calcDerivedResults() interface method implementation based on the calcDerivedResults() user Lua function.

Static Public Member Functions
static GmpFemPhysicsCommonMaterial *	instance (GmSimulationData *simulation, int typeIndex, QString typeName, const GmLogCategory &logger)
	A "factory" function used to register the material with the physics material factory. Before instancing a material object finds its corresponding PluginData in the simulation data object. Matching is done by typeName. If not found, returns NULL.

Static Private Member Functions
static QVariant	getMpValue (QString field, const void *context, const GmElement *e, int ip, const GmVector *coord, const GmLogCategory &logger)
	The method used to fill the material point values used by the Lua function.
static bool	setMpValue (QString field, const void *context, const GmElement *e, int ip, const QVariant &v)
	The method used to update the material point values calculated by the Lua function.

Static Private Attributes
static QMap< QString, int >	_mpNameMap
	Maps mechanic point data names used in the user functions to their internal id. More...

Detailed Description

A Mechanical material whose behaviour is implemented through Lua functions.

Member Data Documentation

_mpNameMap

QMap< QString, int > GmpMechanicalMaterialLua::_mpNameMap

staticprivate

Initial value:

={
  {"oldState",       GmpMechanicPoint::SD_oldState},
  {"newState",       GmpMechanicPoint::SD_newState},
  {"oldStrain",      GmpMechanicPoint::SD_oldStrain},
  {"newStrain",      GmpMechanicPoint::SD_newStrain},
  {"oldStress",      GmpMechanicPoint::SD_oldStress},
  {"newStress",      GmpMechanicPoint::SD_newStress},
  {"residualStress", GmpMechanicPoint::SD_residualStress},
  {"newYSR",         GmpMechanicPoint::SD_newYSR},
  {"oldYSR",         GmpMechanicPoint::SD_oldYSR},
  {"iteration",      GmpMechanicPoint::SD_iteration},


  {"oldTemp",        GmpMechanicPoint::SD_oldTemp},
  {"newTemp",        GmpMechanicPoint::SD_newTemp},
  {"F",              GmpMechanicPoint::SD_F},
  {"enabledK0",      GmpMechanicPoint::SD_enabledK0},
  {"updatedLD",      GmpMechanicPoint::SD_updatedLD},
}

Maps mechanic point data names used in the user functions to their internal id.

< Maps mechanic point data names used in the user functions to their internal id

---

The documentation for this class was generated from the following files:

• inc/gmpMaterialLua.h
• src/gmpMaterialLua.cpp
