A basic class used to store meta-data information about result attributes DEFINITIONS. More...

#include <gmResultDataSrcInfo.h>

Inheritance diagram for GmAttributeResultDataSrcInfo:

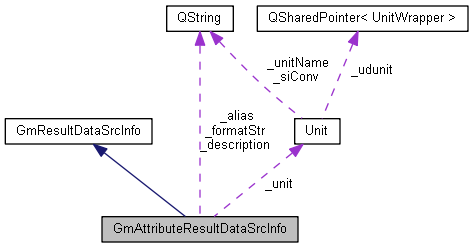

Collaboration diagram for GmAttributeResultDataSrcInfo:

[legend]

Public Member Functions
	GmAttributeResultDataSrcInfo (GmResultDataSrcType type, QString alias, QString description, Unit unit, int nlin, int ncol, QString format)

void	updateData (Unit unit, int nlin, int ncol, QString format)

virtual int	trackId () const
	Returns an invalid trackId since this object is not a real dataSrc, but the metadata for a data src.

virtual GmResultDataSrcType	type () const
	Returns the data src type.

virtual QString	alias () const
	Returns the data src "exported" id.

virtual QString	description () const
	Returns the data src description, when available.

virtual Unit	unit () const
	Returns the unit in which the data is expressed.

virtual int	size () const
	Returns the dimension of the data src values, taking into account any applied transformations or dim filters. Equal to nlin() * ncol(). A size of zero means that this data src returns string values (valid only for attribute type). A value of -1 means that this object has not been fully initialised yet.

virtual int	nlin () const
	The number of lines in the returned result, taking into account any applied transformations or dim filters. A size of zero means that this data src returns string values (valid only for attribute type). A value of -1 means that this object has not been fully initialised yet.

virtual int	ncol () const
	The number of columns in the returned result, taking into account any applied transformations or dim filters. A size of zero means that this data src returns string values (valid only for attribute type). A value of -1 means that this object has not been fully initialised yet.

virtual QString	formatStr () const
	How should dataSrc values be formated?

Public Member Functions inherited from GmResultDataSrcInfo
virtual	~GmResultDataSrcInfo ()
	Virtual destructor.

Private Attributes
GmResultDataSrcType	_type
	The data src type.

QString	_alias
	The data src alias (exported name)

QString	_description
	The data description.

Unit	_unit
	The data unit.

int	_nlin
	The number of lines in the data (0 for string attributes)

int	_ncol
	The number of lines in the data (0 for string attributes)

QString	_formatStr
	The printf style (without the %) format specifier.

Detailed Description

A basic class used to store meta-data information about result attributes DEFINITIONS.

The documentation for this class was generated from the following file:

inc/results/gmResultDataSrcInfo.h
