GmBoundaryConditionStateDumpItem Class Reference

An auxiliar class used to host the needed code for duming a boundary condition to a state dump. Its purpose os to avoid adding that code to the BC class itself. More...

#include <gmBoundaryCondition.h>

Inheritance diagram for GmBoundaryConditionStateDumpItem:

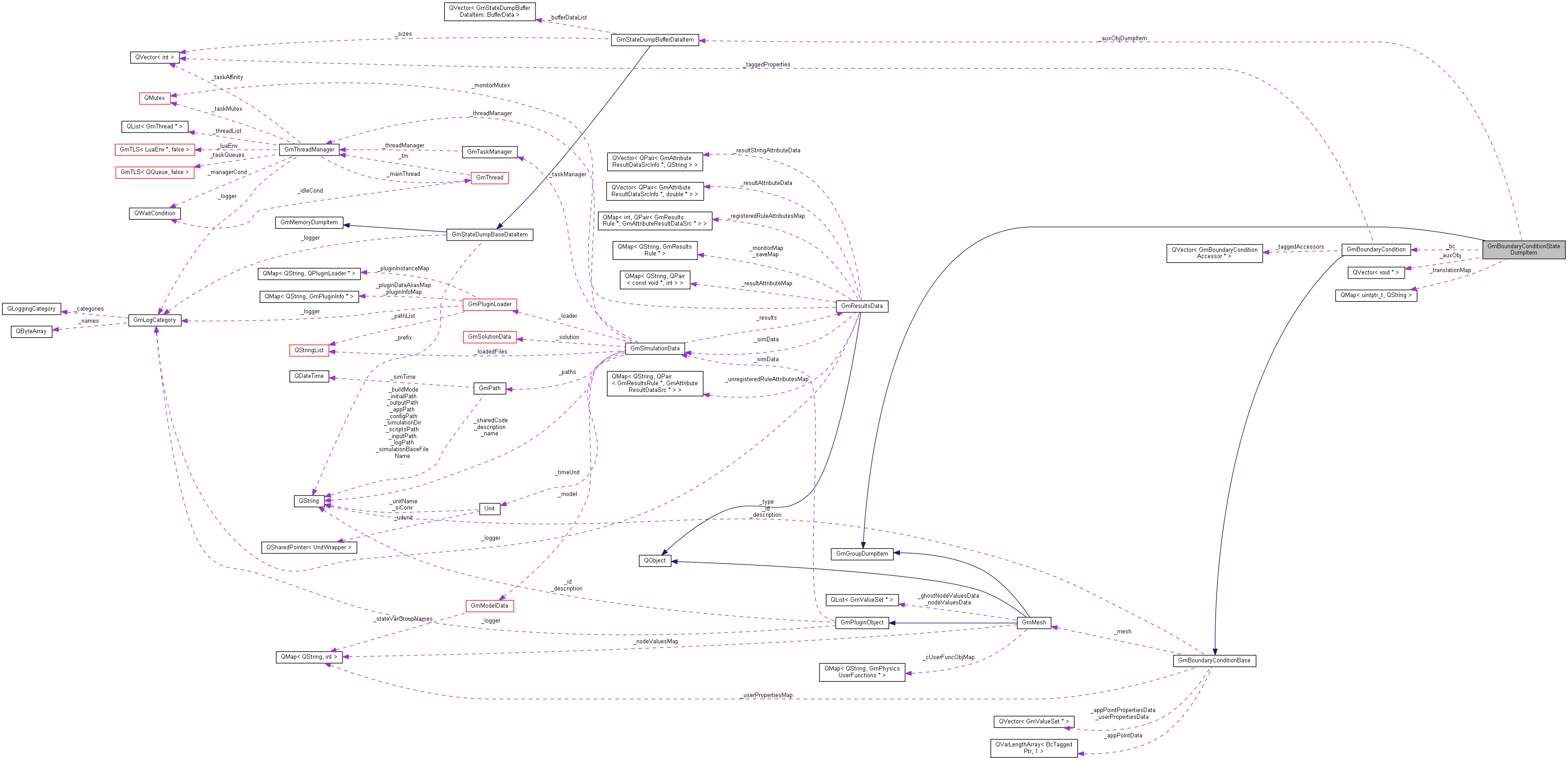

Collaboration diagram for GmBoundaryConditionStateDumpItem:

Public Member Functions
	GmBoundaryConditionStateDumpItem (GmBoundaryCondition *bc)
	Basic constructor.
virtual	~GmBoundaryConditionStateDumpItem ()
	Destructor.
virtual bool	addStateItemsToGroup (GmStateDump *state, int groupId)
	Adds to 'state' a data item storing a control map followed by the set of data items needed for recovering application points (depending on the bc type) and then by the available value sets. More...
virtual bool	fillDumpControlMapData (QVariantMap *map, const GmLogCategory &logger)
	Fill the control map with data just before the BC being saved. It also prepares the translation map and additional buffers that will be saved by their own dump items after the control map.
virtual bool	dumpControlMapDataLoaded (QVariantMap *map, const GmLogCategory &logger)
	Sanity checks + processing of the dump control data map after a load operation for preparing the buffers used to read the application point data, together with BcNodeSet / BcCellBoundary objects.
virtual bool	stateLoaded (GmStateDump *state)
	Method called after the whole BC item has been loaded. Used to adjust the application point data according to the translation map.
Public Member Functions inherited from GmGroupDumpItem
virtual	~GmGroupDumpItem ()
	Virtual destructor.
virtual bool	stateAboutToBeSaved (GmStateDump *state)
	Virtual method called just before starting a save operation on the given state. Returning false aborts the operation.
virtual bool	stateSaved (GmStateDump *state)
	Virtual method called just after succesfully completing a save operation on the given state. Returning false aborts the operation.
virtual bool	stateAboutToBeLoaded (GmStateDump *state)
	Virtual method called just before starting a load operation on the given state. Returning false aborts the operation.

Private Attributes
GmBoundaryCondition *	_bc
	The boundary condition.
QVariantMap	_controlMap
	Variant map used for storing the dump control data for the bc object.
QMap< uintptr_t, QString >	_translationMap
	Translation map for app point pointers (Uses uintptr_t instead of BcTaggedPtr::Data since that class exists only in the cpp file)
char *	_appPointDataPtr
	A pointer to the _bc->_appPointData vector data converted to a char*.
GmStateDumpBufferDataItem *	_auxObjDumpItem
	The dump item used to save BcNodeSet / BcCellBoundary data.
QVector< void * >	_auxObj
	Temporarily stores pointers to either BcNodeSet or BcCellBoundary objects during bc data loading.

Detailed Description

An auxiliar class used to host the needed code for duming a boundary condition to a state dump. Its purpose os to avoid adding that code to the BC class itself.

Member Function Documentation

addStateItemsToGroup()

bool GmBoundaryConditionStateDumpItem::addStateItemsToGroup ( GmStateDump *  state, int  groupId  )

virtual

Adds to 'state' a data item storing a control map followed by the set of data items needed for recovering application points (depending on the bc type) and then by the available value sets.

Data items needed for recovering application points are:

• For bc type = Node
  • A translation map for a BcTaggedPtr value into either a GmNodeSet name or into a BcNodeSet index (stored as a string).
  • An item with the data associated with BcNodeSet objects
  • The application point data as stored by _appPointData
• For bc type = Cell
  • The application point data as stored by _appPointData
• For bc type = Edge or Face
  • A translation map for a BcTaggedPtr value into either a GmCellBoundary name or into a BcCellBoundary index (stored as a string).
  • An item with the data associated with BcCellBoundary objects
  • The application point data as stored by _appPointData

Auxiliar variant map dump item that notifies us for loading and saving data to the map

< Our "father" Bc dump item object

Implements GmGroupDumpItem.

---

The documentation for this class was generated from the following files:

• inc/model/gmBoundaryCondition.h
• src/model/gmBoundaryCondition.cpp
