GmCellGenericGroupSet Class Reference

Cell group set consisting of a set of mesh cell groups. More...

#include <gmCellGroupSet.h>

Inheritance diagram for GmCellGenericGroupSet:

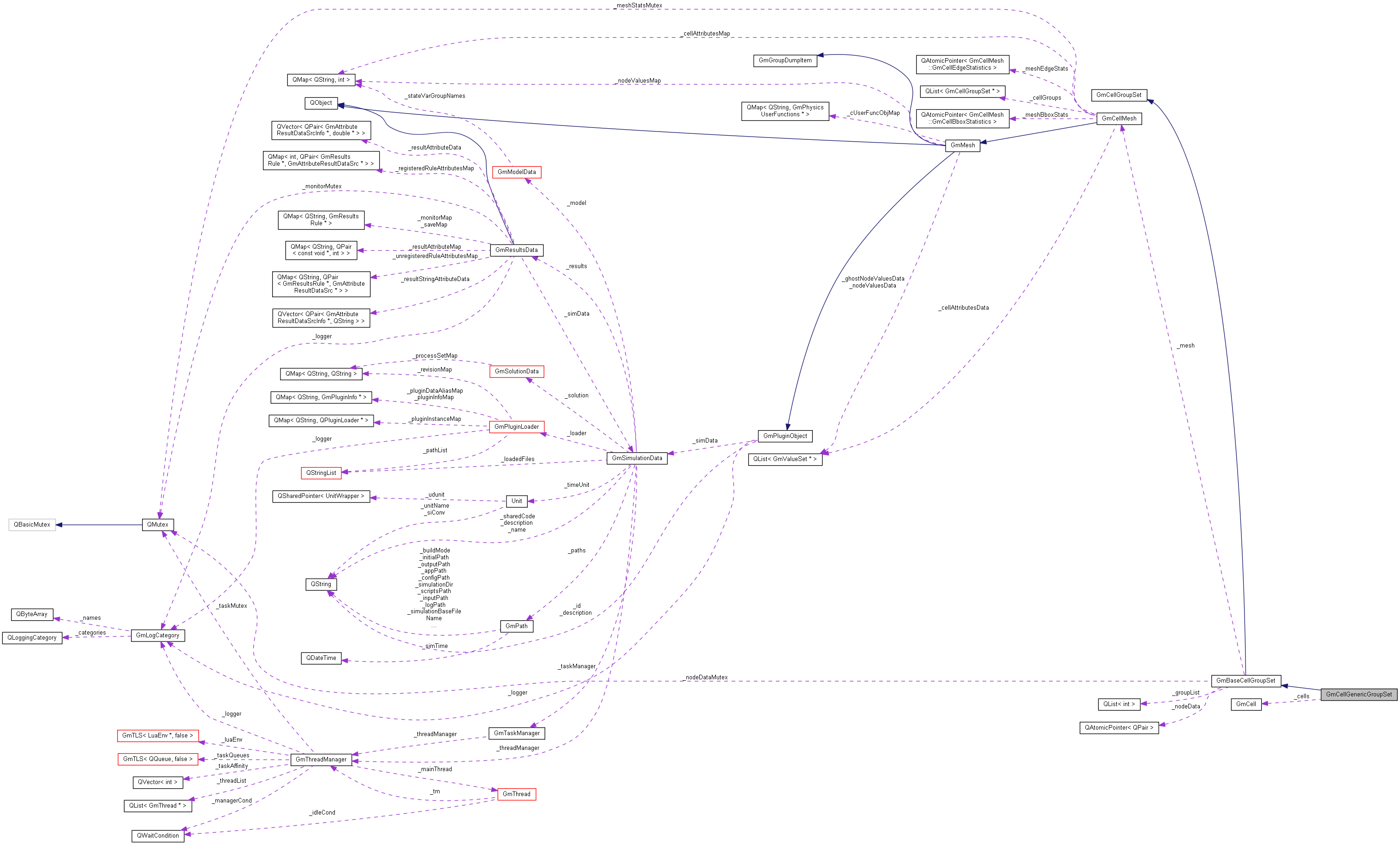

Collaboration diagram for GmCellGenericGroupSet:

Public Member Functions
	GmCellGenericGroupSet (GmCellMesh *mesh, const QList< int > &groups)
	Constructor.
	GmCellGenericGroupSet (GmCellMesh *mesh, const QVector< int > &cellIds)
	Constructor used for other subsets which does not depends on groups.
virtual	~GmCellGenericGroupSet ()
	Destructor.
virtual int	numCells () const
	Returns the number of unique elements in the cell group set.
virtual GmCell *	cell (int setIndex) const
	Given an index in the range [0..numCells()-1], returns the respective cell.
virtual bool	ordered () const
	Returns true if the the set returned by calls to cell(0) through cell(numCells()-1) is ordered by cell id.
virtual void	clear ()
	Clear the group set in response to a mesh clear() operation. It will not clear the list of cellGroups.
virtual size_t	usedMemory () const
	Returns the approximate amount of memory used to store node data, if any.
virtual void	applyTransform (std::function< int(int)> &t)
	This is a very specialized function. Use only if you know what you are doing. For sets storing internally the cell ids, it should apply the given transformation to every id, replacing the previous ones. Sets that just point to cell groups should do nothing.
Public Member Functions inherited from GmBaseCellGroupSet
virtual	~GmBaseCellGroupSet ()
	Destructor.
virtual int	numNodes () const
	Returns the number of geometric nodes shared by the group elements.
virtual int	node (int setIndex) const
	Given an index in the range [0..numNodes()-1], returns the respective mesh node index.
virtual const QList< int > &	cellGroups () const
	Returns a list with the cell groups belonging to this group set. Values are the group index in the mesh, ordered by index.
virtual GmCellMesh *	mesh () const
	Returns the mesh owning the cell groups.
Public Member Functions inherited from GmCellGroupSet
virtual	~GmCellGroupSet ()
	Virtual destructor.
QStringList	cellGroupNames () const
	Returns the result of cellGroups() converted to group names.

Private Attributes
int	_ncells
	The number of unique cells in the group.
int *	_cells
	A vector with the ids of all unique cells in the group with size _ncells.
friend	GmCellGroupSet

Additional Inherited Members
Static Public Member Functions inherited from GmCellGroupSet
static bool	cellGroupIds (const GmCellMesh *mesh, const QStringList &groupNames, QList< int > &idList, QString &err)
	Given a set of cell group names, creates a set of group ids, filling idList.
Protected Types inherited from GmBaseCellGroupSet
typedef QPair< int, int * >	NodeData
	Type for storing node data information: Number of nodes + vector pointer.
Protected Member Functions inherited from GmBaseCellGroupSet
	GmBaseCellGroupSet (GmCellMesh *mesh, const QList< int > &groups)
	Base group set constructor. Stores the mesh and an ordered version of the group list.
	GmBaseCellGroupSet (GmCellMesh *mesh)
	Base group set constructor. Stores the mesh and an ordered version of the group list.
NodeData *	buildNodeList () const
	Builds the list with nodes used by this element groups. Does not changes the internal state.
NodeData *	nodeData () const
	Auxiliar function that uses the Double Checked Locking Pattern (DCLP) to grab the pointer to the node data, creating it by calling buildNodeList() if the node data was not created yet..
Protected Attributes inherited from GmBaseCellGroupSet
GmCellMesh *	_mesh
	The associated mesh.
QList< int >	_groupList
	The list of mesh cell groups included in this set.
QAtomicPointer< NodeData >	_nodeData
	Atomic pointer to the node data. Contains the number of nodes shared by the group cells and a vector with node indices. Mutable so that it can be filled in a lazy way by nodeData(). Stored in an atomic pointer to enable the use of a DCLP.
QMutex	_nodeDataMutex
	Mutex protecting the creation of _nodeData.

Detailed Description

Cell group set consisting of a set of mesh cell groups.

Cells will be traversed in cell id order

Member Function Documentation

applyTransform()

void GmCellGenericGroupSet::applyTransform ( std::function< int(int)> & t )

virtual

This is a very specialized function. Use only if you know what you are doing. For sets storing internally the cell ids, it should apply the given transformation to every id, replacing the previous ones. Sets that just point to cell groups should do nothing.

Implements GmCellGroupSet.

cell()

virtual GmCell * GmCellGenericGroupSet::cell ( int setIndex ) const

inlinevirtual

Given an index in the range [0..numCells()-1], returns the respective cell.

Implements GmCellGroupSet.

clear()

void GmCellGenericGroupSet::clear ( )

virtual

Clear the group set in response to a mesh clear() operation. It will not clear the list of cellGroups.

Reimplemented from GmBaseCellGroupSet.

numCells()

virtual int GmCellGenericGroupSet::numCells ( ) const

inlinevirtual

Returns the number of unique elements in the cell group set.

Implements GmCellGroupSet.

ordered()

virtual bool GmCellGenericGroupSet::ordered ( ) const

inlinevirtual

Returns true if the the set returned by calls to cell(0) through cell(numCells()-1) is ordered by cell id.

Implements GmCellGroupSet.

usedMemory()

virtual size_t GmCellGenericGroupSet::usedMemory ( ) const

inlinevirtual

Returns the approximate amount of memory used to store node data, if any.

Reimplemented from GmBaseCellGroupSet.

---

The documentation for this class was generated from the following files:

• inc/model/gmCellGroupSet.h
• src/model/gmCellGroupSet.cpp
