A helper class implementing common code for handling group sets, specially handling group nodes. Is inherited by GmCellDisjointGroupSet and by GmCellGenericGroupSet. More...

#include <gmCellGroupSet.h>

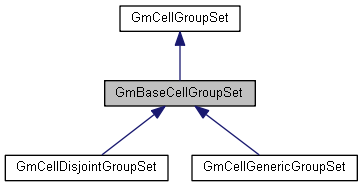

Inheritance diagram for GmBaseCellGroupSet:

[legend]

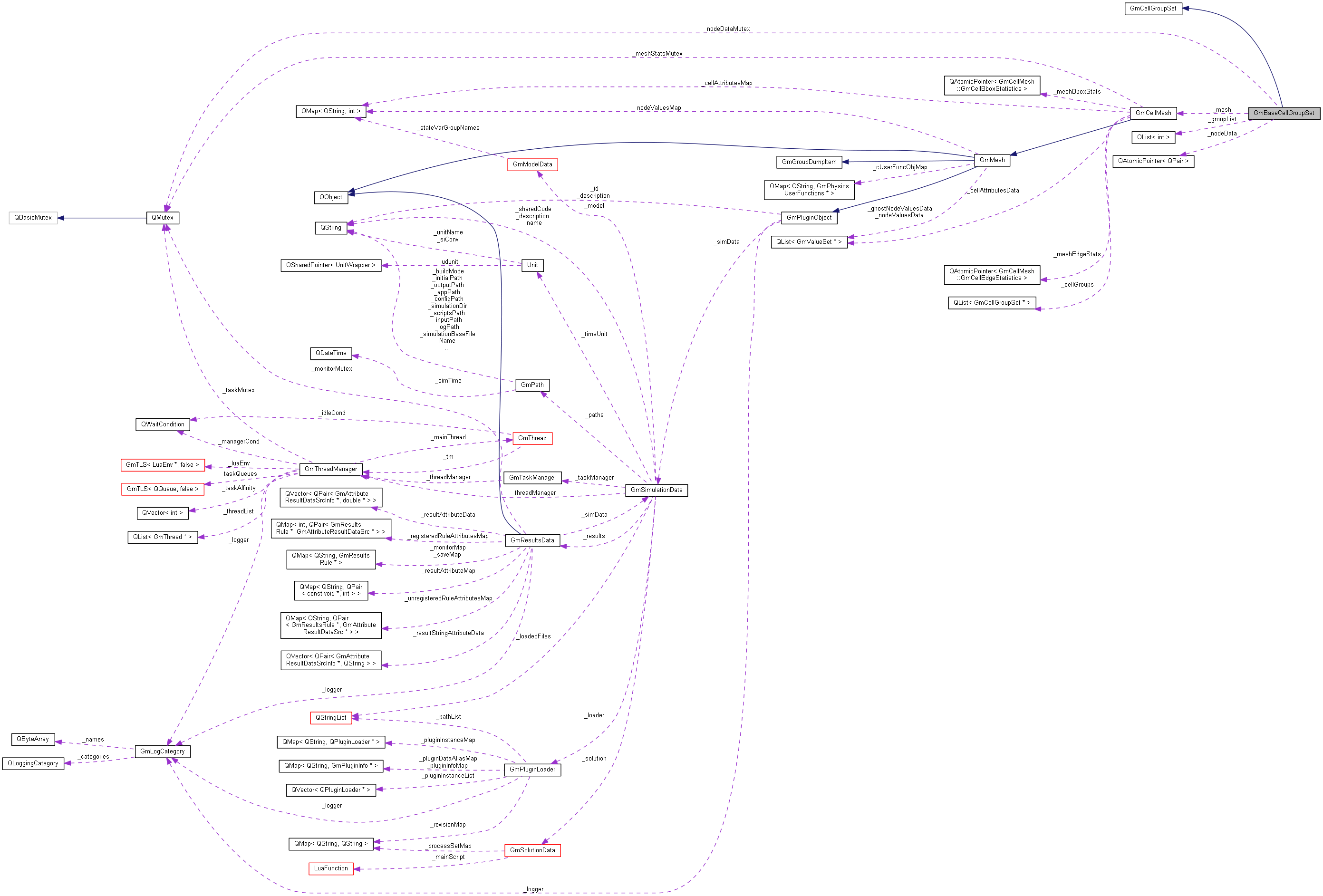

Collaboration diagram for GmBaseCellGroupSet:

[legend]

Public Member Functions
virtual	~GmBaseCellGroupSet ()
	Destructor.

virtual int	numNodes () const
	Returns the number of geometric nodes shared by the group elements.

virtual int	node (int setIndex) const
	Given an index in the range [0..numNodes()-1], returns the respective mesh node index.

virtual void	clear ()
	Clear the group set in response to a mesh clear() operation. It will not clear the list of cellGroups.

virtual const QList< int > &	cellGroups () const
	Returns a list with the cell groups belonging to this group set. Values are the group index in the mesh, ordered by index.

virtual GmCellMesh *	mesh () const
	Returns the mesh owning the cell groups.

virtual size_t	usedMemory () const
	Returns the approximate amount of memory used to store node data, if any.

Public Member Functions inherited from GmCellGroupSet
virtual	~GmCellGroupSet ()
	Virtual destructor.

virtual int	numCells () const =0
	Returns the number of unique elements in the cell group set.

virtual GmCell *	cell (int setIndex) const =0
	Given an index in the range [0..numCells()-1], returns the respective cell.

virtual bool	ordered () const =0
	Returns true if the the set returned by calls to cell(0) through cell(numCells()-1) is ordered by cell id.

QStringList	cellGroupNames () const
	Returns the result of cellGroups() converted to group names.

virtual void	applyTransform (std::function< int(int)> &t)=0
	This is a very specialized function. Use only if you know what you are doing. For sets storing internally the cell ids, it should apply the given transformation to every id, replacing the previous ones. Sets that just point to cell groups should do nothing.

Protected Types
typedef QPair< int, int * >	NodeData
	Type for storing node data information: Number of nodes + vector pointer.

Protected Member Functions
	GmBaseCellGroupSet (GmCellMesh *mesh, const QList< int > &groups)
	Base group set constructor. Stores the mesh and an ordered version of the group list.

	GmBaseCellGroupSet (GmCellMesh *mesh)
	Base group set constructor. Stores the mesh and an ordered version of the group list.

NodeData *	buildNodeList () const
	Builds the list with nodes used by this element groups. Does not changes the internal state.

NodeData *	nodeData () const
	Auxiliar function that uses the Double Checked Locking Pattern (DCLP) to grab the pointer to the node data, creating it by calling buildNodeList() if the node data was not created yet..

Protected Attributes
GmCellMesh *	_mesh
	The associated mesh.

QList< int >	_groupList
	The list of mesh cell groups included in this set.

QAtomicPointer< NodeData >	_nodeData
	Atomic pointer to the node data. Contains the number of nodes shared by the group cells and a vector with node indices. Mutable so that it can be filled in a lazy way by nodeData(). Stored in an atomic pointer to enable the use of a DCLP.

QMutex	_nodeDataMutex
	Mutex protecting the creation of _nodeData.

Additional Inherited Members
Static Public Member Functions inherited from GmCellGroupSet
static bool	cellGroupIds (const GmCellMesh *mesh, const QStringList &groupNames, QList< int > &idList, QString &err)
	Given a set of cell group names, creates a set of group ids, filling idList.

Detailed Description

A helper class implementing common code for handling group sets, specially handling group nodes. Is inherited by GmCellDisjointGroupSet and by GmCellGenericGroupSet.

Node data is filled in a lazy way only if numNodes() or node() are ever called.

Member Function Documentation

◆ cellGroups()

virtual const QList< int > & GmBaseCellGroupSet::cellGroups ( ) const

inlinevirtual

Returns a list with the cell groups belonging to this group set. Values are the group index in the mesh, ordered by index.

Implements GmCellGroupSet.

◆ clear()

void GmBaseCellGroupSet::clear ( )

virtual

Clear the group set in response to a mesh clear() operation. It will not clear the list of cellGroups.

Implements GmCellGroupSet.

Reimplemented in GmCellDisjointGroupSet, GmCellGenericGroupSet, and GmCellSequentialGroupSet.

◆ mesh()

virtual GmCellMesh * GmBaseCellGroupSet::mesh ( ) const

inlinevirtual

Returns the mesh owning the cell groups.

Implements GmCellGroupSet.

◆ node()

virtual int GmBaseCellGroupSet::node ( int setIndex ) const

inlinevirtual

Given an index in the range [0..numNodes()-1], returns the respective mesh node index.

Implements GmCellGroupSet.

◆ nodeData()

GmBaseCellGroupSet::NodeData * GmBaseCellGroupSet::nodeData ( ) const

protected

Auxiliar function that uses the Double Checked Locking Pattern (DCLP) to grab
the pointer to the node data, creating it by calling buildNodeList() if the node data was not created yet..

Using DCLP guarantees that all accesses but the first one have minimum overhead.

See https://preshing.com/20130930/double-checked-locking-is-fixed-in-cpp11/ for an extensive documentation about the DCLP problem.
