A calss storing basic information about a result data to be exported (monitored / saved), that is common to node, cell and Gauss data sources. More...
#include <gmResultDataSrc.h>
Public Member Functions | |
| GmResultAcDataSrcBase (int trackId) | |
| Default constructor. | |
| virtual | ~GmResultAcDataSrcBase () |
| Destructor. | |
| virtual int | trackId () const |
| Returns a numeric id for this data src (a value between 0 and the number of monitored data srcs in the model, or -1 if this data src is not monitored) | |
| virtual QString | id () const =0 |
| virtual QString | alias () const |
| Returns the data src "exported" id. | |
| virtual QString | formatStr () const |
| How should dataSrc values be formated? | |
| virtual bool | isScalar () const =0 |
| Returns true if the accessor value is a scalar value or there is a dimensional filter. | |
| virtual int | dimSize () const =0 |
| Returns the accessor valueSize() adjusted by an optional dimension filter. | |
| int | history () const |
| Returns the state accessed by this data src. | |
| int | dimFilter () const |
| Returns the dimension filter value (-1 if there is no filter) | |
| void | setBasicData (int dim, const QString &alias, int history, GmInterpolatorType interpType, const QVariant &interpParam) |
| Sets the values of the given basic object attributes. | |
| void | setFormatStr (const QString &formatStr) |
| Sets the format string. | |
| void | setTransformationFunction (LuaFunction &tfunc, int nresLin, int nresCol) |
| Sets the transformation function along with its result dimensions. | |
| void | setInterpolator (GmInterpolator *interp) |
| Sets the configured interpolator for this data source. Takes ownership of the object. | |

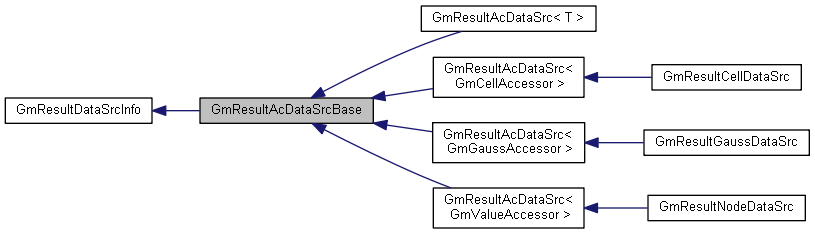

 Public Member Functions inherited from GmResultDataSrcInfo | |
| virtual | ~GmResultDataSrcInfo () |
| Virtual destructor. | |
| virtual GmResultDataSrcType | type () const =0 |
| Returns the data src type. | |
| virtual QString | description () const =0 |
| Returns the data src description, when available. | |
| virtual Unit | unit () const =0 |
| Returns the unit in which the data is expressed. | |
| virtual int | size () const =0 |
| Returns the dimension of the data src values, taking into account any applied transformations or dim filters. Equal to nlin() * ncol(). A size of zero means that this data src returns string values (valid only for attribute type). A value of -1 means that this object has not been fully initialised yet. | |
| virtual int | nlin () const =0 |
| The number of lines in the returned result, taking into account any applied transformations or dim filters. A size of zero means that this data src returns string values (valid only for attribute type). A value of -1 means that this object has not been fully initialised yet. | |
| virtual int | ncol () const =0 |
| The number of columns in the returned result, taking into account any applied transformations or dim filters. A size of zero means that this data src returns string values (valid only for attribute type). A value of -1 means that this object has not been fully initialised yet. | |
Protected Member Functions | |
| Q_DISABLE_COPY (GmResultAcDataSrcBase) | |
| GmResultAcDataSrcBase (const GmResultAcDataSrcBase *ptr) | |
| A kind of "copy" constructor geting a pointer instead of a reference that copies the contents of the given data src. Does NOT handle interpolators. Needed to enable the GmResultAcDataSrc::dimSplit() implementation. More... | |
Protected Attributes | |
| int | _trackId |
| The numeric id for this data src (a value between 0 and the number of data srcs in the model) | |
| QString | _alias |
| The name given to the "exported" data. Always filled (might be equal to id()) | |
| int | _dim |
| A "bound" dimension for returning a scalar when the data is multidimensional (-1 for returning all values) | |
| QString | _formatStr |
| The format string for the data. Usually equal to the accessor format. | |
| int | _history |
| The state accessed by this data src (0 = current state, 1 = previous, etc..) | |
| GmInterpolatorType | _interpType |
| How do we interpolate data? | |
| QVariant | _interpParam |
| Optional interpolation parameters. | |
| LuaFunction | _tFunc |
| An optional transformation function applied over the data (filtered by _dim) before exporting. | |
| int | _nResLin |
| The number of lines of the result returned by _tFunc. | |
| int | _nResCol |
| The number of columns of the result returned by _tFunc. | |
| GmInterpolator * | _interp |
| The configured interpolator object. Can be NULL. | |
Friends | |
| class | GmResultsRule |
A calss storing basic information about a result data to be exported (monitored / saved), that is common to node, cell and Gauss data sources.
|
inlineprotected |
A kind of "copy" constructor geting a pointer instead of a reference that copies the contents of the given data src. Does NOT handle interpolators. Needed to enable the GmResultAcDataSrc::dimSplit() implementation.
