GmStateVar Class Reference

Auxiliar class used to store the definition of a state variable. More...

#include <gmStateVar.h>

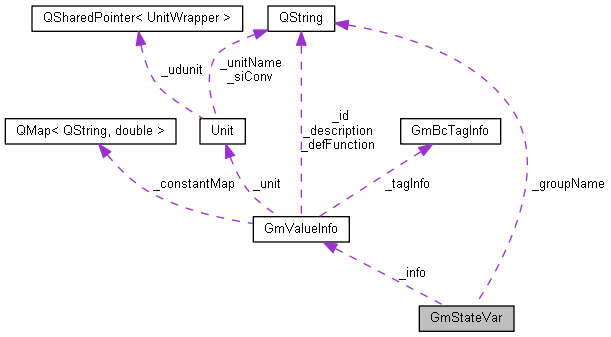

Collaboration diagram for GmStateVar:

Public Member Functions
	GmStateVar (GmValueInfo *info)
	Constructor. The state var takes ownership of the info object.
	~GmStateVar ()
	Destructor.
const GmValueInfo *	info () const
	Returns the info object associated to this state variable.
GmValueInfo *	info ()
	Returns the info object associated to this state variable.
QString	id () const
	Returns the state variable id.
QString	description () const
	Returns the state variable description.
Unit	unit () const
	Returns the unit in which values of the state variable are expressed.
int	dim () const
	Returns the number of dimensions for the state var. More...
int	isScalar () const
	Returns true if the state var is scalar. Notice that being a scalar cant be inferred by dim() == 1 since it's legal to have vectors with one value and 1x1 matrices.
int	baseDof () const
	Returns the base degree of freedom associated to this state variable.
int	groupId () const
	Returns the state variable group id.
QString	groupName () const
	Returns the state variable group name.
void	setBaseDof (int dof)
	Sets the base degree of freedom associated with this state variable.
void	setGroupId (QString name, int groupId)
	Sets the state var group name and id.
void	setGroupId (int groupId)
	Sets the state var group id. Should not be used by general code, only by the ModelData class.
void	setGroupName (QString name)
	Sets the state var group name. Should be used only before the state var has been added to the model. Afterwards, use the GmModelData::setStateVarGroupName() function instead, since it will adjust the group id.

Private Attributes
GmValueInfo *	_info
	State var information.
int	_dof
	The base degree of freedom (dof) number associated to this state variable.
int	_groupId
	Group identifier allowing several state vars to be treated equally, for example, when applying calculation tolerances.
QString	_groupName
	Group name.

Detailed Description

Auxiliar class used to store the definition of a state variable.

It also binds a state variable to a degree of freedom base number. This will be the dof number of the first dimension of this state variable. For vectorial values, subsequent dimensions have sequential dof numbers.

Member Function Documentation

dim()

int GmStateVar::dim ( ) const

inline

Returns the number of dimensions for the state var.

This should be one for scalar values. For vectorial values, it should be the number of components in the vector

---

The documentation for this class was generated from the following files:

• inc/model/gmStateVar.h
• src/model/gmStateVar.cpp
