gmCellGeometryInfo.h File Reference

Declaration of the GmCellGeometryInfo base class. More...

#include "gmCoreConfig.h"
#include "gmCellType.h"
#include "gmIntegrationRule.h"
#include "gmMatrix.h"
#include "gmVector.h"
#include <QAtomicPointer>
#include <QMutex>

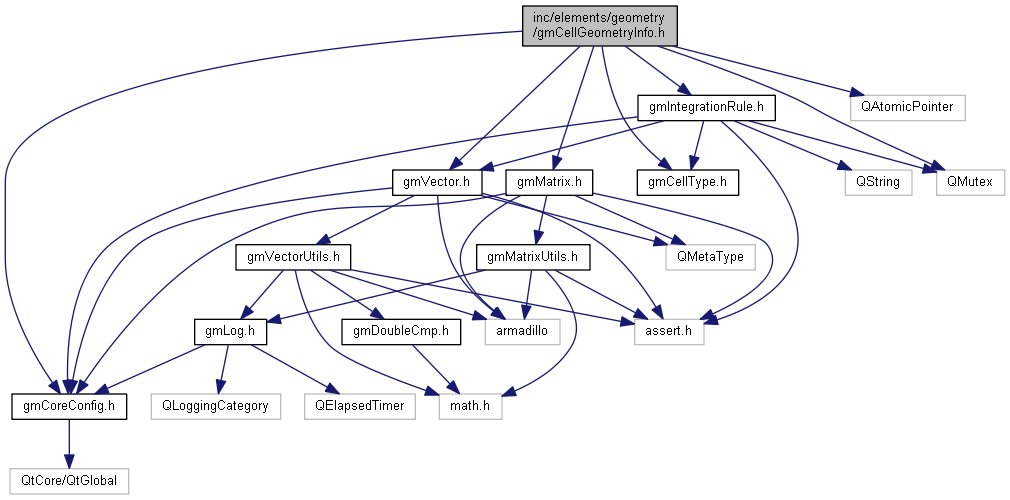

Include dependency graph for gmCellGeometryInfo.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	GmCellGeometryMetadata
	Plane structure storing the full set of geometric metadata for a cell type. More...
struct	GmCellGeometryMetadata::EdgeNodeData
	Aux structure storing information about one edge of a cell type. More...
struct	GmCellGeometryMetadata::FaceNodeData
	Aux structure storing information about the set of face edges for a cell type. More...
struct	GmCellGeometryMetadata::InterfaceData
	Aux structure storing information about interface element "contact" and "aperture" sides. All vector are empty for non interface elements. More...
class	GmCellGeometryInfo
class	GmCellGeometryInfoLineElement< RuleSet, RuleSetDefaults >
	An auxiliary class that can be used as base for line (bar) elements. Implements the needed integration rule factories (main element + edge + face). More...
class	GmCellGeometryInfoSurfaceElement< RuleSet, RuleSetDefaults, EdgeRuleSet, EdgeRuleSetDefaults >
	An auxiliary class that can be used as base for surface elements. Implements the needed integration rule factories (main element + edge + face). More...
class	GmCellGeometryInfoSolidElement< RuleSet, RuleSetDefaults, EdgeRuleSet, EdgeRuleSetDefaults, FaceRuleSet, FaceRuleSetDefaults >
	An auxiliary class that can be used as base for solid elements. Implements the needed integration rule factories (main element + edge + face). More...

Enumerations
enum	GmCellGeometryCapabilities { GM_CELL_GEOMETRY_VALID , GM_CELL_GEOMETRY_QUALITY , GM_CELL_GEOMETRY_CONTAINS , GM_CELL_GEOMETRY_CAPABILITY_COUNT }
	An enum storing the possible geometric capabilities for a cell geometry info type that can be queried with GmCellGeometry::hasCapability(). More...
enum	GmCellGeometryValidity {   GM_GEOMETRY_STATE_VALID = 0b000000 , GM_GEOMETRY_STATE_NON_PLANAR = 0b000001 , GM_GEOMETRY_STATE_BAD_ORIENTATION = 0b000010 , GM_GEOMETRY_STATE_BAD_EDGE = 0b000100 ,   GM_GEOMETRY_STATE_BAD_FACE_CENTER = 0b001000 , GM_GEOMETRY_STATE_SELF_INTERSECT = 0b010000 , GM_GEOMETRY_STATE_INVALID_NODES = 0b100000 }

Detailed Description

Declaration of the GmCellGeometryInfo base class.

Author

Carlos Augusto Teixeira Mendes

Date

august, 2023

Enumeration Type Documentation

GmCellGeometryCapabilities

enum GmCellGeometryCapabilities

An enum storing the possible geometric capabilities for a cell geometry info type that can be queried with GmCellGeometry::hasCapability().

Enumerator
GM_CELL_GEOMETRY_VALID	Can the cell geometry info type check if a cell is valid?
GM_CELL_GEOMETRY_QUALITY	Can the cell geometry info type give a cell quality measure?
GM_CELL_GEOMETRY_CONTAINS	Can the cell geometry info type check wheter a point is inside a cell?
GM_CELL_GEOMETRY_CAPABILITY_COUNT	Not a capability type. Stores the number of capabilities in the enum.
