gmHexCellGeometryInfo.h File Reference

Declaration of the Hex family of cell types. More...

#include "gmCellGeometryInfo.h"
#include "gmCellGeometryIntegrationRuleSet.h"
#include "gmGeometryUtils.h"
#include "gmHexIntegrationRule.h"
#include "gmHexShape.h"

Include dependency graph for gmHexCellGeometryInfo.h:

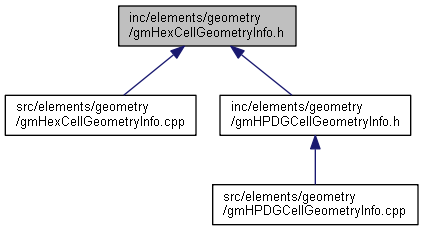

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	GmHex8CellGeometryInfo
	The hex8 implementation. More...
class	GmHex20CellGeometryInfo
	The hex20 implementation. More...
class	GmHex27CellGeometryInfo
	The hex27 implementation. More...

Typedefs
typedef GmCellGeometryIntegrationRuleSet< GmHexGaussIntegrationRule, GmHexLobattoIntegrationRule, GmHexNewtonIntegrationRule, GmHexNewtonIntegrationRule >	GmHexIntegrationRuleSet
	The set of possible ELEMENT integration rules, per integration rule type, for the family of Hex elements.
typedef GmCellGeometryIntegrationRuleSet< GmHexGaussFaceIntegrationRule, GmHexLobattoFaceIntegrationRule, GmCellGeometryNullIntegrationRule, GmCellGeometryNullIntegrationRule >	GmHexFaceIntegrationRuleSet
	The set of possible FACE integration rules, per integration rule type, for the family of Hex elements.
typedef GmCellGeometryIntegrationRuleSet< GmHexGaussEdgeIntegrationRule, GmHexLobattoEdgeIntegrationRule, GmCellGeometryNullIntegrationRule, GmCellGeometryNullIntegrationRule >	GmHexEdgeIntegrationRuleSet
	The set of possible EDGE integration rules, per integration rule type, for the family of Hex elements.
typedef GmCellGeometryIntegrationRuleSetDefaultRules< GM_GAUSS_RULE_TYPE, 2, 2, 2, 2 >	GmLinearHexIntegrationRuleSetDefaults
	The set of default rules for an Hex8 ELEMENT. Template parameters 2 to 5 are the default rule numbers for Gauss, Lobatto, Closed Newton and Open Newton rule types.
typedef GmCellGeometryIntegrationRuleSetDefaultRules< GM_GAUSS_RULE_TYPE, 2, 2, -1, -1 >	GmLinearHexFaceIntegrationRuleSetDefaults
	The set of default rules for an Hex8 FACE. Template parameters 2 to 5 are the default rule numbers for Gauss, Lobatto, Closed Newton and Open Newton rule types.
typedef GmCellGeometryIntegrationRuleSetDefaultRules< GM_GAUSS_RULE_TYPE, 2, 2, -1, -1 >	GmLinearHexEdgeIntegrationRuleSetDefaults
	The set of default rules for an Hex8 EDGE. Template parameters 2 to 5 are the default rule numbers for Gauss, Lobatto, Closed Newton and Open Newton rule types.
typedef GmCellGeometryIntegrationRuleSetDefaultRules< GM_GAUSS_RULE_TYPE, 2, 2, 2, 2 >	GmQuadraticHexIntegrationRuleSetDefaults
	The set of default rules for an Hex20/27 ELEMENT. Template parameters 2 to 5 are the default rule numbers for Gauss, Lobatto, Closed Newton and Open Newton rule types.
typedef GmCellGeometryIntegrationRuleSetDefaultRules< GM_GAUSS_RULE_TYPE, 2, 2, -1, -1 >	GmQuadraticHexFaceIntegrationRuleSetDefaults
	The set of default rules for an Hex20/27 FACE. Template parameters 2 to 5 are the default rule numbers for Gauss, Lobatto, Closed Newton and Open Newton rule types.
typedef GmCellGeometryIntegrationRuleSetDefaultRules< GM_GAUSS_RULE_TYPE, 2, 2, -1, -1 >	GmQuadraticHexEdgeIntegrationRuleSetDefaults
	The set of default rules for an Hex20/27 EDGE. Template parameters 2 to 5 are the default rule numbers for Gauss, Lobatto, Closed Newton and Open Newton rule types.

Detailed Description

Declaration of the Hex family of cell types.

Author

Carlos Augusto Teixeira Mendes

Date

august, 2023
