gmInt2dCellGeometryInfo.h File Reference

Declaration of the 2D interface family of cell types. More...

#include "gmCellGeometryInfo.h"
#include "gmCellGeometryIntegrationRuleSet.h"
#include "gmGeometryUtils.h"
#include "gmBarIntegrationRule.h"
#include "gmQuadIntegrationRule.h"
#include "gmInt2DShape.h"

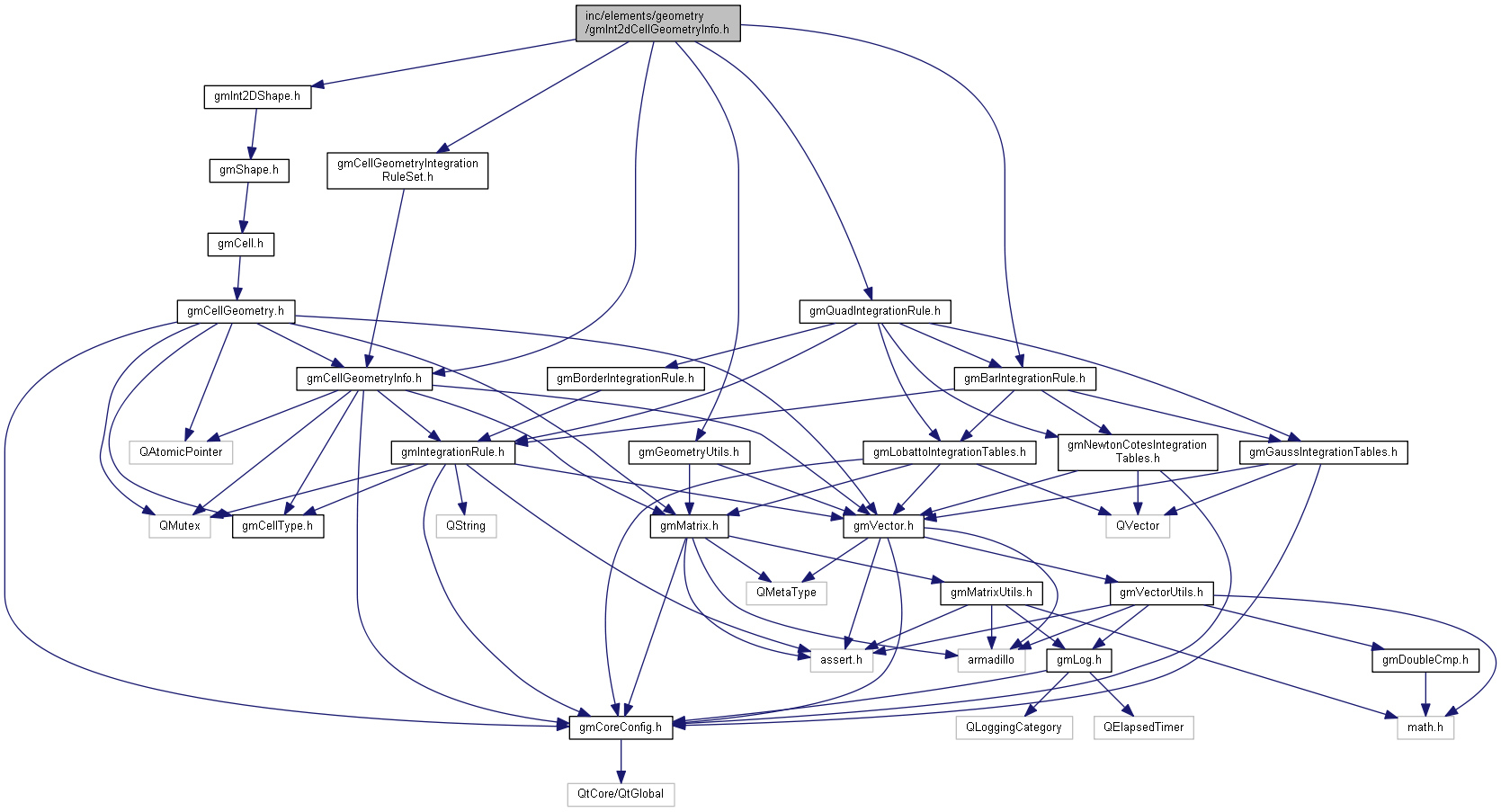

Include dependency graph for gmInt2dCellGeometryInfo.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	GmInt2DL4CellGeometryInfo
	The Int2DL4 implementation. More...
class	GmInt2DL6CellGeometryInfo
	The Int2DL6 implementation. More...
class	GmInt2DQ6CellGeometryInfo
	The Int2DQ6 implementation. More...
class	GmInt2DQ8CellGeometryInfo
	The Int2DQ8 implementation. More...

Typedefs
typedef GmCellGeometryIntegrationRuleSet< GmLineGaussIntegrationRule, GmLineLobattoIntegrationRule, GmLineNewtonIntegrationRule, GmLineNewtonIntegrationRule >	GmInt2DIntegrationRuleSet
	The set of possible ELEMENT integration rules, per integration rule type, for the family of 2D interface elements.
typedef GmCellGeometryIntegrationRuleSet< GmQuadGaussEdgeIntegrationRule, GmQuadLobattoEdgeIntegrationRule, GmCellGeometryNullIntegrationRule, GmCellGeometryNullIntegrationRule >	GmInt2DEdgeIntegrationRuleSet
	The set of possible EDGE integration rules, per integration rule type, for the family of 2D interface elements. We reuse the basic quad edge rule since it is a border rule that will be integrated, just like the interface element, by a line gauss rule. Also, the interface shape function knows that there is no point translation to be done for 2d interface edges.
typedef GmCellGeometryIntegrationRuleSetDefaultRules< GM_GAUSS_RULE_TYPE, 2, 2, 2, 2 >	GmLinearInt2DIntegrationRuleSetDefaults
	The set of default rules for a linear 2D interface ELEMENT. Template parameters 2 to 5 are the default rule numbers for Gauss, Lobatto, Closed Newton and Open Newton rule types.
typedef GmCellGeometryIntegrationRuleSetDefaultRules< GM_GAUSS_RULE_TYPE, 2, 2, -1, -1 >	GmLinearInt2DEdgeIntegrationRuleSetDefaults
	The set of default rules for a linear 2D interface EDGE. Template parameters 2 to 5 are the default rule numbers for Gauss, Lobatto, Closed Newton and Open Newton rule types.
typedef GmCellGeometryIntegrationRuleSetDefaultRules< GM_GAUSS_RULE_TYPE, 3, 3, 3, 3 >	GmQuadraticInt2DIntegrationRuleSetDefaults
	The set of default rules for a quadratic 2D interface ELEMENT. Template parameters 2 to 5 are the default rule numbers for Gauss, Lobatto, Closed Newton and Open Newton rule types.
typedef GmCellGeometryIntegrationRuleSetDefaultRules< GM_GAUSS_RULE_TYPE, 3, 3, -1, -1 >	GmQuadraticInt2DEdgeIntegrationRuleSetDefaults
	The set of default rules for a quadratic 2D interface EDGE. Template parameters 2 to 5 are the default rule numbers for Gauss, Lobatto, Closed Newton and Open Newton rule types.

Detailed Description

Declaration of the 2D interface family of cell types.

Author

Carlos Augusto Teixeira Mendes

Date

august, 2023
