gmMatrix.h File Reference

Declaration of the GmMatrix class. More...

#include "gmCoreConfig.h"
#include <armadillo>
#include <QMetaType>
#include "gmMatrixUtils.h"
#include <assert.h>

Include dependency graph for gmMatrix.h:

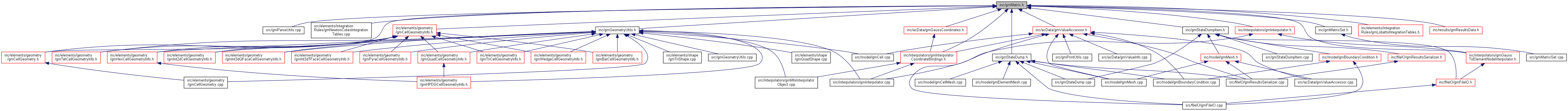

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	GmCRMatrix
	An auxiliary matrix WRAPPER that binds the matrix to a CONST memory area with data already inicialized and interpreted in COLUMN MAJOR FORMAT. More...

Macros
#define	GM_MATRIX_DEFINED
	We are going to use an Armadillo matrix as our base matrix interface. More...
#define	GM_MATRIX_IS_COLUMN_MAJOR
#define	DECLARE_REF_MATRIX(x, ptr, lin, col)   GmMatrix x((ptr), (lin), (col), false, true)
	An auxiliary macro to help correctly define a matrix that binds itself to a memory area with data already initialized and interpreted in COLUMN MAJOR FORMAT. More...

Typedefs
typedef arma::mat	GmMatrix
	The basic type for a GeMA matrix object. Currently based on an Armadillo matrix.
typedef arma::subview_col< double >	GmMatrixCol
	A subcolumn view of a matrix.

Functions
	Q_DECLARE_METATYPE (GmMatrix)

Detailed Description

Declaration of the GmMatrix class.

Author

Carlos Augusto Teixeira Mendes

Date

april, 2015

Macro Definition Documentation

DECLARE_REF_MATRIX

#define DECLARE_REF_MATRIX	(		x,
			ptr,
			lin,
			col
	)		GmMatrix x((ptr), (lin), (col), false, true)

An auxiliary macro to help correctly define a matrix that binds itself to a memory area with data already initialized and interpreted in COLUMN MAJOR FORMAT.

This is a very fast option, that doesn't allocate any extra memory and is very usefull to use matrix operations over a previous allocated area.

This matrix cannot be resized in any way. The memory referenced by the matrix should be available through the entire lifetime of the matrix.

IMPORTANT: Any COPY of this matrix will make a COPY of the data and won't point to the original memory area anymore.

GM_MATRIX_DEFINED

#define GM_MATRIX_DEFINED

We are going to use an Armadillo matrix as our base matrix interface.

The typedef GmMatrix is used to make life a little bit easier if we ever wish to exchange our base linear algebra package.
