gmUserFunction.h File Reference

Declaration of the GmUserFunction and GmUserFunctionEvaluator classes. More...

#include "gmCoreConfig.h"
#include "gmValueInfo.h"
#include "gmCell.h"
#include "gmInterpolator.h"
#include "gmThreadLocalBuffer.h"
#include <QString>
#include <unit.h>

Include dependency graph for gmUserFunction.h:

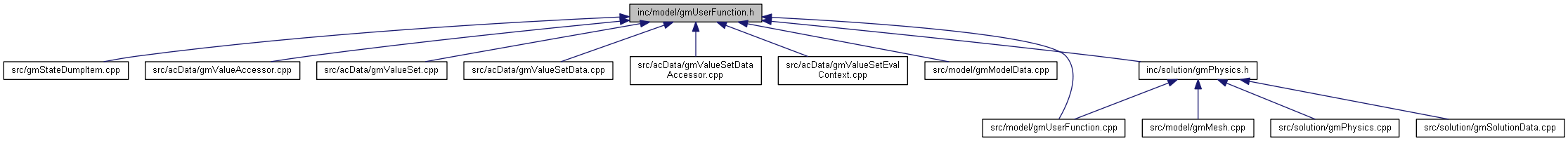

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	GmUserFunction
	Class used to store the definition of a user function and its parameters. More...
struct	GmUserFunction::GmUserFunctionParameter
	Auxiliar structure for storing function parameter information. More...
class	GmUserFunctionEvaluator
	Class responsible for evaluating a UserFunction over a node / cell. More...
class	GmUserFunctionEvaluator::ParamContext
	Auxiliar class storing the information needed to collect a parameter value. More...
class	GmUserFunctionContext
	The context received by C methods giving access to parameters data and metadata. More...

Typedefs
typedef bool(GmPhysicsUserFunctions::*	GmCUserMethod) (const GmUserFunctionContext *context, double *out)
	A pointer to a C function exported from a physics plugin to evaluate the value of some attribute / property. More...

Enumerations
enum	GmUserFunctionType { GM_NODE_USER_FUNCTION, GM_CELL_USER_FUNCTION }
	Type of a user function. More...

Detailed Description

Declaration of the GmUserFunction and GmUserFunctionEvaluator classes.

Author

Carlos Augusto Teixeira Mendes

Date

may, 2015

Typedef Documentation

GmCUserMethod

typedef bool(GmPhysicsUserFunctions::* GmCUserMethod) (const GmUserFunctionContext *context, double *out)

A pointer to a C function exported from a physics plugin to evaluate the value of some attribute / property.

The function can use the received context argument to access function parameters, as requested by the Lua function descriptor, and metadata specification, both for the parameters and for the result type. Calculated result values should be stored in the "out" vector, wich is an allocated array with "n" entries, n given by context->resultSize().

Also, the function can use values stored in the GmPhysicsUserFunctions object to further help its work. Among those informations that are always present in the object are a pointer to the complete simulation data, a pointer to the mesh and a logger object. Also, the 'context' argument stores the id of the node / cell that this function is acting upon.

If the function wishes to report an error, it should return false and emmit a message using the configured plugin logger. If false is returned, the value accessor will return to its caller the default value for the attribute / property.

Enumeration Type Documentation

GmUserFunctionType

enum GmUserFunctionType

Type of a user function.

Enumerator
GM_NODE_USER_FUNCTION	Means that the function calculates nodal values (attributes)
GM_CELL_USER_FUNCTION	Means that the function calculates cell values (attributes or properties)
