GmResultTrackedIndexData Struct Reference

The index data for a result rule, storing "evaluation point" data for node, cell or gauss based indices. Thanks to the implicitly shared nature of a QVector, the result data can be transfered to and from a message object without copying. More...

#include <gmResultTrackedData.h>

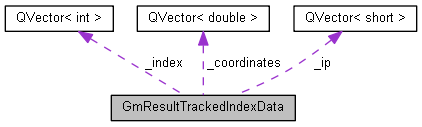

Collaboration diagram for GmResultTrackedIndexData:

Public Types
enum	IndexType { NODE_INDEX, CELL_INDEX, GAUSS_INDEX }
	Defines over which kind of data this index refers to. More...
enum	IndexDataType {   NODE_DATA, GHOST_DATA, CELL_CENTROID_DATA, CELL_IP_DATA,   CELL_POINT_DATA, POINT_DATA, NUM_DATA_TYPES }
	Defines the type of an index line. More...

Public Member Functions
	GmResultTrackedIndexData ()
	Default constructor (needed by QVector)
	GmResultTrackedIndexData (IndexType type, int coordDim)
	Constructor. Line data should be filled by calls to addData.
void	addLine (IndexDataType type, int index)
	Adds a data line for types requiring only a node or cell index.
void	addLine (IndexDataType type, int index, int ip)
	Adds a data line for types requiring a cell index + ip index.
void	addLine (IndexDataType type, int index, const GmVector &coord)
	Adds a data line for types requiring a coordinate (for point only data, index can be set to 0)
int	coordDim () const
	Returns the coordinate dimension.
int	numLines () const
	Returns the number of lines in the index.
IndexDataType	lineType (int line) const
	Returns the type of the given index line.
int	lineIndex (int line) const
	Returns the node/cell index of the given index line.
int	lineIp (int line) const
	Returns the ip index of the given index line.
const double *	lineCoord (int line) const
	Returns the coordinates of the given index line.
QString	lineStr (int line) const
	Returns a string representation of the line data (with 1 based indices)

Public Attributes
IndexType	_indexType
	The index type;.
int	_coordDim
	The dimension coordinate (defining the size of a coordinate data)
QVector< int >	_index
	A vector with entries for each result set line, with its type in the 3 most significant bits + the node or cell index.
QVector< short >	_ip
	A vector with size equal to the number of lines of type CELL_IP_DATA.
QVector< double >	_coordinates
	A vector with size equal to the number of lines of type CELL_POINT_DATA or POINT_DATA multiplied by the coord dimension.
int	_firstIpLine
	The line index of the first line of type CELL_IP_DATA (-1 if no such line exists)
int	_firstCoordLine
	The line index of the first line of type CELL_POINT_DATA or POINT_DATA (-1 if no such line exists)

Private Member Functions
int	encode (IndexDataType type, int index) const
	Encodes the type info in the high bits of an integre with the index on the lower ones.
IndexDataType	decodeType (int v) const
	Decodes the type info from a combined type+index value.
int	decodeIndex (int v) const
	Decodes the index info from a combined type+index value.

Detailed Description

The index data for a result rule, storing "evaluation point" data for node, cell or gauss based indices. Thanks to the implicitly shared nature of a QVector, the result data can be transfered to and from a message object without copying.

This class assumes that when the index mixes lines with differet types, they are clustered, obeying a node, cell, point order.

Member Enumeration Documentation

IndexDataType

enum GmResultTrackedIndexData::IndexDataType

Defines the type of an index line.

Enumerator
NODE_DATA	Data is a node index.
GHOST_DATA	Data is a ghost node index (without the high bit set)
CELL_CENTROID_DATA	Data is a cell index.
CELL_IP_DATA	Data is a cell index + an ip index.
CELL_POINT_DATA	Data is a cell index + a point coordinate.
POINT_DATA	Data is just a point coordinate.

IndexType

enum GmResultTrackedIndexData::IndexType

Defines over which kind of data this index refers to.

Enumerator
NODE_INDEX	Node data (state vars / node attributes)
CELL_INDEX	Cell data (cell attributes / properties)
GAUSS_INDEX	Gauss data (gauss attributes)

---

The documentation for this struct was generated from the following file:

• inc/results/gmResultTrackedData.h
