A helper class for implementing the common behaviour between GmLuaValueAccessor, GmLuaCellAccessor, GmLuaGaussAccessor, GmLuaBoudaryConditionAccessor and GmLuaDiscontinuityAccessor. More...

#include <gmLuaValueAccessor.h>

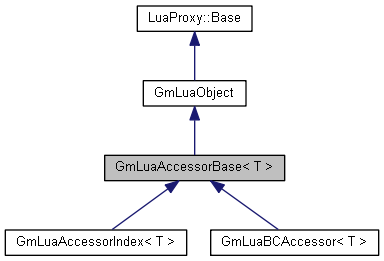

Inheritance diagram for GmLuaAccessorBase< T >:

[legend]

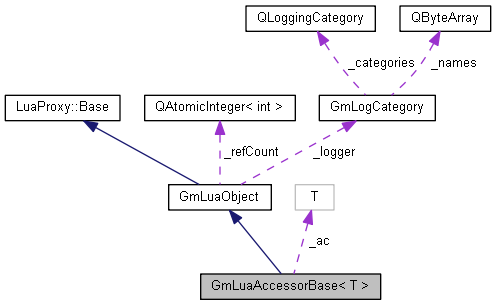

Collaboration diagram for GmLuaAccessorBase< T >:

[legend]

Classes
struct	Options
	Options for valueStr() More...

Public Member Functions
virtual	~GmLuaAccessorBase ()
	Destructor.

virtual QString	toString () const
	Default method used by the __tostring metamethod to capture the result of tostring() over an object.

virtual void	fillMetatable (lua_State *L, int index)
	Prepares the object metatable for calling methods.

T *	accessor () const
	Returns the wrapped accessor.

Public Member Functions inherited from GmLuaObject
virtual	~GmLuaObject ()
	Destrutor.

virtual void	populateMetatable (lua_State *L, int index)
	Fills the object metatable to allow for the proxy to export its methods.

QVariant	ptrToVariant ()
	Constructs a QVariant storing a POINTER to the current object.

void	ref ()
	Increments the object reference count. Use with care.

Public Member Functions inherited from LuaProxy::Base
virtual void *	getClassMetatableID ()=0

Protected Member Functions
	GmLuaAccessorBase (T *ac, const GmLogCategory &logger, bool ownership)
	Constructor. Receives the ValueAccessor to be wrapped. More...

void	parseCoord (lua_State *L, int stackPos, QString fname, GmVector &coord)
	An auxiliary function used to parse a coordinate table / object from the lua stack. More...

void	parseOptions (lua_State *L, int stackPos, Options &opt)
	Aux function to parse print options for the valueStr() call if the object at stackPos is a table.

void	pushResult (lua_State L, const double val)
	Pushes an accessor result on the stack. Value can be pushed as a number (scalar) or as a matrix.

Protected Member Functions inherited from GmLuaObject
	GmLuaObject (const GmLogCategory &logger)
	Construtor protegido. Somente classes derivadas devem ser instanciadas.

virtual const char *	typeName () const =0
	Returns the object type as will be stored in the object metatable.

Protected Attributes
T *	_ac
	The wrapped value accessor object.

bool	_owner
	Do we own the accessor?

Protected Attributes inherited from GmLuaObject
const GmLogCategory &	_logger
	A logger used by the proxy when needed.

QAtomicInteger< int >	_refCount
	Lua objects are reference counted to enable sharing them among different states. This is needed to allow for passing objects as parameters in a parallel call. The garbage collection method releases memory only for the last reference.

Private Member Functions
int	size (lua_State *L)
	Returns the number of value 'lines' in this accessor.

int	info (lua_State *L)
	Returns the info object for this accessor.

int	isScalar (lua_State *L)
	Is this a scalar accessor? Returns true or false.

int	unit (lua_State *L)
	Returns a string with the unit in which data is returned for this accessor.

int	valueSize (lua_State *L)
	Returns the size of the value returned by the accessor.

int	defValue (lua_State *L)
	Returns the default value converted to the accessor unit.

Detailed Description

template<class T>
class GmLuaAccessorBase< T >

A helper class for implementing the common behaviour between GmLuaValueAccessor, GmLuaCellAccessor, GmLuaGaussAccessor, GmLuaBoudaryConditionAccessor and GmLuaDiscontinuityAccessor.

Should not be instanced by user code. Although a template, its implementation is on the cpp file since all the needed specializations are known.

Constructor & Destructor Documentation

◆ GmLuaAccessorBase()

template<class T>

GmLuaAccessorBase< T >::GmLuaAccessorBase	(	T *	ac,
		const GmLogCategory &	logger,
		bool	ownership
	)

protected

Constructor. Receives the ValueAccessor to be wrapped.

Due to its nature, by default, wrapped accessors WILL be DELETED together with the proxy. THIS IS A DIFFERENT BEHAVIOUR from other kinds of proxy Lua objects. That behaviour can be turned off by setting the ownership flag to false.

Member Function Documentation

◆ parseCoord()

template<class T >

void GmLuaAccessorBase< T >::parseCoord	(	lua_State *	L,
		int	stackPos,
		QString	fname,
		GmVector &	coord
	)

protected

An auxiliary function used to parse a coordinate table / object from the lua stack.

Parameter stackPos defines where on the Lua stack the values should be queried and fname is the name of the called function, used in error messages.

Results are retuned in the parameter coord. It should be passed as an EMPTY vector. If no coordinate was given, coord is left unchanged. On errors, this function calls luaL_error and does not return.

The documentation for this class was generated from the following files:

inc/gmLuaValueAccessor.h
src/gmLuaValueAccessor.cpp
