A proxy class to export GmBorderIntegrationRule methods to the Lua environment. More...

Inheritance diagram for GmLuaBorderIntegrationRule:

[legend]

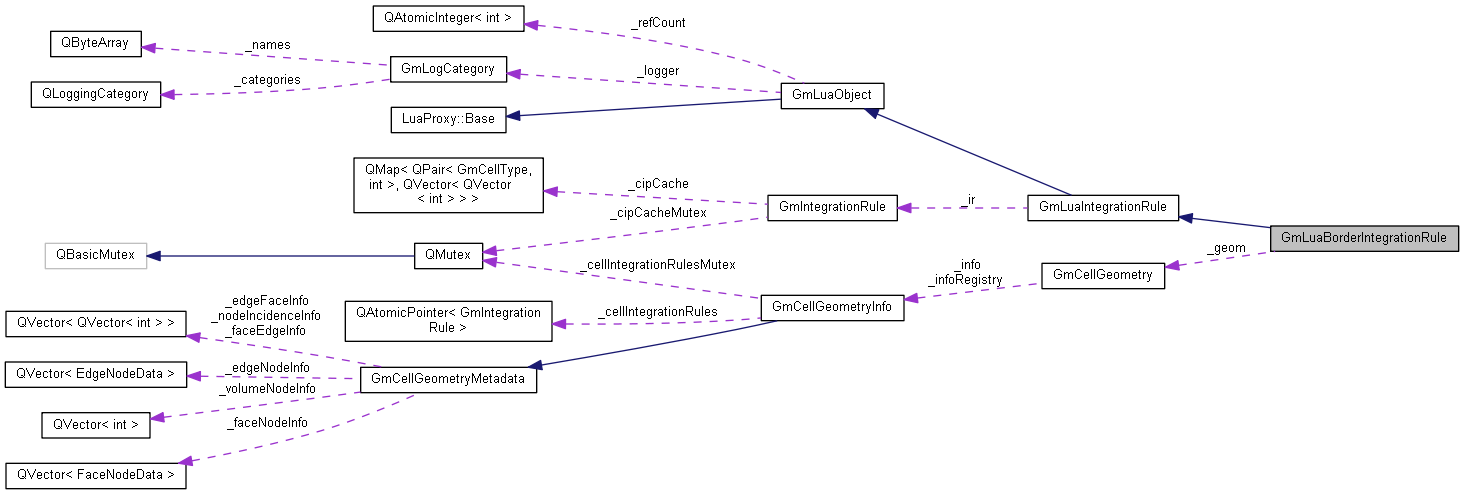

Collaboration diagram for GmLuaBorderIntegrationRule:

[legend]

Public Member Functions
	GmLuaBorderIntegrationRule (const GmBorderIntegrationRule *ir, bool newRule, GmCellType type, const GmLogCategory &logger)
	Constructor. Receives the border integration rule to be wrapped.

virtual const char *	typeName () const
	Returns the object type as will be stored in the object metatable.

virtual void	fillMetatable (lua_State *L, int index)
	Prepares the object metatable for calling methods.

virtual void *	getClassMetatableID ()
	Returns an unique identifier to identify an user object as a GmLuaMesh object.

Public Member Functions inherited from GmLuaIntegrationRule
	GmLuaIntegrationRule (const GmIntegrationRule *ir, bool newRule, const GmLogCategory &logger)
	Constructor. Receives the integration rule to be wrapped. If newRule is true, the proxy takes ownership of the supplied rule.

virtual	~GmLuaIntegrationRule ()
	Destructor.

virtual QString	toString () const
	Default method used by the __tostring metamethod to capture the result of tostring() over an object.

const GmIntegrationRule *	intRule () const
	Returns the wrapped integration rule.

Public Member Functions inherited from GmLuaObject
virtual	~GmLuaObject ()
	Destrutor.

virtual void	populateMetatable (lua_State *L, int index)
	Fills the object metatable to allow for the proxy to export its methods.

QVariant	ptrToVariant ()
	Constructs a QVariant storing a POINTER to the current object.

void	ref ()
	Increments the object reference count. Use with care.

Private Member Functions
int	numBorderCoord (lua_State *L)
	Returns the number of expected border coordinates used by this rule.

int	translatePoint (lua_State *L)
	Given a border number (edge or face) and a border integration point, translates that point from the border reference to the element reference. Returns nil if that can not be done (edge or face unfit for integration, like the 0 length edge for a closed 2d interface element)

Private Attributes
GmCellGeometry	_geom
	The geometry corresponding to this integration rule.

Additional Inherited Members
Protected Member Functions inherited from GmLuaObject
	GmLuaObject (const GmLogCategory &logger)
	Construtor protegido. Somente classes derivadas devem ser instanciadas.

Protected Attributes inherited from GmLuaIntegrationRule
const GmIntegrationRule *	_ir
	The integration rule 'wrapped' by this proxy object.

bool	_newRule
	Does the object owns the integration rule?

Protected Attributes inherited from GmLuaObject
const GmLogCategory &	_logger
	A logger used by the proxy when needed.

QAtomicInteger< int >	_refCount
	Lua objects are reference counted to enable sharing them among different states. This is needed to allow for passing objects as parameters in a parallel call. The garbage collection method releases memory only for the last reference.

Detailed Description

A proxy class to export GmBorderIntegrationRule methods to the Lua environment.

The documentation for this class was generated from the following files:
