A proxy class to export GmContactBoundaryCondition methods to the Lua environment. More...

Inheritance diagram for GmLuaContactBoundaryCondition:

[legend]

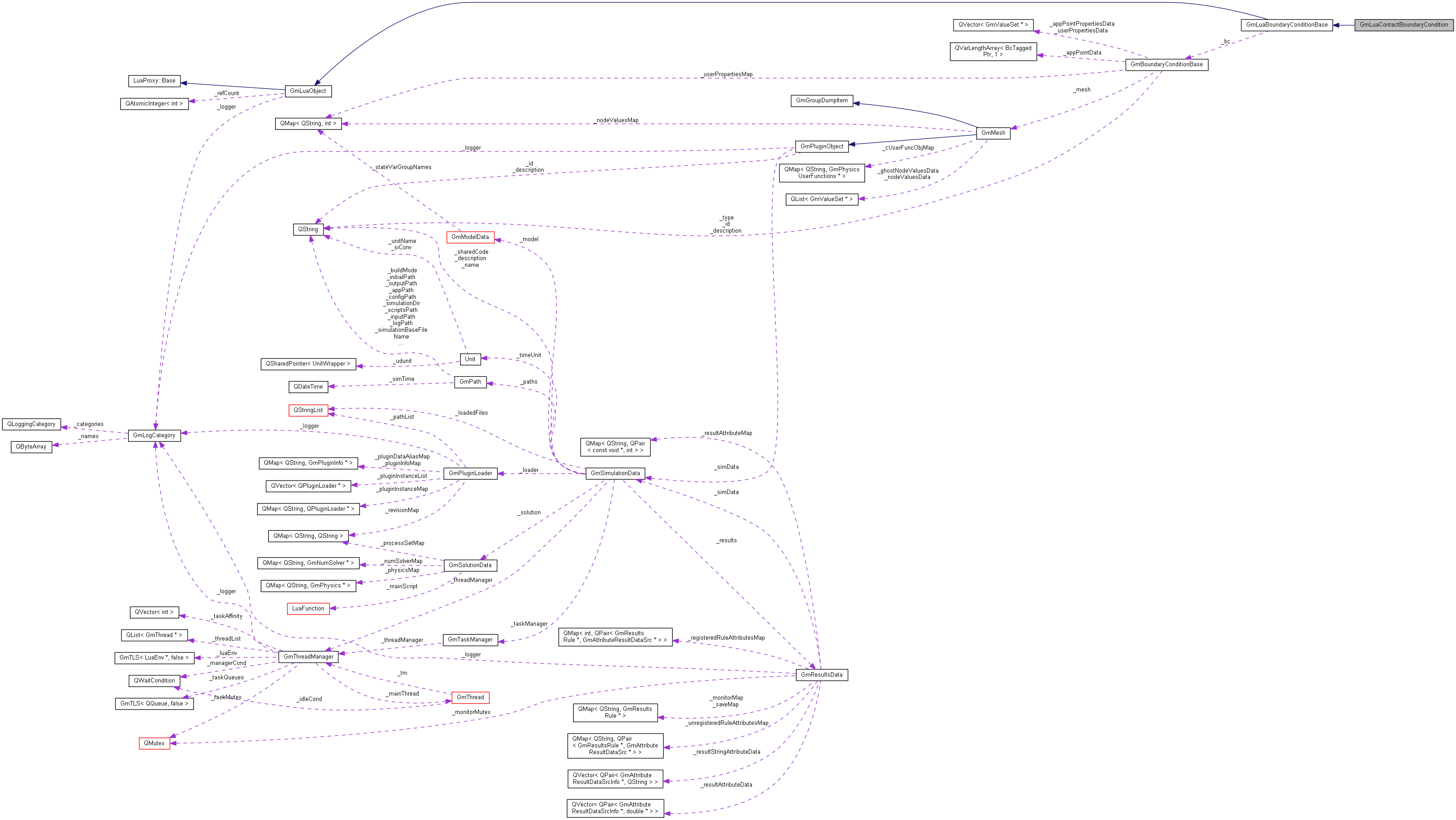

Collaboration diagram for GmLuaContactBoundaryCondition:

[legend]

Public Member Functions
	GmLuaContactBoundaryCondition (GmContactBoundaryCondition *bc, const GmLogCategory &logger)

virtual const char *	typeName () const
	Returns the object type as will be stored in the object metatable.

virtual QString	toString () const
	Default method used by the __tostring metamethod to capture the result of tostring() over an object.

virtual void	fillMetatable (lua_State *L, int index)
	Prepares the object metatable for calling methods.

virtual void *	getClassMetatableID ()
	Returns an unique identifier to identify an user object as a GmLuaMesh object.

GmContactBoundaryCondition *	cbc () const
	Returns the associated contact boundary condition object.

Public Member Functions inherited from GmLuaBoundaryConditionBase
virtual	~GmLuaBoundaryConditionBase ()
	Destructor.

Public Member Functions inherited from GmLuaObject
virtual	~GmLuaObject ()
	Destrutor.

virtual void	populateMetatable (lua_State *L, int index)
	Fills the object metatable to allow for the proxy to export its methods.

QVariant	ptrToVariant ()
	Constructs a QVariant storing a POINTER to the current object.

void	ref ()
	Increments the object reference count. Use with care.

Private Member Functions
int	isGlobal (lua_State *L)
	Returns the wheather this contact bc includes local (false) or global (true) contact conditions.

int	numPropertyValues (lua_State *L)
	Returns the number o property values.

int	propertyAccessor (lua_State *L)
	Returns an accessor object for querying property values or nil on error. More...

int	materialAccessor (lua_State *L)
	Returns an accessor for querying / changing the material associated with each contact application point(BC lines)

int	materialList (lua_State *L)
	Returns a table filled with the materials associated with this contact BC.

int	addPropertyLines (lua_State *L)
	Adds the given number of lines to the contact boundary condition property values table. Returns the index of the first added line.

int	setMaterialList (lua_State *L)
	Replaces the material list with the contents of the given table.

int	setPropertyMaterialId (lua_State *L)
	Replaces the material id of a property value for the the given bc index. Returns true or false.

int	rebuildMaterialMapping (lua_State *L)
	Rebuilds the internal mapping used by contactIndex(). Returns true or false.

int	contactIndex (lua_State *L)
	Given a pair of contact boundary condition line indices, returns the index in the user property values that contains the properties for the given material pair or nil if no such pair exists.

Additional Inherited Members
Protected Member Functions inherited from GmLuaBoundaryConditionBase
	GmLuaBoundaryConditionBase (GmBoundaryConditionBase *bc, const GmLogCategory &logger)
	Constructor. Receives the boundary to be wrapped.

Protected Member Functions inherited from GmLuaObject
	GmLuaObject (const GmLogCategory &logger)
	Construtor protegido. Somente classes derivadas devem ser instanciadas.

Protected Attributes inherited from GmLuaBoundaryConditionBase
GmBoundaryConditionBase *	_bc
	The boundary condition 'wrapped' by this proxy object.

Protected Attributes inherited from GmLuaObject
const GmLogCategory &	_logger
	A logger used by the proxy when needed.

QAtomicInteger< int >	_refCount
	Lua objects are reference counted to enable sharing them among different states. This is needed to allow for passing objects as parameters in a parallel call. The garbage collection method releases memory only for the last reference.

Detailed Description

A proxy class to export GmContactBoundaryCondition methods to the Lua environment.

Member Function Documentation

int GmLuaContactBoundaryCondition::propertyAccessor ( lua_State * L )

private

Returns an accessor object for querying property values or nil on error.

Receives as stack parameter the name of the desired property and, optionally, the unit in which values should be returned

The documentation for this class was generated from the following files:
