Auxiliar interface used to share node data between the mesh implementation and GmpMeshLoader. All fields are public since this is meant to be a sharing mechanism. More...

#include <gmpNodeMeshData.h>

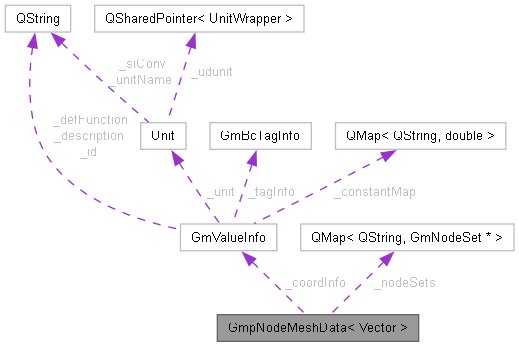

Collaboration diagram for GmpNodeMeshData< Vector >:

[legend]

Public Types
template<typename U >
using	VectorType = Vector<U>
	A type identifying which vector type we are using.

Public Member Functions
	GmpNodeMeshData ()
	Constructor. The unused mesh parameter is a helper to the Surface Mesh code.

	~GmpNodeMeshData ()
	Virtual destructor.

double *	coordBuffer () const

double *	ghostBuffer () const

GmValueAccessor *	coordAc (const GmLogCategory &logger, UnitConverter *conv, QString desiredUnit)
	Returns an accessor object for coordinate data. As all accessors, takes ownership of the given converter.

GmValueAccessor *	ghostAc (const GmLogCategory &logger, UnitConverter *conv, QString desiredUnit)
	Returns an accessor object for ghost data. As all accessors, takes ownership of the given converter.

int	addNodes (GmMesh mesh, bool ghost, int numAddedNodes, bool updateValueSets, GmPCR pcr)

bool	reorderCoordinates (GmPCR *pcr, bool ghost, const QMap< int, int > &partOrigToLocOrder)
	Reorders geometry or ghost node coordinates according to the renumbering given by the pcr object. If partOrigToLocOrder is not empty (the mesh was partitioned), it gives the mapping from the original model to the partitioned index in the local nodes vectors. See further comments on the GmPCR::initNodeMapping() documentation.

void	clear (GmMesh *mesh)
	Removes all mesh nodes + removes all values from node based value sets, preserving object state so that future node addition can be made.

void	releaseMemory ()
	Releases all the memory DIRECTLY owned by the object.

size_t	nodeMemory () const

size_t	nodeSetsMemory () const
	Returns the approximate memory used for storing mesh node sets.

void	releaseMeshNodes ()
	Releases the memory associated with node coordinates.

void	releaseGhostNodes ()
	Releases the memory associated with ghost nodes.

Public Attributes
GmValueInfo *	_coordInfo
	Information about node coordinates.

int	_numNodes
	Number of nodes in the mesh.

Vector< double >	_coordinates
	Coordinate vector. Size = _coordInfo->size() * _numNodes. Values stored by node.

bool	_ghostEnabled
	Are ghost nodes enabled for this mesh?

int	_numGhostNodes
	The number of mesh ghost nodes.

Vector< double >	_ghostCoordinates

QMap< QString, GmNodeSet * >	_nodeSets
	Ghost coordinate vector. Size = _coordInfo->size() * _numGhostNodes. Values stored by node.

GmpNodeDataDump< Vector > *	_dumper
	The object responsible for state dump operations.

Detailed Description

template<template< class > class Vector>
class GmpNodeMeshData< Vector >

Auxiliar interface used to share node data between the mesh implementation and GmpMeshLoader. All fields are public since this is meant to be a sharing mechanism.

The template parameter defines the kind of vector object used to store per node data. It can be either GmSingleVector or GmDualVector. Since only those two types are expected, we can do an explicit instanciation of the template and have part of the class implementation on a cpp file.

By bringing the mesh data from GmNodeMesh into this class, we allow for the loading code in GmpMeshLoader to be independent on the other mesh template parameters.

Member Data Documentation

◆ _nodeSets

template<template< class > class Vector>

QMap<QString, GmNodeSet*> GmpNodeMeshData< Vector >::_nodeSets

Ghost coordinate vector. Size = _coordInfo->size() * _numGhostNodes. Values stored by node.

A map with the definition of each node set associated with the mesh. Map entries are instances of the GmpNodeSet class.

The documentation for this class was generated from the following files:
