A class used to store the type information needed by the Uibhm structure. The data is created based on the information that already exists on the GmCellGeometry class. More...
#include <uibhmTemplate.h>

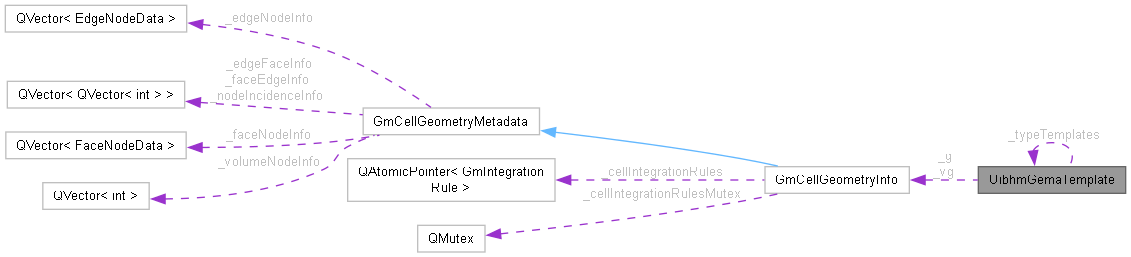

Public Member Functions | |
| ~UibhmGemaTemplate () | |
| Destructor. | |
| GmCellType | type () const |
| Returns the cell type. | |
| bool | isInterface () const |
| Returns true if this element is an interface element. | |
| int | numFaces () const |
| Returns the number of faces for the type. Will return 1 for surface elements. | |
| int | numEdges () const |
| Returns the total number of edges for the type. For surfaces it is equal to the number of vertices. For solids, E = F + V - 2. | |
| int | numSides () const |
| Returns numEdges() for surface elements and numFaces() for solid elements. | |
| int | numNodes () const |
| Returns the total number of nodes in the element. | |
| int | numVertices () const |
| Returns the number of vertices in the element (the set of geometry nodes, excluding non-linear nodes and extra-dof nodes) | |
| int | numFaceNodes (int f, bool mid) const |
| Returns the number of nodes in face f (0 <= f < numFaces()). If mid is true, that includes an eventual quadratic mid surface node. If false it will not be accounted. | |
| int | numFaceVertices (int f) const |
| The number of vertices in face f (0 <= f < numFaces()) | |
| int | maxNumFaceVertices () const |
| Returns the maximum number of vertices for a face from this element type. | |
| const int * | faceNodes (int f) const |
| Returns a vector with the set of nodes in face f (0 <= f < numFaces()). Returned vector size is equal to numFaceNodes(f). Equivalent to returning a line from an extended CV matrix in the IBHM paper, including all nodes and not only the vertices. | |
| const int * | faceVertices (int f) const |
| Returns a vector with the set of vertices in face f (0 <= f < numFaces()). Returned vector size is equal to numFaceVertices(f). Equivalent to returning a line from the CV matrix in the IBHM paper. | |
| int | midNode () const |
| For quadratic elements with a mid face (surface element) or mid volume (solid element) node, returns the index of that node. Otherwise, returns -1. | |
| const int * | adjacentFaces (int f) const |
| Given a face number, returns a vector with size numFaceVertices(f) storing the index of the adjacent faces, ordered according to the half edges specified by faceVertices(f). Equivalent to returning the f row from matrix CF in the IBHM paper. | |
| const int * | vertexHalfEdges (int v) const |
| Given a vertex number, returns a vector with size numVertices() storing in column i the index of the face that contains the half-edge going from v to i or -1 if there is no such half-edge. Equivalent to returning the v row from matrix CE in the IBHM paper. | |
| void | print (const GmLogCategory &logger, GmLogLevel level) const |
| Prints the template to the given logger using the EXTRA_INFO category. | |
| void | vertexFaces (int v, QVarLengthArray< int, 4 > &list) const |
| Given a local vertex number, returns the set of local faces that include that vertex. Corresponds to returning the non-empty entries of line v from matrix CE. Values are returned on list. The pre-alloc size of 4 entries should be enough for any common element type. | |
| void | nodeFaces (int node, QVarLengthArray< int, 4 > &list) const |
| Given a local node number, returns the set of local faces that include that node, working for any node in a quadratic element. For element vertices, it is equivalent to vertexFaces(). Values are returned on list. The pre-alloc size of 4 entries should be enough for any common element type. | |
| int | edgeFace (int edge) const |
| Given a cell edge index, returns one of the cell faces that includes that edge. | |
| bool | quadraticMidEdgeNodeAdjacentVertices (int node, int *v1, int *v2) const |
| Given a mid-edge quadratic node defined by its local cell index v, returns the pair of vertices of that edge by filling v1 and v2 and returns true. If the local node is a mid-surface node, returns false. Should not be called for vertex nodes or mid-volume nodes. | |
| bool | quadraticMidEdgeNodeAdjacentVertices (int node, int *v1, int *v2, const int *cellNodes) const |
| Overload for quadraticMidEdgeNodeAdjacentVertices() returning global vertices translated with cellNodes. | |
| int | midEdgeNode (int f, int e) const |
| Return the local to the cell index of the mid edge node for the given face, local(face) edge pair. Assumes that the edge HAS a mid node. Should NOT be called for edges without one. | |
| bool | isInterfaceExtraFlowNode (int v) const |
| Given an element local node index, returns true if that node is a mid edge flow(extra dof) node of an interface element. Assumes that extra dof nodes are the last element nodes, ALWAYS coming AFTER quadratic nodes. | |
| int | colapsedInterfaceNodeSibling (int v) const |
| Given an interface element local node index, returns the local index of its colapsible sibling if v is an element vertex or -1 otherwise. | |
| void | vertexAdjacentVertices (int v, QVarLengthArray< int, 4 > &list) const |
| Given a local vertex number, returns the set of local vertices adjacent to the given one. Corresponds to returning the columns of the non-empty entries of line v from matrix CE (but is not implemented this way since wel already have that incidence information pre-computed in the cell geometry metadata object kept by GeMA). Values are returned on list. The pre-alloc size of 4 entries should be enough for any common element type. | |
| void | vertexAdjacentVertices (int v, QVarLengthArray< int, 4 > &list, const int *cellNodes) const |
| Overload for vertexAdjacentVertices() returning global vertices translated with cellNodes. | |
| void | vertexAdjacentNodes (int v, QVarLengthArray< int, 4 > &list) const |
| Given a local vertex number, returns the set of local nodes adjacent to the given one. If the element is linear, its result is equal to calling vertexAdjacentVertices(). For quadratic elements, returns the adjacent mid-edge nodes instead of the adjacent corner vertices (ignoring mid-edge nodes). Values are returned on list. The pre-alloc size of 4 entries should be enough for any common element type. | |
| void | vertexAdjacentNodes (int v, QVarLengthArray< int, 4 > &list, const int *cellNodes) const |
| Overload for vertexAdjacentNodes() returning global vertices translated with cellNodes. | |
| void | edgeVertices (int e, int *first, int *last) const |
| Returns the pair of edge vertices for the given edge definied by its local element number. | |
| void | edgeVertices (int e, int *first, int *last, const int *cellNodes) const |
| Overload for edgeVertices() returning global vertices translated with cellNodes. | |
| void | edgeNodes (int e, QVarLengthArray< int, 4 > &list) const |
| Returns the list of edge nodes for the given edge definied by its local element number. | |
| void | edgeNodes (int e, QVarLengthArray< int, 4 > &list, const int *cellNodes) const |
| Overload for edgeNodes() returning global vertices translated with cellNodes. | |
| void | faceEdgeVertices (int f, int e, int *first, int *last) const |
| Returns the pair of edge vertices for the given face, local (face) edge pair. | |
| void | faceEdgeVertices (int f, int e, int *first, int *last, const int *cellNodes) const |
| Overload for faceEdgeVertices() returning global vertices translated with cellNodes. | |
| int | numFaceEdgeNodes (int f, int e) const |
| Returns the number of nodes for the given face, local (face) edge pair. | |
| void | faceEdgeNodes (int f, int e, QVarLengthArray< int, 4 > &list) const |
| Returns the set of edge nodes for the given face, local (face) edge pair. The list endpoints are the edge vertices. Values are returned on list. The pre-alloc size of 4 entries should be enough for any common element type. | |
| void | faceEdgeNodes (int f, int e, QVarLengthArray< int, 4 > &list, const int *cellNodes) const |
| Overload for faceEdgeNodes() returning global vertices translated with cellNodes. | |
| int | numApertureSides () const |
| Returns the number of aperture (or flow) sides. For interface elements only. | |
| const int * | apertureSides () const |
| Returns a list of aperture (or flow) side indices with numApertureSides() entries. For interface elements only. | |
| int | firstContactEdge (int f) const |
| Given a face index, returns the local index of the first contact edge from that face (a value from 0 to the number of edges on that face). A contact edge is an edge incident to both the interface element and the adjoining "normal" element. | |
Static Public Member Functions | |
| static const UibhmGemaTemplate * | typeTemplate (GmCellType t) |
| Returns the template object for the given element type. Might return NULL for unsupported elements (bars, for exemple) | |
Private Member Functions | |
| Q_DISABLE_COPY (UibhmGemaTemplate) | |
| UibhmGemaTemplate (GmCellType t) | |
| Private constructor. Should be called only by UibhmGemaTemplateInit() | |
| const int * | nodeOffsets (int f) const |
| Returns the edge node offset vector for the given face. | |
| template<bool Translate> | |
| bool | quadraticMidEdgeNodeAdjacentVerticesImpl (int node, int *v1, int *v2, const int *cellNodes=NULL) const |
| Work horse for both versions of quadraticMidEdgeNodeAdjacentVertices() | |
| template<bool Translate> | |
| void | vertexAdjacentImpl (int v, const GmCellGeometryInfo *g, QVarLengthArray< int, 4 > &list, const int *cellNodes=NULL) const |
| Work horse for both versions of vertexAdjacentVertices() and vertexAdjacentNodes() | |
| template<bool Translate> | |
| void | edgeVerticesImpl (int e, int *first, int *last, const int *cellNodes=NULL) const |
| Work horse for both versions of edgeVertices() | |
| template<bool Translate> | |
| void | edgeNodesImpl (int e, QVarLengthArray< int, 4 > &list, const int *cellNodes=NULL) const |
| Work horse for both versions of edgeNodes() | |
| template<bool Translate> | |
| void | faceEdgeVerticesImpl (int f, int e, int *first, int *last, const int *cellNodes=NULL) const |
| Work horse for both versions of faceEdgeVertices() | |
| template<bool Translate> | |
| void | faceEdgeNodesImpl (int f, int e, QVarLengthArray< int, 4 > &list, const int *cellNodes=NULL) const |
| Work horse for both versions of faceEdgeNodes() | |
Private Attributes | |
| const GmCellGeometryInfo * | _g |
| The type info object. | |
| const GmCellGeometryInfo * | _vg |
| The type info object used to query faces for vertices. Will be equal to _g for linear types without extra dof nodes. | |
| int | _maxNfv |
| The maximum number of vertices in a face for this element. | |
| int | _midNode |
| The local number of the mid face/volume node for a quadratic surface/solid element. -1 if there is none. | |
| int * | _edgeNodeOffset |
| An auxiliary matrix used to to store the node index in the face node description of the first node of each face half-edge. Needed to handle elements with varying number of nodes per edge (like a quadratic interface element without extra dof nodes) Size equal to numFaces() x (_maxNfv + 1). Linearizes by row. The extra entry in each line works as a sentinell and stores the number of nodes in the face. | |
| int * | _CF |
| The face adjacency matrix, linearized by row. Known in the IBHM paper as CF. Size equal to numFaces() x _maxNfv. For each face, stores the index of the adjacent faces, ordered according to the half edges specified by faceVertices() for the face. If that face has a number of vertices < _maxNfv, the remaining entries are filled with -1;. | |
| int * | _CE |
| The half edge matrix, linearized by row. Known in the IBHM paper as CE. Size equal to numVertices() x numVertices(). An entry (i, j) has a value if there is a half-edge starting at node i and ending at node j. In that case, the stored value is the index of the face that contains that edge. Otherwise the entry is -1. Symmetric elements correspond to adjacent faces. | |
Static Private Attributes | |
| static const UibhmGemaTemplate * | _typeTemplates [GM_NUM_CELL_TYPES] |
| The vector with per GeMA type templates. Might be NULL for unsupported types (bars, for example). Built at plugin startup. | |
Friends | |
| bool | UibhmGemaTemplateInit () |
| Initializes the UibhmGemaTemplate::_typeTemplates list. | |
A class used to store the type information needed by the Uibhm structure. The data is created based on the information that already exists on the GmCellGeometry class.
Can only be instanced for surface or solid types (no bars)
Part of the information is already available at the geometry class and the queries are just forwarded to a GmCellGeometryInfo object, but the CF & CE matrices are created and stored internally.
For Interface elements with extra dof nodes, extra care has to be taken for finding the correct nodes for an edge since there are elements where each edge has a different number of nodes.
|
staticprivate |
The vector with per GeMA type templates. Might be NULL for unsupported types (bars, for example). Built at plugin startup.
The declaration for the global list of template objects per GeMA cell type.
