Basic class for the mechanical physics plugin object. More...

#include <gmpMechanicalEmbeddedFracture.h>

Inheritance diagram for GmpMechanicalEmbeddedFracture:

[legend]

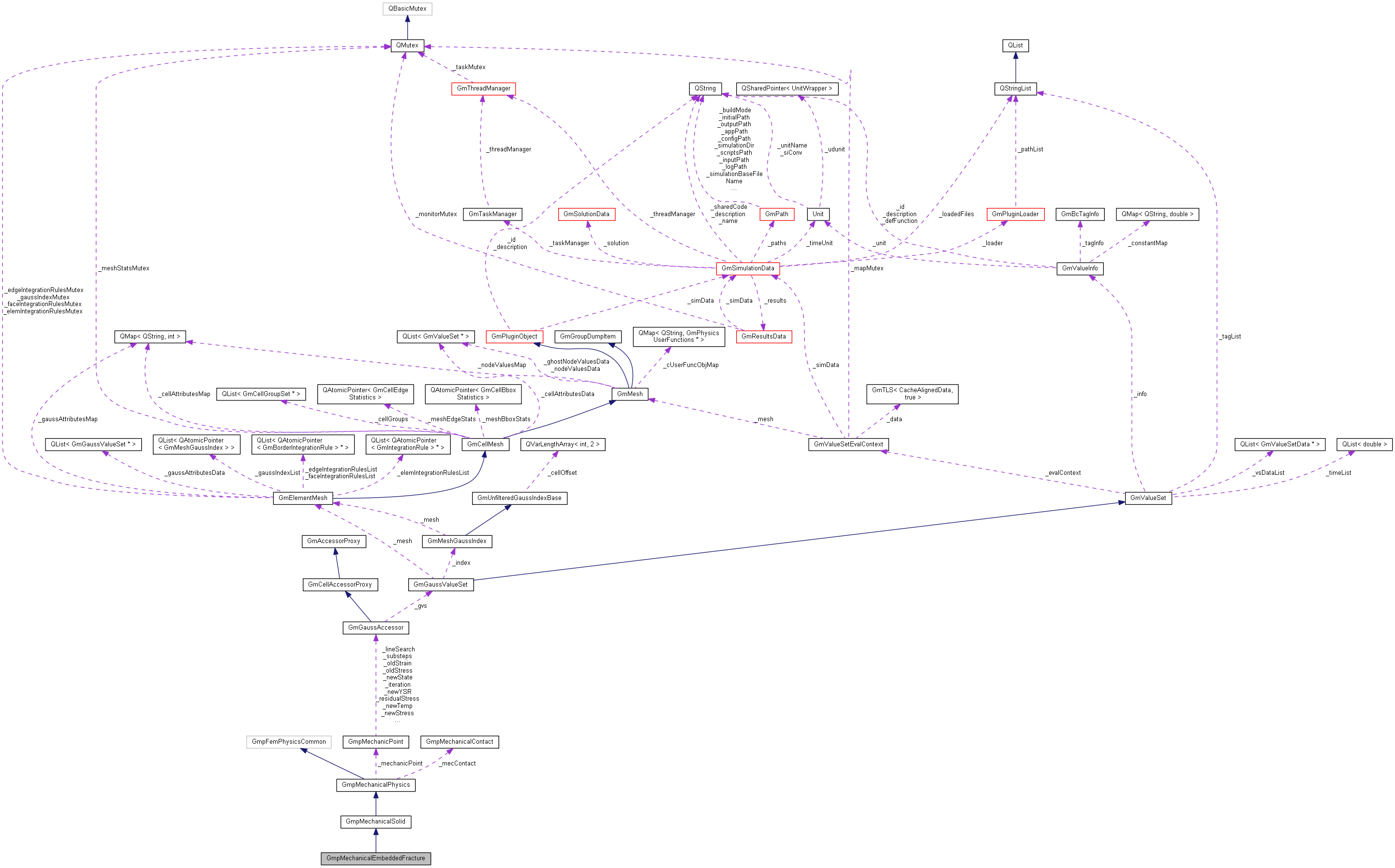

Collaboration diagram for GmpMechanicalEmbeddedFracture:

[legend]

Public Types
enum	embeddedPhysicsAttributeIds { LOCALEQ_TOL = GmpMechanicalSolid::NUM_ATTRI_IDS , LINESEARCH , RELROTATIONMODE , STRETCHINGMODE , SYMFORMULATION , NUM_ATTRI_IDS }
	IDs for physics attributes. More...

enum	embeddedCellAttributeIds { A_ID , AOLD_ID , NUM_CELLATTRI_IDS }
	IDs for cell attributes. More...

Public Types inherited from GmpMechanicalPhysics
enum	PhysicsAttributeIds { ISOPARAMETRIC_ID , STRESS_MODE_ID , STRAIN_MODE_ID , P_STRAIN_MODE_ID , BODY_FORCE_ID , CGRAV_ID , GEOMETRIC_ID , RF_MODE_ID , RMAPPINGINFO_ID , K0MODE_ID , STRAIN_RESET_ID , CONTACT_ID , STRAIN_T_ID , NUM_ATTRI_IDS }
	IDs for physics attributes. More...

enum	StateVarIds { U_ID , NUM_STATEVAR_IDS }
	IDs for Mechanical physics state vars. More...

enum	ExternalLoadsIds { PRESSURE_ID , THERMAL_ID , TREF_ID , NUM_EXTLOADS_IDS }
	IDs for Mechanical physics state vars. More...

enum	NodeAttributeIds { S_NA_ID , E_NA_ID , RF_NA_ID , CF_NA_ID , CD_NA_ID , CIV_NA_ID , CIVOLD_NA_ID , NUM_NA_IDS }
	IDs for physics node attributes. More...

enum	GaussAttributeIds { S_GA_ID , SOLD_GA_ID , RS_GA_ID , E_GA_ID , EOLD_GA_ID , YSR_GA_ID , YSROLD_GA_ID , ST_GA_ID , STOLD_GA_ID , ITER_GA_ID , ITEROLD_GA_ID , SUBSTEP_GA_ID , SUBSTEPOLD_GA_ID , LINESEARCH_GA_ID , LINESEARCHOLD_GA_ID , ET_GA_ID , NUM_GA_IDS }
	IDs for physics Gauss attributes. More...

enum	ElementPropertyIds { THICKNESS_ID , BF_ID , GRAV_ID , DENS_ID , DENSB_ID , ALPHA_ID , NUM_PROPER_IDS }
	IDs for physics element properties. More...

enum	BoundaryConditionIds { FIXED_U_BC_ID , FIXED_CF_BC_ID , PL_BC_ID , HL_BC_ID , WP_BC_ID , NUM_BC_IDS }
	IDs for accepted boundary condition types. More...

enum	BoundaryConditionValueIds { BC_UX_ID , BC_UY_ID , BC_UZ_ID , BC_CF_ID , BC_PL_ID , BC_HLR_ID , BC_HL_ID , BC_NRL_ID , BC_SWF_ID , NUM_BCV_IDS }
	IDs for property values from accepted boundary condition types. More...

enum	ContactBCIds { LOCAL_CBC_ID , GLOBAL_CBC_ID , NUM_CBC_IDS }
	IDs for accepted contact boundary conditions. More...

enum	ContactBCValueIds { CBC_KCN_ID , CBC_KSN_ID , CBC_MU_ID , NUM_CBCV_IDS }
	IDs for property values from accepted Contact boundary condition (CBC) More...

Public Member Functions
	GmpMechanicalEmbeddedFracture (const char pluginType, GmSimulationData simulation, QString id, QString description, const GmpFemPhysicsCommonMaterialFactory *matFactory, const GmLogCategory &logger)
	Constructor. Will be called by the plugin loading code.

virtual	~GmpMechanicalEmbeddedFracture ()
	Destructor.

virtual const QVariantMap *	physicsMetaDataMap ()
	Returns a reference for the single mechanical physics attribute map, built when the function is called for the first time.

bool	checkAndLoadAttributeAccessors (LuaTable &nodeTable, LuaTable &cellTable, LuaTable &gaussTable)
	Reimplementation of the common function to init the _mechanicPoint structure.

virtual FemResultType	fillElementData (const GmElement *e, GmpFemMatrixSet &elemMatrices, GmpFemVectorSet &elemVectors)
	Fills the element matrices and vectors for finite element that can have an embedded discontinuity.

virtual FemResultType	fillEnrichedElementData (const GmElement *e, GmpFemMatrixSet &elemMatrices, GmpFemVectorSet &elemVectors)
	Fills the element matrices and vectors for a enriched element.

int	getNumberEnrichedDofs (const GmElement *e)
	Gets the number of enrichment degrees of freedom in the given element TODO: Generalize to consider the intersection between the discontinuities.

int	getNumberEnrichedDofsPerDiscontinuity () const
	Returns the number of enrichment dofs per discontinuity segment. TODO: 3D in-plane rotation.

int	getDisplacementJumpOrder () const
	Returns the order of the displacement jump based on the chosen deformation modes.

FemResultType	solveDiscontinuityEquilibriumEq (const GmElement *e, int nRegDofs, int nEnrDof, GmMatrix &Kuu, GmMatrix &Kuw, GmMatrix &Kwu, GmMatrix &Kww, GmVector &fiu, GmVector &fia, GmVector &ue, GmVector &ae)
	Solves the local equilibrium equations associated with the discontinuities.

FemResultType	fillEnrichedElementSubData (const GmElement *e, const GmVector &ue, const GmVector &we, const GmMatrix &stressCoeffs, GmMatrix &Kuu, GmMatrix &Kuw, GmMatrix &Kwu, GmMatrix &Kww, GmVector &fiu, GmVector &fiw)
	Fills the enriched element sub-matrices and sub-vectors. K = [ Kuu Kua ] , fi = [ fiu ] [ Kau Kaa ] [ fia ].

FemResultType	fillDiscontinuitySetElementData (const GmElement *e, const GmVector &ue, const GmVector &ae, GmMatrix &Kd, GmVector &fid, GmMatrix &Kstab) const

FemResultType	fillInternalBorderElementData (const GmElement *e, GmVector &ue, GmVector &ae, GmMatrix &Kb_uu, GmMatrix &Kb_ua, GmMatrix &Kb_au, GmMatrix &Kb_aa, GmVector &fbu, GmVector &fba)
	Fills the enriched element displacement vector.

void	getDiscontinuitySubElementIds (const GmElement *e, int k, int &idDiscontinuityElem, int &idDiscontinuityMesh)

void	displacementJumpShapeFunction (const GmMatrix &DX, const GmMatrix &mn, GmMatrix &Nd) const

void	fillGrMatrix (const GmElement *e, const GmMatrix &Xe, const GmMatrix &Bu, GmMatrix &Gc) const

void	fillGvMatrix (const GmElement e, const GmShape elemShape, const GmVector &Xn, const GmMatrix &Xe, const GmMatrix &C, GmMatrix &G) const

void	projectionMatrix (const GmVector &nd, GmMatrix &P) const

int	dimPolynomialStressInterpolation (const GmElement *e) const

void	polynomialStressInterpolation (int etype, const GmVector &X, GmMatrix &p) const

void	GramMatrixPolynomialStress (const GmElement *e, int stressOrder, GmMatrix &H) const

void	discontinuityIntegralPolynomialStress (const GmElement *ef, int displacementJumpOrder, int stressOrder, GmMatrix &S) const

double	lineSearch (const GmElement *e, GmMatrix &stressCoeffs, GmVector &ue, GmVector &x0, GmVector &d, GmVector &r)
	Inexact line-search method to solve the local equilibrium equation The function being minimized is f = 0.5 * r^T * r where r is the residual vector. Return the step length (xi) that minimizes the function at the direction d. Considers that the direction d is defined be the Newton-Raphson method.

FemResultType	fillEnrichedElementLocalEquation (const GmElement *e, const GmMatrix &stressCoeffs, const GmVector &ue, const GmVector &ae, GmVector &fia)
	Fills the enriched element local equilibrium equation.

void	fillElementOldEnrichedDof (const GmElement *e, GmVector &ae)
	Fills the enriched element displacement vector.

void	setElementEnrichedDof (const GmElement *e, GmVector &ae)
	Set the current enriched element displacement vector. Updates the cell attributes of the discontinuity elements.

void	fillEnrichedShapeFncMatrix (const GmElement *e, const GmMatrix &Xe, const GmVector &N, GmMatrix &Nenr) const

double	auxiliaryFunctionPhi (const GmVector &N, const GmMatrix &Xe, const GmVector &Xref, const GmVector &nd) const

void	fillDisplacementShapeFncMatrix (const GmElement *e, const GmVector &Nv, GmMatrix &Nm) const
	Assemble displacement field shape function matrix.

void	fillStressInterpolationCoeffs (const GmElement *e, GmMatrix &stressCoeffs) const

FemResultType	fillElementDataForLoads (const GmElement *e, int loadId, GmpFemVectorSet &elemVectors)

void	fillStabilizationMatrix (const GmElement e, const GmElement ef, const GmMatrix &Td, const GmMatrix &Dep, GmMatrix &S) const
	Get the stabilization matrix.

Public Member Functions inherited from GmpMechanicalSolid
	GmpMechanicalSolid (const char pluginType, GmSimulationData simulation, QString id, QString description, const GmpFemPhysicsCommonMaterialFactory *matFactory, const GmLogCategory &logger)
	Constructor. Will be called by the plugin loading code.

virtual	~GmpMechanicalSolid ()
	Destructor.

virtual bool	beforeElementStiffnessLoop (const GmpFemMatrixSet &elemMatrices, const GmpFemVectorSet &elemVectors)

virtual void	fillBodyForce (const GmElement e, const GmVector coord, int ip, GmVector &BFc, const GmVector &N, double c) const

virtual void	gravityForce (const GmElement e, const GmVector coord, int ip, GmVector &Fext_u, const GmVector &N, double c) const

virtual void	gravityVector (const GmElement e, const GmVector coord, int ip, GmVector &gravComp) const
	Fill gravity acceleration vector.

virtual bool	calcDerivedResults (bool nonLinearSolver)
	Calc stress component on nodes and/or Gauss points, ADDING the calculated value to the current result.

virtual bool	checkLoadedData ()
	Checks the loaded data.

virtual bool	addStateItemsToGroup (GmStateDump *state, bool fixedHint, int groupId)

Public Member Functions inherited from GmpMechanicalPhysics
	GmpMechanicalPhysics (const char pluginType, GmSimulationData simulation, QString id, QString description, const GmpFemPhysicsCommonMaterialFactory *matFactory, const GmLogCategory &logger)
	Constructor. Will be called by the plugin loading code.

virtual	~GmpMechanicalPhysics ()
	Destructor.

virtual const char *	pluginName () const

virtual const char *	pluginType () const

virtual bool	supportsStateDumping ()

virtual unsigned	stress_state (void) const
	Returns the number of stress components.

virtual bool	fixedNodalForcesBc (QVector< int > &nodes, QVector< int > &dof, QVector< double > &values) const
	See comments on base class. Fills vectors with prescribed nodal concentrated forces.

virtual bool	fixedNodalDofsBc (QVector< int > &nodes, QVector< int > &dof, QVector< double > &values, bool *constantValues) const
	See comments on base class. Fills vectors with prescribed node displacements.

virtual FemResultType	fillElementDataForBc (const GmElement e, const GmBoundaryCondition bc, int bcIndex, int bcListIndex, int border, GmpFemMatrixSet &elemMatrices, GmpFemVectorSet &elemVectors)
	Fills the element stiffness matrix elemK and/or the force vector elemF for element 'e', taking into account pressure load and/or point generation boundary conditions, as indicated by the bc parameter.

virtual FemResultType	fillElementDataPressBc (const GmElement e, const GmBoundaryCondition bc, int bcIndex, int bcListIndex, int border, GmMatrix &elemMat, GmVector &elemVec)
	calc nodal equivalent force vector due uniforme pressure load.

virtual FemResultType	fillElementDataHydPressBc (const GmElement e, const GmBoundaryCondition bc, int bcIndex, int bcListIndex, int border, GmMatrix &elemMat, GmVector &elemVec)
	calc nodal equivalent force vector due hydraulic pressure load. Information is provided from two vertical reference coordinates with the respective

virtual FemResultType	fillElementDataWaterSheepPressBc (const GmElement e, const GmBoundaryCondition bc, int bcIndex, int bcListIndex, int border, GmMatrix &elemMat, GmVector &elemVec)
	calc nodal equivalent force vector due water sheet pressure load. Information is provided from reference coordinates to level of water with the respective

virtual FemResultType	fillContactData (const GmContactBoundaryCondition *cbc, int bcIndex1, int bcIndex2, GmMatrixDof &dofMap, GmpFemMatrixSet &matrixSet, GmpFemVectorSet &vecSet)
	Fills the contact boundary contribution.

virtual bool	calcMaterialDerivedResults () const
	The virtual function used by calcDerivedResults() to effectively calculate gauss attributes required by the Material.

virtual double	fillBuMatrix (const GmElement e, const GmShape shape, const GmVector &ncoord, const GmMatrix &X, const GmVector &N, const GmMatrix &J, GmMatrix &Bu)=0
	Given a point 'ncood', the element coordinate matrix 'X', the point shape functions 'N' and the transformation Jacobian 'J', fills the matrix with cartesian partial derivatives Bu using the provided shape function and returns the scaled jacobian determinant.

void	fillElementDisplacements (const GmElement *e, GmVector &ue)
	Given an element, fills the vector 'ue' with nodal displacements. The vector should have size equal to n * d where n is the number of element nodes and d is the node dimension.

void	fillElementThermalIncrement (const GmElement *e, GmVector &dTe)
	The virtual function to fill the nodal thermal increment.

virtual double	axisymmetricFactor (const GmElement *e, const GmMatrix &X, const GmVector &N) const
	Returns the factor that should be applied when using axis symetric elements. 1.0 for other etypes.

virtual bool	isPlaneStress ()
	Returns the factor that should be applied when using axis symetric elements. 1.0 for other etypes.

virtual bool	isAxisymmetric ()
	Returns TRUE only for axisymmetric models.

GmpMechanicPoint *	mechanicPoint ()
	Returns the physics mechanical material point.

virtual bool	evaluatesThermalStrain (const GmElement *e, GmVector &strainT, GmVector &NT, GmVector &dT, double alpha) const
	Returns The thermal strain.

GmMatrix &	dep ()
	Returns a reference to the physics constitutive tangent matrix.

Private Attributes
const char *	_pluginType
	The plugin type name.

Additional Inherited Members
Protected Member Functions inherited from GmpMechanicalSolid
virtual void	calcElementDerivedResultAtPoints (const GmElement *e, int resultId, const GmMatrix &evalPoints, bool evalAtIp, GmMatrix &result)
	The virtual function used by calcDerivedResults() to effectivelly calculate stresses at the given evaluation points.

virtual void	calcElementResetStrains (const GmElement *e)
	The virtual function used by calcDerivedResults() to effectivelly calculate strain reset to zero. When the displacement are defined as zero, the deformation must also be made zero.

virtual bool	setInitialConditions ()
	Sets the initial conditionrequired by interface elements.

virtual bool	updatesReturnMappingInfo ()
	Updates the number of iteration and substeps of return mapping algorithm.

virtual bool	calcMaterialDerivedResults ()
	The virtual function used by calcDerivedResults() to effectively calculate gauss attributes defined by Material.

Protected Attributes inherited from GmpMechanicalPhysics
GmpMechanicPoint *	_mechanicPoint
	Access to mechanical material point.

GmTLS< GmMatrix, true >	_Dep
	Constitutive tangent matrix (2 x 2)

bool	_setInitialCond
	Sets the initial conditions required by the physics.

Detailed Description

Basic class for the mechanical physics plugin object.

Member Enumeration Documentation

◆ embeddedCellAttributeIds

enum GmpMechanicalEmbeddedFracture::embeddedCellAttributeIds

IDs for cell attributes.

Enumerator
A_ID	Id for the cell attributes.
NUM_CELLATTRI_IDS	The number of physics attribute ids above.

◆ embeddedPhysicsAttributeIds

enum GmpMechanicalEmbeddedFracture::embeddedPhysicsAttributeIds

IDs for physics attributes.

Enumerator

LOCALEQ_TOL

Id for retrieving the static condensation physics attribute.

Tolerance for the static condensation process

NUM_ATTRI_IDS

The number of physics attribute ids above.

Member Function Documentation

◆ checkAndLoadAttributeAccessors()

bool GmpMechanicalEmbeddedFracture::checkAndLoadAttributeAccessors	(	LuaTable &	nodeTable,
		LuaTable &	cellTable,
		LuaTable &	gaussTable )

virtual

Reimplementation of the common function to init the _mechanicPoint structure.

Reimplemented from GmpMechanicalSolid.

◆ fillDiscontinuitySetElementData()

GmpFemPhysics::FemResultType GmpMechanicalEmbeddedFracture::fillDiscontinuitySetElementData	(	const GmElement *	e,
		const GmVector &	ue,
		const GmVector &	ae,
		GmMatrix &	Kd,
		GmVector &	fid,
		GmMatrix &	Kstab ) const

Get the stiffness matrix and the internal force vector from the contribution of the discontinuity cohesive law TODO: multiple intersecting discontinuities

◆ fillElementData()

GmpFemPhysics::FemResultType GmpMechanicalEmbeddedFracture::fillElementData	(	const GmElement *	e,
		GmpFemMatrixSet &	elemMatrices,
		GmpFemVectorSet &	elemVectors )

virtual

Fills the element matrices and vectors for finite element that can have an embedded discontinuity.

Reimplemented from GmpMechanicalSolid.

◆ fillElementDataForLoads()

GmpFemPhysics::FemResultType GmpMechanicalEmbeddedFracture::fillElementDataForLoads	(	const GmElement *	e,
		int	loadId,
		GmpFemVectorSet &	elemVectors )

virtual

Reimplemented from GmpMechanicalPhysics.

◆ physicsMetaDataMap()

const QVariantMap * GmpMechanicalEmbeddedFracture::physicsMetaDataMap ( )

virtual

Returns a reference for the single mechanical physics attribute map, built when the function is called for the first time.

Reimplemented from GmpMechanicalSolid.

The documentation for this class was generated from the following files:
