Basic class for the mechanical physics plugin object. More...

#include <gmpMechanicalPhysics.h>

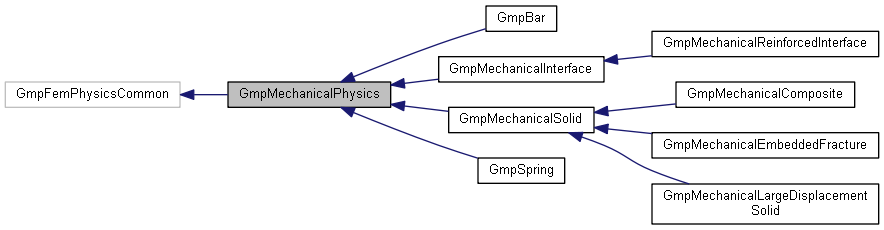

Inheritance diagram for GmpMechanicalPhysics:

[legend]

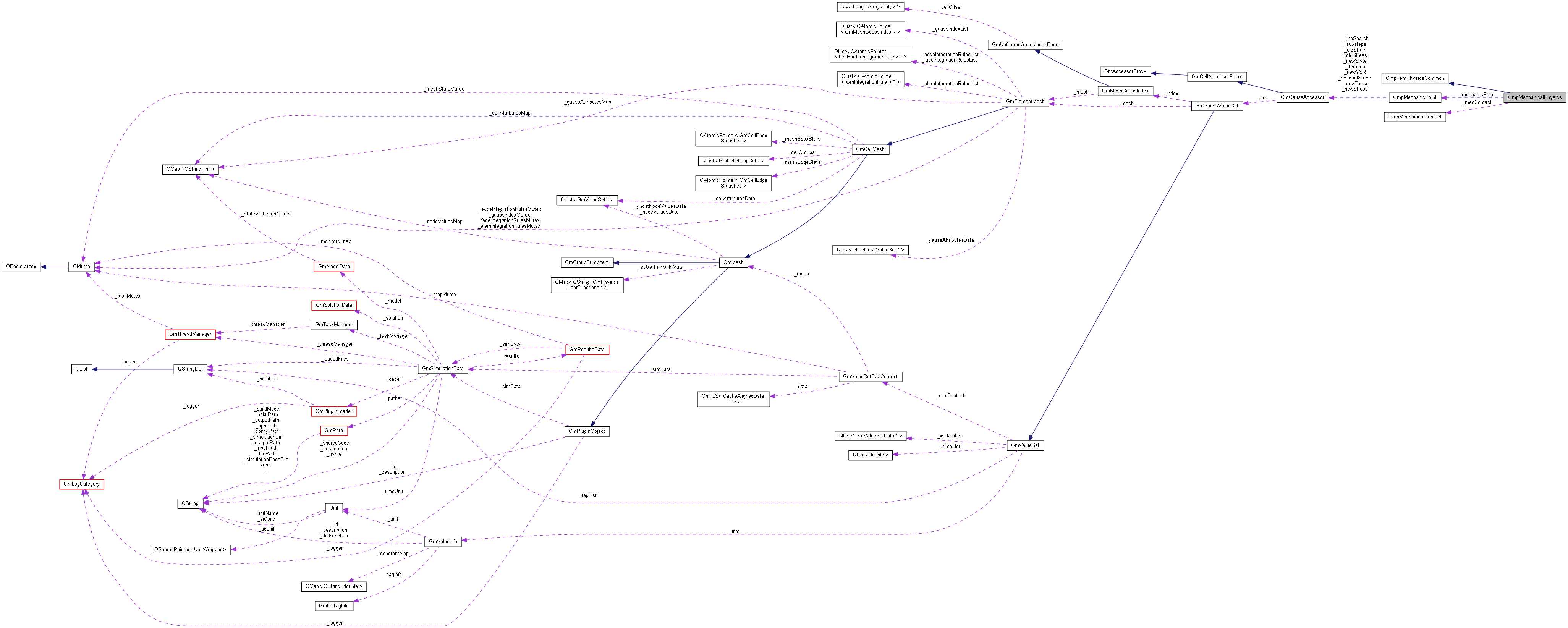

Collaboration diagram for GmpMechanicalPhysics:

[legend]

Public Types
enum	PhysicsAttributeIds { ISOPARAMETRIC_ID, STRESS_MODE_ID, STRAIN_MODE_ID, P_STRAIN_MODE_ID, BODY_FORCE_ID, CGRAV_ID, GEOMETRIC_ID, RF_MODE_ID, RMAPPINGINFO_ID, K0MODE_ID, STRAIN_RESET_ID, CONTACT_ID, NUM_ATTRI_IDS }
	IDs for physics attributes. More...

enum	StateVarIds { U_ID, NUM_STATEVAR_IDS }
	IDs for Mechanical physics state vars. More...

enum	ExternalLoadsIds { PRESSURE_ID, THERMAL_ID, NUM_EXTLOADS_IDS }
	IDs for Mechanical physics state vars. More...

enum	NodeAttributeIds { S_NA_ID, E_NA_ID, RF_NA_ID, CF_NA_ID, CD_NA_ID, CIV_NA_ID, CIVOLD_NA_ID, NUM_NA_IDS }
	IDs for physics node attributes. More...

enum	GaussAttributeIds { S_GA_ID, SOLD_GA_ID, RS_GA_ID, E_GA_ID, EOLD_GA_ID, YSR_GA_ID, YSROLD_GA_ID, ST_GA_ID, STOLD_GA_ID, ITER_GA_ID, ITEROLD_GA_ID, SUBSTEP_GA_ID, SUBSTEPOLD_GA_ID, LINESEARCH_GA_ID, LINESEARCHOLD_GA_ID, NUM_GA_IDS }
	IDs for physics Gauss attributes. More...

enum	ElementPropertyIds { THICKNESS_ID, BF_ID, GRAV_ID, DENS_ID, DENSB_ID, NUM_PROPER_IDS }
	IDs for physics element properties. More...

enum	BoundaryConditionIds { FIXED_U_BC_ID, FIXED_CF_BC_ID, PL_BC_ID, HL_BC_ID, WP_BC_ID, NUM_BC_IDS }
	IDs for accepted boundary condition types. More...

enum	BoundaryConditionValueIds { BC_UX_ID, BC_UY_ID, BC_UZ_ID, BC_CF_ID, BC_PL_ID, BC_HLR_ID, BC_HL_ID, BC_NRL_ID, BC_SWF_ID, NUM_BCV_IDS }
	IDs for property values from accepted boundary condition types. More...

enum	ContactBCIds { LOCAL_CBC_ID, GLOBAL_CBC_ID, NUM_CBC_IDS }
	IDs for accepted contact boundary conditions. More...

enum	ContactBCValueIds { CBC_KCN_ID, CBC_KSN_ID, CBC_MU_ID, NUM_CBCV_IDS }
	IDs for property values from accepted Contact boundary condition (CBC) More...

Public Member Functions
	GmpMechanicalPhysics (const char pluginType, GmSimulationData simulation, QString id, QString description, const GmpFemPhysicsCommonMaterialFactory *matFactory, const GmLogCategory &logger)
	Constructor. Will be called by the plugin loading code.

virtual	~GmpMechanicalPhysics ()
	Destructor.

virtual const char *	pluginName () const

virtual const char *	pluginType () const

virtual const QVariantMap *	physicsMetaDataMap ()
	Returns a reference for the single mechanical physics attribute map, built when the function is called for the first time.

virtual bool	supportsStateDumping ()

virtual unsigned	stress_state (void)
	Returns the number of stress components. More...

virtual FemResultType	fillElementData (const GmElement *e, GmpFemMatrixSet &elemMatrices, GmpFemVectorSet &elemVectors)=0

virtual bool	fixedNodalForcesBc (QList< int > &nodes, QList< int > &dof, QList< double > &values) const
	See comments on base class. Fills vectors with prescribed nodal concentrated forces.

virtual bool	fixedNodalDofsBc (QList< int > &nodes, QList< int > &dof, QList< double > &values, bool *constantValues) const
	See comments on base class. Fills vectors with prescribed node displacements.

virtual FemResultType	fillElementDataForBc (const GmElement e, const GmBoundaryCondition bc, int bcIndex, int bcListIndex, int border, GmpFemMatrixSet &elemMatrices, GmpFemVectorSet &elemVectors)
	Fills the element stiffness matrix elemK and/or the force vector elemF for element 'e', taking into account pressure load and/or point generation boundary conditions, as indicated by the bc parameter. More...

virtual FemResultType	fillElementDataForLoads (const GmElement *e, int loadId, GmpFemVectorSet &elemVectors)

virtual FemResultType	fillElementDataPressBc (const GmElement e, const GmBoundaryCondition bc, int bcIndex, int bcListIndex, int border, GmMatrix &elemMat, GmVector &elemVec)
	calc nodal equivalent force vector due uniforme pressure load.

virtual FemResultType	fillElementDataHydPressBc (const GmElement e, const GmBoundaryCondition bc, int bcIndex, int bcListIndex, int border, GmMatrix &elemMat, GmVector &elemVec)
	calc nodal equivalent force vector due hydraulic pressure load. Information is provided from two vertical reference coordinates with the respective

virtual FemResultType	fillElementDataWaterSheepPressBc (const GmElement e, const GmBoundaryCondition bc, int bcIndex, int bcListIndex, int border, GmMatrix &elemMat, GmVector &elemVec)
	calc nodal equivalent force vector due water sheet pressure load. Information is provided from reference coordinates to level of water with the respective

virtual FemResultType	fillContactData (const GmContactBoundaryCondition *cbc, int bcIndex1, int bcIndex2, GmMatrixDof &dofMap, GmpFemMatrixSet &matrixSet, GmpFemVectorSet &vecSet)
	Fills the contact boundary contribution. More...

virtual bool	calcDerivedResults (bool nonLinearSolver)
	Calc stress component on nodes and/or Gauss points, ADDING the calculated value to the current result.

virtual bool	calcMaterialDerivedResults () const
	The virtual function used by calcDerivedResults() to effectively calculate gauss attributes required by the Material.

virtual double	fillBuMatrix (const GmElement e, const GmShape shape, const GmVector &ncoord, const GmMatrix &X, const GmVector &N, const GmMatrix &J, GmMatrix &Bu)=0
	Given a point 'ncood', the element coordinate matrix 'X', the point shape functions 'N' and the transformation Jacobian 'J', fills the matrix with cartesian partial derivatives Bu using the provided shape function and returns the scaled jacobian determinant. More...

void	fillElementDisplacements (const GmElement *e, GmVector &ue)
	Given an element, fills the vector 'ue' with nodal displacements. The vector should have size equal to n * d where n is the number of element nodes and d is the node dimension. More...

virtual void	fillMiddleCoordinates (const GmElement *e, GmMatrix Xnode, GmMatrix &MX) const

virtual double	axisymmetricFactor (const GmElement *e, const GmMatrix &X, const GmVector &N)
	Returns the factor that should be applied when using axis symetric elements. 1.0 for other etypes.

virtual bool	isPlaneStress ()
	Returns the factor that should be applied when using axis symetric elements. 1.0 for other etypes.

virtual bool	isAxisymmetric ()
	Returns TRUE only for axisymmetric models.

GmpMechanicPoint *	mechanicPoint ()
	Returns the physics mechanical material point.

GmMatrix &	dep ()
	Returns a reference to the physics constitutive tangent matrix.

virtual GmVector	timeSim () const
	Returns the simulation time used by the simulation. More...

Protected Attributes
GmpMechanicalContact	_mecContact
	Object with general contact methods.

GmpMechanicPoint *	_mechanicPoint
	Access to mechanical material point.

GmMatrix	_Dep
	Constitutive tangent matrix (2 x 2)

bool	_setInitialCond
	Sets the initial conditions required by the physics.

Private Attributes
const char *	_pluginType
	The plugin type name.

Detailed Description

Basic class for the mechanical physics plugin object.

Member Enumeration Documentation

◆ BoundaryConditionIds

enum GmpMechanicalPhysics::BoundaryConditionIds

IDs for accepted boundary condition types.

Enumerator
FIXED_U_BC_ID	Id for fixed node displacement boundary condition.
FIXED_CF_BC_ID	Id for fixed concentrated node force boundary condition.
PL_BC_ID	Id for pressure load boundary condition.
HL_BC_ID	Id for hydraulic pressure load boundary condition.
WP_BC_ID	Id for water pressure on the seabed or water sheet pressure boundary condition.
NUM_BC_IDS	The number of boundary conditions ids above.

◆ BoundaryConditionValueIds

enum GmpMechanicalPhysics::BoundaryConditionValueIds

IDs for property values from accepted boundary condition types.

Enumerator
BC_UX_ID	Nodal displacement for fixed node displacement boundary condition.
BC_UY_ID	Nodal displacement for fixed node displacement boundary condition.
BC_UZ_ID	Nodal displacement for fixed node displacement boundary condition.
BC_CF_ID	Nodal force for fixed node force boundary condition.
BC_PL_ID	edge or face pressure load boundary condition
BC_HLR_ID	Reference of hydraulic load boundary condition.
BC_HL_ID	edge or
BC_NRL_ID	Nivel of reference level of water.
BC_SWF_ID	Specific weight of fluid.
NUM_BCV_IDS	The number of boundary conditions value ids above.

◆ ContactBCIds

enum GmpMechanicalPhysics::ContactBCIds

IDs for accepted contact boundary conditions.

Enumerator
LOCAL_CBC_ID	Id for local contact boundary.
GLOBAL_CBC_ID	Id for global contact boundary.
NUM_CBC_IDS	The number of boundary conditions ids above.

◆ ContactBCValueIds

enum GmpMechanicalPhysics::ContactBCValueIds

IDs for property values from accepted Contact boundary condition (CBC)

Enumerator
CBC_KCN_ID	Normal elastic stiffness of contact boundary.
CBC_KSN_ID	Shear elastic stiffness of contact boundary.
CBC_MU_ID	Friction coefficient of contact boundary surface.
NUM_CBCV_IDS	The number of boundary conditions value ids above.

◆ ElementPropertyIds

enum GmpMechanicalPhysics::ElementPropertyIds

IDs for physics element properties.

Enumerator
THICKNESS_ID	Id for retrieving the plane width accessor.
BF_ID	Id for retrieving the self weight for body force.
GRAV_ID	Id for retrieving the gravity accessor.
DENS_ID	Id for retrieving the dry density accessor.
DENSB_ID	Id for retrieving the bulk density accessor.
NUM_PROPER_IDS	The number of property ids above.

◆ ExternalLoadsIds

enum GmpMechanicalPhysics::ExternalLoadsIds

IDs for Mechanical physics state vars.

Enumerator
PRESSURE_ID	Id for retrieving the accessor to the pressure state var.
THERMAL_ID	Id for retrieving the accessor to the temperature state var.
NUM_EXTLOADS_IDS	The number of state var ids above.

◆ GaussAttributeIds

enum GmpMechanicalPhysics::GaussAttributeIds

IDs for physics Gauss attributes.

Enumerator
S_GA_ID	Base Id for Gauss attribute(s) used to store the calculated stress at the current state.
SOLD_GA_ID	Id for retrieving the stress accessor at the previous state (old stress)
RS_GA_ID	Id for retrieving the stress accessor at the residual state.
E_GA_ID	Base Id for Gauss attribute(s) used to store the calculated strain at the current state.
EOLD_GA_ID	Id for retrieving the strain accessor at the previous state (old strain)
YSR_GA_ID	Id for retrieving the yield strength ratio at the current state.
YSROLD_GA_ID	Id for retrieving the yield strength ratio at the previous state.
ST_GA_ID	Id for retrieving the material point state accessor at the current state.
STOLD_GA_ID	Id for retrieving the material point state accessor at the previous state.
ITER_GA_ID	Id for retrieving the iteration numbers of the return mapping.
ITEROLD_GA_ID	Id for retrieving the iteration numbers of the return mapping at the previous state.
SUBSTEP_GA_ID	Id for retrieving the substep numbers of the return mapping.
SUBSTEPOLD_GA_ID	Id for retrieving the substep numbers of the return mapping at the previous state.
LINESEARCH_GA_ID	Id for retrieving the line search numbers of the return mapping.
LINESEARCHOLD_GA_ID	Id for retrieving the line search numbers of the return mapping at the previous state.
NUM_GA_IDS	The number of Gauss attribute ids above.

◆ NodeAttributeIds

enum GmpMechanicalPhysics::NodeAttributeIds

IDs for physics node attributes.

Enumerator
S_NA_ID	Base Id for node attribute(s) used to store the calculated stress.
E_NA_ID	Base Id for node attribute(s) used to store the calculated strain.
RF_NA_ID	Base Id for node attribute used to store the calculated Reaction Force.
CF_NA_ID	Base Id for node attribute used to store the calculated contact Force.
CD_NA_ID	Base Id for node attribute used to store the calculated contact Displacement.
CIV_NA_ID	Base Id for node attribute used to store the calculated contact internal variables.
CIVOLD_NA_ID	Id for retrieving the contact internal variale accessor at the previous state (old contact displacement)
NUM_NA_IDS	The number of node attribute ids above.

◆ PhysicsAttributeIds

enum GmpMechanicalPhysics::PhysicsAttributeIds

IDs for physics attributes.

Enumerator
ISOPARAMETRIC_ID	Id for retrieving the isoParametric physics attribute.
STRESS_MODE_ID	Id for retrieving the stress physics attribute.
STRAIN_MODE_ID	Id for retrieving the strain physics attribute.
P_STRAIN_MODE_ID	Id for retrieving the plastic strain physics attribute.
BODY_FORCE_ID	Id for retreiving the body force enabled attribute.
CGRAV_ID	Id for retrieving the gravity attribute.
GEOMETRIC_ID	Id for retrieving the geometric attribute.
RF_MODE_ID	Id for retrieving the reactionForceMode physics attribute.
RMAPPINGINFO_ID	Id for retrieving the return mapping info physics attribute.
K0MODE_ID	Id for retrieving the K0 mode attribute.
STRAIN_RESET_ID	Id for retrieving the strain reset attribute.
CONTACT_ID	Id for retrieving the strain reset attribute.
NUM_ATTRI_IDS	The number of physics attribute ids above.

◆ StateVarIds

enum GmpMechanicalPhysics::StateVarIds

IDs for Mechanical physics state vars.

Enumerator
U_ID	Id for retrieving the accessor to the displacement state var.
NUM_STATEVAR_IDS	The number of state var ids above.

Member Function Documentation

◆ fillBuMatrix()

virtual double GmpMechanicalPhysics::fillBuMatrix	(	const GmElement *	e,
		const GmShape *	shape,
		const GmVector &	ncoord,
		const GmMatrix &	X,
		const GmVector &	N,
		const GmMatrix &	J,
		GmMatrix &	Bu
	)

pure virtual

Given a point 'ncood', the element coordinate matrix 'X', the point shape functions 'N' and the transformation Jacobian 'J', fills the matrix with cartesian partial derivatives Bu using the provided shape function and returns the scaled jacobian determinant.

The shape function given as parameter is the shape function that should be used to calculate the partial derivatives. It will be a linear function in case of iso-parametric elements and the element shape function otherwise.

Matrices J, X and N should have been calculated using the element shape function even in an iso-parametric setting.

Implemented in GmpMechanicalLargeDisplacementSolid, GmpBar, and GmpSpring.

◆ fillContactData()

GmpFemPhysics::FemResultType GmpMechanicalPhysics::fillContactData	(	const GmContactBoundaryCondition *	cbc,
		int	bcIndex1,
		int	bcIndex2,
		GmMatrixDof &	dofMap,
		GmpFemMatrixSet &	matrixSet,
		GmpFemVectorSet &	vecSet
	)

virtual

Fills the contact boundary contribution.

Fills the contact data K_con, Fi_con and Fe_con.

◆ fillElementDataForBc()

GmpFemPhysics::FemResultType GmpMechanicalPhysics::fillElementDataForBc	(	const GmElement *	e,
		const GmBoundaryCondition *	bc,
		int	bcIndex,
		int	bcListIndex,
		int	border,
		GmpFemMatrixSet &	elemMatrices,
		GmpFemVectorSet &	elemVectors
	)

virtual

Fills the element stiffness matrix elemK and/or the force vector elemF for element 'e', taking into account pressure load and/or point generation boundary conditions, as indicated by the bc parameter.

Reference: "Programing the finite element Mthod", I.M. Smith and D. V. Griffits

◆ fillElementDisplacements()

void GmpMechanicalPhysics::fillElementDisplacements	(	const GmElement *	e,
		GmVector &	ue
	)

Given an element, fills the vector 'ue' with nodal displacements. The vector should have size equal to n * d where n is the number of element nodes and d is the node dimension.

See comments on base class. Fills the vector ue with nodal displacements.

Values are stored in 'ue' by node. For a two nodes element with 3 dimensions ue is filled with [ux1, uy1, uz1, ux2, uy2, uz2]

◆ stress_state()

unsigned GmpMechanicalPhysics::stress_state ( void )

virtual

Returns the number of stress components.

See comments on base class. Returns the number of stress components.

◆ timeSim()

GmVector GmpMechanicalPhysics::timeSim ( ) const

virtual

Returns the simulation time used by the simulation.

Returns a time vector with the current and the previous times.

The documentation for this class was generated from the following files:

inc/gmpMechanicalPhysics.h
src/gmpMechanicalPhysics.cpp

Public Types

Public Member Functions

Protected Attributes

Private Attributes

Detailed Description

Member Enumeration Documentation

◆ BoundaryConditionIds

◆ BoundaryConditionValueIds

◆ ContactBCIds

◆ ContactBCValueIds

◆ ElementPropertyIds

◆ ExternalLoadsIds

◆ GaussAttributeIds

◆ NodeAttributeIds

◆ PhysicsAttributeIds

◆ StateVarIds

Member Function Documentation

◆ fillBuMatrix()

◆ fillContactData()

◆ fillElementDataForBc()

◆ fillElementDisplacements()

◆ stress_state()

◆ timeSim()
