Basic class for solving Non linear FEM problems. More...

#include <gmpFemTransientNonLinearSolver.h>

Inheritance diagram for GmpFemTransientNonLinearSolver:

[legend]

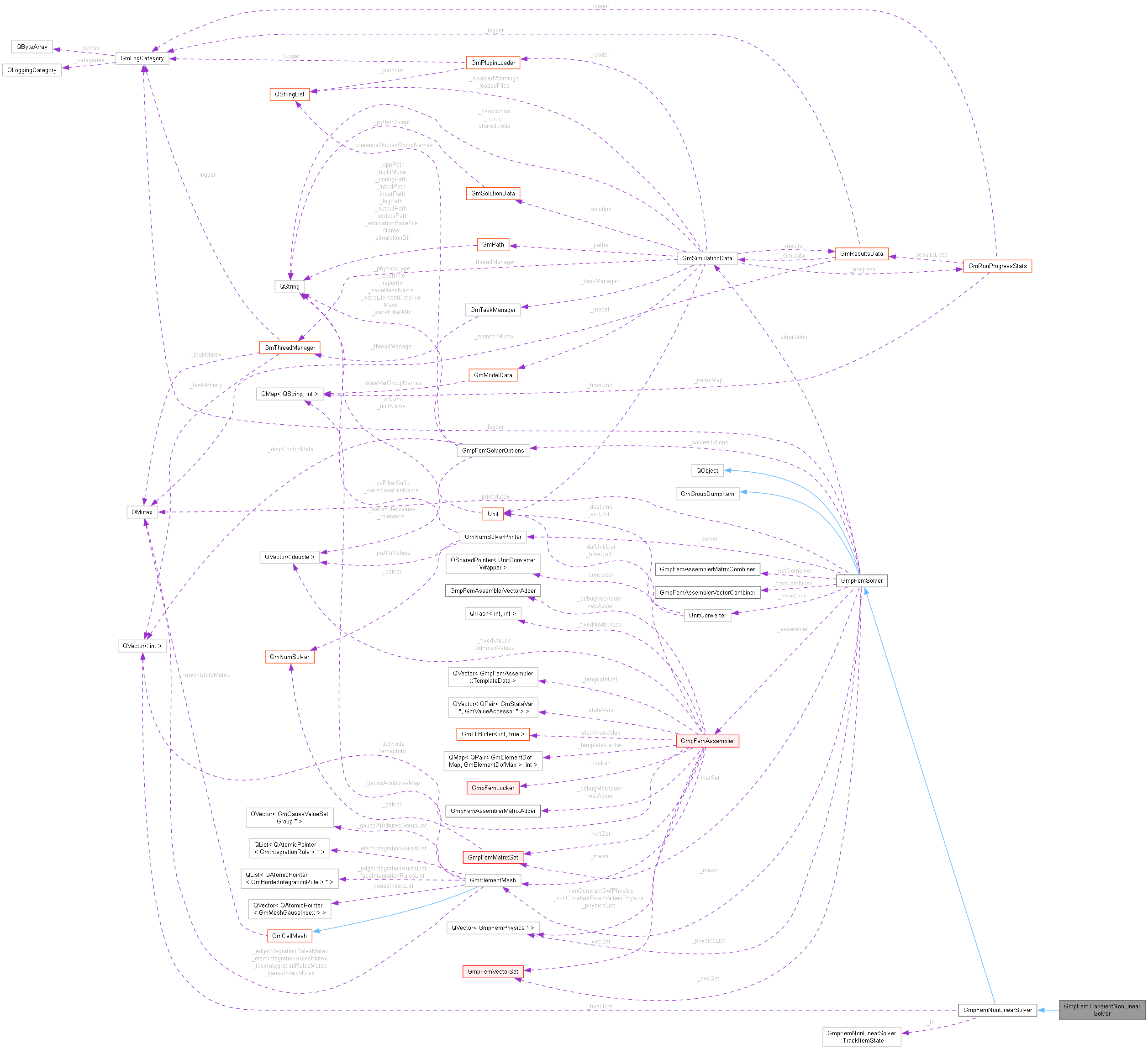

Collaboration diagram for GmpFemTransientNonLinearSolver:

[legend]

Public Member Functions
	GmpFemTransientNonLinearSolver (GmElementMesh , GmSimulationData , const QVector< GmpFemPhysics * > &, GmNumSolver *, const GmpFemSolverOptions &, const GmLogCategory &)

void	enableFastUpdate (bool mode)

virtual bool	runStep (double dt, double newt, bool conv, double err, int niter, bool eval=false)

virtual bool	geostatic (QString svId="u", QString gaId="Em")
	The geostatic implementation (femNLSolver.geostatic) This function manages the geostatic process.

Public Member Functions inherited from GmpFemNonLinearSolver
	GmpFemNonLinearSolver (GmElementMesh , GmSimulationData , const QVector< GmpFemPhysics * > &, GmNumSolver *, const GmpFemSolverOptions &, const GmLogCategory &)

void	enableFastUpdate (bool mode)

virtual bool	init ()
	Prepares the solver for assembling matrices by creating the assembler object and allocating the needed memory. This operations only need to be done once if the solver is used in a loop.

virtual bool	initResultAttributes (int fatherItemId)
	Creates the solver tracking attributes + report.

bool	initReport (GmRunProgressStats *ps)
	Creates the solver report.

virtual bool	checkTimeStep (double dt)

void	initializeProgress (solverState &sS, GmRunProgress &ps)

Public Member Functions inherited from GmpFemSolver
	GmpFemSolver (GmElementMesh mesh, GmSimulationData simulation, const QVector< GmpFemPhysics * > &physics, GmNumSolver *solver, const GmpFemSolverOptions &options, const GmLogCategory &logger)
	Constructor. Expects to receive as parameters the mesh we are acting upon, the list of physics objects that will cooperate to create the global stiffness matrix and the solver used to solve the resulting linear system.

virtual	~GmpFemSolver (void)
	Destructor.

bool	run ()
	Execute the process. Returns true on success.

bool	calcLinearResidual (double rnorm, double maxNodeDiff, double *avgNodeDiff)
	When solving a non linear system by repeated iterations, this function aims to calculate the residual of the actual solution.

void	setMatrixCombinerObject (const GmpFemAssemblerMatrixCombiner *combiner)
	Sets the combiner object that will be used by the assembler to merge elemental data from multiple matrices (eg. C and K) into an equivalent matrix.

void	setVectorCombinerObject (const GmpFemAssemblerVectorCombiner *combiner)
	Sets the combiner objects that will be used by the assembler to merge elemental data from multiple vectors (eg. Fe and Fi) into an equivalent vector.

bool	update (int mode, QString &err)
	Informs the solver of an external change in model dofs, elements or BCs that must be forwarded to the assembler. See the documentation of GmpFemAssembler::update() for more details.

virtual bool	stateAboutToBeSaved (GmStateDump *state)

virtual bool	stateSaved (GmStateDump *state)

virtual bool	stateAboutToBeLoaded (GmStateDump *state)

virtual bool	stateLoaded (GmStateDump *state)
	Informs physics objects that a load operation was completed giving them an opportunity to adjust its state in case the loaded data is not exactly what the internal state needs to be. It will also call derivedResults() so that previous results can be recovered. In that call, the nonLinearSolver parameter is obtained from the stateLoadedCalcDerivedResultsNonLinear() virtual function.

Public Member Functions inherited from QObject
virtual const QMetaObject *	metaObject () const const

	QObject (QObject *parent)

virtual bool	event (QEvent *e)

virtual bool	eventFilter (QObject watched, QEvent event)

QString	objectName () const const

void	setObjectName (const QString &name)

bool	isWidgetType () const const

bool	isWindowType () const const

bool	signalsBlocked () const const

bool	blockSignals (bool block)

QThread *	thread () const const

void	moveToThread (QThread *targetThread)

int	startTimer (int interval, Qt::TimerType timerType)

int	startTimer (std::chrono::milliseconds time, Qt::TimerType timerType)

void	killTimer (int id)

T	findChild (const QString &name, Qt::FindChildOptions options) const const

QList< T >	findChildren (const QString &name, Qt::FindChildOptions options) const const

QList< T >	findChildren (const QRegExp &regExp, Qt::FindChildOptions options) const const

QList< T >	findChildren (const QRegularExpression &re, Qt::FindChildOptions options) const const

const QObjectList &	children () const const

void	setParent (QObject *parent)

void	installEventFilter (QObject *filterObj)

void	removeEventFilter (QObject *obj)

QMetaObject::Connection	connect (const QObject sender, const char signal, const char *method, Qt::ConnectionType type) const const

bool	disconnect (const char signal, const QObject receiver, const char *method) const const

bool	disconnect (const QObject receiver, const char method) const const

void	dumpObjectTree ()

void	dumpObjectInfo ()

void	dumpObjectTree () const const

void	dumpObjectInfo () const const

bool	setProperty (const char *name, const QVariant &value)

QVariant	property (const char *name) const const

QList< QByteArray >	dynamicPropertyNames () const const

void	destroyed (QObject *obj)

void	objectNameChanged (const QString &objectName)

QObject *	parent () const const

bool	inherits (const char *className) const const

void	deleteLater ()

	Q_DISABLE_COPY (Class)

	Q_DISABLE_MOVE (Class)

	Q_DISABLE_COPY_MOVE (Class)

T	qobject_cast (QObject *object)

T	qobject_cast (const QObject *object)

T	qFindChild (const QObject *obj, const QString &name)

QList< T >	qFindChildren (const QObject *obj, const QString &name)

QList< T >	qFindChildren (const QObject *obj, const QRegExp &regExp)

	Q_CLASSINFO (Name, Value)

	Q_INTERFACES (...)

	Q_PROPERTY (...)

	Q_ENUMS (...)

	Q_FLAGS (...)

	Q_ENUM (...)

	Q_FLAG (...)

	Q_ENUM_NS (...)

	Q_FLAG_NS (...)

	Q_OBJECT Q_OBJECT

	Q_GADGET Q_GADGET

	Q_NAMESPACE Q_NAMESPACE

	Q_NAMESPACE_EXPORT (EXPORT_MACRO)

	Q_SIGNALS Q_SIGNALS

	Q_SIGNAL Q_SIGNAL

	Q_SLOTS Q_SLOTS

	Q_SLOT Q_SLOT

	Q_EMIT Q_EMIT

	Q_INVOKABLE Q_INVOKABLE

	Q_REVISION Q_REVISION

	Q_SET_OBJECT_NAME (Object)

	QT_NO_NARROWING_CONVERSIONS_IN_CONNECT QT_NO_NARROWING_CONVERSIONS_IN_CONNECT

Public Member Functions inherited from GmGroupDumpItem

Protected Member Functions
virtual bool	addStateItemsToGroup (GmStateDump *state, int groupId)
	Adds to 'state' the data items that should be saved for this FEM process. Should probably be overridden by derived classes to add their own requirements.

virtual bool	fillStateControlMapData (QVariantMap *map)
	Method called for filling the state dump control registered in addStateItemsToGroup()

virtual bool	stateControlMapDataLoaded (QVariantMap *map)
	Method called when the state dump control registered in addStateItemsToGroup() has been loaded.

virtual bool	stateLoadedCalcDerivedResultsNonLinear ()
	Returns the value of the "nonLinearSolver" parameter that will be passed to the calcDerivedResults() call from the standard implementation of stateLoaded()

virtual bool	fillStateControlMapDataStaticSolver (QVariantMap *map)
	Virtual method to fill the map with the needed continuation method data.

virtual bool	stateControlMapDataLoadedStaticSolver (QVariantMap *map)
	Virtual method to Load the scalar attributes needed by continuation method.

virtual bool	fillStateControlMapDataTransientSolver (QVariantMap *map)
	Virtual method to load the scalar attributes needed by transient solver.

virtual bool	stateControlMapDataLoadedTransientSolver (QVariantMap *map)
	Virtual method to fill the map with the needed transient solver data.

virtual bool	initElementSets (GmNumSolver *)
	Helper function used to initialize the matrix / vector sets with the definition of the needed types and also the relationships of those sets with the assembler.

virtual void	setElementSets (bool, bool, bool, bool, bool)

virtual void	setElementDiscretizedSystem (bool RHS, bool LHS)

virtual bool	applyFixedBoundaryConditions (int *)
	Apply Dirichlet (fixed) boundary conditions to the global equation system.

virtual bool	intialFixedBoundaryConditions (int *)

virtual bool	applyNonzeroFixedBCsbyModification (int *)

virtual bool	isTransient () const

virtual bool	isNonlinear () const

virtual bool	convergence () const
	analysis

virtual bool	convergenceN (GmVector &erL, GmRunProgress *rp=NULL) const

virtual bool	convergenceDC (GmVector &er) const

virtual void	update ()

virtual void	restore ()

virtual bool	loadError (GmVector &er) const

virtual bool	dispError (GmVector &er) const

virtual bool	velocityError (GmVector &er) const

virtual bool	fluxError (GmVector &er) const

virtual bool	fluxMagnitude (GmVector &qa) const

virtual bool	convergenceStep (unsigned &attempt, unsigned &incT, double, double)
	Step convergence.

virtual bool	maxErr (GmVector, double &ermax, double &tolmax)
	Maximun erro in the current itarion.

virtual bool	maxVal (GmVector &array, const GmVector &) const
	Maximun value of the array.

virtual bool	phygroupName (int &kgroup, QString var) const
	Physical group.

virtual bool	divergingIncrement (unsigned iter, double tolmax, double ermax, double &ermax_1, double &ermax_2)
	diverging Increment

virtual bool	adaptativeTimeAbqs (bool conv, unsigned iter, double dt, double &newdt, double errmax, unsigned inc, bool iter4)
	Adaptative time increment based on abaqus std.

virtual bool	adaptativeTime (bool conv, int iter, double dt, double &newdt, double err, double tol)
	Adaptative time increment.

virtual void	saveInternalForceAttributes (GmVector &dv)
	Save internal force attibutes such as Reaction and Volume flux.

virtual void	setLoad ()

virtual void	setTime ()

virtual void	setState ()

virtual void	setTransientSystem (double)
	evaluates transient system

virtual bool	getLinearSystem (double dt)
	evaluates the linear system

virtual bool	getSystemRHSVector (double dt)
	Computes the right-hand side vector (RHS) for the nonlinear system RHS is saved in the vector _r.

virtual bool	getSystemResidualVector (double dt)
	Computes the residual vector of the nonlinear system.

virtual bool	solveLinearSystem ()
	Solve the linear system according to the adopted nonlinear scheme.

bool	applyDirichletBoundaryConditions ()

virtual GmpFemPhysics::FemResultType	updateResidualForceAndStiffnessMatrix (double l)
	Updates the stiffness matrix.

virtual GmpFemPhysics::FemResultType	fillStiffnessMatrixBroyden ()
	Evaluates the stiffness matrix using Broyden's method.

virtual double	evalLocalError (GmVector, GmVector)
	calc local error

virtual double	evalTimeIncrementSize (unsigned, double, double, GmVector &)
	calc time increment size

virtual bool	stepStandardDc (double dt, double newt, bool conv, double err, int niter, bool eval)
	The transient nonlinear implementation (femNLSolver.transient) This function manages the transient step.

virtual bool	stepTransientNonlinearAut (double dt, double *newt)
	Automatic time stepping scheme (implementation based on the Sloan and Abbo algorithm) Automatic time stepping with local error control, was proposed for Sloan and Abbo 1999 EPS> Machine epsilon gives an upper bound on the relative error due to rounding in floating point arithmetic. This value characterizes computer arithmetic in the field of numerical analysis, and by extension in the subject of computational science. The quantity is also called macheps or unit roundoff.

Protected Member Functions inherited from GmpFemNonLinearSolver
virtual bool	prepareNonLinearSolverStep (solverState &sS, GmRunProgress &ps)

virtual bool	assembleInitialSystem (const double &)

virtual bool	solveInitialSystem (solverState &sS, GmRunProgress &ps)

virtual bool	assembleIterationSystem (const double &)

virtual bool	solveNewtonRaphson (GmRunProgress &ps, double &dt, const double &t, double *newt)

virtual bool	applyTimeDiscretization ()

bool	applyDirichletBoundaryConditions ()

virtual bool	transientSolver (double dt, double newt, bool conv, double err, int niter, bool eval)
	The transient nonlinear implementation (femNLSolver.transient) This function manages the transient step.

virtual bool	transientLocalSolver (double dt, double newt, bool conv, double err, int niter, bool eval)
	The transient nonlinear implementation (femNLSolver.transient) This function manages the transient step.

virtual bool	iterativeSolver (double dt, double newt, bool conv, double err, int niter, bool eval)
	The transient nonlinear implementation (femNLSolver.transient) This function manages the transient step.

Protected Member Functions inherited from GmpFemSolver
bool	initSolver (GmpFemAssembler::FixedDofMode assemblerMode, bool assemblerReverseMapping, bool enableFastUpdate)
	Basic implementation of the init function receiving as parameters the configuration options that are sent to the assembler.

virtual void	intLinearSolverPrintOptions ()
	Register print options with the numeric solver. Must be done AFTER registering result attributes. This enables printing of the linear system of equations.

virtual bool	cleanup ()
	Deallocates memory and sets allocated resources to NULL. As a convenience, returns false.

GmpFemPhysics::FemResultType	prepareMatrices (bool skipFixedBcs=false)
	Auxiliary function used to fill the K, and f matrices / vectors along with any other matrices/vectors stored in _matSet and _vecSet.

GmpFemPhysics::FemResultType	saveElementData (int iter)
	Auxiliary function used to save to the configured file data from the set of element matrices and vectors. In this process, physics are called again to fill element matrices and vectors (according to the active matrices and vectors in _vecSet and _matSet) but the results are NOT added to the global matrices.

bool	solveLinearSystem (bool xFilled)
	Solves the linear system K.x = f taking K and f from the single equivalent matrix/vector or from matrix K / vector f, depending on the assembler configuration. Results are saved in _x. Prints the used matrices / result as configured in _printOptions.

double	timeConvert (double val)
	Auxiliary function created for being used by derived classes that converts a time value given in the current simulation time unit and returns that value converted to the physics expected unit.

GmpFemPhysics::FemResultType	traverseElements ()
	Fills the stiffness matrix _K and the force vector _f by traversing elements asking physics for the local element matrix / force vector.

GmpFemPhysics::FemResultType	traverseBoundaryElements ()
	Similar to traverseElements(), this function steps through each element that belongs to an edge or face boundary condition, asking physics for additional contributions to the stiffness matrix _K and the force vector _f.

GmpFemPhysics::FemResultType	traverseExternalLoads ()
	Similar to traverseElements(), this function steps through each element associated to an external load force, asking physics for additional contributions to the force vector _f.

GmpFemPhysics::FemResultType	traverseContactBoundaries ()
	Similar to traverseElements(), this function steps through each possible contact from the given contact boundary conditions and asks the physics for additional contributions to the solver matrices and vectors. This is different from the other element based loops since the returned matrices are not restricted to a single element, but can combine nodes from several ones.

GmpFemPhysics::FemResultType	traverseElementsForSaving (FILE *f, int iter)
	Similar to traverseElements() but instead of adding the elements to the assembler, saves the element data to the given file.

GmpFemPhysics::FemResultType	fillElementData (const GmElement *e, int physIndex)
	Helper function used by traverseElements() to get data for a single element calling phys->fillElementData()

GmpFemPhysics::FemResultType	fillElementBoundaryData (const GmElement e, int physIndex, const GmBoundaryCondition bc, int bcIndex, int bcListIndex, int border, const GmCellBoundary *b)
	Helper function used by traverseBoundaryElements() to get data for a single element calling phys->fillElementDataForBc()

GmpFemPhysics::FemResultType	fillElementDataForLoads (const GmElement *e, int physIndex, int loadIndex)
	Helper function used by traverseExternalLoads() to get data for phys->fillElementDataForLoads()

GmpFemPhysics::FemResultType	fillContactData (GmMatrixDof &localDofMap, const GmContactBoundaryCondition *cbc, int physIndex, int index1, int index2)
	Helper function used by traverseContactBoundaries() to get data for a single contact pair calling phys->fillContactData()

bool	addFixedForces ()
	Adds fixed nodal forces, as seen by each physics, to the global vector _f.

bool	collectFixedBcs (QVector< bool > &fixedRows, QVector< double > &fixedValues, QVector< int > &dofIndex)
	Fills the set of vectors received as parameters with the complete set of fixed boundary conditions, as seen by the full set of physics in use, checking for possible conflicts in conditions.

virtual void	collectGlobalContactPairs (const GmContactBoundaryCondition *cbc, QVector< QPair< int, int > > &contactPairs)
	Global search rule used to define contact surfaces. Should be implemented to allow global contact conditions, filling contactPairs with the indices in cbc of the in-contact surfaces.

void	printElementData (const GmElement e, int ndof, const int dofMapping, const GmpFemPhysics p, const GmBoundaryCondition bc=NULL, const GmContactBoundaryCondition *cbc=NULL, int loadId1=-1, int id2=-1)
	Print element dof mapping, local matrices and vectors depending on the current solver print options.

void	printGlobalData ()
	Print global matrices and vectors after assembling. Notice that the linear system print options are handled directly by the solver.

Protected Member Functions inherited from QObject
QObject *	sender () const const

int	senderSignalIndex () const const

int	receivers (const char *signal) const const

bool	isSignalConnected (const QMetaMethod &signal) const const

virtual void	timerEvent (QTimerEvent *event)

virtual void	childEvent (QChildEvent *event)

virtual void	customEvent (QEvent *event)

virtual void	connectNotify (const QMetaMethod &signal)

virtual void	disconnectNotify (const QMetaMethod &signal)

Additional Inherited Members
Public Types inherited from QObject
typedef	QObjectList

Static Public Member Functions inherited from QObject
QString	tr (const char sourceText, const char disambiguation, int n)

QString	trUtf8 (const char sourceText, const char disambiguation, int n)

QMetaObject::Connection	connect (const QObject sender, const char signal, const QObject receiver, const char method, Qt::ConnectionType type)

QMetaObject::Connection	connect (const QObject sender, const QMetaMethod &signal, const QObject receiver, const QMetaMethod &method, Qt::ConnectionType type)

QMetaObject::Connection	connect (const QObject sender, PointerToMemberFunction signal, const QObject receiver, PointerToMemberFunction method, Qt::ConnectionType type)

QMetaObject::Connection	connect (const QObject *sender, PointerToMemberFunction signal, Functor functor)

QMetaObject::Connection	connect (const QObject sender, PointerToMemberFunction signal, const QObject context, Functor functor, Qt::ConnectionType type)

bool	disconnect (const QObject sender, const char signal, const QObject receiver, const char method)

bool	disconnect (const QObject sender, const QMetaMethod &signal, const QObject receiver, const QMetaMethod &method)

bool	disconnect (const QMetaObject::Connection &connection)

bool	disconnect (const QObject sender, PointerToMemberFunction signal, const QObject receiver, PointerToMemberFunction method)

Protected Types inherited from GmpFemSolver
enum	DisabledWarnings { PrescribedForceForInvalidDof , PrescribedForceForFixedDof , FixedBcForInvalidDof , ConflictingFixedBcValue , NumDisabledWarnings }
	Enums describing the set of warnings that can be disabled by simulation options. More...

Protected Slots inherited from GmpFemSolver
virtual void	meshChanged ()
	Slot called when the underlying mesh has been changed.

Protected Attributes inherited from GmpFemNonLinearSolver
double	_dl

double	_dl0

double	_ddl

double	_Lold

double	_tin

double	_dt

double	_oldIter

double	_hlast

unsigned	_attempt = 0

unsigned	_ninc = 0
	counter of consecutive converged increments

unsigned	_incT = 0
	counter of consecutive increments, i, and if no cut-back within those increments

bool	_iter4old = false
	corresponding to True If no more than IG iterations are required in two consecutive increments

GmVector	_v

GmVector	_dx

GmVector	_dv

GmVector	_xold

GmVector	_vold

GmVector	_dxt

GmVector	_ddx

GmVector	_ddxt

GmVector	_ddxr

GmVector	_FeGs

GmVector	_r0

GmVector	_qta
	An overall time-averaged value of the typical flux for field α so far during this step including the current increment.

GmVector	_qtamax
	The time-averaged value of the largest flux corresponding to the field αduring this step, excluding the current increment.

QVector< int >	_fixedDof

bool	_fastUpdate

bool	_hasUnanamedDofs
	Set to true if there are dofs that belong to the 'unnamed' group.

TrackItemState	_td
	The "track data" object, controlling time & simulation progress tracking.

Protected Attributes inherited from GmpFemSolver
int	_solverId
	A unique index for this solver object used by the result attribute auto prefix feature.

GmElementMesh *	_mesh
	Mesh with the nodes and cells data.

GmSimulationData *	_simulation
	Simulation Data.

QVector< GmpFemPhysics * >	_physicsList
	List of physics that will cooperate to generate the system response.

GmNumSolverPrinter *	_solver
	Wrapper over the numeric solver that will be used to solve the set of linear equations.

const GmLogCategory &	_logger
	Logger for eventual messages.

QMutex	_printMutex
	Mutex for serializing calls to printElementData when traversing elements in parallel.

bool	_enabledWarn [NumDisabledWarnings]
	Vector storing which warnings are enabled.

GmpFemSolverOptions	_solverOptions
	The set of solver options.

UnitConverter *	_timeConv
	Unit converter from the currentTimeUnit to the physics unit. Used only by derived solvers.

GmpFemAssembler *	_assembler
	Assembler used for adding element contributions to vectors and matrices.

const GmpFemAssemblerMatrixCombiner *	_matCombiner
	The combiner object used with the assembler to merge data from multiple elemental matrices.

const GmpFemAssemblerVectorCombiner *	_vecCombiner
	The combiner object used with the assembler to merge data from multiple elemental vectors.

GmpFemVectorSet	_vecSet
	Set of global/element vectors filled by physics.

GmpFemMatrixSet	_matSet
	Set of global/element matrices filled by physics.

GmVector	_x
	State vector.

GmVector	_r
	Residual vector.

unsigned	_preCount
	Number of times that prepareMatrices() was called.

unsigned	_runCount
	Number of times that run() was called.

QVariantMap	_controlMap
	Variant map used for storing dump control data for the solver.

bool	_parallelAssembler
	Can we do the assembling steps in parallel?

int	_ntasks

int	_nworkers

GmTaskManager::CellPartitionStrategy	_strategy

int	_iterAttr = -1
	The "fem:iter" LOCAL item attribute id.

int	_iterErrAttr = -1
	The "fem:iterErr" LOCAL item attribute id.

int	_femItem = -1
	The "fem" track item.

int	_prepareItem = -1
	The "fem.prepare" track item.

int	_physicsItem = -1
	The "fem.prepare.physics" track item.

int	_fixedBcItem = -1
	The "fem.prepare.fixedBC" track item.

int	_fixedForcesItem = -1
	The "fem.prepare.fixedForces" track item.

int	_assemblerItem = -1
	The "fem.prepare.assembler" track item.

int	_physicsBeforeLoopItem = -1
	The "fem.prepare.physics.beforeLoop" track item.

int	_physicsfillElemDataItem = -1
	The "fem.prepare.physics.fillElemData" track item.

int	_physicsfillElemDataBcItem = -1
	The "fem.prepare.physics.fillElemDataBC" track item.

int	_physicsfillElemDataExtLoadsItem = -1
	The "fem.prepare.physics.fillElemDataExtLoads" track item.

int	_physicsfillContactDataItem = -1
	The "fem.prepare.physics.fillContactData" track item.

int	_physicsAfterLoopItem = -1
	The "fem.prepare.physics.afterLoop" track item.

int	_assemblerBeginItem = -1
	The "fem.prepare.assembler.begin" track item.

int	_assemblerAddItem = -1
	The "fem.prepare.assembler.add" track item.

int	_assemblerEndItem = -1
	The "fem.prepare.assembler.end" track item.

int	_assemblerT1Item = -1
	The "fem.prepare.assembler.traverseElements" track item.

int	_assemblerT2Item = -1
	The "fem.prepare.assembler.traverseLoads" track item.

int	_assemblerT3Item = -1
	The "fem.prepare.assembler.traverseBElements" track item.

int	_assemblerT4Item = -1
	The "fem.prepare.assembler.traverseCBoundaries" track item.

Properties inherited from QObject
	objectName

Detailed Description

Basic class for solving Non linear FEM problems.

Member Function Documentation

◆ adaptativeTime()

bool GmpFemTransientNonLinearSolver::adaptativeTime	(	bool	conv,
		int	iter,
		double	dt,
		double &	newdt,
		double	err,
		double	tol )

protectedvirtual

Adaptative time increment.

Reimplemented from GmpFemNonLinearSolver.

◆ adaptativeTimeAbqs()

bool GmpFemTransientNonLinearSolver::adaptativeTimeAbqs	(	bool	conv,
		unsigned	iter,
		double	dt,
		double &	newdt,
		double	errmax,
		unsigned	inc,
		bool	iter4 )

protectedvirtual

Adaptative time increment based on abaqus std.

Reimplemented from GmpFemNonLinearSolver.

◆ addStateItemsToGroup()

bool GmpFemTransientNonLinearSolver::addStateItemsToGroup	(	GmStateDump *	state,
		int	groupId )

protectedvirtual

Adds to 'state' the data items that should be saved for this FEM process. Should probably be overridden by derived classes to add their own requirements.

Auxiliar variant map dump item that notifies us for loading and saving data to the map

< Our "father" solver object

Reimplemented from GmpFemNonLinearSolver.

◆ applyFixedBoundaryConditions()

bool GmpFemTransientNonLinearSolver::applyFixedBoundaryConditions ( int * numFixed )

protectedvirtual

Apply Dirichlet (fixed) boundary conditions to the global equation system.

Apply boundary conditions, clearing rows and columns in the stiffness matrix and adjusting the global force vector as needed.

Follows the procedures described by Fellipa in sections 3.6.1 and 3.6.2 (pages 3-12 and 3-13). Our algorithm does the same thing as the one presented in figure 21.5 (page 21-7), but in a different way (hopefully more clear).

Returns in numFixed the number of degrees of freedom "removed" from the system.

Reimplemented from GmpFemNonLinearSolver.

◆ applyNonzeroFixedBCsbyModification()

bool GmpFemTransientNonLinearSolver::applyNonzeroFixedBCsbyModification ( int * numFixed )

protectedvirtual

Reimplemented from GmpFemNonLinearSolver.

◆ convergence()

bool GmpFemTransientNonLinearSolver::convergence ( ) const

protectedvirtual

analysis

Reimplemented from GmpFemNonLinearSolver.

◆ convergenceDC()

bool GmpFemTransientNonLinearSolver::convergenceDC ( GmVector & er ) const

protectedvirtual

Reimplemented from GmpFemNonLinearSolver.

◆ convergenceN()

bool GmpFemTransientNonLinearSolver::convergenceN	(	GmVector &	erL,
		GmRunProgress *	rp = NULL ) const

protectedvirtual

Reimplemented from GmpFemNonLinearSolver.

◆ convergenceStep()

bool GmpFemTransientNonLinearSolver::convergenceStep	(	unsigned &	attempt,
		unsigned &	incT,
		double	t,
		double	dt )

protectedvirtual

Step convergence.

Maximun erro in the current itarion.

Reimplemented from GmpFemNonLinearSolver.

◆ dispError()

bool GmpFemTransientNonLinearSolver::dispError ( GmVector & er ) const

protectedvirtual

Reimplemented from GmpFemNonLinearSolver.

◆ divergingIncrement()

bool GmpFemTransientNonLinearSolver::divergingIncrement	(	unsigned	iter,
		double	tolmax,
		double	ermax,
		double &	ermax_1,
		double &	ermax_2 )

protectedvirtual

diverging Increment

Reimplemented from GmpFemNonLinearSolver.

◆ evalLocalError()

double GmpFemTransientNonLinearSolver::evalLocalError	(	GmVector	Xp,
		GmVector	dXp )

protectedvirtual

calc local error

Reimplemented from GmpFemNonLinearSolver.

◆ evalTimeIncrementSize()

double GmpFemTransientNonLinearSolver::evalTimeIncrementSize	(	unsigned	iter,
		double	t,
		double	dt,
		GmVector &	dXp )

protectedvirtual

calc time increment size

Reimplemented from GmpFemNonLinearSolver.

◆ fillStateControlMapData()

bool GmpFemTransientNonLinearSolver::fillStateControlMapData ( QVariantMap * map )

protectedvirtual

Method called for filling the state dump control registered in addStateItemsToGroup()

Reimplemented from GmpFemNonLinearSolver.

◆ fillStateControlMapDataStaticSolver()

bool GmpFemTransientNonLinearSolver::fillStateControlMapDataStaticSolver ( QVariantMap * map )

protectedvirtual

Virtual method to fill the map with the needed continuation method data.

Reimplemented from GmpFemNonLinearSolver.

◆ fillStateControlMapDataTransientSolver()

bool GmpFemTransientNonLinearSolver::fillStateControlMapDataTransientSolver ( QVariantMap * map )

protectedvirtual

Virtual method to load the scalar attributes needed by transient solver.

Reimplemented from GmpFemNonLinearSolver.

◆ fillStiffnessMatrixBroyden()

GmpFemPhysics::FemResultType GmpFemTransientNonLinearSolver::fillStiffnessMatrixBroyden ( )

protectedvirtual

Evaluates the stiffness matrix using Broyden's method.

Evaluates stiffness matrix and internal forces using Broyden's method.

Reimplemented from GmpFemNonLinearSolver.

◆ fluxError()

bool GmpFemTransientNonLinearSolver::fluxError ( GmVector & er ) const

protectedvirtual

Reimplemented from GmpFemNonLinearSolver.

◆ fluxMagnitude()

bool GmpFemTransientNonLinearSolver::fluxMagnitude ( GmVector & qa ) const

protectedvirtual

Reimplemented from GmpFemNonLinearSolver.

◆ geostatic()

bool GmpFemTransientNonLinearSolver::geostatic	(	QString	svId = "u",
		QString	gaId = "Em" )

virtual

The geostatic implementation (femNLSolver.geostatic) This function manages the geostatic process.

Reimplemented from GmpFemNonLinearSolver.

◆ getLinearSystem()

bool GmpFemTransientNonLinearSolver::getLinearSystem ( double dt )

protectedvirtual

evaluates the linear system

Computes the left-hand side matrix (LHS) and the right-hand side vector (RHS) for the nonlinear system.

Reimplemented from GmpFemNonLinearSolver.

◆ getSystemResidualVector()

bool GmpFemTransientNonLinearSolver::getSystemResidualVector ( double dt )

protectedvirtual

Computes the residual vector of the nonlinear system.

Considers a fully implicit time integration scheme
Applies the Dirichlet boundary conditions

r = dt * (Fe - Fi) + C * dx

Reimplemented from GmpFemNonLinearSolver.

◆ getSystemRHSVector()

bool GmpFemTransientNonLinearSolver::getSystemRHSVector ( double dt )

protectedvirtual

Computes the right-hand side vector (RHS) for the nonlinear system RHS is saved in the vector _r.

Reimplemented from GmpFemNonLinearSolver.

◆ initElementSets()

bool GmpFemTransientNonLinearSolver::initElementSets ( GmNumSolver * solver )

protectedvirtual

Helper function used to initialize the matrix / vector sets with the definition of the needed types and also the relationships of those sets with the assembler.

In a nutshell, this function is responsible for calling the initTypes() methods from matrix and vector sets. It is also its responsibility to call other configuration functions such as GmpFemMatrixSet::setTransposedDofVector(), GmpFemVectorSet::addTransposedDofVector() and GmpFemVectorSet::addSavedDofVector() as needed to drive the method that will be used by the assembler.

This is the function to be reimplemented when a different solver driver needs to ask elements for additional matrices / vectors.

Returns false on errors.

Reimplemented from GmpFemNonLinearSolver.

◆ intialFixedBoundaryConditions()

bool GmpFemTransientNonLinearSolver::intialFixedBoundaryConditions ( int * numFixed )

protectedvirtual

Reimplemented from GmpFemNonLinearSolver.

◆ isNonlinear()

bool GmpFemTransientNonLinearSolver::isNonlinear ( ) const

protectedvirtual

Reimplemented from GmpFemNonLinearSolver.

◆ isTransient()

bool GmpFemTransientNonLinearSolver::isTransient ( ) const

protectedvirtual

Reimplemented from GmpFemNonLinearSolver.

◆ loadError()

bool GmpFemTransientNonLinearSolver::loadError ( GmVector & er ) const

protectedvirtual

Reimplemented from GmpFemNonLinearSolver.

◆ maxErr()

bool GmpFemTransientNonLinearSolver::maxErr	(	GmVector	err,
		double &	ermax,
		double &	tolmax )

protectedvirtual

Maximun erro in the current itarion.

Reimplemented from GmpFemNonLinearSolver.

◆ maxVal()

bool GmpFemTransientNonLinearSolver::maxVal	(	GmVector &	array,
		const GmVector &	array ) const

protectedvirtual

Maximun value of the array.

Maximun value.

Reimplemented from GmpFemNonLinearSolver.

◆ phygroupName()

bool GmpFemTransientNonLinearSolver::phygroupName	(	int &	kgroup,
		QString	var ) const

protectedvirtual

Physical group.

Maximun value.

Reimplemented from GmpFemNonLinearSolver.

◆ restore()

void GmpFemTransientNonLinearSolver::restore ( )

protectedvirtual

Reimplemented from GmpFemNonLinearSolver.

◆ runStep()

bool GmpFemTransientNonLinearSolver::runStep	(	double	dt,
		double *	newt,
		bool *	conv,
		double *	err,
		int *	niter,
		bool	eval = false )

virtual

Reimplemented from GmpFemNonLinearSolver.

◆ saveInternalForceAttributes()

void GmpFemTransientNonLinearSolver::saveInternalForceAttributes ( GmVector & dv )

protectedvirtual

Save internal force attibutes such as Reaction and Volume flux.

Reimplemented from GmpFemNonLinearSolver.

◆ setElementSets()

void GmpFemTransientNonLinearSolver::setElementSets	(	bool	Fe,
		bool	Fi,
		bool	K,
		bool	C,
		bool	Keq )

protectedvirtual

Reimplemented from GmpFemNonLinearSolver.

◆ setLoad()

void GmpFemTransientNonLinearSolver::setLoad ( )

protectedvirtual

Reimplemented from GmpFemNonLinearSolver.

◆ setState()

void GmpFemTransientNonLinearSolver::setState ( )

protectedvirtual

Reimplemented from GmpFemNonLinearSolver.

◆ setTime()

void GmpFemTransientNonLinearSolver::setTime ( )

protectedvirtual

Reimplemented from GmpFemNonLinearSolver.

◆ setTransientSystem()

void GmpFemTransientNonLinearSolver::setTransientSystem ( double dt )

protectedvirtual

evaluates transient system

Reimplemented from GmpFemNonLinearSolver.

◆ solveLinearSystem()

bool GmpFemTransientNonLinearSolver::solveLinearSystem ( )

protectedvirtual

Solve the linear system according to the adopted nonlinear scheme.

Reimplemented from GmpFemNonLinearSolver.

◆ stateControlMapDataLoaded()

bool GmpFemTransientNonLinearSolver::stateControlMapDataLoaded ( QVariantMap * map )

protectedvirtual

Method called when the state dump control registered in addStateItemsToGroup() has been loaded.

Reimplemented from GmpFemNonLinearSolver.

◆ stateControlMapDataLoadedStaticSolver()

bool GmpFemTransientNonLinearSolver::stateControlMapDataLoadedStaticSolver ( QVariantMap * map )

protectedvirtual

Virtual method to Load the scalar attributes needed by continuation method.

Reimplemented from GmpFemNonLinearSolver.

◆ stateControlMapDataLoadedTransientSolver()

bool GmpFemTransientNonLinearSolver::stateControlMapDataLoadedTransientSolver ( QVariantMap * map )

protectedvirtual

Virtual method to fill the map with the needed transient solver data.

Reimplemented from GmpFemNonLinearSolver.

◆ stateLoadedCalcDerivedResultsNonLinear()

bool GmpFemTransientNonLinearSolver::stateLoadedCalcDerivedResultsNonLinear ( )

protectedvirtual

Returns the value of the "nonLinearSolver" parameter that will be passed to the calcDerivedResults() call from the standard implementation of stateLoaded()

Reimplemented from GmpFemNonLinearSolver.

◆ stepStandardDc()

bool GmpFemTransientNonLinearSolver::stepStandardDc	(	double	dt,
		double *	newt,
		bool *	conv,
		double *	err,
		int *	niter,
		bool	eval )

protectedvirtual

The transient nonlinear implementation (femNLSolver.transient) This function manages the transient step.

Reimplemented from GmpFemNonLinearSolver.

◆ update()

void GmpFemTransientNonLinearSolver::update ( )

protectedvirtual

Reimplemented from GmpFemNonLinearSolver.

◆ updateResidualForceAndStiffnessMatrix()

GmpFemPhysics::FemResultType GmpFemTransientNonLinearSolver::updateResidualForceAndStiffnessMatrix ( double l )

protectedvirtual

Updates the stiffness matrix.

Updates stiffness matrix for static nonlinear solver.

Reimplemented from GmpFemNonLinearSolver.

◆ velocityError()

bool GmpFemTransientNonLinearSolver::velocityError ( GmVector & er ) const

protectedvirtual

Reimplemented from GmpFemNonLinearSolver.

The documentation for this class was generated from the following files:
