A convenience class that builds a GmVectorSet with the types given by GmpFemVectorTypes and also associates a global vector to each element vector stored in the set (it can also associate a single global vector, dissociated with vector types) More...

#include <gmpFemVectorSet.h>

Inheritance diagram for GmpFemVectorSet:

[legend]

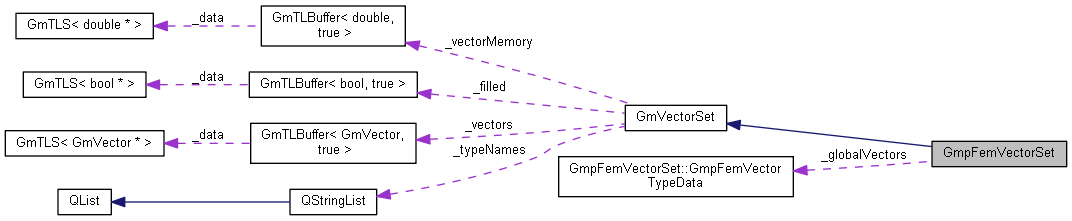

Collaboration diagram for GmpFemVectorSet:

[legend]

Classes
struct	GmpFemVectorTypeData
	Aux structure storing the vectors associated with a vector type. More...

Public Types
enum	GmpFemVectorMode { VECTOR_MATCH_MODE, VECTOR_SINGLE_MODE, VECTOR_SINGLE_DEBUG_MODE }
	Control mode specifying if the vector set should have one global vector per local vector (MATCH_MODE), a single global vector independing of the number of local vectors (SINGLE_MODE) or both: a single global vector + one global vector per configured local vector. This last mode is usefull for debuging purposes only. More...

Public Member Functions
	GmpFemVectorSet ()
	Constructor.

	~GmpFemVectorSet ()
	Destructor.

void	clear ()
	Clears the set, restoring it to the state after construction.

bool	initTypes (GmpFemVectorMode mode, int numVectors,...)
	Informs the vector set about the local vector types that will be stored on it. It also creates the set of global vectors tied to the element vectors in the set. The number of effectively stored global vectors follows the given mode. More...

bool	adjustSizes (int globalNumDofs, int globalNumFixedDofs, int maxElemDofs)
	Adjusts the sizes of local and global vectors according to the given number of dofs. Can be called more than once to update vector sizes on model changes. More...

void	addTransposedDofVector (GmpFemVectorTypes type)
	Informs the set that the given type requires an additional vector to store transposed values when reducing a matrix due to fixed dofs. More...

void	addSavedDofVector (GmpFemVectorTypes type)
	Informs the set that the given type requires an auxiliar vector to store saved values for fixed dofs. More...

void	clearGlobalVectors ()
	Clears all ACTIVE global vectors (or the single vector), filling them with zeros. This includes eventual transposed, saved and debug print vectors.

GmVector &	globalVector (GmpFemVectorTypes type) const
	Returns a global Vector identified by its type in the set. More...

GmVector &	globalVectorFromIndex (int index) const
	Returns a global Vector identified by its index in the set. Can NOT be used for "single" or "single debug" modes.

GmVector &	globalTransposedDofVector (GmpFemVectorTypes type) const
	Returns the registered vector, identified by its type in the set, for storing transposed values when reducing a matrix due to fixed dofs. Will be equal to the global vector unless addTransposedDofVector() has been called for this type. More...

GmVector &	globalTransposedDofVectorFromIndex (int index) const
	Returns the registered vector, identified by its index in the set, for storing transposed values when reducing a matrix due to fixed dofs. Will be equal to the global vector unless addTransposedDofVector() has been called for this type. Can NOT be used for "single" or "single debug" modes.

GmVector &	globalSavedDofVector (GmpFemVectorTypes type) const
	Returns the registered vector, identified by its type in the set, for storing saved values for fixed dofs. Will be an empty vector unless addSavedDofVector() has been called for this type. More...

GmVector &	globalSavedDofVectorFromIndex (int index) const
	Returns the registered vector, identified by its index in the set, for storing saved values for fixed dofs. Will be an empty vector unless addSavedDofVector() has been called for this type. Can NOT be used for "single" or "single debug" modes.

GmVector &	globalDebugPrintVector (GmpFemVectorTypes type) const
	Returns the auxiliar vector used for storing global vectors matching local ones for debug printing purposes when operating in "single debug" mode or the regular vector when operating in "match" mode. More...

GmVector &	globalDebugPrintVectorFromIndex (int index) const
	Returns the auxiliar vector used for storing global vectors matching local ones for debug printing purposes when operating in "single debug" mode or the regular vector when operating in "match" mode.

GmpFemVectorMode	mode () const
	Returns the mode defining the global vectors stored by the set.

GmpFemVectorTypes	femTypeFromIndex (int index) const
	Given a vector index, returns its type as a GmpFemVectorTypes. Equivalent to GmVectorSet::typeFromIndex()

Public Member Functions inherited from GmVectorSet
	GmVectorSet (int maxVectorTypes, const QStringList &typeNames)

bool	init (int maxNodes, int numVectors,...)

bool	adjustSizes (int maxNodes)

void	clear ()

void	prepareSet (int nnodes)

bool	containsType (int type) const

void	setTypeEnabled (int type, bool enabled)

int	numEnabledTypes () const

GmVector &	vector (int type)

GmVector &	useVector (int type)

GmVector &	useVector (int type, bool fill)

void	setFilled (int type, bool filled)

bool	filled (int type) const

int	index (int type) const

int	typeFromIndex (int index) const

QString	typeName (int type) const

int	numVectors () const

const GmVector &	vectorFromIndex (int index) const

bool	filledFromIndex (int index) const

Protected Member Functions
int	tindex (GmpFemVectorTypes type) const
	Returns the index in _globalVectors for the given type, accounting for the selected vector mode.

Protected Member Functions inherited from GmVectorSet
bool	initTypes (int numVectors, va_list typeList)

Protected Attributes
GmpFemVectorMode	_mode
	The mode defining how many global vectors are stored.

GmpFemVectorTypeData *	_globalVectors
	Vector storing data for global vectors. Will store one data set per included type in the vector set when _mode equals VECTOR_MATCH_MODE or a single entry otherwise (even in single debug mode).

GmVector *	_printVectors
	Vector with debug global vectors associated to element local vectors when _mode equals VECTOR_SINGLE_DEBUG_MODE.

Protected Attributes inherited from GmVectorSet
int	_nTypes

int *	_typeIndex

int *	_indexType

bool *	_typeEnabled

int	_nEnabled

QStringList	_typeNames

int	_nVectors

int	_maxNodes

GmTLBuffer< double, true >	_vectorMemory

GmTLBuffer< GmVector, true >	_vectors

GmTLBuffer< bool, true >	_filled

Detailed Description

A convenience class that builds a GmVectorSet with the types given by GmpFemVectorTypes and also associates a global vector to each element vector stored in the set (it can also associate a single global vector, dissociated with vector types)

Member Enumeration Documentation

◆ GmpFemVectorMode

enum GmpFemVectorSet::GmpFemVectorMode

Control mode specifying if the vector set should have one global vector per local vector (MATCH_MODE), a single global vector independing of the number of local vectors (SINGLE_MODE) or both: a single global vector + one global vector per configured local vector. This last mode is usefull for debuging purposes only.

Enumerator
VECTOR_MATCH_MODE	Set stores one global vector per local vector.
VECTOR_SINGLE_MODE	Set stores a single "equivalent" global vector.
VECTOR_SINGLE_DEBUG_MODE	Set stores an "equivalent" global vector + another vector per local vector for debug purposes.

Member Function Documentation

◆ addSavedDofVector()

void GmpFemVectorSet::addSavedDofVector ( GmpFemVectorTypes type )

Informs the set that the given type requires an auxiliar vector to store saved values for fixed dofs.

The vector will have a size equal to the number of fixed dofs informed in the call to adjustSizes().

This function should be called after initTypes() but before calling adjustSizes().

IMPORTANT: The type MUST belong to the set. In match mode, it can be any of the local vector types added to the vector set. In single and single debug modes, type MUST be equal to GmpFemVector_Eq.

◆ addTransposedDofVector()

void GmpFemVectorSet::addTransposedDofVector ( GmpFemVectorTypes type )

Informs the set that the given type requires an additional vector to store transposed values when reducing a matrix due to fixed dofs.

The vector will have a size equal to the number of dofs informed in the call to adjustSizes().

This function should be called after initTypes() but before calling adjustSizes().

IMPORTANT: The type MUST belong to the set. In match mode, it can be any of the local vector types added to the vector set. In single and single debug modes, type MUST be equal to GmpFemVector_Eq.

◆ adjustSizes()

bool GmpFemVectorSet::adjustSizes	(	int	globalNumDofs,
		int	globalNumFixedDofs,
		int	maxElemDofs
	)

Adjusts the sizes of local and global vectors according to the given number of dofs. Can be called more than once to update vector sizes on model changes.

Must be called at least once, after any calls to addTransposedDofVector() and/or addSavedDofVector().

Parameters

globalNumDofs	The number of free dofs in the system, defining the size of the global vectors.
globalNumFixedDofs	The number of fixed dofs in the system, defining the size of the saved dofs vectors (if any).
maxElemDofs	The maximum number of dofs needed by a model element.

Returns: Returns true when successfull, false on errors.

◆ globalDebugPrintVector()

GmVector& GmpFemVectorSet::globalDebugPrintVector ( GmpFemVectorTypes type ) const

inline

Returns the auxiliar vector used for storing global vectors matching local ones for debug printing purposes when operating in "single debug" mode or the regular vector when operating in "match" mode.

IMPORTANT: The type MUST belong to the set. Can be used only in "single debug" or "match" modes.

◆ globalSavedDofVector()

GmVector& GmpFemVectorSet::globalSavedDofVector ( GmpFemVectorTypes type ) const

inline

Returns the registered vector, identified by its type in the set, for storing saved values for fixed dofs. Will be an empty vector unless addSavedDofVector() has been called for this type.

IMPORTANT: The type MUST belong to the set. In match mode, it can be any of the local vector types added to the vector set. In single and single debug modes, type MUST be equal to GmpFemVector_Eq.

◆ globalTransposedDofVector()

GmVector& GmpFemVectorSet::globalTransposedDofVector ( GmpFemVectorTypes type ) const

inline

Returns the registered vector, identified by its type in the set, for storing transposed values when reducing a matrix due to fixed dofs. Will be equal to the global vector unless addTransposedDofVector() has been called for this type.

IMPORTANT: The type MUST belong to the set. In match mode, it can be any of the local vector types added to the vector set. In single and single debug modes, type MUST be equal to GmpFemVector_Eq.

◆ globalVector()

GmVector& GmpFemVectorSet::globalVector ( GmpFemVectorTypes type ) const

inline

Returns a global Vector identified by its type in the set.

IMPORTANT: The type MUST belong to the set. In match mode, it can be any of the local vector types added to the vector set. In single and single debug modes, type MUST be equal to GmpFemVector_Eq.

◆ initTypes()

bool GmpFemVectorSet::initTypes	(	GmpFemVectorMode	mode,
		int	numVectors,
			...
	)

Informs the vector set about the local vector types that will be stored on it. It also creates the set of global vectors tied to the element vectors in the set. The number of effectively stored global vectors follows the given mode.

This function does NOT allocate memory for the vectors. It only prepares the global used structure. Memory allocation is deferred to the adjustSizes() call. Returns false on errors.

IMPORTANT: The vector set initialization must be followed, if needed, by optional calls to addTransposedDofVector() and / or addSavedDofVector() and by a required call to adjustSizes(). The order is important. Calls to the "add" functions MUST be made before adjusting the sizes.

Parameters

mode	The mode specifying which global vectors should be stored by the set in correspondence to the given set of local vectors.
numVectors	The number of local vectors stored in the set
...	The variable list of parameters should contain the types of the stored vectors. The number of parameters should be equal to numVectors. Each value should be a unique type number (between 0 and the maximum number of types given in the constructor)

Returns: Returns true when successfull, false on errors.

The documentation for this class was generated from the following files:

inc/gmpFemVectorSet.h
src/gmpFemVectorSet.cpp
