GmpFemPhysicsCommon::Attribute Struct Reference

A structure used to define attributes interpreted by the physics. More...

#include <gmpFemPhysicsCommon.h>

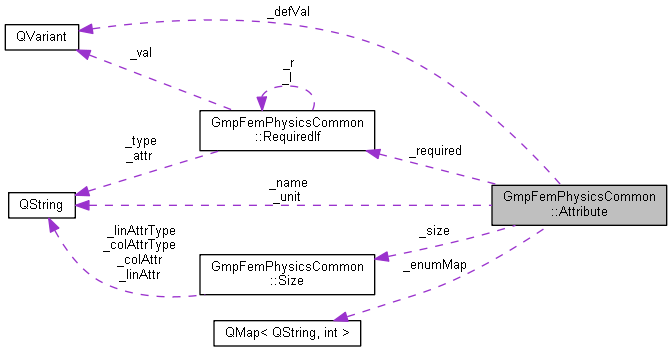

Collaboration diagram for GmpFemPhysicsCommon::Attribute:

Public Types
enum	AttributeType {   User, Bool, Int, Double,   String, DoubleList, StringList, Vector,   Matrix, ScalarOrVector, Enum }
	Attribute data type. More...

Public Member Functions
	Attribute ()
	Default constructor needed to enable storing an Attribute in a QVariant. Builds an invalid Attribute.
	Attribute (int id, QString name, AttributeType type, int nlin, int ncol, const RequiredIf &required, QString unit="", QVariant defValue=QVariant())
	Generic attribute constructor for non enum types, given the attribute name, expected type, if its required and default value for optional ones.
	Attribute (int id, QString name, AttributeType type, const RequiredIf &required, QString unit="", QVariant defValue=QVariant())
	Generic attribute constructor for non vector/matrix/enum types, given the attribute name, expected type, if its required and default value for optional ones.
	Attribute (int id, QString name, AttributeType type, QVariant defValue)
	Attribute constructor for optional attributes with default and no unit.
	Attribute (int id, QString name, AttributeType type, int nlin, int ncol, QVariant defValue)
	Attribute constructor for optional vector/amatrix attributes with default and no unit.
	Attribute (int id, QString name, const QMap< QString, int > &enumMap, const RequiredIf &required, QString unit="", QVariant defValue=QVariant())
	Attribute constructor for a generic enumerated attribute.
	Attribute (int id, QString name, const QMap< QString, int > &enumMap, QVariant defValue)
	Attribute constructor for an optional enumerated attribute with default and no unit.
	operator QVariant () const
	Operator to convert an Attribute to a QVariant.
int	nlin (const GmpFemPhysicsCommon *p) const
int	ncol (const GmpFemPhysicsCommon *p) const

Public Attributes
int	_id
	Attribute id storing its intended position in the attributes list.
QString	_name
	The attribute name.
AttributeType	_type
	The expected attribute type for validation purposes.
Size	_size
	The requested number of lines/columns for a vector / matrix.
QString	_unit
	The attribute unit for double types.
QVariant	_defVal
	A default value applied to the attribute if not given and optional.
QMap< QString, int >	_enumMap
	Map for trnslating enum types.
RequiredIf	_required
	Is the attribute required?

Detailed Description

A structure used to define attributes interpreted by the physics.

Member Enumeration Documentation

AttributeType

enum GmpFemPhysicsCommon::Attribute::AttributeType

Attribute data type.

Enumerator
User	Any value. Checks will be done later.
Bool	A boolean value. Read variant with toBool().
Int	An integer number. Read variant with toInt().
Double	A double value. Read variant with toDouble().
String	A string (QString). Read variant with toString().
DoubleList	A list of doubles (QList<double>). Read variant with value< QList<double> >().
StringList	A list of strings (QStringList). Read variant with toStringList().
Vector	A GmVector object. Read variant with value<GmVector>().
Matrix	A GmMatrix object. Read variant with value<GmMatrix>().
ScalarOrVector	A GmVector object that also accepts a scalar value. Read variant with value<GmVector>().
Enum	An integer number whose value is equal to an enum option. Read variant with toInt().

---

The documentation for this struct was generated from the following file:

• inc/gmpFemPhysicsCommon.h
