GmpFemPhysicsCommon::Value Struct Reference

A structure used to specify value accessors needed by the physics. More...

#include <gmpFemPhysicsCommon.h>

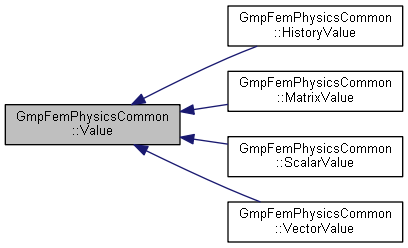

Inheritance diagram for GmpFemPhysicsCommon::Value:

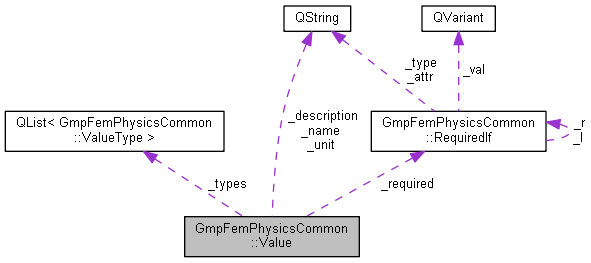

Collaboration diagram for GmpFemPhysicsCommon::Value:

Public Member Functions
	Value ()
	Default constructor needed to enable storing a Value in a QVariant. Builds an invalid Value.
	Value (int id, QString name, QString description, QString unit, const ValueType &type, const RequiredIf &required=RequiredIf(true))
	Value constructor given a single possible type.
	Value (int id, QString name, QString description, QString unit, const QList< ValueType > &types, const RequiredIf &required=RequiredIf(true))
	Value constructor given multiple possible types.
	operator QVariant () const
	Operator to convert a Value to a QVariant.

Public Attributes
int	_id
	Value id storing its intended position in the values list.
QString	_name
	Value name.
QString	_description
	Value description (for error messages)
QString	_unit
	Value unit.
QList< ValueType >	_types
	Value types (if more than one, types will be tried on the given order). Empty for history values.
RequiredIf	_required
	Is the value required?
int	_historyRefId
	The reference Value describing the base attribute that this accessor points to.
int	_historyState
	The desired history state. 0 means current state, 1 = previous state and so on.
bool	_historyLocked
	Should the accessor be locked to the state (true) or to the data (false).

Detailed Description

A structure used to specify value accessors needed by the physics.

---

The documentation for this struct was generated from the following file:

• inc/gmpFemPhysicsCommon.h
