A results rule used to send the associated data sets to the monitor server thread. More...

#include <gmMonitorResultsRule.h>

Inheritance diagram for GmMonitorResultsRule:

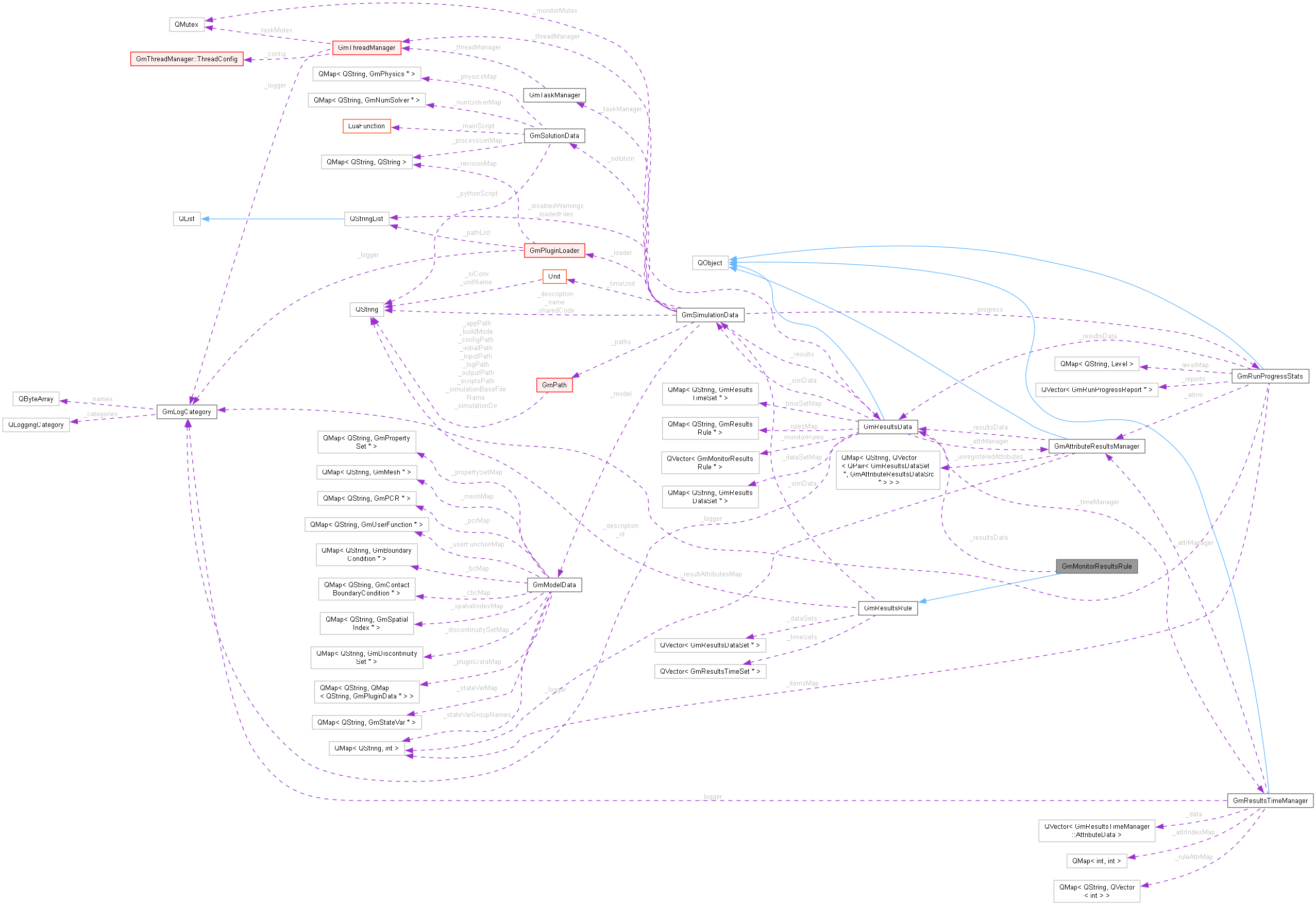

Collaboration diagram for GmMonitorResultsRule:

[legend]

Public Member Functions
virtual	~GmMonitorResultsRule ()
	Destructor.

virtual GmResultsRuleType	type () const
	Returns the result rule type.

virtual void	print (const GmLogCategory &logger, GmLogLevel level) const
	Prints the rule description to the appointed logger / level.

virtual bool	run (const GmLogCategory &logger)
	Sends the data specified by the associated data sets to the monitor thread.

Public Member Functions inherited from GmResultsRule
virtual	~GmResultsRule ()
	Destructor.

QString	id () const
	Returns the result rule name.

QString	description () const
	Returns the result rule description.

const QVector< GmResultsDataSet * > &	dataSets () const
	Returns the list of data sets acted upon by this rule.

const QVector< GmResultsTimeSet * > &	timeSets () const
	Returns the list of time sets defining when this rule should be acted upon.

bool	hasTimeSet () const
	Returns true if this rule is associated with a time set.

Static Public Member Functions
static GmMonitorResultsRule *	loadFromTable (GmResultsData data, LuaTable &tab, const GmLogCategory &parseLogger, const GmSimulationData simData)
	Parses either a save rule definition from the given Lua table, returning a save rule object.

Protected Member Functions
	GmMonitorResultsRule (GmResultsData data, QString id, QString description, const QVector< GmResultsDataSet > &dataSets, const QVector< GmResultsTimeSet * > &timeSets, bool trackObj, const GmSimulationData *simData)
	Protected constructor. Object is created by loadFromTable()

Protected Member Functions inherited from GmResultsRule
	GmResultsRule (QString id, QString description, const QVector< GmResultsDataSet * > &dataSets, const QVector< GmResultsTimeSet * > &timeSets, bool trackObj, const GmSimulationData *simData)
	Constructor. The rule does NOT own the data sets and time sets.

Private Member Functions
	Q_DISABLE_COPY (GmMonitorResultsRule)

void	evalMonitoredAttributeData (GmResultsDataSet *dset, const GmLogCategory &errLogger)
	Evaluates data set attribute data, emitting monitoredValueChanged() signal on behalf of the stored result data object.

void	evalMonitoredEvalSetData (GmResultsDataSet *dset, GmResultsDataSrcType type, const GmLogCategory &errLogger)
	Evaluates data set eval set data, emitting monitoredValueChanged() and monitoredIndexChanged() signals on behalf of the stored result data object.

Private Attributes
GmResultsData *	_resultsData
	The results data object used to emit the monitor signals.

Additional Inherited Members
Static Protected Member Functions inherited from GmResultsRule
static bool	fillCommonFields (const GmResultsData data, LuaTable &tab, const GmLogCategory &logger, QString &id, QString &description, QVector< GmResultsDataSet > &dataSets, QVector< GmResultsTimeSet * > &timeSets, bool &trackObj)
	Helper function for the loadFromTable functions from derived classes. Parses the common fields for every result rule from the given Lua table. The logger is used to emmit messages during rule parsing. The data object is used to find data sets and time sets on the results data object.

Protected Attributes inherited from GmResultsRule
QString	_id
	The save rule id (name)

QString	_description
	A description of the save rule.

QVector< GmResultsDataSet * >	_dataSets
	The list of associated data sets.

QVector< GmResultsTimeSet * >	_timeSets
	The list of associated time sets.

const GmSimulationData *	_simData
	The simulation data object.

int	_itemId
	The run progress item id for result rules of this kind (subclass: save rules, print rules or monitor rules)

int	_objItemId
	The run progress item for this object if the user requested to monitor the time for this specific result rule.

Detailed Description

A results rule used to send the associated data sets to the monitor server thread.

Member Function Documentation

◆ evalMonitoredAttributeData()

void GmMonitorResultsRule::evalMonitoredAttributeData	(	GmResultsDataSet *	dset,
		const GmLogCategory &	errLogger )

private

Evaluates data set attribute data, emitting monitoredValueChanged() signal on behalf of the stored result data object.

If the attribute is not available yet, its value will not be broadcasted. If evaluating an attribute results in an error, a message is logged and the value is not broadcasted.

◆ evalMonitoredEvalSetData()

void GmMonitorResultsRule::evalMonitoredEvalSetData	(	GmResultsDataSet *	dset,
		GmResultsDataSrcType	type,
		const GmLogCategory &	errLogger )

private

Evaluates data set eval set data, emitting monitoredValueChanged() and monitoredIndexChanged() signals on behalf of the stored result data object.

If a value line is not available (missing gauss point or no ghost data, for example), a value of zero will be sent in its place (to always keep the vector size consistent with the index size). If evaluating a value line results in an error, a message is logged and the entire value is not broadcasted.

◆ loadFromTable()

GmMonitorResultsRule * GmMonitorResultsRule::loadFromTable	(	GmResultsData *	data,
		LuaTable &	tab,
		const GmLogCategory &	parseLogger,
		const GmSimulationData *	simData )

static

Parses either a save rule definition from the given Lua table, returning a save rule object.

The parseLogger is used to emmit messages during rule parsing.

◆ print()

void GmMonitorResultsRule::print	(	const GmLogCategory &	logger,
		GmLogLevel	level ) const

virtual

Prints the rule description to the appointed logger / level.

Reimplemented from GmResultsRule.

◆ run()

bool GmMonitorResultsRule::run ( const GmLogCategory & logger )

virtual

Sends the data specified by the associated data sets to the monitor thread.

Implements GmResultsRule.

◆ type()

virtual GmResultsRuleType GmMonitorResultsRule::type ( ) const

inlinevirtual

Returns the result rule type.

Implements GmResultsRule.

The documentation for this class was generated from the following files:

inc/results/gmMonitorResultsRule.h
src/results/gmMonitorResultsRule.cpp
