Base interface class for Regular Grid Mesh type plugins. More...

#include <gmRegularGridMesh.h>

Inheritance diagram for GmRegularGridMesh:

[legend]

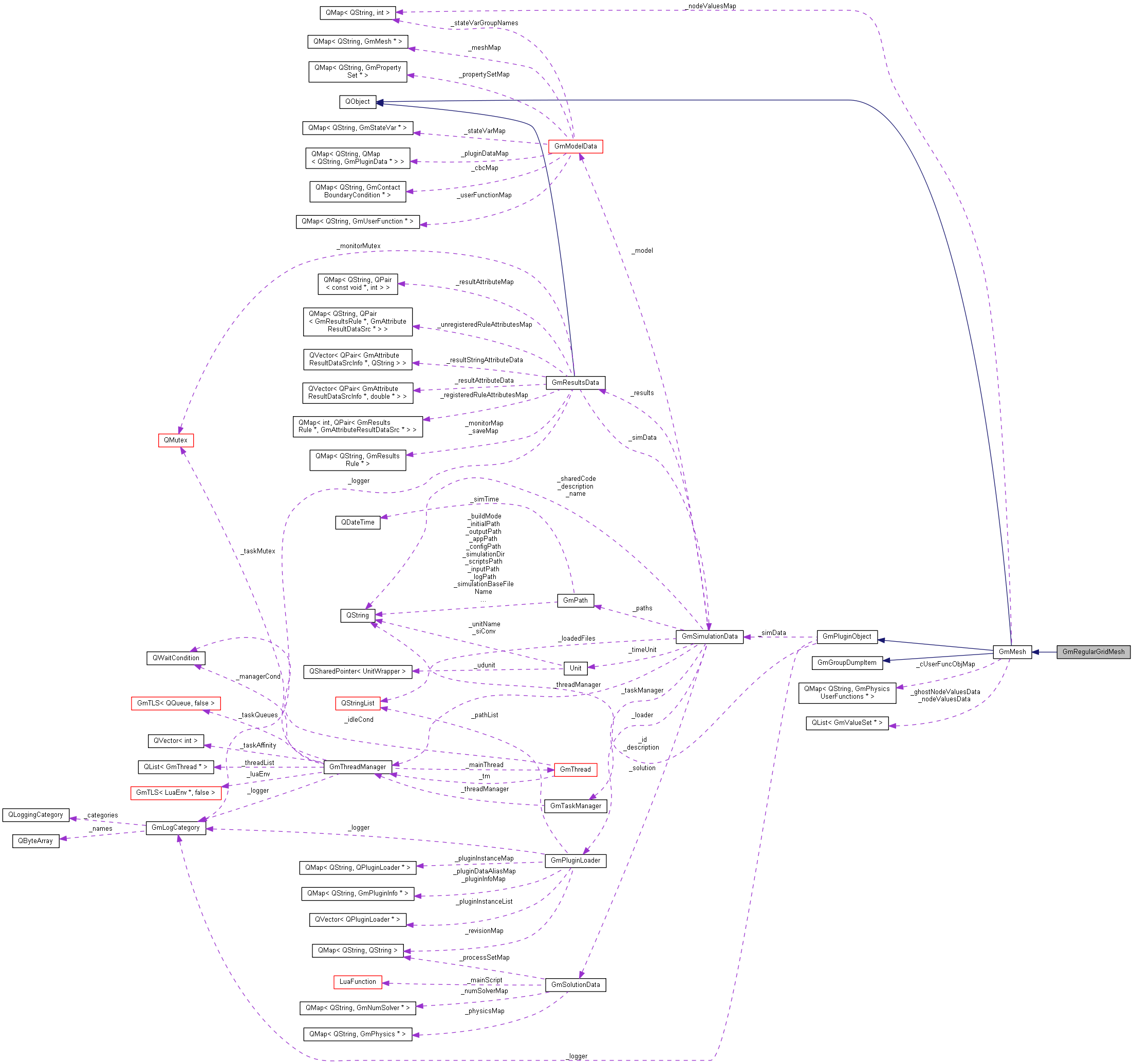

Collaboration diagram for GmRegularGridMesh:

[legend]

Public Member Functions
	GmRegularGridMesh (GmSimulationData *simulation, QString id, QString description, const GmLogCategory &logger)
	Basic contructor.

virtual	~GmRegularGridMesh ()
	Basic destructor.

virtual double	nodeSpacing (int dim) const =0
	Returns the spacing between grid nodes in the given dimension (0 <= dim < nodeCoordInfo()->size())

virtual int	nodeCount (int dim) const =0
	Returns the number of nodes in the mesh in the given dimension (0 <= dim < nodeCoordInfo()->size())

virtual bool	nodeWrap (int dim) const =0
	Returns true if for the given dimension the first node at the direction is conected to the last one (0 <= dim < nodeCoordInfo()->size())

virtual int	nodeFromIndex (int x, int y=-1, int z=-1) const =0
	Given a set of node column, line and depth indices, returns the correspondent node index. Parameters y and z are optional and should be provided according to the grid dimension.

virtual void	indexFromNode (int node, int x, int y=NULL, int *z=NULL) const =0
	Given a node index, returns in x, y and z the corresponding grid indices. Parameters y and z should be different from NULL according to the grid dimension.

virtual int	neighbor (int node, int xoffset, int yoffset=0, int zoffset=0) const =0
	Returns the index of the neighbor node given the current node and the offset in each dimension. Offsets can be negative. If the neighbor does not exist (offset passes the grid border and nodeWrap is not active for that dimension), returns -1.

Public Member Functions inherited from GmMesh
	GmMesh (GmSimulationData *simulation, QString id, QString description, const GmLogCategory &logger)
	Constructor.

virtual	~GmMesh ()
	Virtual destructor.

virtual const char *	pluginCategory () const
	Returns the plugin category.

virtual bool	hasCapability (QString capabilityName) const =0
	This function should return true or false to indicate whether the mesh implementation supports the requested capability or not. Capabilities are refered by string names in order to enable derived interfaces to extend the available capabilities that can be queried.

virtual bool	useDualVectors () const =0
	Returns true if the mesh data is stored in a "dual" vector, instead of a single one.

virtual void	pushProxy (lua_State *L, const GmLogCategory &logger)=0
	Pushes a proxy object for the current mesh onto the Lua stack.

virtual GmValueInfo *	nodeCoordInfo () const =0
	Returns metadata with information about node coordinates.

virtual GmValueAccessor *	nodeCoordAccessor (Unit desiredUnit, const GmLogCategory &logger) const =0
	Returns an accessor object used to access node coordinates.

virtual int	numNodes () const =0
	Returns the number of nodes in the mesh.

virtual int	numGhostNodes () const
	Returns the number of ghost nodes in the mesh.

int	totalNumNodes () const
	Returns the total number of nodes in the mesh, including normal nodes & ghost nodes.

virtual int	numGlobalNodes () const
	When working with partitioned meshes, returns the number of nodes in the global mesh, before partitioning.

virtual int	numGlobalGhostNodes () const
	When working with partitioned meshes, returns the number of ghost nodes in the global mesh, before partitioning.

int	totalNumGlobalNodes () const
	Returns the total number of nodes in the mesh, including normal nodes & ghost nodes.

int	toLinearGhostIndex (int nodeIndex) const
	If nodeIndex is a value with its high bit set, returns the index (high bit cleared)

int	toLocalGhostIndex (int nodeIndex) const
	Given a global ghost index (a value >= numNodes() and < totalNumNodes()), returns a zero based version of the index. If index is a 'geometry index' (nodeIndex < numNodes()), returns a negative value.

virtual const QMap< QString, GmNodeSet * > &	nodeSets () const =0
	Returns a map of node sets registered within the mesh. Each entry in the returned map contains a group of nodes, indexed by group name.

QStringList	nodeValueIds (int filter=-1) const
	Returns a list with the id names for every attribute or state var associated with mesh nodes, depending on the filter parameter. No special order is enforced. If filter is -1, includes both of them, first state vars and then node attributes since that is the order used by printing routines.

virtual GmValueInfo *	nodeValueInfo (QString id, int filter=-1) const
	Returns the metadata describing the values (attribute / state var) associated with the value id.

virtual GmValueAccessor *	nodeValueAccessor (QString id, Unit desiredUnit, const GmLogCategory &logger) const
	Creates an accessor object for the values (attribute / state var) associated with the value id.

virtual GmValueAccessor *	nodeValueAccessor (QString id, int snum, bool locked, Unit desiredUnit, const GmLogCategory &logger) const
	Overloads nodeValueAccessor(QString, Unit, ...) to return an accessor for the requested previous state of a value.

virtual GmValueAccessor *	nodeStateVarAccessorFromDof (int dof, Unit desiredUnit, GmStateVar **stateVar) const
	Creates an accessor object for the state var associated with the requested degree of freedom number. Returns NULL if the dof number is invalid or if that state var is not associated with this mesh.

virtual bool	addNodeValueSet (GmValueInfo *info)
	Creates a new value set for storing data associated with the metadata information received as a parameter.

virtual void	removeNodeValueSet (QString id)
	Removes node value set associated to the specified id. Do nothing if such node value set is not stored in the mesh.

virtual bool	initNodeValueSets ()
	Initializes all the value set groups after the addition of node attributes by calls to addNodeValueSet(). MUST be called even if the mesh initially does not have any node attribute / stat var, AFTER the number of mesh nodes and ghost nodes has been correctky initialized!

virtual void	beginAddingNodeAttributeSets ()
	Initializes a block where calls to addNodeValueSet() will only initialize the new attribute value set at the call to endAddingGaussAttributeSets(). See the comments at addNodeValueSet(). Only makes sense after mesh initialization.

virtual bool	endAddingNodeAttributeSets ()
	Ends the block started by the call to beginAddingGaussAttributeSets(), initializing all the value sets that where added in between. See the comments at addNodeValueSet(). Returns false in case of errors.

virtual void	clearNodeValueSets ()
	Removes every valueSet stored in the mesh (attributes and state variables). Handy for plugins to cleanup on errors.

virtual void	clearNodeValueSetsData ()
	An auxiliary function used to remove all data from every valueSet stored in the mesh (the value sets themselves remain).

virtual bool	saveState (GmValueSet::SaveStateMode mode, const GmLogCategory &logger)
	Simmilar to saveNodeValueState(), saves the current state of all values that support state saving. See saveNodeValueState() for more details.

virtual bool	saveNodeValueState (QString id, GmValueSet::SaveStateMode mode, const GmLogCategory &logger)
	Saves the current state for the requested id, creating a new current state.

virtual int	numNodeValueStates (QString id) const
	Returns the number of existing states for the requested id or -1 if the id doesn't exists.

virtual QString	nodeValueStateTag (QString id, int snum) const
	Returns the state tag attached to the requested state of the named value or "" if the id doesn't exists.

virtual double	nodeValueStateTime (QString id, int snum) const
	Returns the time tag attached to the requested state of the named value or -1 if the id doesn't exists.

virtual void	setNodeValueStateTag (QString id, int snum, QString tag)
	Sets a tag name for the requested state of the named value. Does nothing if the id doesn't exists.

virtual void	setNodeValueStateTime (QString id, int snum, double time)
	Sets a time tag for the requested state of the named value. Does nothing if the id doesn't exists.

virtual int	addNodes (int numNodes)
	Adds numNodes to the mesh, WHITHOUT initializing their coordinates or attributes.

virtual int	addGhostNodes (int numNodes)
	Similar to addNodes, this function adds ghost nodes to the mesh, WHITHOUT initializing their coordinates or attributes. This function should be reimplemented by mesh implementations that support ghost nodes (hasCapability("ghostNodes") returns true).

virtual void	clear ()
	Clears mesh nodes (and cells + other mesh related information depending on the concrete mesh type) if the mesh supports this operation (hasCapability("clear") returns true).

QMap< QString, GmPhysicsUserFunctions * > &	userFunctionsObjMap () const
	Returns the mesh map storing physics user function objects.

virtual void	printParameters (const GmLogCategory &logger)
	Asks the mesh to print all of its parameters using the provided logger.

virtual void	printValues (const GmLogCategory &logger, int options=GM_PRINT_DEFAULT)
	Asks the mesh to print all of its node and cell data using the provided logger and requested options.

virtual size_t	nodeMemory () const =0
	Returns the approximate memory used for storing mesh nodes (does not include memory for s.v./attributes)

virtual size_t	nodeSetsMemory () const =0
	Returns the approximate memory used for storing node sets.

virtual GmPCR *	pcrObject () const =0
	Returns the PCR(Partition - Color - Renumber) object associated with this mesh. Should NEVER return NULL. If no PCR plugin object has been explicitely associated with the mesh by the user, or implicitely associated by default configuration options, a default object with no partition, coloring or renumbering MUST be returned. This default object is useful to keep code simple, without unnecessary conditions.

GmValueSetGroup *	nodeValueSetGroup () const
	Returns the ValueSetGroup object used to store the set of mesh node value sets. This is a very specialized function. Use only if you know what you are doing...

GmValueSet *	nodeValueSet (QString id) const
	Returns the node value set associated with the given cell attribute. Might be NULL. See comments for nodeValueSetGroup()

GmValueSetGroup *	ghostNodeValueSetGroup () const
	Returns the ValueSetGroup object used to store the set of mesh ghost node value sets. This is a very specialized function. Use only if you know what you are doing...

GmValueSet *	ghostNodeValueSet (QString id) const
	Returns the ghost node value set associated with the given cell attribute. Might be NULL. See comments for ghostNodeValueSetGroup()

virtual void	emitMeshChanged ()
	Emmits the signal meshChanged to signal other objects that the mesh has changed. Should be called by other processes after editions to the mesh like adding new nodes / cells or changing cell geometry.

Public Member Functions inherited from QObject
virtual const QMetaObject *	metaObject () const const

	QObject (QObject *parent)

virtual bool	event (QEvent *e)

virtual bool	eventFilter (QObject watched, QEvent event)

QString	objectName () const const

void	setObjectName (const QString &name)

bool	isWidgetType () const const

bool	isWindowType () const const

bool	signalsBlocked () const const

bool	blockSignals (bool block)

QThread *	thread () const const

void	moveToThread (QThread *targetThread)

int	startTimer (int interval, Qt::TimerType timerType)

int	startTimer (std::chrono::milliseconds time, Qt::TimerType timerType)

void	killTimer (int id)

T	findChild (const QString &name, Qt::FindChildOptions options) const const

QList< T >	findChildren (const QString &name, Qt::FindChildOptions options) const const

QList< T >	findChildren (const QRegExp &regExp, Qt::FindChildOptions options) const const

QList< T >	findChildren (const QRegularExpression &re, Qt::FindChildOptions options) const const

const QObjectList &	children () const const

void	setParent (QObject *parent)

void	installEventFilter (QObject *filterObj)

void	removeEventFilter (QObject *obj)

QMetaObject::Connection	connect (const QObject sender, const char signal, const char *method, Qt::ConnectionType type) const const

bool	disconnect (const char signal, const QObject receiver, const char *method) const const

bool	disconnect (const QObject receiver, const char method) const const

void	dumpObjectTree ()

void	dumpObjectInfo ()

void	dumpObjectTree () const const

void	dumpObjectInfo () const const

bool	setProperty (const char *name, const QVariant &value)

QVariant	property (const char *name) const const

QList< QByteArray >	dynamicPropertyNames () const const

void	destroyed (QObject *obj)

void	objectNameChanged (const QString &objectName)

QObject *	parent () const const

bool	inherits (const char *className) const const

void	deleteLater ()

	Q_DISABLE_COPY (Class)

	Q_DISABLE_MOVE (Class)

	Q_DISABLE_COPY_MOVE (Class)

T	qobject_cast (QObject *object)

T	qobject_cast (const QObject *object)

T	qFindChild (const QObject *obj, const QString &name)

QList< T >	qFindChildren (const QObject *obj, const QString &name)

QList< T >	qFindChildren (const QObject *obj, const QRegExp &regExp)

	Q_CLASSINFO (Name, Value)

	Q_INTERFACES (...)

	Q_PROPERTY (...)

	Q_ENUMS (...)

	Q_FLAGS (...)

	Q_ENUM (...)

	Q_FLAG (...)

	Q_ENUM_NS (...)

	Q_FLAG_NS (...)

	Q_OBJECT Q_OBJECT

	Q_GADGET Q_GADGET

	Q_NAMESPACE Q_NAMESPACE

	Q_NAMESPACE_EXPORT (EXPORT_MACRO)

	Q_SIGNALS Q_SIGNALS

	Q_SIGNAL Q_SIGNAL

	Q_SLOTS Q_SLOTS

	Q_SLOT Q_SLOT

	Q_EMIT Q_EMIT

	Q_INVOKABLE Q_INVOKABLE

	Q_REVISION Q_REVISION

	Q_SET_OBJECT_NAME (Object)

	QT_NO_NARROWING_CONVERSIONS_IN_CONNECT QT_NO_NARROWING_CONVERSIONS_IN_CONNECT

Public Member Functions inherited from GmPluginObject
	GmPluginObject (GmSimulationData *simulation, QString id, QString description, const GmLogCategory &logger)
	Constructor.

virtual	~GmPluginObject ()
	Destructor.

QString	id () const
	Returns the object id.

QString	description () const
	Returns the object description.

QString	pluginTypeName () const
	Returns the hierarchical type name for the plugin object type. See also pluginName() and pluginType().

virtual const char *	pluginName () const =0
	Returns a string identifying the plugin which implements this object. Should return the SAME string as the one read from the plugin information file in the pluginName field.

virtual const char *	pluginType () const =0
	Returns the string identifying the plugin object type. Should return the SAME string as the one read from the plugin information file in the objectTypes table.

virtual bool	loadPrivateData (LuaTable &table)=0
	Function called by the model loader to give the object acess to it's private parameters. Should return false only if the received parameter set makes the use of this object impossible.

Public Member Functions inherited from GmGroupDumpItem
virtual	~GmGroupDumpItem ()
	Virtual destructor.

virtual bool	stateAboutToBeSaved (GmStateDump *state)
	Virtual method called just before starting a save operation on the given state. Returning false aborts the operation.

virtual bool	stateSaved (GmStateDump *state)
	Virtual method called just after succesfully completing a save operation on the given state. Returning false aborts the operation.

virtual bool	stateAboutToBeLoaded (GmStateDump *state)
	Virtual method called just before starting a load operation on the given state. Returning false aborts the operation.

virtual bool	stateLoaded (GmStateDump *state)
	Virtual method called just after succesfully completing a load operation on the given state. Returning false aborts the operation.

Additional Inherited Members
Public Types inherited from QObject
typedef	QObjectList

Signals inherited from GmMesh
void	meshChanged ()
	Signal emmited by emitMeshChanged(). See comments on that function.

Static Public Member Functions inherited from GmMesh
static bool	isGhostNode (int nodeIndex)
	Returns true if the given index is a ghost node index, false if not.

static int	setGhostFlag (int nodeIndex)
	Returns the given index with the ghost node bit set.

static int	clearGhostFlag (int nodeIndex)
	Returns the given index with the ghost node bit cleared.

Static Public Member Functions inherited from QObject
QString	tr (const char sourceText, const char disambiguation, int n)

QString	trUtf8 (const char sourceText, const char disambiguation, int n)

QMetaObject::Connection	connect (const QObject sender, const char signal, const QObject receiver, const char method, Qt::ConnectionType type)

QMetaObject::Connection	connect (const QObject sender, const QMetaMethod &signal, const QObject receiver, const QMetaMethod &method, Qt::ConnectionType type)

QMetaObject::Connection	connect (const QObject sender, PointerToMemberFunction signal, const QObject receiver, PointerToMemberFunction method, Qt::ConnectionType type)

QMetaObject::Connection	connect (const QObject *sender, PointerToMemberFunction signal, Functor functor)

QMetaObject::Connection	connect (const QObject sender, PointerToMemberFunction signal, const QObject context, Functor functor, Qt::ConnectionType type)

bool	disconnect (const QObject sender, const char signal, const QObject receiver, const char method)

bool	disconnect (const QObject sender, const QMetaMethod &signal, const QObject receiver, const QMetaMethod &method)

bool	disconnect (const QMetaObject::Connection &connection)

bool	disconnect (const QObject sender, PointerToMemberFunction signal, const QObject receiver, PointerToMemberFunction method)

Protected Member Functions inherited from GmMesh
GmValueSet *	anyVsFromId (QString id) const
	Helper function that, given an id, returns the node value set for that id if it exists. Otherwise returns the ghost value set for that id(which may also be NULL for an invalid id).

void	printValueInfo (const GmLogCategory &logger, QString title, const QStringList &idList)
	Auxiliary function to print information about state variables or attributes.

virtual bool	addStateItemsToGroup (GmStateDump *state, int groupId)
	Adds to 'state' a data item storing a control map, followed by geometry data filled by addStateGeometryData(), followed by mesh attribute data filled by addStateAccessorData(). All the items are added to the given group. Returns true on success or false on error.

virtual int	controlMapStateItemType ()
	Virtual function that needs to be implemented by concrete implementation classes supporting the stateDump capability. It should return a dump type that identifies the mesh implementation.

virtual bool	addStateGeometryData (GmStateDump *state, int groupId)
	Virtual function that needs to be implemented by concrete implementation classes supporting the stateDump capability. It should add the needed additional items to the state. Keep in mind that some of the needed control data can be added/loaded from the control map, already added to the state by the standard implementation of addStateItemsToGroup(), through the fillDumpControlMapData() / dumpControlMapDataLoaded() pair of functions.

virtual bool	addStateAccessorData (GmStateDump *state, int groupId)
	Adds to 'state' accessors for all the data stored on state variables or node attributes associated with this mesh. This includes all histories. Returns true on success or false on error.

virtual bool	fillDumpControlMapData (QVariantMap *map, const GmLogCategory &logger)
	Fills the dump control data map with mesh data prior to a save operation On errors, should return false and report the error through the provided state dump logger.

virtual bool	dumpControlMapDataLoaded (QVariantMap *map, const GmLogCategory &logger)
	Sanity checks + processing of the dump control data map after a load operation.

Protected Member Functions inherited from QObject
QObject *	sender () const const

int	senderSignalIndex () const const

int	receivers (const char *signal) const const

bool	isSignalConnected (const QMetaMethod &signal) const const

virtual void	timerEvent (QTimerEvent *event)

virtual void	childEvent (QChildEvent *event)

virtual void	customEvent (QEvent *event)

virtual void	connectNotify (const QMetaMethod &signal)

virtual void	disconnectNotify (const QMetaMethod &signal)

Protected Member Functions inherited from GmPluginObject
virtual const GmLogCategory &	logger () const
	Returns the internal logger used by the plugin to emmit messages.

GmSimulationData *	simulationData () const
	Returns a reference to the simulation data object keeping global simulation information.

Protected Attributes inherited from GmMesh
int	_stateDumpControlMapItem
	The dump item index for the control map. Used to make sure that there are no mesh data accessors prior to the map on the state.

Properties inherited from QObject
	objectName

Detailed Description

Base interface class for Regular Grid Mesh type plugins.

The documentation for this class was generated from the following file:

inc/model/gmRegularGridMesh.h

Public Member Functions

Additional Inherited Members

Detailed Description
