A class used to create formatted reports based on ProgressStats item attribute values. More...

#include <gmRunProgressReport.h>

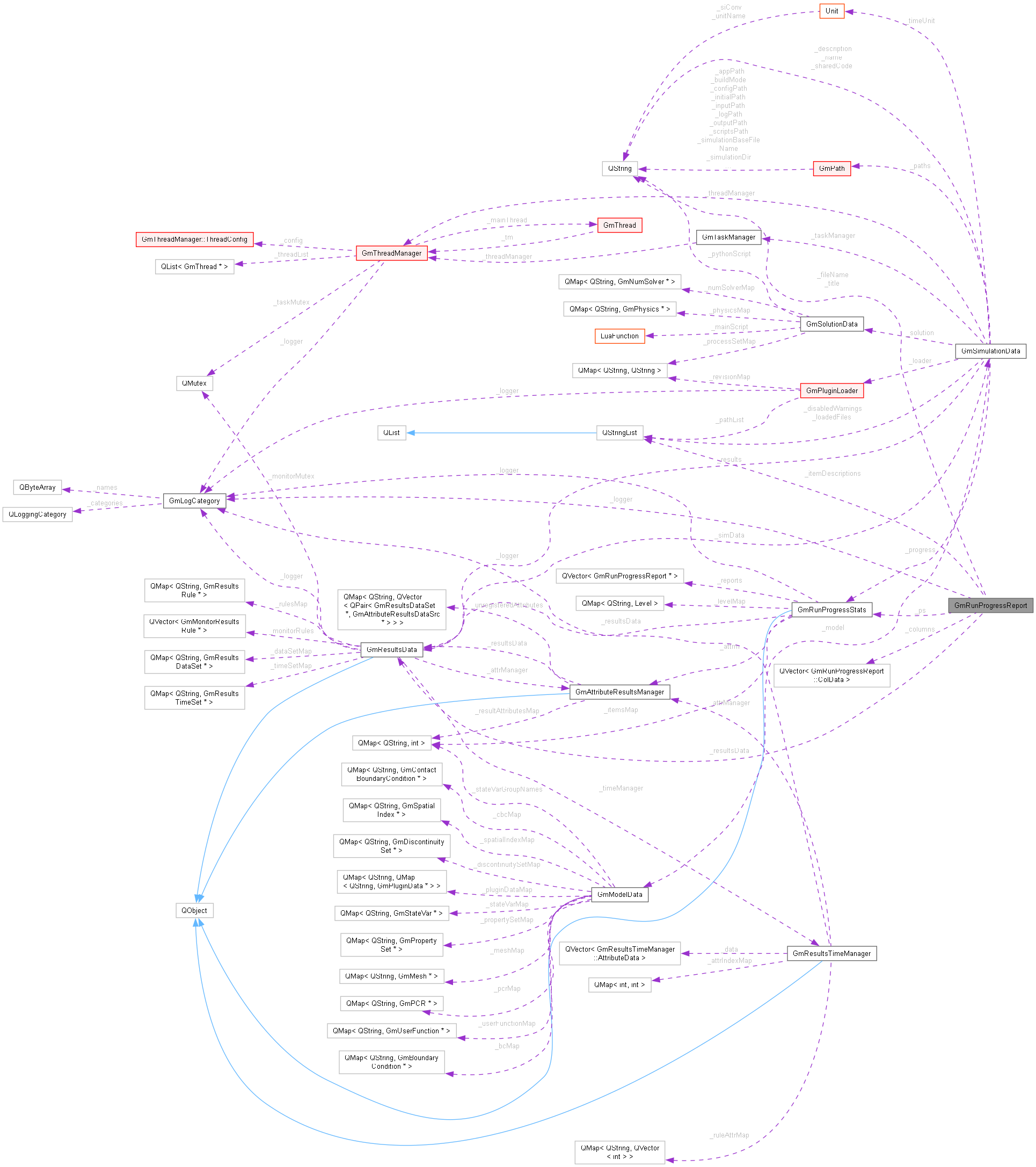

Collaboration diagram for GmRunProgressReport:

[legend]

Classes
struct	ColData

Public Types
enum	ColAlignment { GM_RUNPROG_REPORT_LEFT , GM_RUNPROG_REPORT_CENTER , GM_RUNPROG_REPORT_RIGHT , GM_RUNPROG_REPORT_AUTO }

using	ValueFunctionT = std::function<void(GmRunProgressReport* report, int col, int itemId, void* itemUserData)>
	The column value function type.

Public Member Functions
	GmRunProgressReport (GmResultsData *resultsData, QString fileName, const GmLogCategory &logger)
	Report constructor.

	~GmRunProgressReport ()
	Destructor. Closes the report file.

QString	fileName () const
	Returns the output file name for this report.

void	setTitle (QString title)
	Adjusts the report title.

void	addItemDescription (QString description)
	Adds an item description to the report.

int	addColumn (int itemId, int attrId, QString colTitle="", bool autoTimeUnit=false, int width=-1, ColAlignment align=GM_RUNPROG_REPORT_AUTO, int attrDim=-1)
	Adds to the report a new column whose values can be directly obtained from the given LOCAL attribute belonging to the item provided on the call to saveReportLine(). MUST be called before any call to saveReportLine()

int	addColumn (QString colTitle, QString colUnit, QString fmt="", bool autoTimeUnit=false, int width=-1, ColAlignment align=GM_RUNPROG_REPORT_RIGHT)
	Adds to the report a new column whose values cshould be provided manually. MUST be called before the call to saveReportLine()

void	setColumnValueFunction (int col, const ValueFunctionT &f)
	Sets the save function associated with this column.

void	setColumnIgnoreOnZero (int col)
	Tells the report that a column with a zero value should be printed as an empty column.

void	setColumnValue (int col, int val)
	Manually set the column value.

void	setColumnValue (int col, double val)
	Manually set the column value.

void	setColumnValue (int col, const double *val, int size)
	Manually set the column value. When setting values for a known attribute with a dim filter, v should point to the WHOLE vector.

void	setColumnValue (int col, QString str)
	Manually set the column value.

void	saveReportLine (int itemId, void *itemUserData)
	Saves a new line to the report, filled with the current values. Columns tied to an attribute will have their values updated automatically.

void	saveTrailler (QString traillerStr)
	Adds the report closing trailler data.

Private Member Functions
	Q_DISABLE_COPY (GmRunProgressReport)

void	saveReportHeader ()
	Starts the report saving. Should be called ONCE, AFTER all calls to addColumn().

void	saveFormattedHeader (bool title)
	Saves the header, possibly including the report title for a formatted report.

void	saveFormattedLine ()
	Saves a new report line with the data stored on the columns for a formatted report.

void	saveFormattedTrailler (QString traillerStr)
	Saves the report closing trailler data for a formatted report.

void	saveCsvHeader (bool title)
	Saves the header, possibly including the report title for a CSV report.

void	saveCsvLine ()
	Saves a new report line with the data stored on the columns for a Csv report.

void	saveCsvTrailler (QString traillerStr)
	Saves the report closing trailler data for a Csv report.

QStringList	prepareTitle (QString title, QString unit) const
	Prepares a title value splitting the given value on new lines and adding the unit if available.

QStringList	splitMultilineStr (QString title, bool trim) const
	Splits the given value on characters, returning a string list. Each list entry is trimmed.

int	findColumnWidth (const ColData &colData, int dataSize) const
	Calculates a best guess for a column width based on the column definition metadata and on the data size (number of dimensions)

QString	alignStr (QString str, int width, ColAlignment align) const
	Returns the given string suitably aligned into a space of width characters.

Private Attributes
GmResultsData *	_resultsData
	The results data object storing data attributes.

GmRunProgressStats *	_ps
	The ProgressStats object that owns this report.

const GmLogCategory &	_logger
	The logger used to display error messages.

QString	_fileName
	Output file name.

bool	_csv
	Save to csv file? If not, a formatted text file will be saved.

FILE *	_file
	The output file handle.

QString	_title
	The report title.

QStringList	_itemDescriptions
	Item descriptions, saved between the title and the column headers.

QVector< ColData >	_columns
	The set of report columns.

int	_numHeaderRows
	The number of rows needed for the header. Set to -1 if there was an error creating the save file.

Detailed Description

A class used to create formatted reports based on ProgressStats item attribute values.

Member Enumeration Documentation

◆ ColAlignment

enum GmRunProgressReport::ColAlignment

Enumerator
GM_RUNPROG_REPORT_LEFT	Column data is aligned to the left (default for strings)
GM_RUNPROG_REPORT_CENTER	Column data is aligned to the center.
GM_RUNPROG_REPORT_RIGHT	Column data is aligned to the right (default for numbers)
GM_RUNPROG_REPORT_AUTO	Column data is aligned according to the data type as defined by the associated result attribute.

Member Function Documentation

◆ addColumn() [1/2]

int GmRunProgressReport::addColumn	(	int	itemId,
		int	attrId,
		QString	colTitle = "",
		bool	autoTimeUnit = false,
		int	width = -1,
		ColAlignment	align = GM_RUNPROG_REPORT_AUTO,
		int	attrDim = -1 )

Adds to the report a new column whose values can be directly obtained from the given LOCAL attribute belonging to the item provided on the call to saveReportLine(). MUST be called before any call to saveReportLine()

Parameters

itemId	An item id sharing the given local attribute. The item is used only for sanity checks and to calc automatic column width. It will not be stored. When a line is added to the report, the provided item will be used instead.
attrId	The LOCAL attribute id.
colTitle	If different from "", replaces the attribute alias as the column title
autoTimeUnit	If enabled, time values will be formatted in a changing unit that better matches the value data.
width	The column width, in characters. If -1, a suitable width will be calculated based on the column title, data format and size.
align	The requested column data alignment. If equal to AUTO, the alignment will be inferred from the attribute data type (left for strings, right for numbers)
attrDim	If different from -1 and the attribute is not scalar, defines a dimension filter to apply to that column.

Returns: Returns the new column index (0 for the first call, 1 to the second and so on)

◆ addColumn() [2/2]

int GmRunProgressReport::addColumn	(	QString	colTitle,
		QString	colUnit,
		QString	fmt = "",
		bool	autoTimeUnit = false,
		int	width = -1,
		ColAlignment	align = GM_RUNPROG_REPORT_RIGHT )

Adds to the report a new column whose values cshould be provided manually. MUST be called before the call to saveReportLine()

Parameters

colTitle	The column title
colUnit	The column unit
fmt	The format string used to format numeric values. Follows the result data format.
autoTimeUnit	If enabled, time values will be formatted in a changing unit that better matches the value data. Will only have an effect if colUnit is one of ms, s, min, h or day.
width	The column width, in characters. If -1, a suitable width will be calculated based on the column title, data format and size.
align	The requested column data alignment. Should not be equal to AUTO (if it is a RIGHT default will be used)

Returns: Returns the new column index (0 for the first call, 1 to the second and so on)

The documentation for this class was generated from the following files:

inc/results/gmRunProgressReport.h
src/results/gmRunProgressReport.cpp
