A results rule saving the associated data sets to a file. More...

#include <gmSaveResultsRule.h>

Inheritance diagram for GmSaveResultsRule:

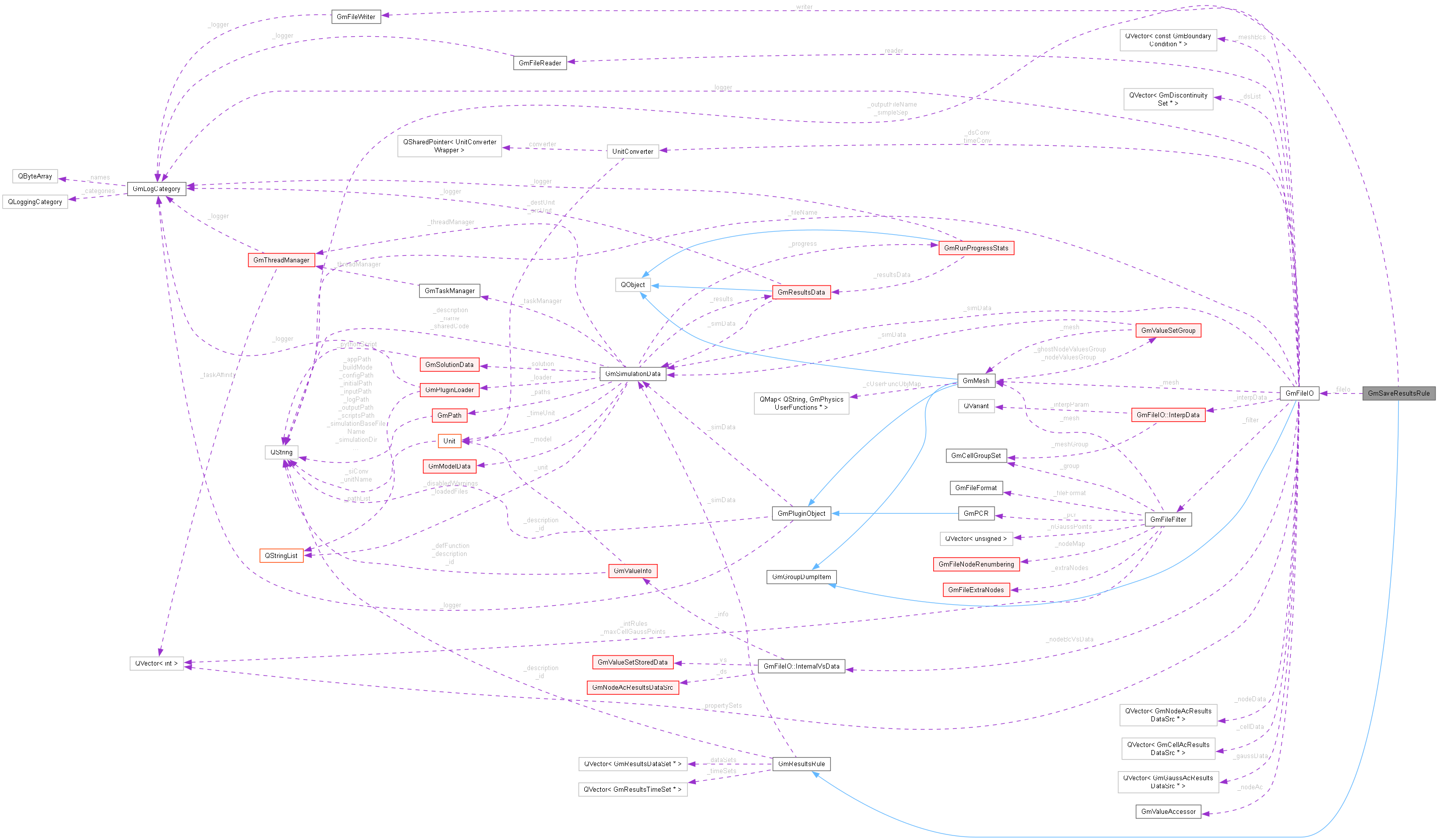

Collaboration diagram for GmSaveResultsRule:

[legend]

Public Types
enum	GmSimpleSaveFormat { GM_REPORT , GM_HISTORY }

Public Member Functions
virtual	~GmSaveResultsRule ()
	Destructor.

virtual GmResultsRuleType	type () const
	Returns the result rule type.

virtual void	print (const GmLogCategory &logger, GmLogLevel level) const
	Prints the rule description to the appointed logger / level.

virtual bool	run (const GmLogCategory &logger)
	Saves the data specified by the associated data sets to the specified output file.

Public Member Functions inherited from GmResultsRule
virtual	~GmResultsRule ()
	Destructor.

QString	id () const
	Returns the result rule name.

QString	description () const
	Returns the result rule description.

const QVector< GmResultsDataSet * > &	dataSets () const
	Returns the list of data sets acted upon by this rule.

const QVector< GmResultsTimeSet * > &	timeSets () const
	Returns the list of time sets defining when this rule should be acted upon.

bool	hasTimeSet () const
	Returns true if this rule is associated with a time set.

Static Public Member Functions
static GmSaveResultsRule *	loadFromTable (const GmResultsData data, LuaTable &tab, const GmLogCategory &parseLogger, const GmSimulationData simData)
	Parses either a save rule definition from the given Lua table, returning a save rule object.

Private Types
enum	ReadyState { FILE_INIT_PENDING , FILE_OK , FILE_DONE , FILE_ERROR }

Private Member Functions
	Q_DISABLE_COPY (GmSaveResultsRule)

	GmSaveResultsRule (QString id, QString description, const QVector< GmResultsDataSet * > &dataSets, const QVector< GmResultsTimeSet * > &timeSets, QString outputFile, const QVariantMap &formatOptions, bool trackObj, const GmSimulationData *simData)
	Constructor.

bool	fileIOInit (const GmLogCategory &logger)
	Prepares the output file to be written using data srcs from the associated data sets. File saving is done with the GmFileIO class.

bool	fileIOSave (const GmLogCategory &logger)
	Saves the current data to the previously prepared output file using the GmFileIO class. Uses the time attribute as the current time. No mesh changing is supported.

template<class T >
void	fileIOCheckAndAddDataSrcs (const GmResultsDataSet dset, GmResultsDataSrcType type, QString typeStr, QSet< QString > &idSet, QVector< const T > &data, QStringList &groups, bool &tryGroups, bool warn, const GmLogCategory &logger)
	Helper function useed by fileIOInit() to check the data srcs of the given type from the given data set and add them to the given data vector.

bool	simpleInit (const GmLogCategory &logger)
	Prepares the output file to be written using the simple file format.

bool	simpleSave (const GmLogCategory &logger)
	Saves current data to the output file using the simple file format.

void	simpleWriteReportData (const GmResultsDataSet *dataSet)

void	simpleWriteHistoryEvalSetHeader (const GmResultsDataSet *dataSet)

void	simpleWriteHistoryEvalSetData (const GmResultsDataSet *dataSet)

Private Attributes
QString	_outputFileName
	The output file, stored with translated paths.

QVariantMap	_formatOptions
	Table with options specific to the type of saved file.

ReadyState	_fileState
	Flag with the output file state.

GmFileIO *	_fileIo
	The file IO handle for savig operation using a GmFileIO object.

bool	_fileIoSingleTime
	Flag stating that the output file should support a single result set.

bool	_fileIoCloseOnTimeSetEnd
	"Regression test" flag stating that the file should be closed after the time set last save time. Needed for file comparison at the orchestration.

std::fstream	_simpleFile
	The output file for saving operation using the "simple" model.

GmSimpleSaveFormat	_simpleFormat
	The saved format for the output file when using the "simple" model.

bool	_simpleWriteHeader
	Controls whether the header should be printed or not for the HISTORY format.

QString	_simpleSep
	The column separator for HISTORY format.

Additional Inherited Members
Protected Member Functions inherited from GmResultsRule
	GmResultsRule (QString id, QString description, const QVector< GmResultsDataSet * > &dataSets, const QVector< GmResultsTimeSet * > &timeSets, bool trackObj, const GmSimulationData *simData)
	Constructor. The rule does NOT own the data sets and time sets.

Static Protected Member Functions inherited from GmResultsRule
static bool	fillCommonFields (const GmResultsData data, LuaTable &tab, const GmLogCategory &logger, QString &id, QString &description, QVector< GmResultsDataSet > &dataSets, QVector< GmResultsTimeSet * > &timeSets, bool &trackObj)
	Helper function for the loadFromTable functions from derived classes. Parses the common fields for every result rule from the given Lua table. The logger is used to emmit messages during rule parsing. The data object is used to find data sets and time sets on the results data object.

Protected Attributes inherited from GmResultsRule
QString	_id
	The save rule id (name)

QString	_description
	A description of the save rule.

QVector< GmResultsDataSet * >	_dataSets
	The list of associated data sets.

QVector< GmResultsTimeSet * >	_timeSets
	The list of associated time sets.

const GmSimulationData *	_simData
	The simulation data object.

int	_itemId
	The run progress item id for result rules of this kind (subclass: save rules, print rules or monitor rules)

int	_objItemId
	The run progress item for this object if the user requested to monitor the time for this specific result rule.

Detailed Description

A results rule saving the associated data sets to a file.

Member Enumeration Documentation

◆ ReadyState

enum GmSaveResultsRule::ReadyState

private

Enumerator
FILE_INIT_PENDING	The fiel has not been initialized yet.
FILE_OK	The file is OK for saving.
FILE_DONE	The file has already been written and closed.
FILE_ERROR	There was an error while initializing the file.

Member Function Documentation

◆ fileIOInit()

bool GmSaveResultsRule::fileIOInit ( const GmLogCategory & logger )

private

Prepares the output file to be written using data srcs from the associated data sets. File saving is done with the GmFileIO class.

If we have multiple data sets, we must make sure that they are sharing the same mesh. For each data set, if it contains eval sets, they will be ignored unless the eval set is a cell group. At present, either the full mesh or a cell group will be always considered. If multiple eval sets reference different cell groups, the groups will be ignored. If one eval set references a set of groups but the others reference the whole mesh, the set of groups will be used. If a data src appears in multiple data sets, only its first appearence will be considered. Attribute data sets are ignored. User transformations applied to data srcs are ignored.

◆ loadFromTable()

GmSaveResultsRule * GmSaveResultsRule::loadFromTable	(	const GmResultsData *	data,
		LuaTable &	tab,
		const GmLogCategory &	parseLogger,
		const GmSimulationData *	simData )

static

Parses either a save rule definition from the given Lua table, returning a save rule object.

The parseLogger is used to emmit messages during rule parsing.

◆ print()

void GmSaveResultsRule::print	(	const GmLogCategory &	logger,
		GmLogLevel	level ) const

virtual

Prints the rule description to the appointed logger / level.

Reimplemented from GmResultsRule.

◆ run()

bool GmSaveResultsRule::run ( const GmLogCategory & logger )

virtual

Saves the data specified by the associated data sets to the specified output file.

Implements GmResultsRule.

◆ type()

virtual GmResultsRuleType GmSaveResultsRule::type ( ) const

inlinevirtual

Returns the result rule type.

Implements GmResultsRule.

The documentation for this class was generated from the following files:

inc/results/gmSaveResultsRule.h
src/results/gmSaveResultsRule.cpp
