GmSparseMatrixSingleTripletBuffer< T > Class Template Reference

Especialization of the GmSingleAppendBuffer class using the GmSparseMatrixTripletBuffer interface. More...

#include <gmSparseMatrixTripletData.h>

Inheritance diagram for GmSparseMatrixSingleTripletBuffer< T >:

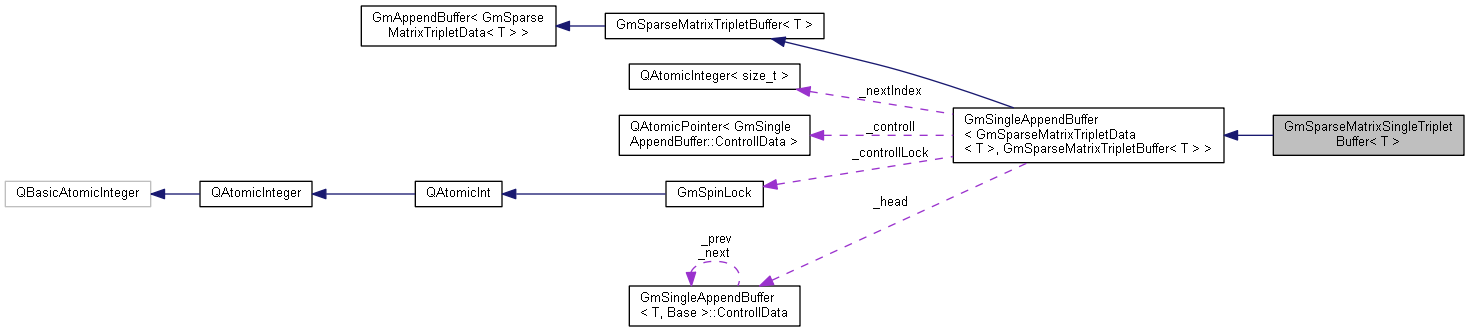

Collaboration diagram for GmSparseMatrixSingleTripletBuffer< T >:

Public Member Functions
	GmSparseMatrixSingleTripletBuffer (size_t initSize, double resizeFactor=2.0, int numThreads=-1)
	Buffer constructor. See the description for the GmSingleAppendBuffer constructor.
virtual GmSparseMatrixTripletData< T > *	sortedData (int nlin, GmSparseMatrixTripletBufferSortStrategy st)
	Similar to data() but returning a sorted vector, obtained by using the given strategy. The nlin parameter should inform the number of lines of the matrix and is used as the maximum value stored for a line or column in the triplet data.
Public Member Functions inherited from GmSingleAppendBuffer< GmSparseMatrixTripletData< T >, GmSparseMatrixTripletBuffer< T > >
	GmSingleAppendBuffer (size_t initSize, double resizeFactor=2.0, int numThreads=-1)
	Buffer constructor. Can optionally pre allocate the buffer with initSize entries. If initSize is zero, a call to reserve() MUST be made before any append. The given resizeFactor controlls how the buffer grows in case of a resize. See the class comments for additional info.
	~GmSingleAppendBuffer ()
	Destructor. Releases the allocated memory.
virtual void	clear ()
	Releases the memory used by the buffer, returning it to a recently constructed state. Must be followed by a call to reserve() before the object is able to do any further appends. Must be called from the main thread only.
virtual void	reserve (size_t bsize)
	See comments on the base class. Should not be called if the size was given in the constructor.
virtual void	append (const T &val)
	Appends val to the buffer in a thread safe way. Can grow the buffer if needed.
virtual void	appendFromThread (int tid, const T &val)
	Appends val to the buffer in a thread safe way, using the given tid to access TLS storage. Can grow the buffer if needed.
virtual size_t	size () const
	Returns the number of entries in the buffer. Must be called from the main thread only.
virtual T *	data ()
	Returns a vector filled with the buffer data. After this call, NO calls to append() can be made without a prior call to clear().
virtual size_t	usedMemory () const
	Returns an estimative of the total memory used by the buffer in bytes.
Public Member Functions inherited from GmSparseMatrixTripletBuffer< T >
Public Member Functions inherited from GmAppendBuffer< GmSparseMatrixTripletData< T > >
virtual	~GmAppendBuffer ()
	Virtual destructor.

Additional Inherited Members
Static Public Member Functions inherited from GmSparseMatrixTripletBuffer< T >
static int	strToSortStrategy (const QString &str)
	Returns the sort strategy associated with the given string. Returns -1 if no match was found.
static const char *	sortStrategyToStr (GmSparseMatrixTripletBufferSortStrategy st)
	Returns the string used to define the given sort strategy.
Protected Member Functions inherited from GmSingleAppendBuffer< GmSparseMatrixTripletData< T >, GmSparseMatrixTripletBuffer< T > >
void	clearList ()
Protected Attributes inherited from GmSingleAppendBuffer< GmSparseMatrixTripletData< T >, GmSparseMatrixTripletBuffer< T > >
ControllData *	_head
	Pointer to the first allocated buffer.
double	_resizeFactor
	The resize factor.
QAtomicInteger< size_t >	_nextIndex
	The next free index in the global vector.
QAtomicPointer< ControllData >	_controll
	The controll block pointing to the current buffer.
GmSpinLock	_controllLock
	The lock controlling changes to _controll.
T *	_dataBuffer
	The single buffer after a call to data()
int	_nt
	Number of threads considered for parallel memcopy.

Detailed Description

template<GmSparseMatrixLayoutTypes T>
class GmSparseMatrixSingleTripletBuffer< T >

Especialization of the GmSingleAppendBuffer class using the GmSparseMatrixTripletBuffer interface.

Member Function Documentation

sortedData()

template<GmSparseMatrixLayoutTypes T>

GmSparseMatrixTripletData< T > * GmSparseMatrixSingleTripletBuffer< T >::sortedData ( int nlin, GmSparseMatrixTripletBufferSortStrategy st )

virtual

Similar to data() but returning a sorted vector, obtained by using the given strategy. The nlin parameter should inform the number of lines of the matrix and is used as the maximum value stored for a line or column in the triplet data.

IMPORTANT: You should not mix calls to data() and sortedData() without a call to clear() in between.

Implements GmSparseMatrixTripletBuffer< T >.

---

The documentation for this class was generated from the following files:

• inc/sparseMatrices/gmSparseMatrixTripletData.h
• src/sparseMatrices/gmSparseMatrixTripletData.cpp
