GmSparseMatrixTripletBuffer< T > Class Template Reference

An especialization of GmAppendBufffer for triplet data with an extra method for returning the buffer already sorted. More...

#include <gmSparseMatrixTripletData.h>

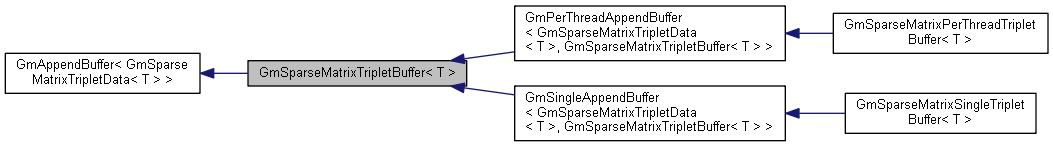

Inheritance diagram for GmSparseMatrixTripletBuffer< T >:

Collaboration diagram for GmSparseMatrixTripletBuffer< T >:

Public Member Functions
virtual GmSparseMatrixTripletData< T > *	sortedData (int nlin, GmSparseMatrixTripletBufferSortStrategy st)=0
	Similar to data() but returning a sorted vector, obtained by using the given strategy. The nlin parameter should inform the number of lines of the matrix and is used as the maximum value stored for a line or column in the triplet data. More...
Public Member Functions inherited from GmAppendBuffer< GmSparseMatrixTripletData< T > >
virtual	~GmAppendBuffer ()
	Virtual destructor.
virtual void	clear ()=0
	Releases the memory used by the buffer, returning it to a recently constructed state. Must be followed by a call to reserve() before the object is able to do any further appends. Must be called from the main thread only.
virtual void	reserve (size_t size)=0
	Informs the buffer of the expected number of entries that will be filled by (concurrent) calls to append. Can only be called from the main thread. More...
virtual void	append (const GmSparseMatrixTripletData< T > &val)=0
	Appends val to the buffer in a thread safe way. Can grow the buffer if needed.
virtual void	appendFromThread (int tid, const GmSparseMatrixTripletData< T > &val)=0
	Appends val to the buffer in a thread safe way, using the given tid to access TLS storage. Can grow the buffer if needed.
virtual size_t	size () const=0
	Returns the number of entries in the buffer. Must be called from the main thread only.
virtual GmSparseMatrixTripletData< T > *	data ()=0
	Returns a vector filled with the buffer data. After this call, NO calls to append() can be made without a prior call to clear(). More...
virtual size_t	usedMemory () const=0
	Returns an estimative of the total memory used by the buffer in bytes.

Static Public Member Functions
static int	strToSortStrategy (const QString &str)
	Returns the sort strategy associated with the given string. Returns -1 if no match was found.
static const char *	sortStrategyToStr (GmSparseMatrixTripletBufferSortStrategy st)
	Returns the string used to define the given sort strategy.

Detailed Description

template<GmSparseMatrixLayoutTypes T>
class GmSparseMatrixTripletBuffer< T >

An especialization of GmAppendBufffer for triplet data with an extra method for returning the buffer already sorted.

Member Function Documentation

sortedData()

template<GmSparseMatrixLayoutTypes T>

virtual GmSparseMatrixTripletData<T>* GmSparseMatrixTripletBuffer< T >::sortedData ( int  nlin, GmSparseMatrixTripletBufferSortStrategy  st  )

pure virtual

Similar to data() but returning a sorted vector, obtained by using the given strategy. The nlin parameter should inform the number of lines of the matrix and is used as the maximum value stored for a line or column in the triplet data.

IMPORTANT: You should not mix calls to data() and sortedData() without a call to clear() in between.

Implemented in GmSparseMatrixPerThreadTripletBuffer< T >, and GmSparseMatrixSingleTripletBuffer< T >.

---

The documentation for this class was generated from the following files:

• inc/sparseMatrices/gmSparseMatrixTripletData.h
• src/sparseMatrices/gmSparseMatrixTripletData.cpp
