GmLuaBCAccessor< T, B > Class Template Reference

A proxy class to export to the Lua environment the common methods between a GmBoundaryConditionAccessor and a GmContactBoundaryConditionAccessor. More...

#include <gmLuaValueAccessor.h>

Inheritance diagram for GmLuaBCAccessor< T, B >:

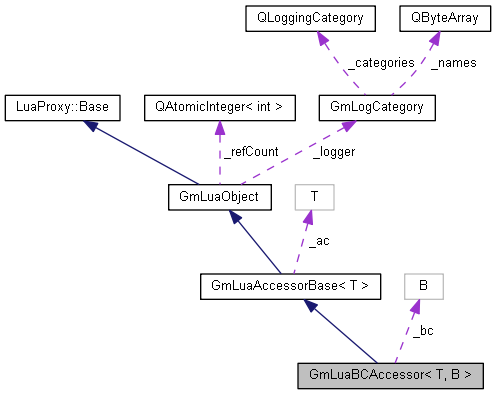

Collaboration diagram for GmLuaBCAccessor< T, B >:

Public Member Functions
virtual void	fillMetatable (lua_State *L, int index)
	Prepares the object metatable for calling methods.
Public Member Functions inherited from GmLuaAccessorBase< T >
virtual	~GmLuaAccessorBase ()
	Destructor.
virtual QString	toString () const
	Default method used by the __tostring metamethod to capture the result of tostring() over an object.
T *	accessor () const
	Returns the wrapped accessor.
Public Member Functions inherited from GmLuaObject
virtual	~GmLuaObject ()
	Destrutor.
virtual void	populateMetatable (lua_State *L, int index)
	Fills the object metatable to allow for the proxy to export its methods.
QVariant	ptrToVariant ()
	Constructs a QVariant storing a POINTER to the current object.
void	ref ()
	Increments the object reference count. Use with care.
Public Member Functions inherited from LuaProxy::Base
virtual void *	getClassMetatableID ()=0

Protected Member Functions
	GmLuaBCAccessor (T *ac, const B *bc, const GmLogCategory &logger, bool ownership)
	Constructor. Receives the BoundaryConditionAccessor or ContactBoundaryConditionAccessor to be wrapped. More...
int	parseIndex1 (lua_State *L, int stackPos, QString fname) const
	Parses and checks an index based on boundary condition index.
Protected Member Functions inherited from GmLuaAccessorBase< T >
	GmLuaAccessorBase (T *ac, const GmLogCategory &logger, bool ownership)
	Constructor. Receives the ValueAccessor to be wrapped. More...
void	parseCoord (lua_State *L, int stackPos, QString fname, GmVector &coord)
	An auxiliary function used to parse a coordinate table / object from the lua stack. More...
void	parseOptions (lua_State *L, int stackPos, Options &opt)
	Aux function to parse print options for the valueStr() call if the object at stackPos is a table.
void	pushResult (lua_State *L, const double *val)
	Pushes an accessor result on the stack. Value can be pushed as a number (scalar) or as a matrix.
Protected Member Functions inherited from GmLuaObject
	GmLuaObject (const GmLogCategory &logger)
	Construtor protegido. Somente classes derivadas devem ser instanciadas.
virtual const char *	typeName () const =0
	Returns the object type as will be stored in the object metatable.

Protected Attributes
const B *	_bc
	The boundary conditions object used to validate indices in parseIndexX()
Protected Attributes inherited from GmLuaAccessorBase< T >
T *	_ac
	The wrapped value accessor object.
bool	_owner
	Do we own the accessor?
Protected Attributes inherited from GmLuaObject
const GmLogCategory &	_logger
	A logger used by the proxy when needed.
QAtomicInteger< int >	_refCount
	Lua objects are reference counted to enable sharing them among different states. This is needed to allow for passing objects as parameters in a parallel call. The garbage collection method releases memory only for the last reference.

Private Member Functions
int	isDefValue (lua_State *L)
	Returns true if the value at the specified index is equal to the default value. More...
int	isFunction (lua_State *L)
	Returns true if the value at the specified index is a function. More...
int	setValue (lua_State *L)
	Updates the value at the specified position. The given value can be a scalar, a vector or a matrix. Vectors and matrices can be represented by lua Tables or by vector/matrix objectes. If the accessor supports functions, the value can also be a function name. It can also be a string if the accessor supports a constant map. More...
int	setValueAsDef (lua_State *L)
	Updates the value at the specified position with the default value. More...
int	functionId (lua_State *L)
	Returns the name of the function in the given index or an empty string if this is not a function.

Detailed Description

template<class T, class B>
class GmLuaBCAccessor< T, B >

A proxy class to export to the Lua environment the common methods between a GmBoundaryConditionAccessor and a GmContactBoundaryConditionAccessor.

Should not be instanced by user code. Although a template, its implementation is on the cpp file since all the needed specializations are known.

Constructor & Destructor Documentation

GmLuaBCAccessor()

template<class T, class B>

GmLuaBCAccessor< T, B >::GmLuaBCAccessor ( T *  ac, const B *  bc, const GmLogCategory &  logger, bool  ownership  )

protected

Constructor. Receives the BoundaryConditionAccessor or ContactBoundaryConditionAccessor to be wrapped.

Due to its nature, wrapped accessors WILL be DELETED together with the proxy. THIS IS A DIFFERENT BEHAVIOUR from other kinds of proxy Lua objects

Member Function Documentation

isDefValue()

template<class T , class B >

int GmLuaBCAccessor< T, B >::isDefValue ( lua_State *  L )

private

Returns true if the value at the specified index is equal to the default value.

IMPORTANT: Following Lua spirit, the boundary condition index is ONE based (and not zero based as in C)

isFunction()

template<class T , class B >

int GmLuaBCAccessor< T, B >::isFunction ( lua_State *  L )

private

Returns true if the value at the specified index is a function.

IMPORTANT: Following Lua spirit, the boundary condition index is ONE based (and not zero based as in C)

setValue()

template<class T , class B >

int GmLuaBCAccessor< T, B >::setValue ( lua_State *  L )

private

Updates the value at the specified position. The given value can be a scalar, a vector or a matrix. Vectors and matrices can be represented by lua Tables or by vector/matrix objectes. If the accessor supports functions, the value can also be a function name. It can also be a string if the accessor supports a constant map.

Stack parameters: index, [dim], value (either a scalar, a table, an object or a function/constant name). IMPORTANT: Following Lua spirit, the boundary condition index is ONE based (and not zero based as in C). If a dimension is given, it is also ONE based.

setValueAsDef()

template<class T , class B >

int GmLuaBCAccessor< T, B >::setValueAsDef ( lua_State *  L )

private

Updates the value at the specified position with the default value.

Stack parameters: index IMPORTANT: Following Lua spirit, the boundary condition index is ONE based (and not zero based as in C)

---

The documentation for this class was generated from the following files:

• inc/gmLuaValueAccessor.h
• src/gmLuaValueAccessor.cpp
