Inheritance diagram for GmpMaterialBreslerPister:

[legend]

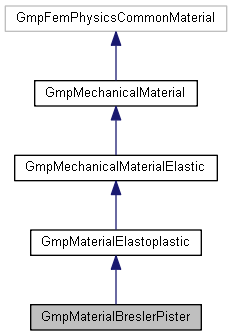

Collaboration diagram for GmpMaterialBreslerPister:

[legend]

Public Member Functions
	GmpMaterialBreslerPister (int typeIndex, QString typeName, const GmLogCategory &logger)
	Constructor. Gets as parameters the material index and its name.

virtual	~GmpMaterialBreslerPister ()
	Virtual destructor.

virtual const QVariantMap *	materialMetaDataMap ()
	Returns a pointer to the material attribute map, built when the function is called for the first time. More...

virtual bool	isIsotropic () const
	Returns true if the material is isotropic, false otherwise.

virtual double	cohesion (const GmElement e, const GmVector coord, int ip) const
	Returns the material cohesion.

virtual double	frictionAngle (const GmElement e, const GmVector coord, int ip) const
	Returns the material friction angle.

virtual double	dilationAngle (const GmElement e, const GmVector coord, int ip) const
	Returns the material dilation angle.

virtual double	yieldCriterion (const GmElement e, const GmVector &s, const GmVector coord, int ip, unsigned sc) const

virtual bool	yieldStressGradient (const GmElement e, GmVector &dfs, const GmVector &s, const GmVector coord, int ip, unsigned sc, bool ips) const

virtual bool	yieldHessian (const GmElement e, GmMatrix &dfss, const GmVector &s, const GmVector coord, int ip, unsigned sc, bool ips) const

virtual double	plasticFPotential (const GmElement e, const GmVector &s, const GmVector coord, int ip, unsigned sc) const

virtual bool	flowVector (const GmElement e, GmVector &dgs, const GmVector &s, const GmVector coord, int ip, unsigned sc, bool ips) const

virtual bool	flowVectorStressGradient (const GmElement e, GmMatrix &dgss, const GmVector &s, const GmVector coord, int ip, unsigned sc, bool ips) const

virtual double	yieldStrengthRatio (const GmElement e, const GmVector &S, const GmVector coord, int ip, unsigned sc) const
	Returns the Yield Strength Ratio (Ysr)

Public Member Functions inherited from GmpMaterialElastoplastic
	GmpMaterialElastoplastic (int typeIndex, QString typeName, const GmLogCategory &logger)

virtual bool	mechanicalConstitutiveModel (const GmElement , GmMatrix &, const GmpMechanicPoint , const GmVector *, const GmVector &, unsigned, bool) const
	Returns the updated stresses after the return mapping process.

virtual bool	explicitReturnAlgorithm (const GmElement , GmMatrix &, const GmpMechanicPoint , const GmVector *, unsigned, bool) const
	Returns the updated stresses using explicit return algorithm.

virtual bool	semiImplicitReturnAlgorithm (const GmElement , GmMatrix &, const GmpMechanicPoint , const GmVector *, unsigned, bool) const
	Returns the updated stresses using cutting plane return algorithm.

virtual bool	implicitReturnAlgorithm (const GmElement , GmMatrix &, const GmpMechanicPoint , const GmVector *, unsigned, bool) const
	Returns the updated stresses using implicit return algorithm.

virtual bool	newtonKrylovReturnAlgorithm (const GmElement , GmMatrix &, const GmpMechanicPoint , const GmVector *, unsigned, bool) const
	Returns the updated stresses using a Newton-Krylov return mapping algorithm.

virtual bool	cFunctionsReturnAlgorithm (const GmElement , GmMatrix &, const GmpMechanicPoint , const GmVector *, unsigned, bool) const
	Returns the updated stresses using a Newton-Raphson implicit state-update algorithm based on complementary functions.

virtual bool	alternativeReturnAlgorithm (const GmElement , GmMatrix &, const GmpMechanicPoint , const GmVector *, unsigned, bool) const
	Returns the updated stresses using an alternative return mapping algorithm.

virtual double	hardeningLaw (const GmElement , const GmpMechanicPoint , const GmVector *, int, unsigned) const

virtual double	hardeningStressGradient (const GmElement , const GmpMechanicPoint , const GmVector *, int, unsigned) const

virtual double	hardeningHessian (const GmElement , const GmpMechanicPoint , const GmVector *, int, unsigned) const

virtual double	lineSearch (const GmElement , GmMatrix &, GmVector &, GmVector &, const GmpMechanicPoint , const GmVector *, double, double, unsigned, bool) const

virtual double	goldenSectionMethod (const GmElement , GmMatrix &, GmVector &, GmVector &, const GmpMechanicPoint , const GmVector *, double, double, unsigned, bool) const

virtual double	quadraticInterpolation (const GmElement , GmMatrix &, GmVector &, GmVector &, const GmpMechanicPoint , const GmVector *, double, double, unsigned, bool) const

virtual double	cubicInterpolation (const GmElement , GmMatrix &, GmVector &, GmVector &, const GmpMechanicPoint , const GmVector *, double, double, unsigned, bool) const

virtual double	residualFunction (const GmElement , GmMatrix &, GmVector &, const GmpMechanicPoint , const GmVector *, double, unsigned, bool) const

virtual double	returnAlgorithm (const GmElement e, const GmVector coord, int ip) const
	Returns the type of return mapping algorithm.

virtual bool	substepping (const GmElement e, const GmVector coord, int ip) const
	Returns the substepping algorithm.

virtual double	lineSearchStrategy (const GmElement e, const GmVector coord, int ip) const
	Returns the line search strategy.

virtual double	yieldTolerance (const GmElement e, const GmVector coord, int ip) const
	Returns the yield function tolerance.

virtual double	stressTolerance (const GmElement e, const GmVector coord, int ip) const
	Returns the Stress tolerance.

virtual double	hardeningTolerance (const GmElement e, const GmVector coord, int ip) const
	Returns the hardening variable tolerance.

Public Member Functions inherited from GmpMechanicalMaterialElastic
	GmpMechanicalMaterialElastic (int typeIndex, QString typeName, const GmLogCategory &logger)
	Constructor. Gets as parameters the material index and its name.

virtual	~GmpMechanicalMaterialElastic ()
	Virtual destructor.

virtual bool	checkLoadedData (const GmElement *e) const

virtual void	tangentModulus (const GmElement e, GmMatrix &Dep, const GmpMechanicPoint mp, const GmVector *coord, unsigned nc, unsigned ips) const
	Returns the constitutive tangent matrix.

virtual double	elasticModulus (const GmElement e, const GmVector coord, int ip) const
	Returns the material elastic modulus.

virtual double	poissonRatio (const GmElement e, const GmVector coord, int ip) const
	Returns the material poisson ratio.

virtual void	stiffness (const GmElement , unsigned, GmMatrix &, const GmVector , unsigned, int) const

virtual void	flexibility (const GmElement , unsigned, GmMatrix &, const GmVector , unsigned, int) const

double	bulkModulus (const GmElement e, const GmVector coord, int ip) const
	Returns the bulk modulus (K) from Young's modulus (E) and Poisson's Coefficient (nu)

double	shearModulus (const GmElement e, const GmVector coord, int ip) const
	Returns the shear modulus (G) from Young's modulus (E) and Poisson's Coefficient (nu)

double	lameModulus (const GmElement e, const GmVector coord, int ip) const
	Returns the lame modulus(lame) from Young's modulus (E) and Poisson's Coefficient(nu)

virtual void	spatialc (const GmMatrix &C, const GmMatrix &F, GmMatrix &c, int d) const

Public Member Functions inherited from GmpMechanicalMaterial
	GmpMechanicalMaterial (int typeIndex, QString typeName, const GmLogCategory &logger)
	Constructor. Gets as parameters the material index and its name.

virtual	~GmpMechanicalMaterial ()
	Virtual destructor.

virtual bool	setInitialConditions (const GmElement e, GmpMechanicPoint mp, const GmVector *coord, unsigned sc) const
	Sets the initial conditions required by Solid materials.

virtual bool	updateDeformationGradient (GmMatrix &F, const GmElement e, const GmVector coord, int ip, bool ips=false) const

virtual bool	calcDerivedResults (const GmElement e, GmpMechanicPoint mp, const GmVector *coord, unsigned sc) const
	Calculates the derived results required by materials.

Static Public Member Functions
static GmpFemPhysicsCommonMaterial *	instance (GmSimulationData *simulation, int typeIndex, QString typeName, const GmLogCategory &logger)
	A "factory" function used to register the material with the physics material factory.

Static Public Member Functions inherited from GmpMechanicalMaterialElastic
static GmpFemPhysicsCommonMaterial *	instance (GmSimulationData *simulation, int typeIndex, QString typeName, const GmLogCategory &logger)
	A "factory" function used to register the material with the physics material factory.

Protected Types
enum	ElementPropertyIds { ST_ID = GmpMaterialElastoplastic::NUM_PROPERTY_IDS, SC_ID, SB_ID, NUM_PROPERTY_IDS }
	IDs for material element properties. More...

Protected Types inherited from GmpMechanicalMaterialElastic
enum	ElementPropertyIds { E_ID, NU_ID, DM_ID, K0_ID, NUM_PROPERTY_IDS }
	IDs for material element properties. More...

Additional Inherited Members
Public Types inherited from GmpMaterialElastoplastic
enum	returnMappingStrategy { Explicit, SemiImplicit, Implicit, NewtonKrylov, CFunctions, Alternative }
	IDs for return mapping strategies. More...

enum	lineSearchStrategy { none, goldenSection, quadratic, cubic }
	IDs for line search strategies. More...

enum	ElementPropertyIds { RMA_ID = GmpMechanicalMaterialElastic::NUM_PROPERTY_IDS, SUBSTEP_ID, LINESEARCH_ID, FTOL_ID, STOL_ID, HTOL_ID, NUM_PROPERTY_IDS }
	IDs for material element properties. More...

enum	elastoplasticGaussAttrIds { EP_GA_ID, EPOLD_GA_ID, HARD_GA_ID, HARDOLD_GA_ID, DLAMBD_GA_ID, NUM_GA_IDS }
	IDs for Gauss attributes of elastoplastic material. More...

Member Enumeration Documentation

◆ ElementPropertyIds

enum GmpMaterialBreslerPister::ElementPropertyIds

protected

IDs for material element properties.

Enumerator
ST_ID	Id for retrieving the cohesion accessor.
SC_ID	Id for retrieving the friction angle accessor.
SB_ID	Id for retrieving the dilatance angle accessor.
NUM_PROPERTY_IDS	The number of property ids above.

Member Function Documentation

◆ materialMetaDataMap()

const QVariantMap * GmpMaterialBreslerPister::materialMetaDataMap ( )

virtual

Returns a pointer to the material attribute map, built when the function is called for the first time.

This table includes the attributes treated by the base class, GmpMaterialElastoplastic, adding the cohesion 'coh', friction angle 'phi' and dilation angle 'psi'

Reimplemented from GmpMaterialElastoplastic.

The documentation for this class was generated from the following files:

inc/gmpMaterialBreslerPister.h
src/gmpMaterialBreslerPister.cpp
