GmpMechanicalMaterial Class Reference

Basic class providing the interface for a mechanical material. More...

#include <gmpMechanicalMaterial.h>

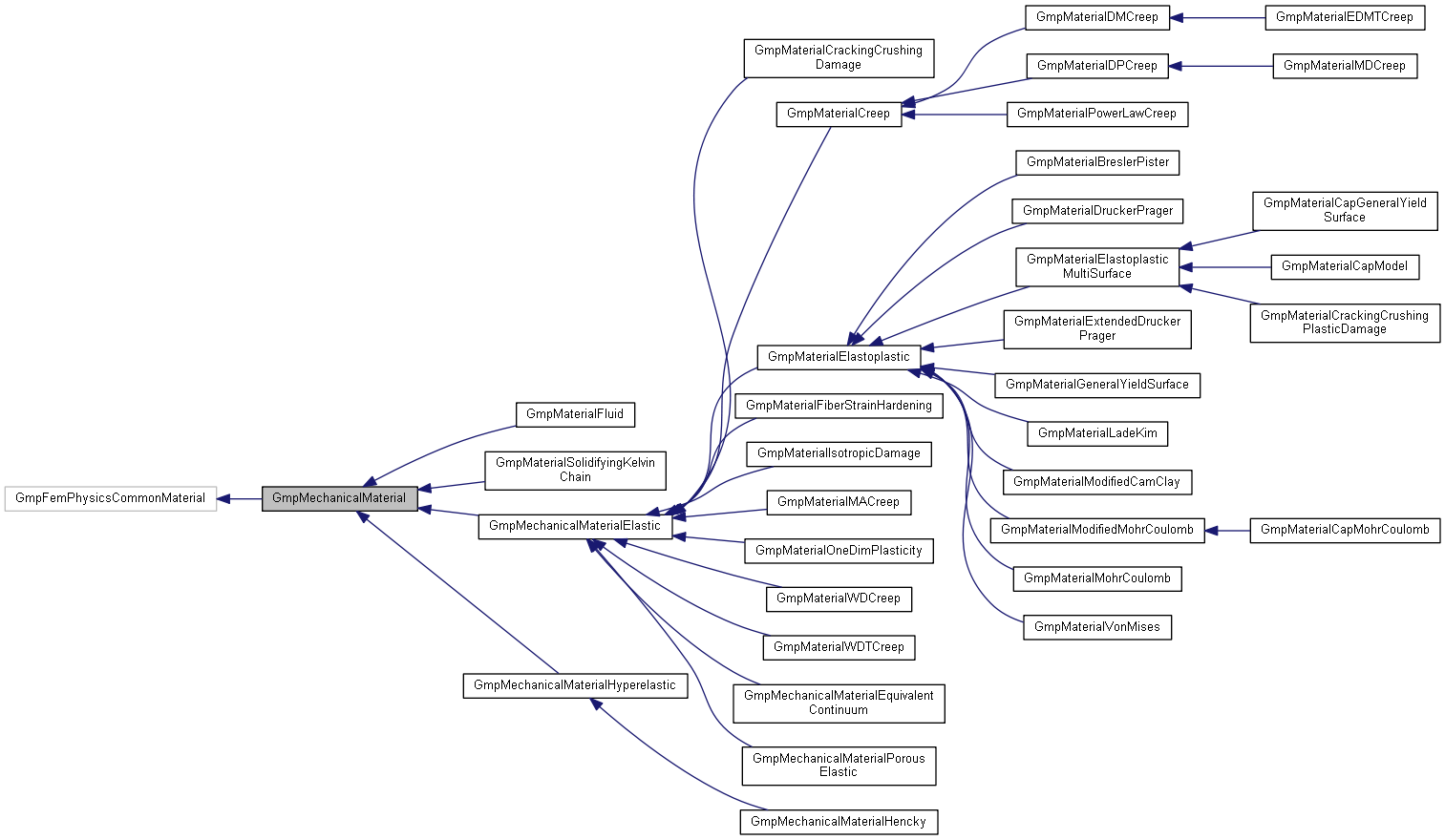

Inheritance diagram for GmpMechanicalMaterial:

Collaboration diagram for GmpMechanicalMaterial:

Public Member Functions
	GmpMechanicalMaterial (int typeIndex, QString typeName, const GmLogCategory &logger)
	Constructor. Gets as parameters the material index and its name.
virtual	~GmpMechanicalMaterial ()
	Virtual destructor.
virtual bool	mechanicalConstitutiveModel (const GmElement *e, GmMatrix &Dep, const GmpMechanicPoint *mp, const GmVector *coord, const GmVector &Time, unsigned nc, bool ips=false) const =0
	Evaluates stress and tangent matrix according to the material behavior adopted.
virtual void	tangentModulus (const GmElement *e, GmMatrix &Dep, const GmpMechanicPoint *mp, const GmVector *coord, unsigned nc, unsigned ips=false) const
	Returns the constitutive tangent matrix.
virtual bool	isIsotropic () const =0
	Returns true if the material is isotropic, false otherwise.
virtual bool	setInitialConditions (const GmElement *e, GmpMechanicPoint *mp, const GmVector *coord, unsigned sc) const
	Sets the initial conditions required by Solid materials.
virtual bool	updateDeformationGradient (GmMatrix &F, const GmElement *e, const GmVector *coord, int ip, bool ips=false) const
virtual bool	calcDerivedResults (const GmElement *e, GmpMechanicPoint *mp, const GmVector *coord, unsigned sc) const
	Calculates the derived results required by materials.

Detailed Description

Basic class providing the interface for a mechanical material.

Member Function Documentation

calcDerivedResults()

virtual bool GmpMechanicalMaterial::calcDerivedResults ( const GmElement * e, GmpMechanicPoint * mp, const GmVector * coord, unsigned sc ) const

inlinevirtual

Calculates the derived results required by materials.

Reimplemented in GmpMechanicalMaterialEquivalentContinuum.

isIsotropic()

virtual bool GmpMechanicalMaterial::isIsotropic ( ) const

pure virtual

Returns true if the material is isotropic, false otherwise.

Implemented in GmpMaterialBreslerPister, GmpMaterialCapGeneralYieldSurface, GmpMaterialCapModel, GmpMaterialCrackingCrushingPlasticDamage, GmpMaterialCreep, GmpMaterialDruckerPrager, GmpMaterialExtendedDruckerPrager, GmpMaterialFiberStrainHardening, GmpMaterialFluid, GmpMaterialGeneralYieldSurface, GmpMaterialLadeKim, GmpMaterialMACreep, GmpMaterialModifiedCamClay, GmpMaterialModifiedMohrCoulomb, GmpMaterialMohrCoulomb, GmpMaterialOneDimPlasticity, GmpMaterialSolidifyingKelvinChain, GmpMaterialVonMises, GmpMaterialWDCreep, GmpMaterialWDTCreep, GmpMechanicalMaterialElastic, GmpMechanicalMaterialHencky, GmpMechanicalMaterialHyperelastic, and GmpMechanicalMaterialPorousElastic.

mechanicalConstitutiveModel()

virtual bool GmpMechanicalMaterial::mechanicalConstitutiveModel ( const GmElement * e, GmMatrix & Dep, const GmpMechanicPoint * mp, const GmVector * coord, const GmVector & Time, unsigned nc, bool ips = false ) const

pure virtual

Evaluates stress and tangent matrix according to the material behavior adopted.

Implemented in GmpMaterialCapGeneralYieldSurface, GmpMaterialCapModel, GmpMaterialCrackingCrushingDamage, GmpMaterialCrackingCrushingPlasticDamage, GmpMaterialCreep, GmpMaterialElastoplastic, GmpMaterialFiberStrainHardening, GmpMaterialFluid, GmpMaterialIsotropicDamage, GmpMaterialMACreep, GmpMaterialModifiedCamClay, GmpMaterialOneDimPlasticity, GmpMaterialSolidifyingKelvinChain, GmpMaterialVonMises, GmpMaterialWDCreep, GmpMaterialWDTCreep, GmpMechanicalMaterialElastic, GmpMechanicalMaterialEquivalentContinuum, GmpMechanicalMaterialHencky, GmpMechanicalMaterialHyperelastic, and GmpMechanicalMaterialPorousElastic.

setInitialConditions()

virtual bool GmpMechanicalMaterial::setInitialConditions ( const GmElement * e, GmpMechanicPoint * mp, const GmVector * coord, unsigned sc ) const

inlinevirtual

Sets the initial conditions required by Solid materials.

Reimplemented in GmpMaterialCapGeneralYieldSurface, GmpMaterialCapModel, GmpMaterialCrackingCrushingDamage, GmpMaterialCrackingCrushingPlasticDamage, GmpMaterialFiberStrainHardening, GmpMaterialIsotropicDamage, and GmpMechanicalMaterialEquivalentContinuum.

tangentModulus()

virtual void GmpMechanicalMaterial::tangentModulus ( const GmElement * e, GmMatrix & Dep, const GmpMechanicPoint * mp, const GmVector * coord, unsigned nc, unsigned ips = false ) const

inlinevirtual

Returns the constitutive tangent matrix.

Reimplemented in GmpMechanicalMaterialElastic.

---

The documentation for this class was generated from the following file:

• inc/gmpMechanicalMaterial.h
