GmpMechanicalMaterialElastic Class Reference

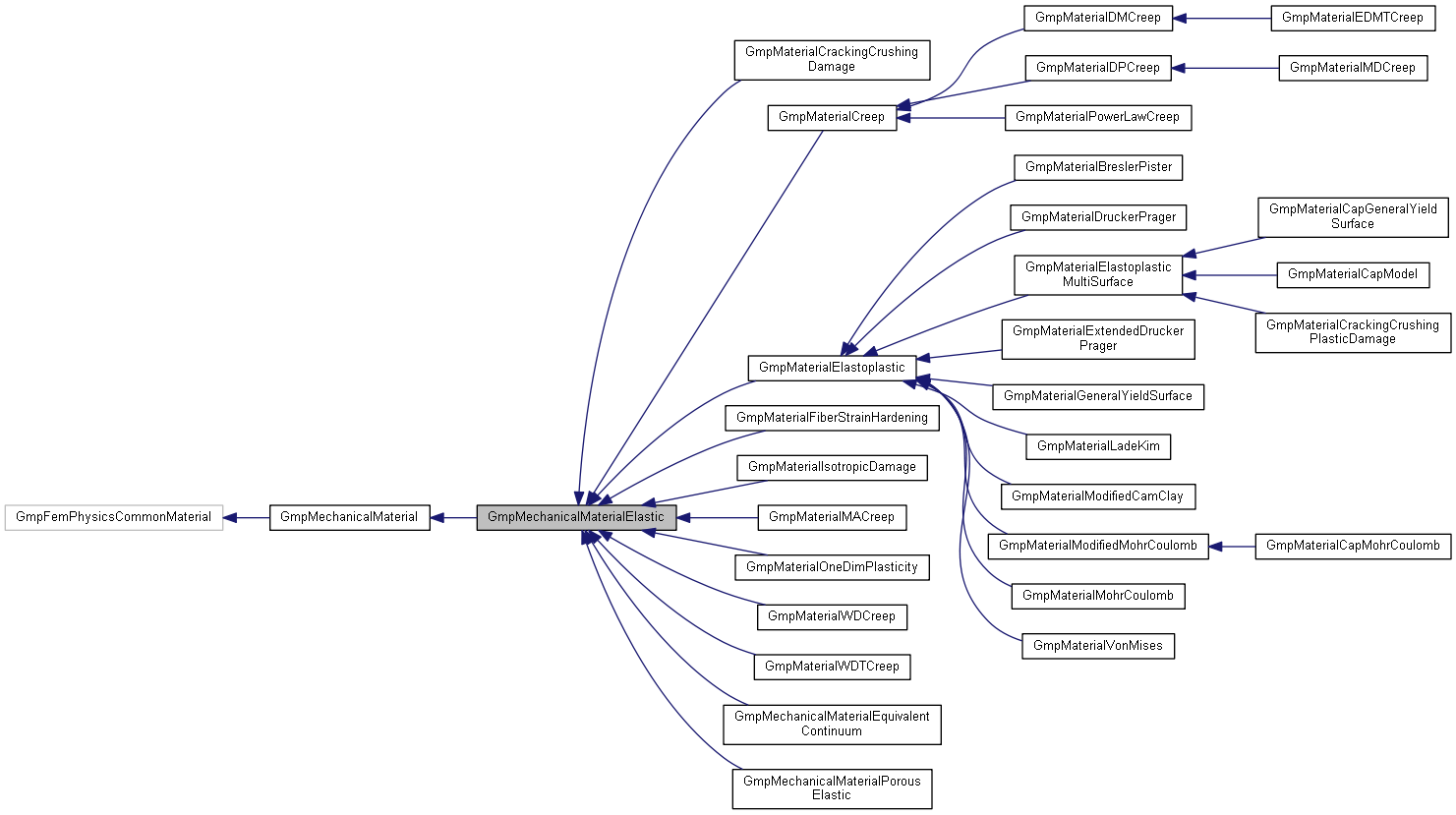

Inheritance diagram for GmpMechanicalMaterialElastic:

Collaboration diagram for GmpMechanicalMaterialElastic:

Public Member Functions
	GmpMechanicalMaterialElastic (int typeIndex, QString typeName, const GmLogCategory &logger)
	Constructor. Gets as parameters the material index and its name.
virtual	~GmpMechanicalMaterialElastic ()
	Virtual destructor.
virtual const QVariantMap *	materialMetaDataMap ()
	Returns a pointer to the material attribute map, built when the function is called for the first time.
virtual bool	checkLoadedData (const GmElement *e) const
virtual bool	mechanicalConstitutiveModel (const GmElement *e, GmMatrix &Dep, const GmpMechanicPoint *mp, const GmVector *coord, const GmVector &Time, unsigned nc, bool ips) const
	Evaluates stress and tangent matrix according to the material behavior adopted.
virtual void	tangentModulus (const GmElement *e, GmMatrix &Dep, const GmpMechanicPoint *mp, const GmVector *coord, unsigned nc, unsigned ips) const
	Returns the constitutive tangent matrix.
virtual bool	isIsotropic () const
	Returns true if the material is isotropic, false otherwise.
virtual double	elasticModulus (const GmElement *e, const GmVector *coord, int ip) const
	Returns the material elastic modulus.
virtual double	poissonRatio (const GmElement *e, const GmVector *coord, int ip) const
	Returns the material poisson ratio.
virtual void	stiffness (const GmElement *, unsigned, GmMatrix &, const GmVector *, unsigned, int) const
virtual void	flexibility (const GmElement *, unsigned, GmMatrix &, const GmVector *, unsigned, int) const
double	bulkModulus (const GmElement *e, const GmVector *coord, int ip) const
	Returns the bulk modulus (K) from Young's modulus (E) and Poisson's Coefficient (nu)
double	shearModulus (const GmElement *e, const GmVector *coord, int ip) const
	Returns the shear modulus (G) from Young's modulus (E) and Poisson's Coefficient (nu)
double	lameModulus (const GmElement *e, const GmVector *coord, int ip) const
	Returns the lame modulus(lame) from Young's modulus (E) and Poisson's Coefficient(nu)
virtual void	spatialc (const GmMatrix &C, const GmMatrix &F, GmMatrix &c, int d) const
Public Member Functions inherited from GmpMechanicalMaterial
	GmpMechanicalMaterial (int typeIndex, QString typeName, const GmLogCategory &logger)
	Constructor. Gets as parameters the material index and its name.
virtual	~GmpMechanicalMaterial ()
	Virtual destructor.
virtual bool	setInitialConditions (const GmElement *e, GmpMechanicPoint *mp, const GmVector *coord, unsigned sc) const
	Sets the initial conditions required by Solid materials.
virtual bool	updateDeformationGradient (GmMatrix &F, const GmElement *e, const GmVector *coord, int ip, bool ips=false) const
virtual bool	calcDerivedResults (const GmElement *e, GmpMechanicPoint *mp, const GmVector *coord, unsigned sc) const
	Calculates the derived results required by materials.

Static Public Member Functions
static GmpFemPhysicsCommonMaterial *	instance (GmSimulationData *simulation, int typeIndex, QString typeName, const GmLogCategory &logger)
	A "factory" function used to register the material with the physics material factory.

Protected Types
enum	ElementPropertyIds {   E_ID , NU_ID , DM_ID , K0_ID ,   NUM_PROPERTY_IDS }
	IDs for material element properties. More...

Member Enumeration Documentation

ElementPropertyIds

enum GmpMechanicalMaterialElastic::ElementPropertyIds

protected

IDs for material element properties.

Enumerator
E_ID	Id for retrieving the Young's Modulus accessor.
NU_ID	Id for retrieving the Poisson's ratio accessor.
DM_ID	Id for retrieving the stress strain matrix accessor.
K0_ID	Id for retrieving the K0 value accessor.
NUM_PROPERTY_IDS	The number of property ids above.

Member Function Documentation

elasticModulus()

virtual double GmpMechanicalMaterialElastic::elasticModulus ( const GmElement * e, const GmVector * coord, int ip ) const

inlinevirtual

Returns the material elastic modulus.

Reimplemented in GmpMaterialCreep.

isIsotropic()

virtual bool GmpMechanicalMaterialElastic::isIsotropic ( ) const

inlinevirtual

Returns true if the material is isotropic, false otherwise.

Implements GmpMechanicalMaterial.

Reimplemented in GmpMaterialBreslerPister, GmpMaterialCapGeneralYieldSurface, GmpMaterialCapModel, GmpMaterialCrackingCrushingPlasticDamage, GmpMaterialCreep, GmpMaterialDruckerPrager, GmpMaterialExtendedDruckerPrager, GmpMaterialFiberStrainHardening, GmpMaterialGeneralYieldSurface, GmpMaterialLadeKim, GmpMaterialMACreep, GmpMaterialModifiedCamClay, GmpMaterialModifiedMohrCoulomb, GmpMaterialMohrCoulomb, GmpMaterialOneDimPlasticity, GmpMaterialVonMises, GmpMaterialWDCreep, GmpMaterialWDTCreep, and GmpMechanicalMaterialPorousElastic.

materialMetaDataMap()

const QVariantMap * GmpMechanicalMaterialElastic::materialMetaDataMap ( )

virtual

Returns a pointer to the material attribute map, built when the function is called for the first time.

This table includes the attributes treated by the base class, GmpMechanicalMaterial, adding the Young modulus 'E' and Poisson Ratio 'nu'

Reimplemented in GmpMaterialBreslerPister, GmpMaterialCapGeneralYieldSurface, GmpMaterialCapModel, GmpMaterialCapMohrCoulomb, GmpMaterialCrackingCrushingDamage, GmpMaterialCrackingCrushingPlasticDamage, GmpMaterialCreep, GmpMaterialDMCreep, GmpMaterialDPCreep, GmpMaterialDruckerPrager, GmpMaterialEDMTCreep, GmpMaterialElastoplastic, GmpMaterialExtendedDruckerPrager, GmpMaterialFiberStrainHardening, GmpMaterialGeneralYieldSurface, GmpMaterialIsotropicDamage, GmpMaterialLadeKim, GmpMaterialMACreep, GmpMaterialMDCreep, GmpMaterialModifiedCamClay, GmpMaterialModifiedMohrCoulomb, GmpMaterialMohrCoulomb, GmpMaterialOneDimPlasticity, GmpMaterialPowerLawCreep, GmpMaterialVonMises, GmpMaterialWDCreep, GmpMaterialWDTCreep, GmpMechanicalMaterialEquivalentContinuum, and GmpMechanicalMaterialPorousElastic.

mechanicalConstitutiveModel()

bool GmpMechanicalMaterialElastic::mechanicalConstitutiveModel ( const GmElement * e, GmMatrix & Dep, const GmpMechanicPoint * mp, const GmVector * coord, const GmVector & Time, unsigned nc, bool ips ) const

virtual

Evaluates stress and tangent matrix according to the material behavior adopted.

Implements GmpMechanicalMaterial.

Reimplemented in GmpMaterialCapGeneralYieldSurface, GmpMaterialCapModel, GmpMaterialCrackingCrushingDamage, GmpMaterialCrackingCrushingPlasticDamage, GmpMaterialCreep, GmpMaterialElastoplastic, GmpMaterialFiberStrainHardening, GmpMaterialIsotropicDamage, GmpMaterialMACreep, GmpMaterialModifiedCamClay, GmpMaterialOneDimPlasticity, GmpMaterialVonMises, GmpMaterialWDCreep, GmpMaterialWDTCreep, GmpMechanicalMaterialEquivalentContinuum, and GmpMechanicalMaterialPorousElastic.

poissonRatio()

virtual double GmpMechanicalMaterialElastic::poissonRatio ( const GmElement * e, const GmVector * coord, int ip ) const

inlinevirtual

Returns the material poisson ratio.

Reimplemented in GmpMaterialCreep.

tangentModulus()

void GmpMechanicalMaterialElastic::tangentModulus ( const GmElement * e, GmMatrix & Dep, const GmpMechanicPoint * mp, const GmVector * coord, unsigned nc, unsigned ips ) const

virtual

Returns the constitutive tangent matrix.

Reimplemented from GmpMechanicalMaterial.

---

The documentation for this class was generated from the following files:

• inc/gmpMaterialElastic.h
• src/gmpMaterialElastic.cpp
