GmpMaterialDMCreep Class Reference

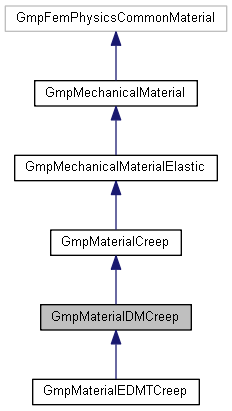

Inheritance diagram for GmpMaterialDMCreep:

Collaboration diagram for GmpMaterialDMCreep:

Public Member Functions
	GmpMaterialDMCreep (int typeIndex, QString typeName, const GmLogCategory &logger)
	Constructor. Gets as parameters the material index and its name.
virtual	~GmpMaterialDMCreep ()
	Virtual destructor.
virtual const QVariantMap *	materialMetaDataMap ()
	Returns a pointer to the material attribute map, built when the function is called for the first time. More...
virtual double	fillCreepStrainRate (const GmElement *e, const GmpMechanicPoint *mp, const GmVector *coord, const GmVector &Time, double MISES) const
	Computes the creep deformation rate.
double	thermalActEnergy (const GmElement *e, const GmVector *coord, int ip) const
	Returns the Thermal activation energy QT.
double	universalGasConstant (const GmElement *e, const GmVector *coord, int ip) const
	Returns the Universal gas constant R.
double	thresholdCreepRate (const GmElement *e, const GmVector *coord, int ip) const
	Returns the Threshold creep rate.
double	thresholdDevStress (const GmElement *e, const GmVector *coord, int ip) const
	Returns the Threshold deviatoric stress.
double	thresholdTemperature (const GmElement *e, const GmVector *coord, int ip) const
	Returns the test temperature To.
double	disCreep (const GmElement *e, const GmVector *coord, int ip) const
	Returns the Dislocation creep.
double	steadyStateCracking (const GmElement *e, const GmVector *coord, int ip) const
	Returns the Steady state cracking.
Public Member Functions inherited from GmpMaterialCreep
	GmpMaterialCreep (int typeIndex, QString typeName, const GmLogCategory &logger)
	Constructor. Gets as parameters the material index and its name.
virtual	~GmpMaterialCreep ()
	Virtual destructor.
virtual bool	checkLoadedData (const GmElement *e) const
virtual bool	mechanicalConstitutiveModel (const GmElement *e, GmMatrix &Dep, const GmpMechanicPoint *mp, const GmVector *coord, const GmVector &Time, unsigned nc, bool ips) const
	Evaluates stress and tangent matrix according to the material behavior adopted.
virtual double	yieldStrengthRatio (const GmElement *e, const GmVector &S, const GmVector *coord, int ip, unsigned sc) const
	Returns the Yield Strength Ratio (Ysr) More...
virtual double	fillTemperatureFromNodalAttr (const GmElement *e, const GmVector *coord) const
	Return temperature at integration point using the nodal Temperature field. More...
virtual void	evaluatesCreepStrain (const GmElement *e, const GmpMechanicPoint *mp, const GmVector *coord, const GmVector &Stress, const GmVector &Time, GmVector &dStrainCreep, unsigned sc) const
	Evaluates the creep strain increment.
virtual bool	isIsotropic () const
	Returns true if the material is isotropic, false otherwise.
virtual double	elasticModulus (const GmElement *e, const GmVector *coord, int ip) const
	Returns the material elastic modulus.
virtual double	poissonRatio (const GmElement *e, const GmVector *coord, int ip) const
	Returns the material poisson ratio.
virtual double	temperatureProperty (const GmElement *e, const GmVector *coord, int ip) const
	Returns the Temperature from property table.
virtual double	stressTolerance (const GmElement *e, const GmVector *coord, int ip) const
	Returns the Stress tolerance.
virtual int	dilatancyCriterion (const GmElement *e, const GmVector *coord, int ip) const
	Returns the dilatancy criterion.
virtual GmVector	dilatancyParameters (const GmElement *e, const GmVector *coord, int ip) const
	Returns thedilatancy parameters.
Public Member Functions inherited from GmpMechanicalMaterialElastic
	GmpMechanicalMaterialElastic (int typeIndex, QString typeName, const GmLogCategory &logger)
	Constructor. Gets as parameters the material index and its name.
virtual	~GmpMechanicalMaterialElastic ()
	Virtual destructor.
virtual void	tangentModulus (const GmElement *e, GmMatrix &Dep, const GmpMechanicPoint *mp, const GmVector *coord, unsigned nc, unsigned ips) const
	Returns the constitutive tangent matrix.
virtual void	stiffness (const GmElement *, unsigned, GmMatrix &, const GmVector *, unsigned, int) const
virtual void	flexibility (const GmElement *, unsigned, GmMatrix &, const GmVector *, unsigned, int) const
double	bulkModulus (const GmElement *e, const GmVector *coord, int ip) const
	Returns the bulk modulus (K) from Young's modulus (E) and Poisson's Coefficient (nu)
double	shearModulus (const GmElement *e, const GmVector *coord, int ip) const
	Returns the shear modulus (G) from Young's modulus (E) and Poisson's Coefficient (nu)
double	lameModulus (const GmElement *e, const GmVector *coord, int ip) const
	Returns the lame modulus(lame) from Young's modulus (E) and Poisson's Coefficient(nu)
virtual void	spatialc (const GmMatrix &C, const GmMatrix &F, GmMatrix &c, int d) const
Public Member Functions inherited from GmpMechanicalMaterial
	GmpMechanicalMaterial (int typeIndex, QString typeName, const GmLogCategory &logger)
	Constructor. Gets as parameters the material index and its name.
virtual	~GmpMechanicalMaterial ()
	Virtual destructor.
virtual bool	setInitialConditions (const GmElement *e, GmpMechanicPoint *mp, const GmVector *coord, unsigned sc) const
	Sets the initial conditions required by Solid materials.
virtual bool	updateDeformationGradient (GmMatrix &F, const GmElement *e, const GmVector *coord, int ip, bool ips=false) const
virtual bool	calcDerivedResults (const GmElement *e, GmpMechanicPoint *mp, const GmVector *coord, unsigned sc) const
	Calculates the derived results required by materials.

Static Public Member Functions
static GmpFemPhysicsCommonMaterial *	instance (GmSimulationData *simulation, int typeIndex, QString typeName, const GmLogCategory &logger)
	A "factory" function used to register the material with the physics material factory.
Static Public Member Functions inherited from GmpMechanicalMaterialElastic
static GmpFemPhysicsCommonMaterial *	instance (GmSimulationData *simulation, int typeIndex, QString typeName, const GmLogCategory &logger)
	A "factory" function used to register the material with the physics material factory.

Protected Types
enum	ElementPropertyIds {   QT_ID = GmpMaterialCreep::ElementPropertyIds::NUM_PROPERTY_IDS, R_ID, DEDT_ID, So_ID,   To_ID, AN1_ID, AN2_ID, NUM_PROPERTY_IDS }
	IDs for material element properties. More...
Protected Types inherited from GmpMaterialCreep
enum	ElementPropertyIds {   T_ID = GmpMechanicalMaterialElastic::NUM_PROPERTY_IDS, STOL_ID, DILATCRIT_ID, DILATPARAM_ID,   NUM_PROPERTY_IDS }
	IDs for material element properties. More...
enum	GaussAttributeIds { EC_GA_ID, ECOLD_GA_ID, NUM_GA_IDS }
	IDs for material Gauss attributes. More...
enum	NodeAttributeIds { T_NA_ID, NUM_NA_IDS }
	IDs for creep material node attributes. More...
enum	dilatancyCriterion { vanSambeek, DeVries, HunscheMod, NUM_DILATCRT_IDS }
	Dilatancy Criterion. More...
Protected Types inherited from GmpMechanicalMaterialElastic
enum	ElementPropertyIds {   E_ID, NU_ID, DM_ID, K0_ID,   NUM_PROPERTY_IDS }
	IDs for material element properties. More...

Member Enumeration Documentation

ElementPropertyIds

enum GmpMaterialDMCreep::ElementPropertyIds

protected

IDs for material element properties.

Enumerator
QT_ID	Id for retrieving the Thermal activation energy accessor.
R_ID	Id for retrieving the Universal gas constant accessor.
DEDT_ID	Id for retrieving the Threshold creep rate accessor.
So_ID	Id for retrieving the Threshold deviatoric stress accessor.
To_ID	Id for retrieving the Temperature accessor.
AN1_ID	Id for retrieving the Dislocation creep accessor.
AN2_ID	Id for retrieving the Steady state cracking accessor.
NUM_PROPERTY_IDS	The number of property ids above.

Member Function Documentation

materialMetaDataMap()

virtual const QVariantMap* GmpMaterialDMCreep::materialMetaDataMap ( )

inlinevirtual

Returns a pointer to the material attribute map, built when the function is called for the first time.

Reimplemented from GmpMaterialCreep.

Reimplemented in GmpMaterialEDMTCreep.

---

The documentation for this class was generated from the following file:

• inc/gmpMaterialDMCreep.h
