A QList<Value> that can be implicitely converted to a QVariant. More...

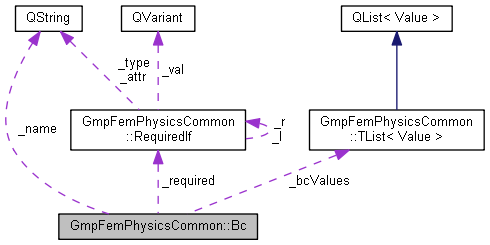

Collaboration diagram for GmpFemPhysicsCommon::Bc:

[legend]

Public Types
enum	BcType { Node = GmBoundaryCondition::GM_BC_NODE, Edge = GmBoundaryCondition::GM_BC_EDGE, Face = GmBoundaryCondition::GM_BC_FACE, Cell = GmBoundaryCondition::GM_BC_CELL, EdgeFace }

enum	BcUseType { Calc, FixedForce, FixedDof }

Public Member Functions
	Bc ()
	Default constructor needed to enable storing a Bc in a QVariant. Builds an invalid Bc.

	Bc (int id, QString name, BcType bcType, BcUseType bcUseType, const Value &bcValue, const RequiredIf &required=RequiredIf(false))
	Bc constructor given a single value accessor.

	Bc (int id, QString name, BcType bcType, BcUseType bcUseType, const ValueList &bcValues, const RequiredIf &required=RequiredIf(false))
	Bc constructor given multiple value accessor.

	operator QVariant () const
	Operator to convert a Bc to a QVariant.

Public Attributes
int	_id
	Value id storing its intended position in the values list.

QString	_name
	Value name.

BcType	_bcType
	Boundary condition application type.

BcUseType	_bcUseType
	A value defining how this BC will be used by the physics.

ValueList	_bcValues
	List with boundary condition values.

RequiredIf	_required
	Is the value required?

Detailed Description

A QList<Value> that can be implicitely converted to a QVariant.

A structure used to specify boundary condition properties needed by the physics

Member Enumeration Documentation

Enumerator
Node	The boundary condition will be applied over a node.
Edge	The boundary condition will be applied over an edge.
Face	The boundary condition will be applied over a face.
Cell	The boundary condition will be applied over a cell.
EdgeFace	The boundary condition will be applied over an edge for 2D elements and over a face for 3D elements.

Enumerator
Calc	The boundary condition affects element matrix/vector calculations and will be treated by GmpFemPhysics::fillElementDataForBc()
FixedForce	The boundary condition represents fixed force (f) values in K.u = f and will be treated by GmpFemPhysics::fixedNodalForcesBc()
FixedDof	The boundary condition represents fixed dof (u) values in K.u = f and will be treated by GmpFemPhysics::fixedNodalDofsBc()

The documentation for this struct was generated from the following file:
