GmLuaBoundaryConditionAccessor Class Reference

A proxy class to export GmBoundaryConditionAccessor methods to the Lua environment. More...

#include <gmLuaValueAccessor.h>

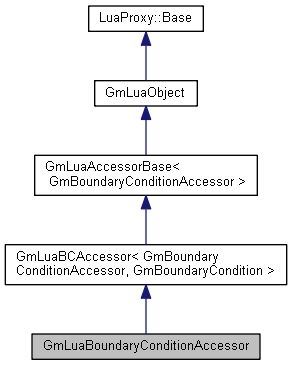

Inheritance diagram for GmLuaBoundaryConditionAccessor:

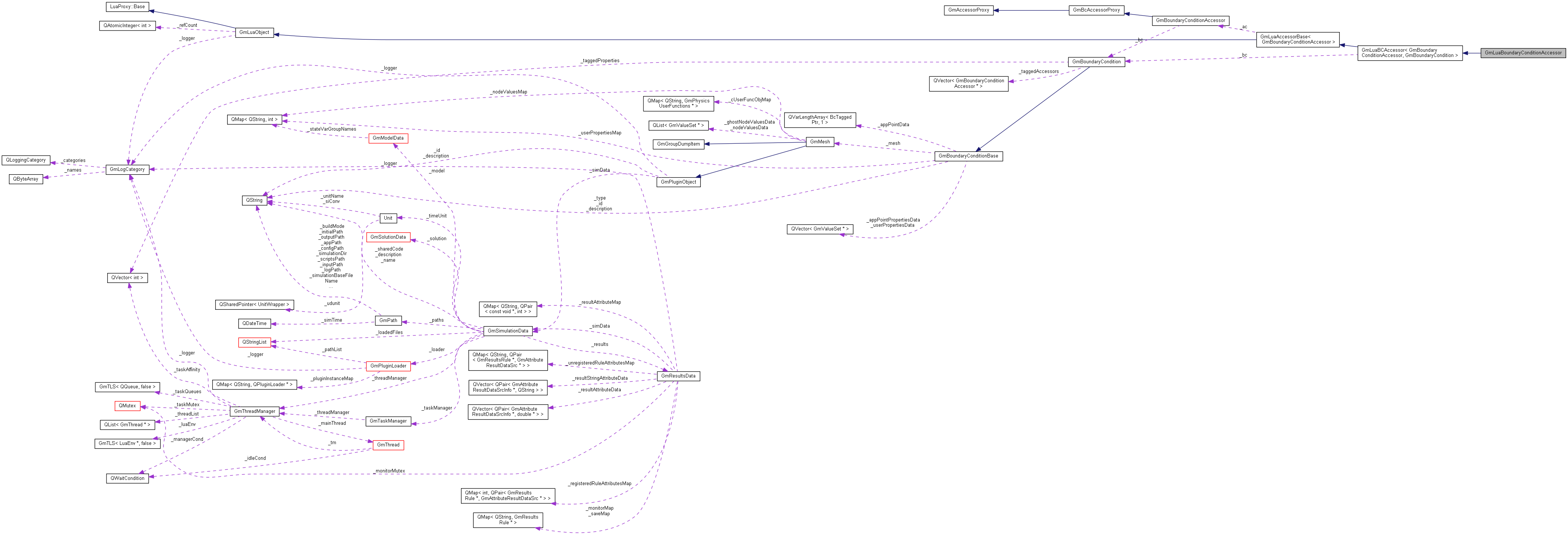

Collaboration diagram for GmLuaBoundaryConditionAccessor:

Public Member Functions
	GmLuaBoundaryConditionAccessor (GmBoundaryConditionAccessor *ac, const GmBoundaryCondition *bc, const GmLogCategory &logger, bool ownership=true)
	Constructor. See comments on the base class.
virtual const char *	typeName () const
	Returns the object type as will be stored in the object metatable.
virtual void *	getClassMetatableID ()
	Returns an unique identifier to identify an user object as a GmGaussAccessor object.
virtual void	fillMetatable (lua_State *L, int index)
	Prepares the object metatable for calling methods.
Public Member Functions inherited from GmLuaAccessorBase< GmBoundaryConditionAccessor >
virtual	~GmLuaAccessorBase ()
	Destructor.
virtual QString	toString () const
	Default method used by the __tostring metamethod to capture the result of tostring() over an object.
GmBoundaryConditionAccessor *	accessor () const
	Returns the wrapped accessor.
Public Member Functions inherited from GmLuaObject
virtual	~GmLuaObject ()
	Destrutor.
virtual void	populateMetatable (lua_State *L, int index)
	Fills the object metatable to allow for the proxy to export its methods.
QVariant	ptrToVariant ()
	Constructs a QVariant storing a POINTER to the current object.
void	ref ()
	Increments the object reference count. Use with care.

Private Types
typedef QPair< int, int >	I
	Type for an object index. Makes the implementation follow closer the one in GmLuaAccessorIndex.

Private Member Functions
I	parseIndex2 (lua_State *L, int stackPos, QString fname) const
	Parses and checks an index based on a bcIndex + listIndex number.
int	value (lua_State *L)
	Returns the scalar, vector or matrix value at the specified index, calculated at the specified coordinate, if available and the value is a function that requires an element coordinate. More...
int	valueStr (lua_State *L)
	Returns the value at the given index converted to a string (even for multivalued values). More...

Additional Inherited Members
Protected Member Functions inherited from GmLuaBCAccessor< GmBoundaryConditionAccessor, GmBoundaryCondition >
	GmLuaBCAccessor (GmBoundaryConditionAccessor *ac, const GmBoundaryCondition *bc, const GmLogCategory &logger, bool ownership)
	Constructor. Receives the BoundaryConditionAccessor or ContactBoundaryConditionAccessor to be wrapped. More...
int	parseIndex1 (lua_State *L, int stackPos, QString fname) const
	Parses and checks an index based on boundary condition index.
Protected Member Functions inherited from GmLuaAccessorBase< GmBoundaryConditionAccessor >
	GmLuaAccessorBase (GmBoundaryConditionAccessor *ac, const GmLogCategory &logger, bool ownership)
	Constructor. Receives the ValueAccessor to be wrapped. More...
void	parseCoord (lua_State *L, int stackPos, QString fname, GmVector &coord)
	An auxiliary function used to parse a coordinate table / object from the lua stack. More...
void	parseOptions (lua_State *L, int stackPos, Options &opt)
	Aux function to parse print options for the valueStr() call if the object at stackPos is a table.
void	pushResult (lua_State *L, const double *val)
	Pushes an accessor result on the stack. Value can be pushed as a number (scalar) or as a matrix.
Protected Member Functions inherited from GmLuaObject
	GmLuaObject (const GmLogCategory &logger)
	Construtor protegido. Somente classes derivadas devem ser instanciadas.
Protected Attributes inherited from GmLuaBCAccessor< GmBoundaryConditionAccessor, GmBoundaryCondition >
const GmBoundaryCondition *	_bc
	The boundary conditions object used to validate indices in parseIndexX()
Protected Attributes inherited from GmLuaAccessorBase< GmBoundaryConditionAccessor >
GmBoundaryConditionAccessor *	_ac
	The wrapped value accessor object.
bool	_owner
	Do we own the accessor?
Protected Attributes inherited from GmLuaObject
const GmLogCategory &	_logger
	A logger used by the proxy when needed.
QAtomicInteger< int >	_refCount
	Lua objects are reference counted to enable sharing them among different states. This is needed to allow for passing objects as parameters in a parallel call. The garbage collection method releases memory only for the last reference.

Detailed Description

A proxy class to export GmBoundaryConditionAccessor methods to the Lua environment.

Member Function Documentation

value()

int GmLuaBoundaryConditionAccessor::value ( lua_State *  L )

private

Returns the scalar, vector or matrix value at the specified index, calculated at the specified coordinate, if available and the value is a function that requires an element coordinate.

Stack parameters: index (bcIndex + listIndex), optional coordinate (either a table or an object).

IMPORTANT: Following Lua spirit, the boundary condition indices are ONE based (and not zero based as in C)

The coordinate value is optional. If present it can be a lua table or a vector object.

The returned value can be a single number for scalar values or a vector/matrix object for other value types.

valueStr()

int GmLuaBoundaryConditionAccessor::valueStr ( lua_State *  L )

private

Returns the value at the given index converted to a string (even for multivalued values).

Stack parameters: index(bcIndex + listIndex), optional coord (either a table or an object), optional options table. IMPORTANT: Following Lua spirit, the boundary condition indices ares ONE based (and not zero based as in C)

The options table can have the following optional fields: evalFunctions – Should we evaluate functions or do we print its name? Default = false defNil – Should we print default values as 'nil'? Default = false format – Printf like format string (ex: '12.4f')

---

The documentation for this class was generated from the following files:

• inc/gmLuaValueAccessor.h
• src/gmLuaValueAccessor.cpp
