GmMultiGaussCoordinates Class Reference

A helper class that returns the coordinates of an element's Gauss points, tailored to be used inside a loop over a set of elements. More...

#include <gmGaussCoordinates.h>

Inheritance diagram for GmMultiGaussCoordinates:

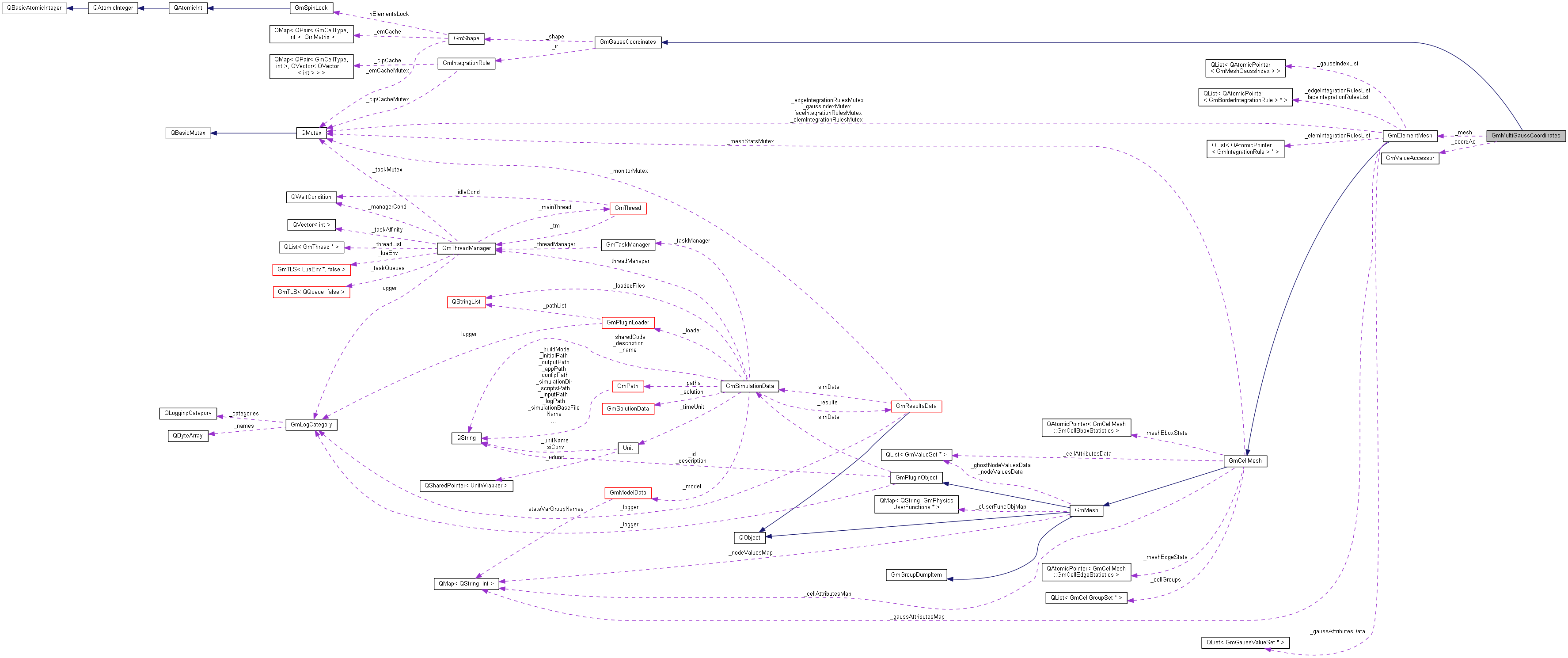

Collaboration diagram for GmMultiGaussCoordinates:

Public Member Functions
	GmMultiGaussCoordinates (const GmElementMesh *mesh, int ruleSet, const GmValueAccessor *coordAc)
	Builds an object that can be used to return an elemnt's Gauss coordinates after a call to setElement()
void	setElement (const GmElement *e)
	Sets the current element.
Public Member Functions inherited from GmGaussCoordinates
int	numPoints () const
	Return the number of integration points for this element.
void	coord (int ip, GmVector &c) const
	Fills c with the cartesian coordinates of integration point ip.
const GmShape *	shape () const
	Returns the current element shape function.
const GmIntegrationRule *	integrationRule () const
	Returns the current element integration rule.
GmMatrix &	coordMatrix ()
	Returns a WRITABLE reference to the current element node coordinates. Can be used to alter the standard element node coordinate set.

Private Attributes
const GmElementMesh *	_mesh
	The mesh containing the traversed elements.
int	_ruleSet
	The rule set defining the integration rules used by the elements.
const GmValueAccessor *	_coordAc
	The node coordinate accessor.
GmCellType	_lastType
	The type of the last element.

Additional Inherited Members
Protected Member Functions inherited from GmGaussCoordinates
	GmGaussCoordinates (const GmShape *shape, const GmIntegrationRule *ir)
	The basic constructor. Accepts NULL parameters as long as they are filled before using numPoints() or coord()
Protected Attributes inherited from GmGaussCoordinates
const GmShape *	_shape
	The shape function for the element type.
const GmIntegrationRule *	_ir
	The integration rule defining the set of Gauss points.
GmMatrix	_X
	The matrix with element node coordinates.

Detailed Description

A helper class that returns the coordinates of an element's Gauss points, tailored to be used inside a loop over a set of elements.

Use it like: GmVector ipCoord; GmMultiGaussCoordinates egc(mesh, ruleSet, nodeAc); GmForeachElement(const GmElement* e, mesh) { egc.setElement(e); for(int ip = 0, nip = egc.numPoints(); ip < nip; ip++) { egc.coord(ip, ipCoord); // Fills ipCoord with the cartesian coordinates of the Gauss point ip for element e } }

---

The documentation for this class was generated from the following files:

• inc/acData/gmGaussCoordinates.h
• src/acData/gmGaussCoordinates.cpp
